INNOKIN GO Z 1500mAh 2ml Pen Kit Instruction Manual

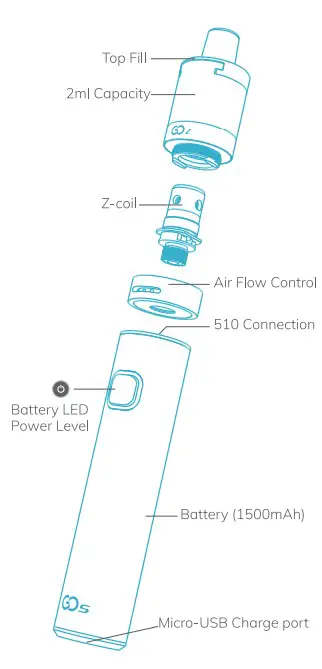

Components
How To Use

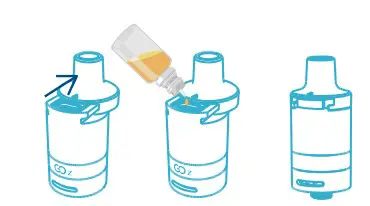

Fill the tank and adjust the air flow.
FILL THE TANK •Push mouth-piece in the direction of the arrow to slide open top cap. •ill with elquid. •Do not overfill.
IMPORTANT:
WAIT 5 MINUTES FOR THE NEW COIL TO PRIME AFTER FILLING .
ADJUST THE AIR FLOW (Turn the base to adjust air flow to your Ideal draw and enjoy!)

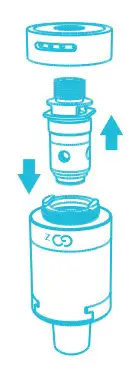

WICHTIG: STELLEN SIE VOR DEM AUSTAUSCH DER COIL SICHER. DASS DER TANK LEER 1ST.
Battery level
- Use a high quality 5V Wall Charger and included micro USB Cable.
- Gently insert micro-USB correctly.
- Do not charge the Gos unattended.
- When GOS is fully charged the LED will show green.
Important
- Keep 510 Connection clean of debris/eliquid.
- Keep tank at least 1/3 full for best longevity and flavors.
- Do not vape if tank is empty.
- If there is a burnt taste, replace coil.
- Replace coil when there is a reduction in flavour or vapour.
Protections
- Red LED flashes 4 times: Low voltage protection. Solution: Charge battery.
- Red&Green LED flashes 4 times: Short circuit protection.
Solution: Check the tank/coil and replace thecoil. - Red&Green LED flashes 3 times: TIME OUT Protection. Solution: Press(:) again.
- HIGH TEMP protection: When the PCB
- Temperature exceeds 115°C. Output reducepower until the PCB returns to a safe operating.

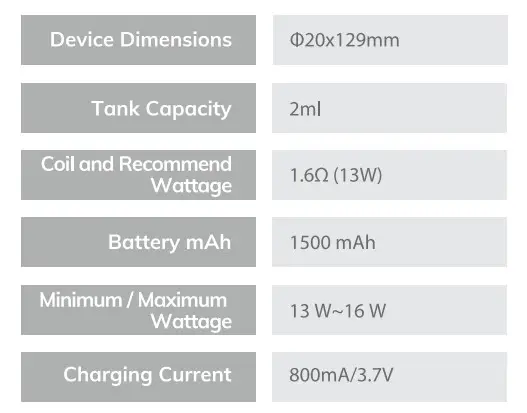

Specifications
