Installation instructions :
SY9105 Bailey LED Bathroom Mirror
with Shelf & Demister

Thank you for purchasing this SycamoreLED.com product.
Please make sure instructions are followed carefully prior to and during installation and the product is not altered, otherwise, a warranty may not be valid. For technical support or warranty information please visit www.sycamoreLED.com, or call our dedicated technical helpline at +44 (0) 113 2866686.

IMPORTANT—Please read prior to installation

1. Please read these instructions carefully before commencing any work
2. Please retain these instructions for future reference
3. This unit must be installed by a qualified electrician in accordance with the IEE wiring regulations and building regulations
4. To prevent electrocution switch the power off at the mains supply before installing or maintaining this fitting
5. Ensure others cannot restore the electrical supply without your knowledge

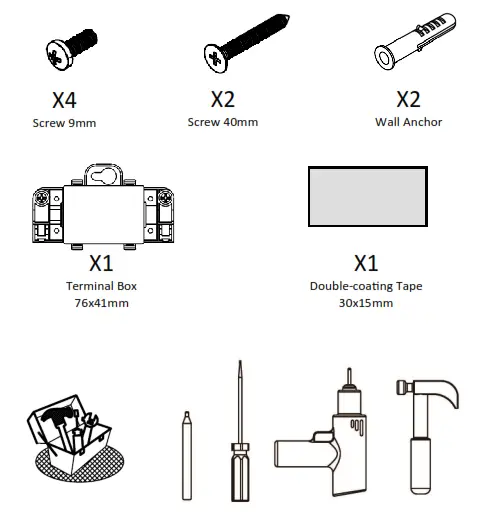

CONTENTS & TOOLS REQUIRED

PACK CONTENTS

BATHROOM REGULATIONS

This product is IP44 rated and is suitable for installation in Zone 2 & Outside Zones

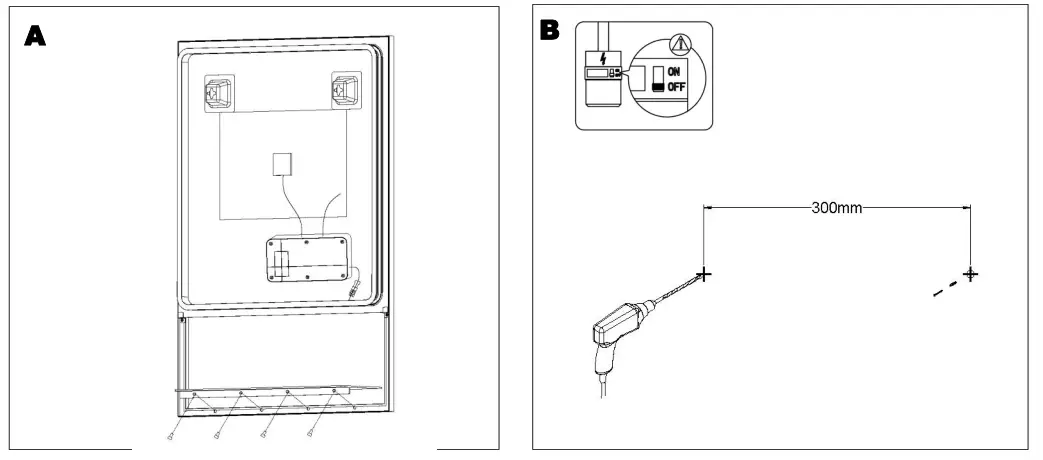

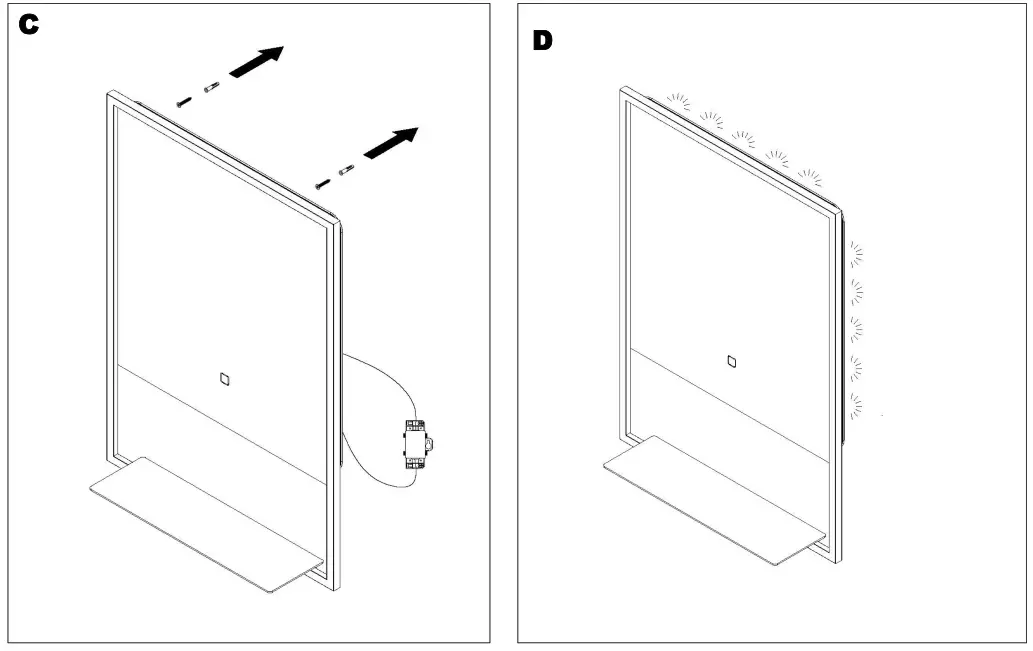

INSTALLATION INSTRUCTIONS

Switching on/off

• Pressing the touch button on the front of the mirror will switch the mirror on
• Touch again to switch off

Demister Function

• The demister will automatically switch on when the sensor button is pressed to switch the light on.
• Demister will switch off automatically after 30 minutes.

CARE IN USE

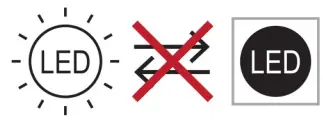

• Please note this fitting has nonreplaceable parts
• Always switch off or disconnect from the mains when cleaning the product.
• We recommend cleaning with a soft dry cloth. Do not use scourers, abrasives, or chemical cleaners.
• Do not allow moisture to come into contact with electrical parts
• This luminaire should not be disposed of with normal household rubbish. When a replacement is purchased, this luminaire should be returned to the retailer to safely  dispose of (WEEE Directive effective July 2006—Waste from Electrical & Electronic Equipment)

This product contains a light source of energy efficiency class G https://tinyurl.com/y5vaumpd
SycamoreLED.com
LS26 8XT
