Window seal for mobile air-conditioners
INSTRUCTIONS FOR USE
eta 0578900100
9193614 Window Seal for Mobile Air-Conditioners
| 1 | Open the window and remove dirt and fat on the casement and frame. Then attach the velcro to the frame (A). |
| Note: Be sure the attached velcro does not damage the frame surface. Never attach the velcro to the window sealing. The window must allow normal closing. | |
| 2 | Attach the velcro to the casement. |
| Note: Be sure the attached velcro does not damage the casement surface. Never attach the velcro to the window sealing. The window must allow normal closing. | |

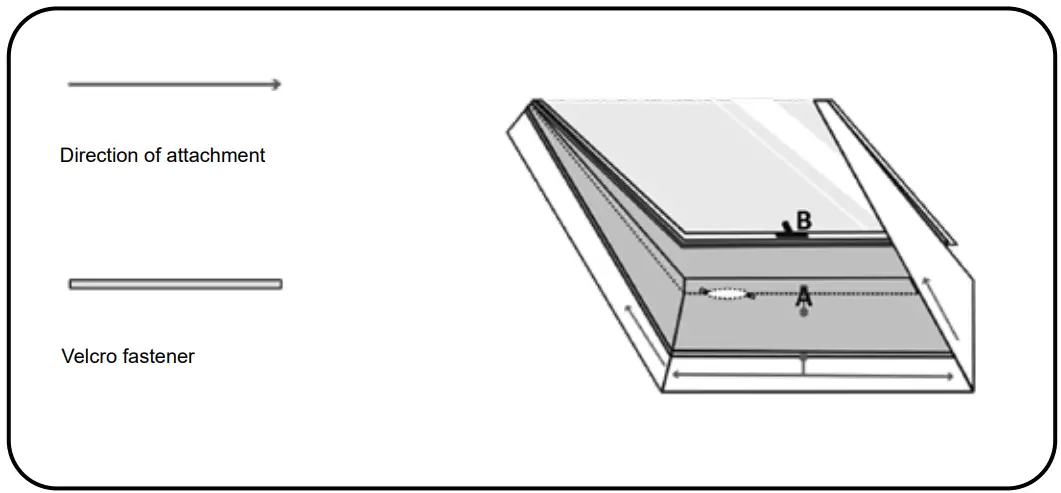

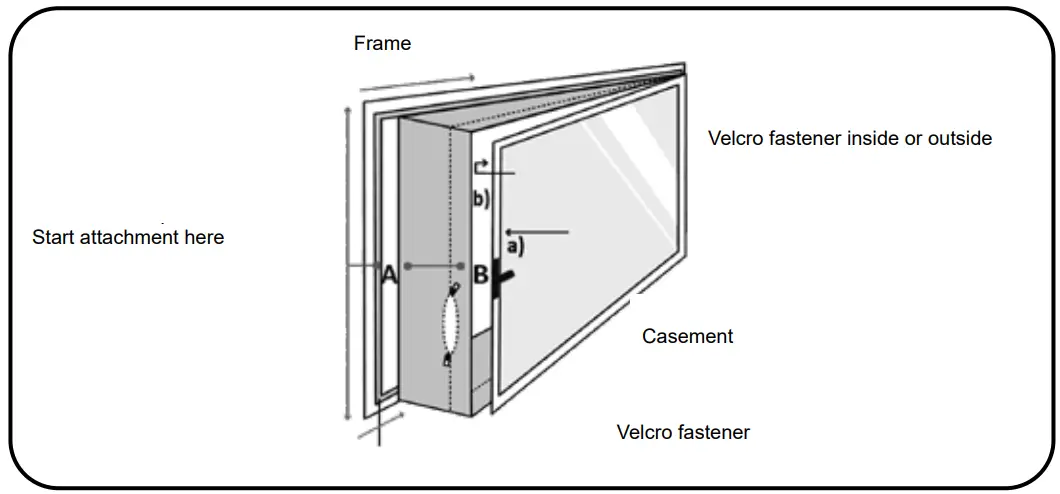

| 3 | Leave the window open. First, attach the wider sealing side (A) to the frame (the velcro must be closed). Start attaching in the center and proceed towards window hinges. |
| 4 | Close the window, do not squash the sealing. |
| 5 | Attach the narrow side (B) to the casement (open the velcro). Again, start attaching in the center and proceed towards window hinges. |
| 6 | Open the window and lead the air conditioning hose outside. Then seal the hose on both sides using velcro. |
| 7 | Check the correct installation. |
© DATE 22/10/2021
e.č. 59/2021
