Vivadia K632 Air Compression Leg Massager Instruction Manual

Air Compression Leg Massager
K632 v01: 18/03/22
Please read and retain these instructions for future reference

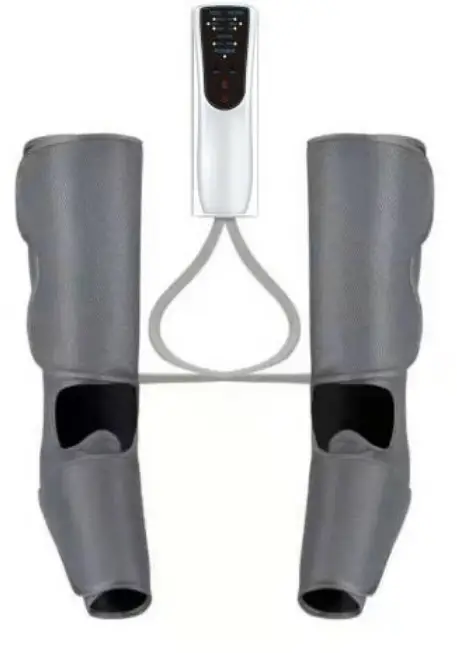

K632 Air Compression Leg Massager

Dimensions
(H) 40 x (L) 28cm
Length of mains lead: 170cm

• AIR COMPRESSION MASSAGER THAT PREVENTS AS WELL AS EASES – HEAT IMPROVES CIRCULATION, MASSAGE PROVIDES RELIEF
• USE ONCE OR TWICE A DAY FOR 10 MINUTES EACH TIME TO RELIEVE LEG FATIGUE. MULTIPLE MASSAGE MODES BRING YOU A DIFFERENT  MASSAGE EXPERIENCE.
• AIR COMPRESSION CHAMBERS CONTRACT AND MASSAGE MUSCLES EFFECTIVELY RELIEVING SWELLING, AND LEG FATIGUE, AND BRINGING  INCREDIBLE COMFORT TO THE LEGS.
• FOR ANKLES, CALVES, AND FEET A LOWER LEG MASSAGE
• HOOK & LOOP DESIGN SO YOU CAN GET A COMFORTABLE FIT
• MAX CIRCUMFERENCE: 50cm

Technical details
Input Voltage: 100-240Vac, 50Hz-60Hz, 1.0A Max
Output Voltage: 12.0V⎓2.0 A, 24W
Default time:20min.
Please consult your GP if you are pregnant, suffer from skin infections, high blood pressure, use a pacemaker, or have another serious medical condition.

Safety Precautions

• DO NOT USE VOLTAGE BEYOND THE REQUIREMENT OF THIS PRODUCT.
• DO NOT ATTEMPT TO REPAIR OR DISMANTLE THE PRODUCT. THERE ARE NO USER-SERVICEABLE PARTS.
• DO NOT USE THE PRODUCT IN A PLACE WHERE IT MAY BECOME WET OR DAMP. IF THE UNIT BECOMES WET, DO NOT USE IT.
• STOP USING THE PRODUCT IMMEDIATELY IF YOU FEEL UNCOMFORTABLE OR ANY ABNORMALITIES OCCUR.
• DO NOT USE THIS PRODUCT IN A HIGH-TEMPERATURE ENVIRONMENT
• DO NOT USE THIS PRODUCT IF YOU ARE CURRENTLY PREGNANT OR MENSTRUATING.
• DO NOT PLACE THE UNIT IN A PLACE WHERE IT MAY BE IN CONTACT WITH FLAMMABLE ITEMS, OR EXPLOSIVE ITEMS. OR CHEMICALS.
• DO NOT TOUCH THE UNIT WITH ANY SHARP OBJECT OR RISK DAMAGE.
• DO NOT USE THIS PRODUCT IF ANY OF THE BELOW APPLY TO YOU: -SKIN IS INFECTED, SWOLLEN, BURNT, OR OTHERWISE DAMAGED

Air Compression Leg Massager
Please read and retain these instructions for future reference
-YOU HAVE A PACEMAKER OR OTHER MEDICAL IMPLANT.
-YOU ARE SUFFERING FROM HEART DISEASE.
-YOUR BONES ARE FRAGILE OR INJURED.
-YOU ARE SUFFERING FROM CANCER.
-YOU ARE RECEIVING TREATMENT OR YOUR BLOOD PRESSURE IS NOT NORMAL.
-YOU ARE SUFFERING FROM OSTEOPOROSIS.

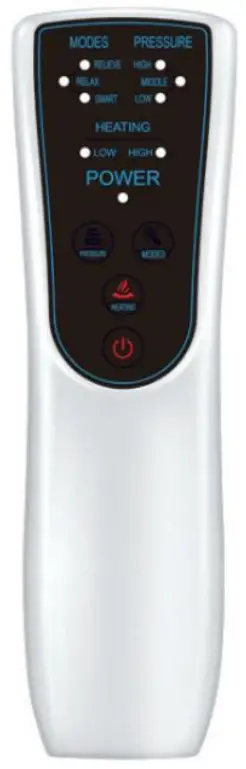

Controls

1. Press the key to enter the slow horizontal mode automatically, the air pressure is in a low position by default, and the heating function is in the off state.
2. Press the mode switch to cycle through the three modes (relieve, relax, and smart).
3. Press the air pressure switch, and the three strengths (high, middle, low) are switched in cycles.
4. Press the heating switch to switch the temperature to 2 levels (high level and low level) cyclically.
5. Press the again to shut down and end the work.

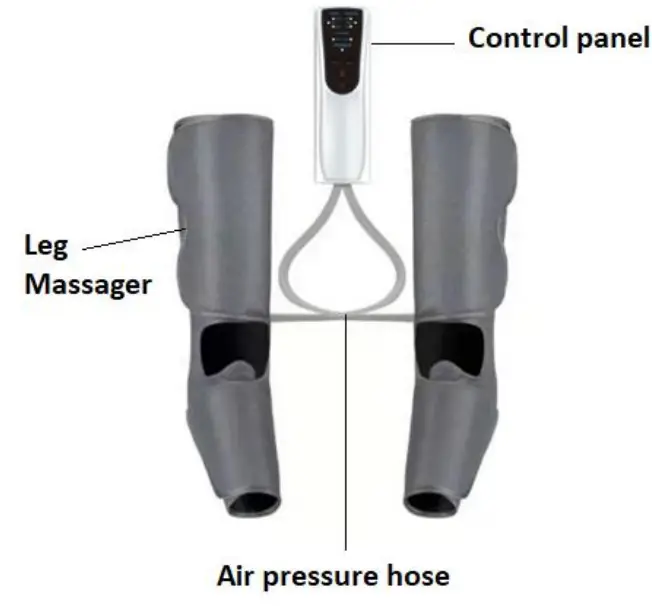

Operation

1. Slip-on each massager, keeping your feet flat on the floor.
   Note that one is marked L and the other R for left and right foot.
2. Use the strap to tightly secure your foot into the massager.
3. Use the strap to tightly secure your leg into the massager.
4. Move your foot to make sure that the massager is securely fastened.
5. Insert the two air pressure hoses into the controller.
6. Plug the adaptor into a wall socket.
7. Sit comfortably. Do not cross your legs.
8. Press the power button on the control panel. When switched on the LED will light up.
9. Adjust the air pressure strength and mode which will be shown on the LCD screen.

NOTE: the device will automatically shut off after 20 minutes For best results, do not use the leg massager for more than an hour.

Care and maintenance

• Store the product in a dry place, and keep away from moisture and direct sunlight.
• Wipe clean with a dry towel.

Troubleshooting

PLUG WIRING (UK & IRELAND)
This appliance is supplied with a mains adaptor/charger with BS1363 plug pins.
DO NOT use If the socket outlets in your home or office are not suitable for this product’s mains adaptor/ charger plug pins. Attempts to insert the mains adaptor/charger into the wrong socket are likely to cause electric hazards or damage.
DO NOT use any other mains transformer/charger than the one that is supplied with this product.

DISPOSAL

• Coopers of Stortford use recyclable or recycled packaging where possible.
•  Please dispose of all packaging, paper, cartons, and packaging in accordance with your local recycling regulations.
• Plastics, polybags – Contain the following recyclable plastic.

Code & Symbol
Type of Plastic	ABS, TPU, Silicone, Polyester, Nylon
Commonly used for	CD’s, crisp packets, various flexible packaging, baby bottles, sunglass lenses
Notes	Not often or widely recycled

• At the end of the product’s lifespan please check with your local council authorized household waste recycling center for disposal.

The Enterprise Department
UK Head Office, 11 Bridge Street, Bishop’s Stortford, CM23 2JU
Tel: 0844 4824400*, Fax: 01279 756595
www.coopersofstortford.co.uk
EU address: D.S.B. LD, 160 Bd. de Fourmies, 59100 Roubaix, France
Tel: (+44) 1279 701269
*UK Calls cost around 7 pence per minute plus your telephone company’s network access.
Please check with your telephone supplier.
