USER GUIDE
AIR COMPRESSION PNEUMATIC FULL LEG MASSAGER
BVAIRPFLEGA

SAFETY & WARNINGS
- Do not use voltage beyond the requirement of this product
- Do not attempt to repair or dismantle the product as there are no user-serviceable parts.
- Do not use the product in a place where it may become wet or damp. If the unit becomes wet, discontinue use immediately.
- Stop using the product immediately if you feel uncomfortable or any abnormalities occur.
- Do not use this product in a high-temperature environment.
- Do not use this product if you are currently pregnant or menstruating.
- Do not place the unit near flammable items, explosive items, or chemicals.
- Do not touch the unit with any sharp objects.
- Do not use this product if any of the below apply to you:
– Your skin is infected, swollen, burnt or otherwise damaged.
– You have a pacemaker or other medical implant
– You are suffering from heart disease.
– Your bones are fragile or injured.
– You are suffering from cancer.
– You are receiving medical treatment, or your blood pressure is not normal.
– You are suffering from osteoporosis.

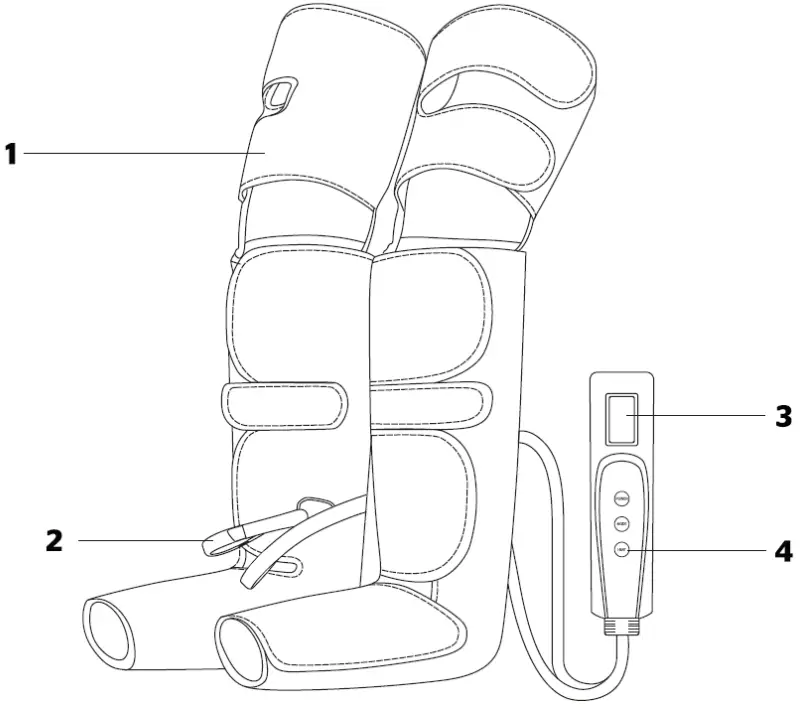

OVERVIEW
- Leg massager
- Air pressure hose
- LCD screen
- Control panel

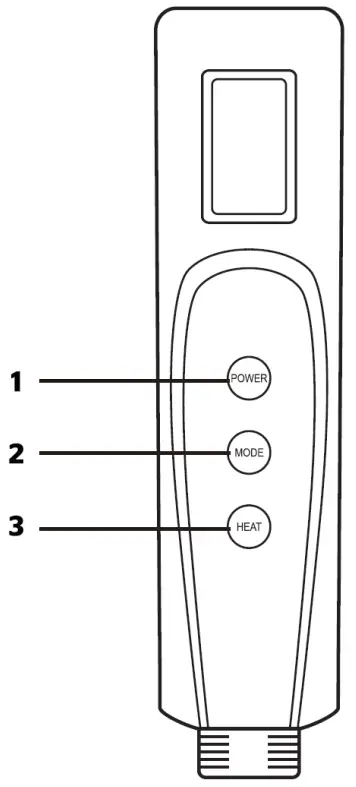

Controls

- POWER – Press to power on the device. Press a second time to adjust the intensity between Low, Middle, and High. Press and hold for 3s again to power off the product

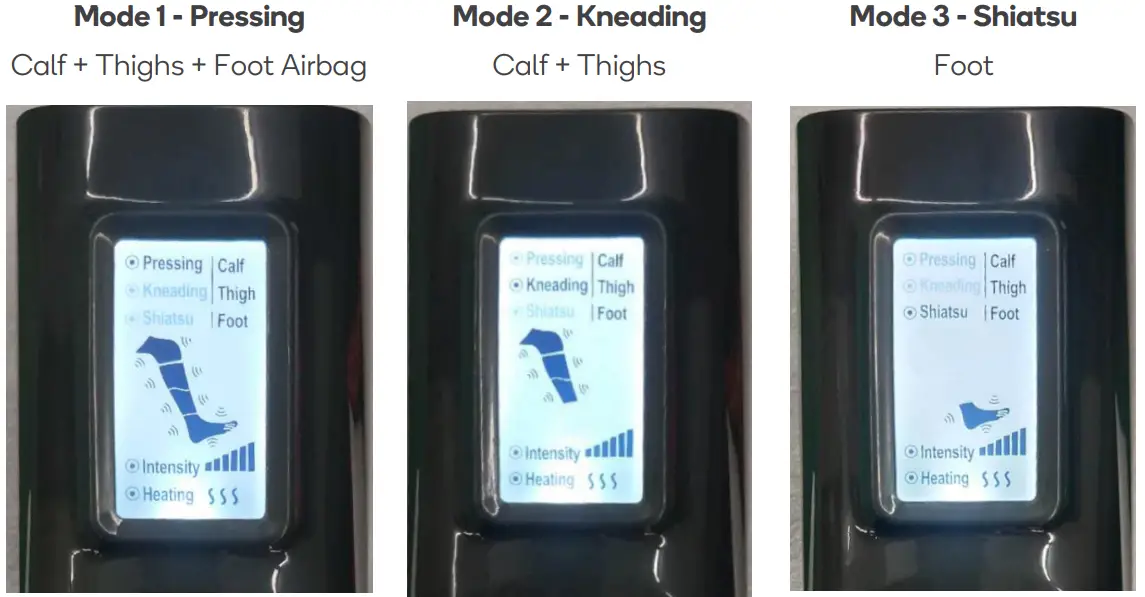

- MODE – Press to select from the three available modes.
• Mode 1: Pressing (Calf + Thighs + Foot Airbag)
• Model 2: Kneading (Calf + Thighs)
• Mode 3: Shiatsu (Foot) - HEAT – Turns the heat function on or off. The heating function is positioned in the Knee and Calf areas of the massager.
OPERATION

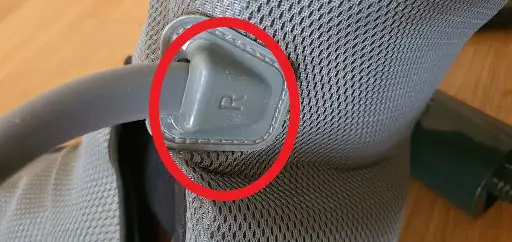

- Slip on each massager, keeping your feet flat on the bottom. Note that each side is marked L and R for each foot accordingly.

- Use the Velcro straps to tightly secure your feet and legs into the massager.

- Move your foot around to ensure that the massager is securely fastened.
- Insert both air pressure connections into the controller.

- Press the power button to power the device on.
- Adjust the air pressure strength and mode using the Power and Mode buttons on the controller. You can view the current mode and intensity on the LCD screen.
Note:
The device will automatically shut off after 20 minutes.
For best results, do not use the leg massager for more than an hour at a time.
Modes:

Heat – The Knee and Calf areas of the massager are equipped with a heating function, and the heat levels can be selected accordingly.
CLEANING & CARE
- Store the product in a dry place, away from moisture and direct sunlight
- Wipe clean with a dry towel.
TROUBLESHOOTING
| Problem | Cause | Solution |
| The device does not operate. | The unit is not connected to a power source. | Make sure the unit is fully connected to the power. |
| The power button was not pressed. | Press the power button. | |
| The device suddenly stops working. | The unit was running for more than 20 minutes. | Restart the unit to resume use. |
SPECIFICATIONS
| Rated voltage | 12V 2A |
| Power consumption | 24W |
| Default operation time | 20 minutes |
IN THE BOX
- Leg massager
- Power adapter
- User guide

Need more information?
We hope that this user guide has given you the assistance needed for a simple set-up.
For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
