Lavi Industries 50-3015 Retractable Safety Barriers
Parts List
| OR |
|

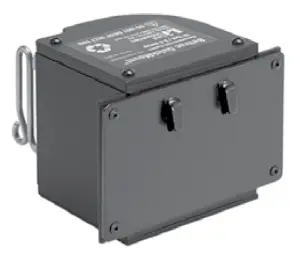

Standard QuickMount

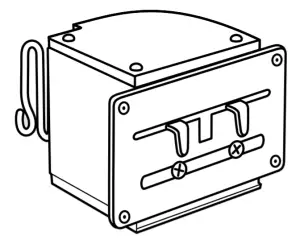

Adjustable QuickMountRequired Tools
|
|
Screw Driver
GogglesInstallation Instructions

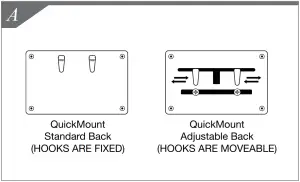

- Determine desired location for QuickMount. If using an Adjustable QuickMount, observe the slots in your upright rails, slide the hooks on back of QuickMount accordingly and tighten screws. See Figure A.

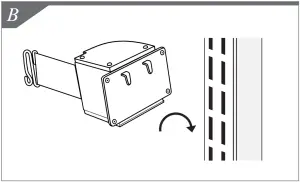

- Install QuickMount by inserting the back hooks into the rail slots. See Figure B.

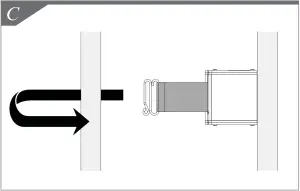

- Pull belt by holding belt end and pull across aisle to opposite rack. See Figure C.

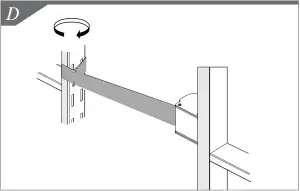

- Wrap belt around upright then slide belt end onto belt while making sure belt is tight and secure. See Figure D.

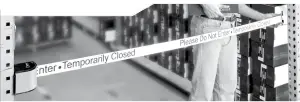

Industrial-grade temporary barricades

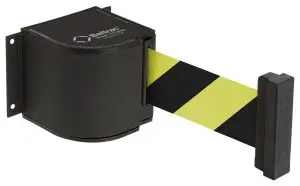

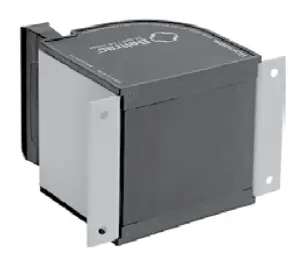

Permanent Wall Mount
50-3015 18ft or 24ft
Our Standard Wall Mount is ideal for blocking off wide corridors and for temporarily securing lanes. Easily attaches to a wall using 4 screws. Includes wall receptacle. Choose 18ft. or 24.

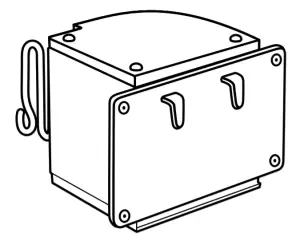

Warehouse Standard QuickMount®
50-3016M 18ft
Temporarily attach our Quick Mount Safety Barrier to your warehouse upright by simply clicking into place. For use with uprights with holes measuring 1.5 inches apart.

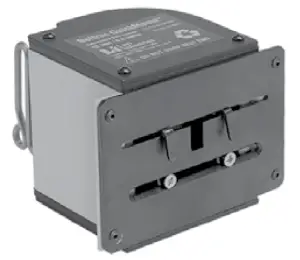

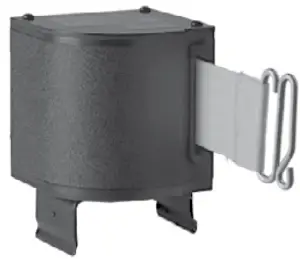

Warehouse Adjustable QuickMount®
50-3016u 18ft
The Adjustable Quick Mount Safety Barrier temporarily attaches to your warehouse upright by simply clicking into place. Back clips adjust to fit uprights with holes measuring between 1 inch to 3.5 inches apart.

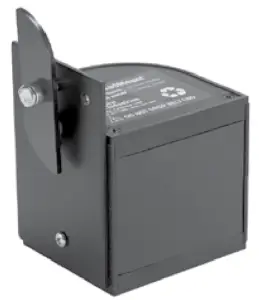

Warehouse Upright FixedMount®
50-3017 18ft
Create a more permanent safety barrier location within your warehouse using our Fixed Mount Safety Barrier. Securely mounts to warehouse uprights with a quick tightening of the back bolt.
Warehouse RackMount®
50-3017RM 18ft
The Rack Mount Safety Barrier instantly snaps into place on a beam, short wall, or rack wall, providing a temporary safety barrier where you need it. Fits onto a 2.75″ wide beam or wall.
JetTrac™ 65-foot Barrier
50-5550 65ft
Create a convenient, always available barrier over an extended area with our swiveling wallmount. Extends up to 65 feet!
