Powerbass Oe-692t Shallow Mount Coaxial Speakers Instruction Guide

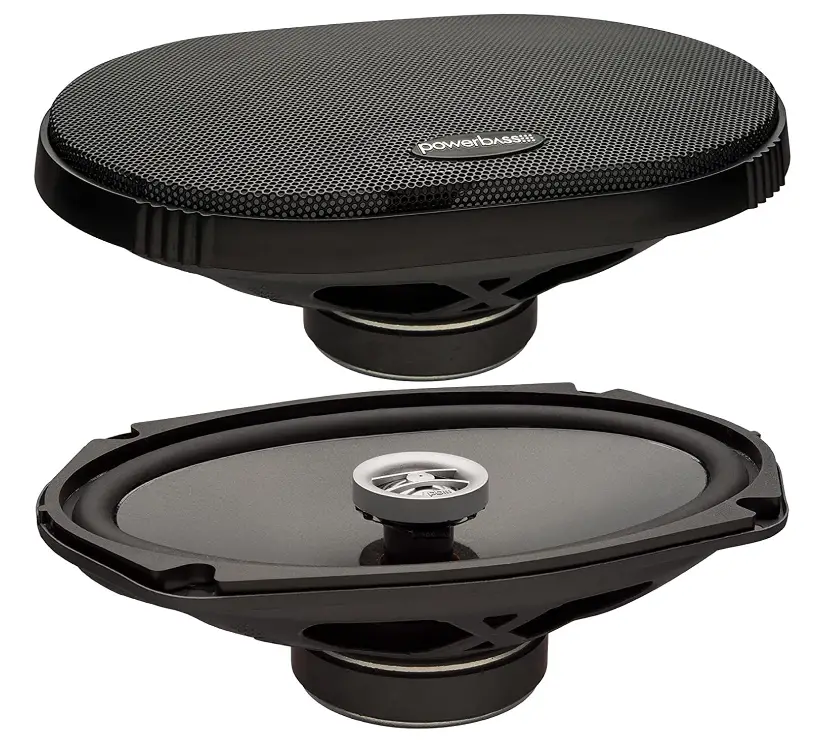

PowerBass OE-692T Shallow Mount Coaxial Speakers

INTRODUCTION

Congratulations on your purchase of Powerbass Autosound speakers. You now own a speaker of uncompromising design and engineering from a factory that truly believes in the relentless pursuit of perfection.  Incorporating the highest quality parts and state-of-the-art materials, these speakers display the ultimate balance between high fidelity, extreme performance and long-lasting reliability.
At Powerbass USA, Inc. we are confident you will have many years of outstanding enjoyment from your superior SPEAKER investment.  For maximum performance we recommend that you have your new PowerBass Autosound speakers installed by an Authorized PowerBass Dealer.
To learn more about PowerBass, please visit us on the World Wide Web at http://www.powerbassusa.com

Caution

Continuous exposure to sound pressure levels in excess of 100 dB can cause permanent hearing loss.  PowerBass Autosound Speakers are capable of producing sound pressure levels well over 170 dB.  Please observe all local sound ordinances while listening to your PowerBass Autosound system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result of use or misuse of this product.

POWERBASS AUTOSOUND OE FULL RANGE FEATURES

• Advanced Injection Molded Cone: An injection-molded PP cone was developed for better bass performance while minimizing distortion. This ultra-lightweight cone is resistant to elements of the environment while giving the listener an impeccable listening experience over the factory speakers. (OE-400 uses a Pressed Paper Cone
• Aluminum Hard Dome Tweeter: Ferrofluid-enhanced aluminum dome tweeters deliver sharp clarity and crisp treble reproduction. The low profile design makes upgrading factory speakers a simple non-evasive task.
• Wave Guide Tweeter Lens:  A specially engineered tweeter waveguide provides a smooth and uniform response giving more high-frequency sound propagation.
  High Power 2-ohm Prime Voice Coil: These highly efficient 2-ohm coils were designed for greater efficiency and are compatible with most premium factory sound systems to make your vehicle sound better than ever. features a Dual 4-OHM voice coil design, allowing for 2-OHM or 8-OHM impedances
• High-Damping Butyl Rubber Surround: Butyl rubber was chosen to ensure linear travel throughout the entire frequency range resulting in more bass output and higher efficiency while reducing distortion.\
• Non-resonant Basket Treatment: Each steel speaker basket has been treated with a proprietary resonant damping material making the speaker platform acoustically “dead”.
• Additional Features: Acoustically transparent speaker grills*, professional mounting hardware and splice-in speaker wiring harnesses add further value to your speaker investment.

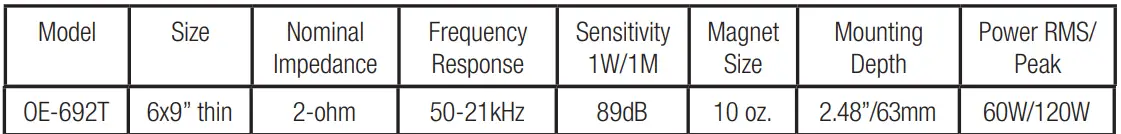

SPECIFICATIONS

• Grills Not Included on some models
• Dual 4-OHM voice coil, 2-OHM or 8-OHM use

Before beginning your installation, thoroughly read this guide and keep it as a reference.  It will give you tips on proper placement, wiring, and installation as well as how to obtain the best sound from the PowerBass speakers you have selected.

INSTALLATION EXPERIENCE

Installation of PowerBass Autosound Speakers requires experience with a variety of mechanical and electrical procedures. This manual only provides general installation and operation instructions. If you have any reserva-tions about your installation skills or lack of the proper tools, please contact your local PowerBass Autosound dealer for assistance.

TIPS TO GET THE MOST OUT OF YOUR POWERBASS SYSTEM

Your PowerBass Autosound speakers have been meticulous engineered and designed to handle high power musical reproduction. Despite their rugged construction, it is possible to damage your speaker if they are improperly used.  In general, you will hear distortion as a so-called warning before any damage occurs.  If you hear distortion in your system, immediately reduce the musical level to the point where the sound retains its clarity.

1. Be sure you supply the speakers with enough unclipped amplifier power to drive them properly. (More damage can be done to a speaker by under-powering and clipping your amplifier than any other way!)
2. To avoid any possible sound cancellation from the front of the speaker to that of the rear of the speaker, cut a panel of Masonite or MDF to firmly mount the speaker if the vehicle’s original cutout is too big.
3. When connecting speaker wires from the amplifier or head unit to that of the speaker itself, pay attention to the polarity of the connection. This will insure optimum sound reproduction and performance.
4. Do not mount any speakers or external crossovers where they will get wet.

PREPARING FOR INSTALLATION

NOTE: The tools listed below may be required for proper installation.

• An electric drill with drill bits
• Phillips-head and standard screwdrivers
• Wire strippers
• Crimping tool and needle-nose pliers

INSTALLATION PRECAUTIONS

NOTE: Proceed only if you are a qualified installer otherwise; let your dealer do it.

• Always wear protective eyewear when using tools.
• Turn off all stereo and other electrical devices before you begin.
• Disconnect the (-) negative lead from your vehicle’s battery.
• Keep the speakers in the package until final installation.
• Check to see if there is enough clearance behind the mounting surface before installing the speakers.
• When running speaker wires through sheet metal, be sure to use grommets to properly insulate the wires from metal edges.
• Since these speakers utilize a unique low profile tweeter housing that has minimal tweeter protrusion, original factory mounting cutouts can still be used with the factory grills in many cases.
• These PowerBass Autosound speakers can be used above or below the mounting hole. Typically, your vehicle factory’s speaker cutouts will accommodate these new speakers without any modifications. When the speaker has been correctly installed, there should be no air leaks between the front and back of the speaker.
• For door installations, check the clearance of the window and roll-up mechanisms throughout the entire range of the window’s travel to make sure that all obstacles clear the speaker structure.
• Check the available mounting depth before installing the speaker. Use care when removing factory grills, door panels and factory speakers.

WIRING DIAGRAM

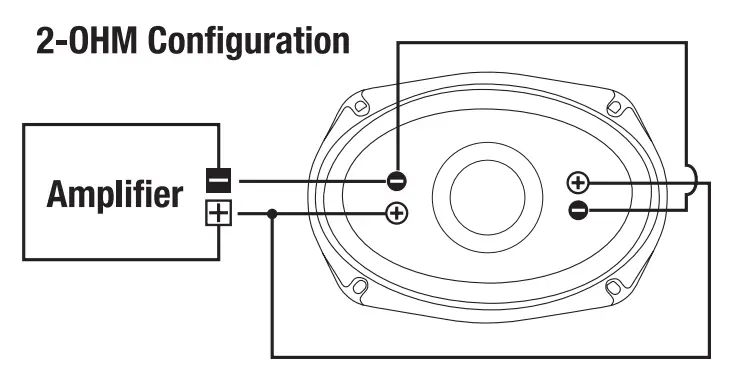

Wiring has been designed to work with multiple impedance requirements. The dual voice coil dsign can be wired into two different configurations depending on the impedance requirement of your OEM amplifier.

Both coils must be wired in one of the above configurations to ensure proper operation of this speaker.

POWERBASS AUTOSOUND LIMITED WARRANTY POLICY

PowerBass USA, Inc. offers limited warranty on PowerBass products under normal use on the following terms:
PowerBass Autosound Speakers are to be free of defects in material and workmanship for a  period of one (1) year.
This warranty applies only to PowerBass products sold to consumers by Authorized PowerBass Dealers in the United States of America.  Products purchased by consumers from a PowerBass dealer in another country are covered only by that country’s Distributor and not by PowerBass USA.
This warranty covers only the original purchaser of PowerBass product.  In order to receive service, the purchaser must provide PowerBass with the receipt stating the consumer name, dealer, product and date of purchase.
Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at PowerBass’s discretion and will not be liable for incidental or consequential damages. PowerBass will not warranty this product under the following situations:

• Speakers received with bent frames or water damage
• Abuse such as holes in the cone, surround or ripped spider
• Voice coil damage due to amplifier clipping or distortion
• Product that has not been installed according to this owners manual

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above.  Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply.  No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.
Please call (909) 923-3868 for PowerBass Customer Service.  You must obtain an RA# (Return Authorization Number) to return any product to PowerBass. The RA number must be prominently marked on the outside of the shipping carton or the delivery will be refused.  Please pack your return carefully; we are not responsible for items damaged in shipping.  Return the defective product along with a copy of the original dated retail sales receipt, plus $12.00 for handling and diagnostic evaluation to:
PowerBass USA, Inc.,  Attn: Returns (RA#__________) 2133 S. Green Privado, Ontario, CA  91761
Residents of HI, AK and US territories will be charged for return shipping.  All inquires regarding service and warranty should be sent to the above address.

Removed or altered serial numbers will void this warranty

FAQs

What are PowerBass OE-692T coaxial speakers good for?

In professional audio, coaxial loudspeakers allow sound from two drivers to come from a single source. In comparison to loudspeaker enclosures containing physically separated drivers, this feature enables a wider field of listening to a synchronized summation of speaker drivers.

Do PowerBass OE-692T coaxial speakers need break in?

There is no need to play a speaker at half power or low volumes for an extended period of time in order to aid or ease into this, even though it is true that the suspension of a speaker will loosen up over time.

Are PowerBass OE-692T coaxial speakers better?

In conclusion, coaxial speakers are considerably superior to the single-cone speakers featured on OEM vehicles in terms of sound quality and range coverage. Coaxial speakers can be 3-way as well, however they are less popular than 2-way speakers.

Are PowerBass OE-692T coaxial speakers full-range?

Due to their ability to reproduce a wider range of audio frequencies from a single speaker, coaxial speakers are frequently referred to as “full-range” speakers. The drivers in these speakers are identical to those in component speakers, but they have been merged to save space and money.

Do PowerBass OE-692T coaxial speakers need amp?

Component speakers and coaxial speakers can be powered by your car radio without the need for an amplifier. However, an amp will enable you to receive a lot cleaner sound without distortion, a greater volume, and power for a subwoofer, allowing you to get the most from your speakers.

Do you need a crossover for PowerBass OE-692T coaxial speakers?

You generally don’t need a second crossover if your automobile audio system uses coaxial speakers. The frequencies that reach each driver are already filtered by passive crossovers that are already present in full-range speakers. The built-in speaker crossovers should be more than enough, even if you add an amplifier to the mix.

Do PowerBass OE-692T coaxial speakers have crossover?

The majority of coaxial speakers are sold without passive crossovers. Instead, they employ a straightforward filter to prevent low frequencies from reaching the tweeter. Typically, this filter is attached to the speaker’s back.

What is the difference between 2 way and coaxial speakers?

Coaxial speakers are typically paired in the manner of a woofer and a tweeter, whereas 2 way speakers are typically paired in the manner of a subwoofer 1 and a subwoofer 2 to provide the highest quality sound.

Do PowerBass OE-692T coaxial speakers go in the front or back?

The back of the car is typically where coaxial speakers are located.

What is a PowerBass OE-692T two way coaxial speaker?

The woofer and tweeter are two different types of drivers found in 2-way speakers. A speaker called a woofer is made specifically to reproduce low-frequency sounds, whereas a tweeter is made to reproduce high-frequency sounds. The mid-range, woofer, and tweeter drivers, collectively known as the 3-way speaker, produce sound.

What is the difference between coaxial speakers and component speakers?

Coaxial speakers are able to have a complete 2-way system in only a single installation, unlike component speakers, which must mount everything separately due to their compartmentalized design. Because of how simple they are to install, coaxial speakers are able to remain affordable. The time and labour saved throughout this process also contributes to this.

Do I need a crossover for PowerBass OE-692T coaxial speakers?

You generally don’t need a second crossover if your automobile audio system uses coaxial speakers. The frequencies that reach each driver are already filtered by passive crossovers that are already present in full-range speakers. The built-in speaker crossovers should be more than enough, even if you add an amplifier to the mix.

Are PowerBass OE-692T coaxial speakers full range?

Due to their ability to reproduce a wider range of audio frequencies from a single speaker, coaxial speakers are frequently referred to as “full-range” speakers. The drivers in these speakers are identical to those found in component speakers, however they are merged to reduce costs and take up less space.

What frequency are PowerBass OE-692T coaxial speakers?

High-Pass Filter for the rear coaxial speakers is 80 Hz (12 db or 24 db Slope) Low-Pass Filter for Subwoofers: 80 Hz (12 db or 24 db Slope)
