Moosoo Vacuum Cleaner Instructions

OPERATING INSTRUCTIONS

VACUUM CLEANER
TYPE: L10-Plus

For any questions and malfunctions of the appliance during use, please contact our customer service email: [email protected]

Congratulations on the purchase of this high-quality product. Please read this operating instruction attentively before you take the appliance into operation. It gives important notes for security, the use, and maintenance of
the appliance. If you have further questions, please contact our customer service.

DESCRIPTION OF THE APPLIANCE:

• Powerful and compact.
• Wet & Dry
• Multiple air filter system guarantees a hygienic cleaning.
• With special air-blowing function.
• Special parking position for easy use and space-saving.
• User-friendly design.

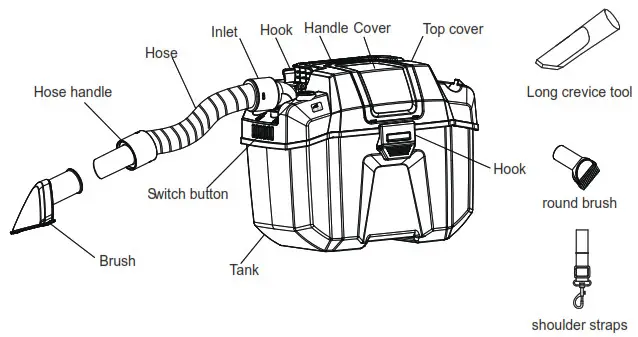

APPLIANCE FIGURE:

IMPORTANT SAFETY INSTRUCTIONS:

This appliance is not intended for use by persons(including children)with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

	Do not vacuum any sharp-edged, hot, or incandescent materials.
	The appliance should not be exposed to heat.
	Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair, etc.
	Do not use the vacuum cleaner without a dust container or dust filter in place.
	Do not vacuum any flour, cement, etc, in order to avoid overloads.
	The appliance should be cleaned with a dry or damp cloth only; it should never be immersed in water. Do not use any solvents for cleaning.
	This appliance is intended for domestic use only and not for commercial applications.
	The nozzle or brush should be avoided to touch the surface of the furniture.

ASSEMBLY:

Open the buckles, to release the top cover.
Take out all accessories
Fix the top cover back, and lock the buckles
Hook assembly : 1. Insert the hook onto the right position on top cover. 2. Turn upward, enable the hook onto the top cover completely.
Fix the hose well
Fix the brush onto the right position

OPERATION:

Assembly the battery pack : 1. open the cover 2. insert the battery pack
Pull out the hose
Push the switch button, vacuum cleaner starts to work. Remark: Press one time, working under low power. Press again, working under high power. Press again,  power off
The light will be green when working under low power. The light will be in the red when working under high power
Please attach the brush if you want to clean water from the ground.
When the inlet inserts to position ①, it is an air-blowing function. When inserting to position ②, it will be dust and water cleaning function. Remark: Please open the cover to start using the blowing function, and put it back when finished.
Please take the battery for charging if it is a lack of power or you will keep the appliance unused for a long time

CLEANING AND MAINTENANCE:

Release the hook
Take out the top cover
Cleaning the dust
Release 4pcs screws by tools, take out the filter
Wash off the Filter with cleaning water. (In necessity)
Dry the filter in a cool and ventilated place Attention: Do not put it in the sunshine. Assemble the vacuum cleaner.

ERROR DETECTION:

Before you contact our service center, please check the following:

GUARANTEE:

This product is guaranteed for a period of one year from the date of purchase. During this period we will remedy all defects free of charge, which can be demonstrably
attributed to material or manufacturing defects, by repair or exchange.
This guarantee is only valid if the appliance has been used in accordance with the instructions and provided that it has not been modified, repaired or interfered with, by
any unauthorized person, or damaged through misuse.
