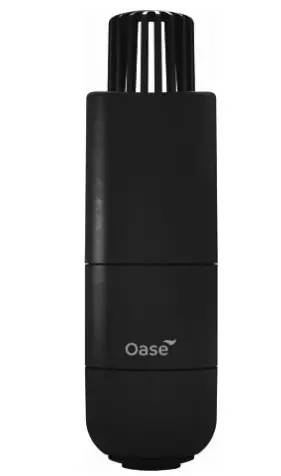

CrystalSkim 350 Surface Vacuum Cleaner
Instruction Manual
CrystalSkim
350, 600
CrystalSkim 350 Surface Vacuum Cleaner
 |  |
Original operating manual. This operating manual belongs with the unit and must always be handed over together with the unit.
WARNING
- Disconnect all electrical units in the water from the power supply before reaching into the water. Otherwise, there is a risk of injuries or death by electrocution.
- This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved. Do not allow children to play with the unit. Only allow children to carry out cleaning and user maintenance under supervision.
A more detailed operating manual is available for download as a PDF online: www.oase.com/manual
The following additional topics are addressed in the operating manual:
- Symbols on the unit
- Cleaning and maintenance, storage/winter-proofing, malfunction repair
- Technical data, wear parts, spare parts, Disposal
Safety information
Electrical connection
- Only connect the unit if the electrical data of the unit and the power supply match.
- Only plug the unit into a correctly fitted socket.
- Protect open plugs and sockets from moisture.
Safe operation
- Do not use the unit, if electrical lines or the housing are damaged.
- Dispose of the unit if its power connection cable is damaged. The power connection cable cannot be replaced.
- Do not carry or pull the unit by its power cable.
- Never make technical modifications to the unit.
- Only carry out work on the unit that is described in this manual.
- Only use original spare parts and accessories.
- Route lines so that they are protected from damage and nobody can trip over them.
- Should problems occur, please contact authorized customer service or OASE?
Intended use
Only use the product described in this manual as follows:
- As a surface vacuum in aquariums.
- In compliance with the technical specifications.
The following restrictions apply to the unit:
- Never use the unit with fluids other than water.
- Never run the unit without water.
- Do not use it for commercial or industrial purposes.

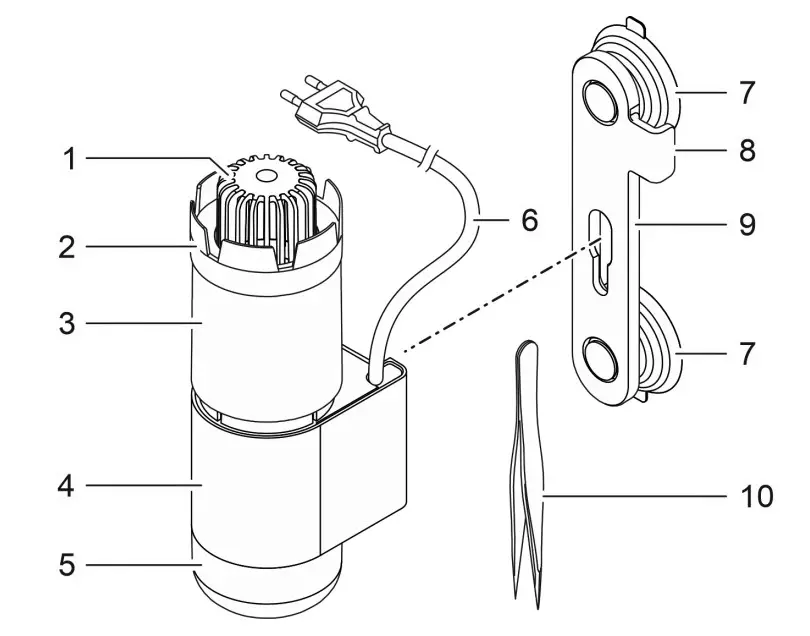

Product Description
| 1 | Intake protection • Prevents very small animals (e.g. babies) from being drawn in by the unit. |
| 2 | Crown • Optimises intake of the biofilm consisting of microorganisms. |
| 3 | Float body |
| 4 | Filter casing with a sponge filter and pump |
| 5 | Diffuser lid |
| 6 | Power cable |
| 7 | Suction cup |
| 8 | Cable guide |
| 9 | Holder |
| 10 | Tweezers • For Remove the sponge filter from the filter casing. |
Installation

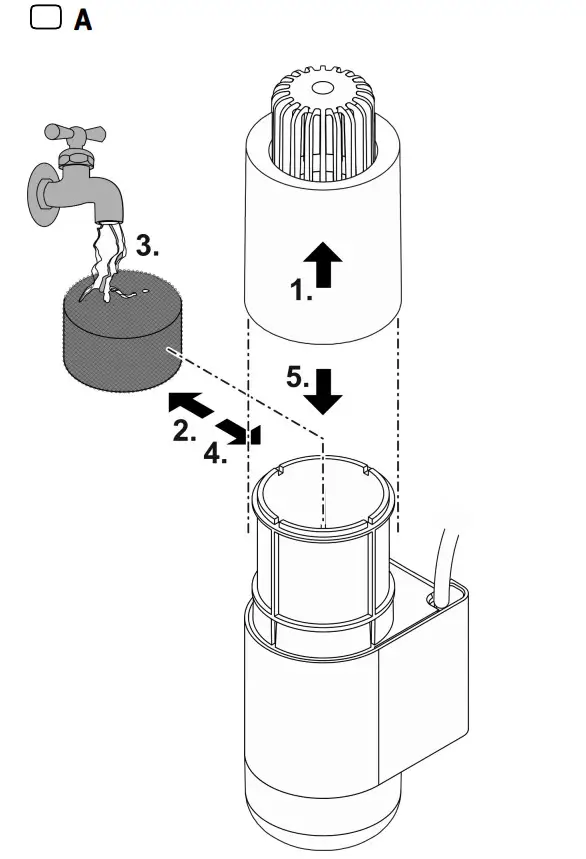

Cleaning the foam filter
Rinse the foam filter thoroughly with cold tap water prior to its first use.

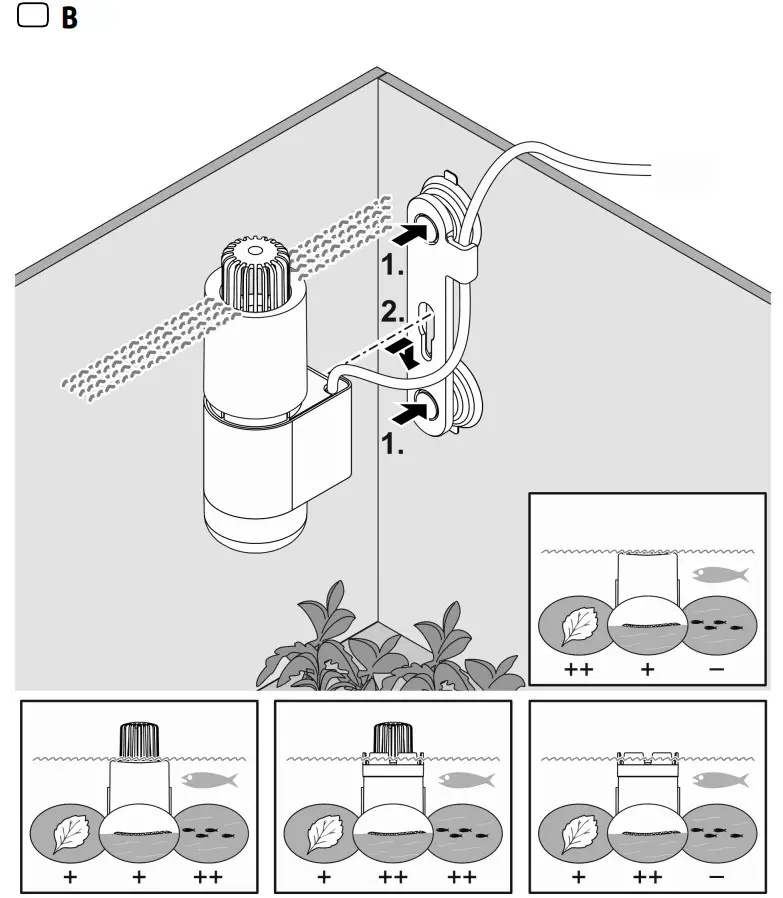

Fitting the skimmer
- Position the skimmer on the wall of the aquarium in such a way that the floating body is floating high up on top of the water. This ensures that the vacuum function will work even if the water level falls due to evaporation.
Commissioning/start-up
- Switching on: Plug the power plug into the outlet.
– The unit switches on immediately.
– Lay the power supply cord so that a drip loop is formed and the lowest point is below the socket. This prevents dripping water from entering the socket.
– Set the desired flow rate. - Switching off: Pull the power plug from the outlet.

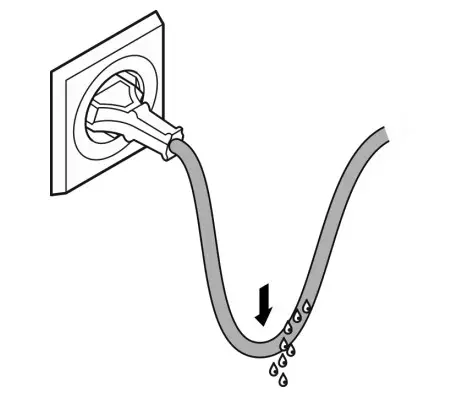

Forming a drip loop

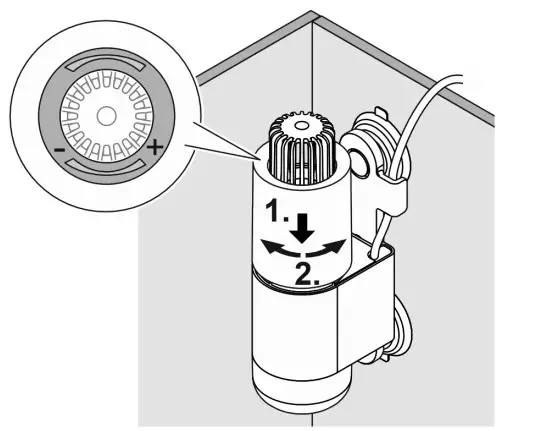

Setting the flow rate
