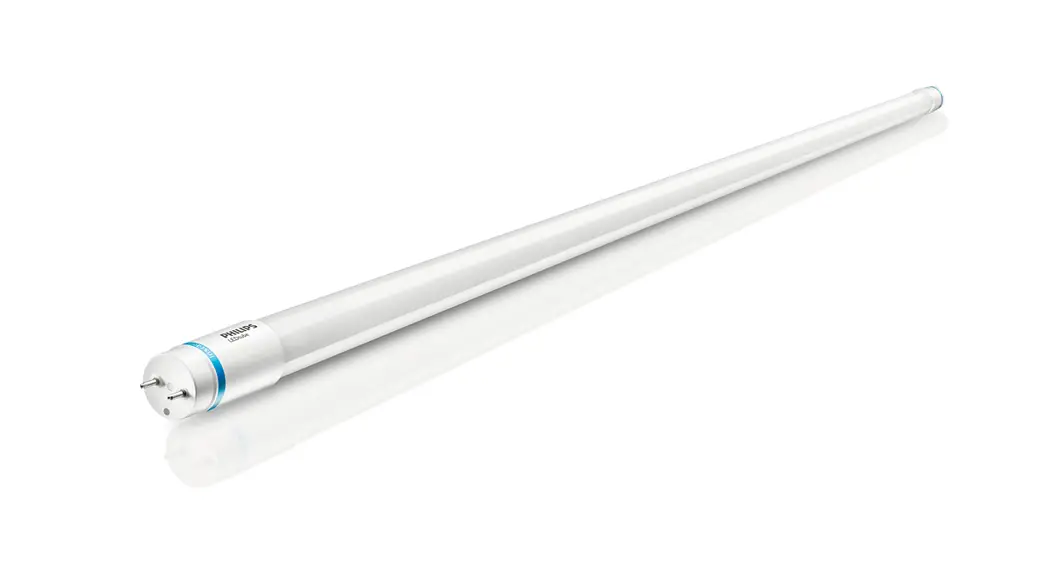

5792580 LED Tube Universal
Installation Guide
5792580 LED Tube Universal
Please take the time to read this installation guide. The guide contains important information and notes regarding the installation and operation.
IMPORTANT!
- Always switch off the power supply before commencing work!
- Only to apply in dry indoor usage and environments, outdoor applications require an IP-rated fixture.
- Philips LEDtube is designed to fit in standard IEC compliant G13 bi-pin lamp holders.
- Philips LEDtube should be installed by qualified professionals in accordance with relevant electrical codes
- Toute operation de remplacement dun Tube fluorescent T8 par un LEDtube doit eve effectuee par un installateur electricien professionnel en respectant les prescriptions du present Guide d’Installation
- Philips LEDtube debe ser instalado por un electricista profesional deacuerdo con los aidigos electricos relevantes de iluminacion.
- This lamp is not suitable to be used in emergency luminaires designed for the double-capped fluorescent lamp(s)
DISCLAIMER: Signify disclaims liability for any direct, indirect, or incidental damages in case of installation performed either not according to this guide or not performed by a professional electrician.
Does your luminaire have a starter?

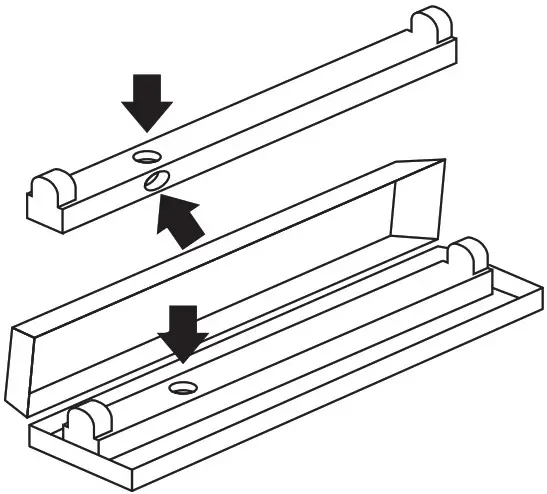

This illustration shows its typical location in an open or closed luminaire with the length of 1200 and 1500 mm tubes.
Yes, the luminaire does have a starter.
The luminaire works on electromagnetic ballast.
Go to the Electromagnetic ballast section 2.1 Instructions on Electromagnetic ballast
No, the luminaire does not have a starter.
The luminaire works on High-Frequency electronic ballast (HF).
You need first to check if the HF ballast is compatible.
To check if your ballast is compatible, always refer to the latest update of the Philips
LEDtube compatibility list on www.philips.com/ledtube
– Yes, the ballast is compatible. Go to section 2.2 Instructions on HF compatible ballast
– No, the ballast is not compatible. Go to section 2.3 Instructions for non-compatible HF ballast
2.1 Instructions on Electromagnetic ballast

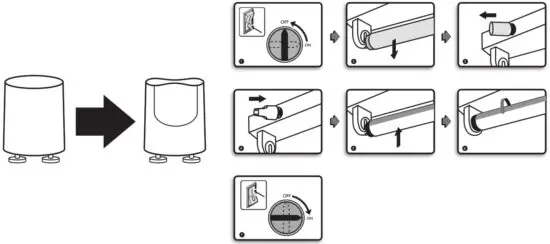

Simply replace the old starter with the new (EM) LED starter included in the packaging and follow the instructions below
2.2Instructions on HF compatible ballast

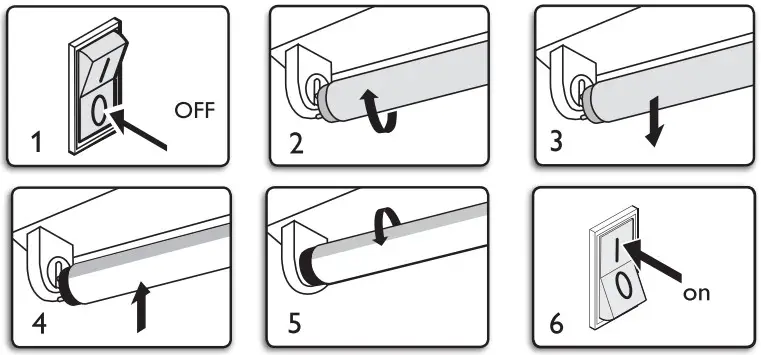

It’s a plug-and-play solution that works straight out of the box. No need to change drivers or rewire. Quick and easy installation, follow the instructions below
2.3 Instructions for non-compatible HF ballast

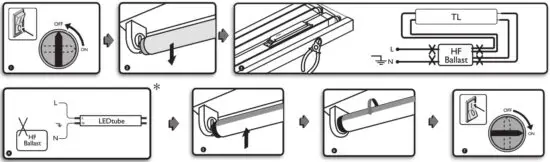

Your luminaire works on High Frequency (HF) ballast, but the ballast is not compatible. Cut wires, remove the ballast, and connect directly to mains. Follow the instructions below
-In this application, an LED replacement starter is not used.
-Always switch off the power supply before commencing work!
-Philips LED tube should be installed by qualified professionals in accordance with the relevant code.
* MAKE SURE TO CONNECT L.N ON THE LAMP SIDE WITH L N MARK. OTHERWISE. LAMP MAY DAMAGE
| SYMBOL | MEANING | APPLICATION |
 | DO NOT USE WITH DIMMERS | EM and MAINS |
 | LAMP SUITABLE FOR 50Hz OR 60 Hz OPERATION | EM and MAINS |
 | NEED TO BE USED WITH AN LED REPLACEMENT STARTER EMP | EM only |
 | NEED TO BE USED IN DRY CONDITIONS OR IN A LUMINAIRE THAT PROVIDES PROTECTION | ALL |
 | LAMP SUITABLE FOR HIGH-FREQUENCY OPERATION | HF only |
 | LAMP NOT SUITABLE FOR EMERGENCY OPERATION | ALL |
-This lamp may not be suitable for use in all applications where a traditional fluorescent lamp has been used. The temperature range of this lamp is more restricted. In cases of doubt regarding the suitability of the application the manufacturer of this lamp should be consulted
-This lamp is designed for general lighting service (excluding e.g. explosive atmospheres)
