U-LINE HRF124 24 Inch Refrigerator-Freezer
Product Information
- Model: UHRF124

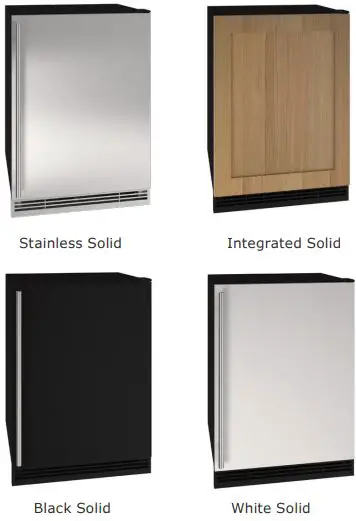

- Finishes Available: Stainless Solid, Integrated Solid, Black Solid, and White Solid
- Capacity: 114 cans (12 oz)
- Voltage/Hz: 115/60
- Door Swing: Field Reversible
- Dimensions: 34 1/8″ to 35 1/8″ H x 23″ D x 24″ W
- Weight: 120-123 lbs (depending on finish)
- Defrost Type: Automatic
- Energy Consumption: Avg. Per Year (not specified)
- Refrigerant Type: (not specified)
- Sabbath (Star K Certified): Yes
- Temperature Range: (not specified)
- Warranty: 1 year + additional 1 year (parts & labor) with product registration
Product Usage Instructions
The UHRF124 is designed to store and chill up to 114 cans of your favorite beverage. To use the product:
- Choose a location that is near an electrical outlet and has enough space to accommodate the dimensions of the product.
- Plug in the power cord and ensure that the product is grounded.
- Adjust the temperature settings to your desired level. The temperature range is not specified in the user manual.
- Load your cans into the product, ensuring that they are arranged in a way that allows for maximum storage capacity.
- Clean the product regularly by wiping down the interior and exterior with a damp cloth.
- If you experience any issues with the product, refer to the warranty information provided in the user manual for assistance.
Note: The Integrated Solid finish model comes with a 3/4 integrated panel/frame installed, which may affect the dimensions of the product.
OVERVIEW

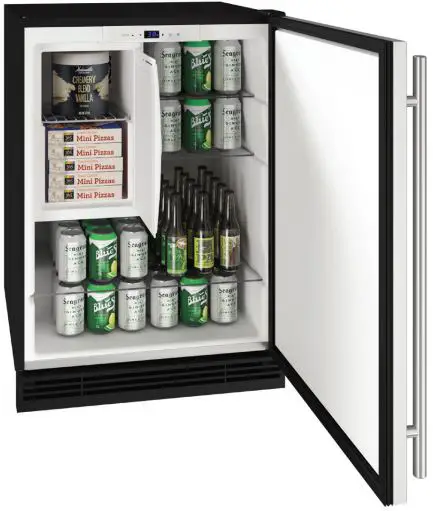

Key Features
- Refrigerator volume of 4.2 cu ft holds up to 61 bottles (12 oz) or 114 cans (12 oz)
- Freezer volume of 1.5 cu ft
- Digital Touch Pad Control
- Refrigerator temperature range: 34°F – 45°F
- Frost Free Freezer
- White interior is illuminated with LED lighting
- Three removable tempered glass shelves
- Stainless steel handle (7/8” diameter)
- Integrated model requires 3/4” custom door panel and handle (not supplied by U-Line)
- Field reversible door is shipped right-hand hinged
- Built-in or freestanding
- Four adjustable leveling legs
Model Details
| Model | Voltage/Hz | Door Swing | Finish | Shipping Weight |
| UHRF124-SS01A | 115 / 60 | Field Reversible | Stainless Solid | 123 lb |
| UHRF124-IS01A | 115 / 60 | Field Reversible | Integrated Solid | 120 lb |
| UHRF124-BS01A | 115 / 60 | Field Reversible | Black Solid | 123 lb |
| UHRF124-WS01A | 115 / 60 | Field Reversible | White Solid | 123 lb |
Accessories
| Model | Description | Finish | Shipping Weight |
| ULAFREESTANDB | Freestanding Kit | Black | 3 lb |

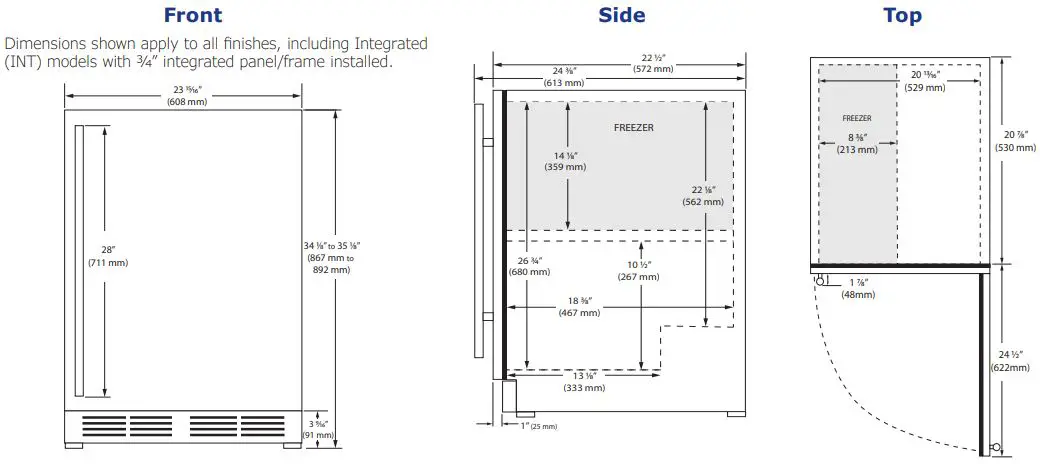

DIMENSION
Specifications
| Model | HRF124 |
| Amps: Running | 2.4 |
| Capacity: Volume (cu ft) | Ref: 4.2 Freezer: 1.5 |
| Capacity: Bottle | 61 (12oz) |
| Capacity: Can | 1144 (12oz) |
| Defrost Type | Frost Free |
| Dimensions: Product Depth | 22 1/2” / 572 mm |
| Dimensions: Product Height | 34 1/8″ / 867 mm |
| Dimensions: Product Width | 23 15/16″ / 608 mm |
| Energy Consumption: Avg. Per Year | 495 kWh |
| Panel Height | 30 1/4″ / 768 mm |
| Panel Thickness | 3/4″ / 20 mm |
| Panel Type | Solid Panel |
| Panel Width | 23 3/4″ / 603 mm |
| Product Weight: Max | 113 lb |
| Refrigerant Type | R600a (1.34 oz) |
| Sabbath (Star K Certified) | Yes |
| Temperature Range | 34°F – 45°F |
Specifications
| Model | HRF124 |
| Amps: Running | 2.4 |
| Capacity: Volume (cu ft) | Ref: 4.2 Freezer: 1.5 |
| Capacity: Bottle | 61 (12oz) |
| Capacity: Can | 1144 (12oz) |
| Defrost Type | Frost Free |
| Dimensions: Product Depth | 22 1/2” / 572 mm |
| Dimensions: Product Height | 34 1/8″ / 867 mm |
| Dimensions: Product Width | 23 15/16″ / 608 mm |
| Energy Consumption: Avg. Per Year | 495 kWh |
| Panel Height | 30 1/4″ / 768 mm |
| Panel Thickness | 3/4″ / 20 mm |
| Panel Type | Solid Panel |
| Panel Width | 23 3/4″ / 603 mm |
| Product Weight: Max | 113 lb |
| Refrigerant Type | R600a (1.34 oz) |
| Sabbath (Star K Certified) | Yes |
| Temperature Range | 34°F – 45°F |

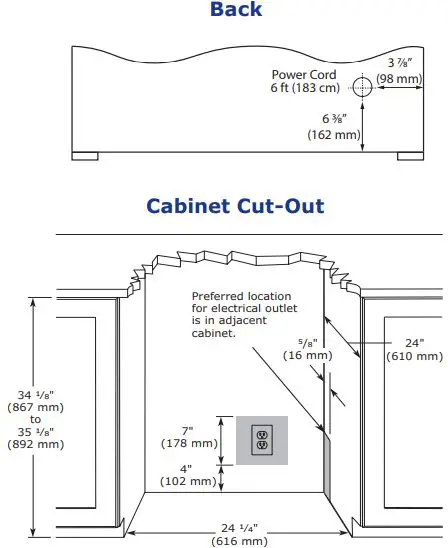

Installation Notes
- No additional clearance is needed for ventilation
- Do not obstruct front grille air flow
Warranty
1 Year (parts & labor) / 5 year sealed system (parts)
+ Additional 1 Year (parts & labor) warranty at no cost with product registration
See complete warranty for details
Please visit u-line.com to view this model’s User Guide & Service Manual. All Specifications are subject to change without notice. 8900 North 55th Street • Milwaukee, Wisconsin 53223 USA • +1.414.354.0300 • [email protected] • u-line.com
