Inovelli 7ca-ss-ve-c0 Motion Sensor Pet Immunity Zwave User Guide

Inovelli Motion sensor Pet Immunity ZWave™
7CA-SS-VE-C0
Motion Sensor Pet
immunity
Quick Start Guide

Product Introduction

The Motion Sensor lets you know when movement is detected in a certain area and can trigger different actions in response to that movement (or lack of movement). It supports pet immunity up to 80 lbs. This sensor integrated a Z-Wave communication module to connect with the Z-Wave gateway, and this device can be adapted to EU(868.42Mhz) or US(908.42MHz).
If you want your Motion Sensor to be a security device that uses secure/encrypted message to communicate in a Z-Wave network, then a security-enabled Z-Wave controller is needed.
The motion sensor can be included and operated in any Z-Wave network with other ZWave certified devices from other manufacturers and/or other applications. All non-battery-operated nodes within the network will act as repeaters regardless of vendor to increase the reliability of the network.

2. Product Appearance
Product appearance and function overview.

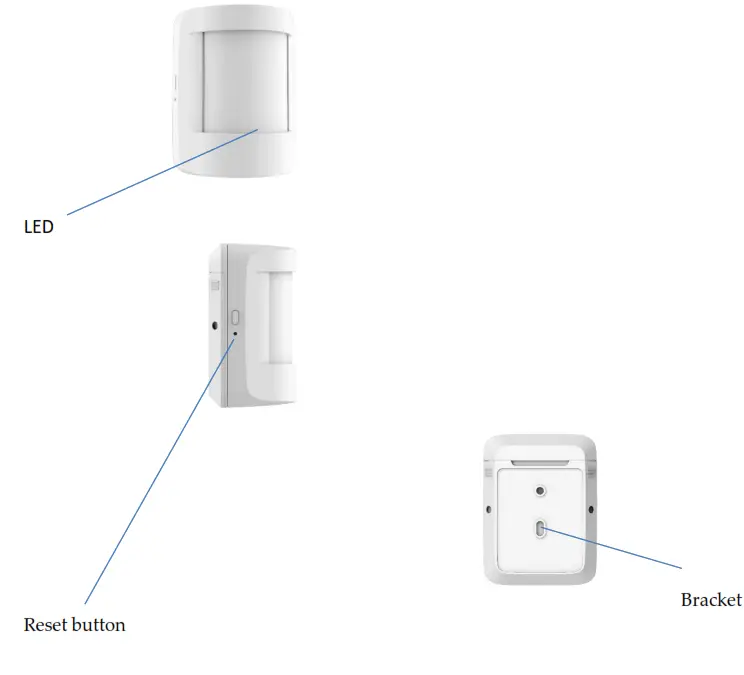

Button:

• Short press the reset button into learning mode, then the sensor can inclusion or exclusion from the Z-Wave network.
•  Hold the key for 5s to reset the sensor, after reset, the Sensor will send “Device_Reset_Locally” to the main controller and exclude it from the Z-Wave network when the Button is released, this procedure will reset the Sensor to factory default.
•  Short press the button for 3 times then the sensor sends wake up notification on to gateway, and LED will fast blink when sending data, send over then the L  ED turn off..

Features/Capabilities:

•  Supports pet immunity up to 80 lbs (36 kgs)
•  Use PIR & Fresnel lens technology
•  Easy installation with bracket
•  Low battery alarm
•  Equipped with an anti-tamper switch that reports any tampering

 Installation Position and Notes

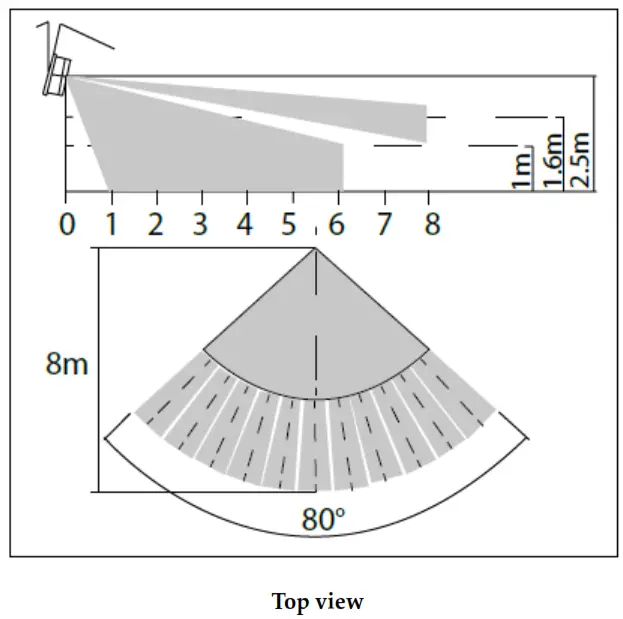

1. Installation position should be chosen at the area which the bass-by will be across, try to make the bass-by in the detection area as below.
   Side view
2. Do avoid installation near air-conditioner, electric fans, refrigerators, ovens or other places where temperature easy change.
3. In order not to affect the detecting result, there should be no object in front of the produced lens.
4. Building (such as the wall) will shorten the distance of wireless communication.
5. This device can be mounted on the wall only, it cannot be installed on the ceiling.

5. Product Installation
Adding the device as accessories, install it according to the diagram below:

1. Choose the installation location on the wall, fix the bracket by screw or 3M adhesion tape on the wall.
2. Take off the bracket in the back, and draw out the battery insulation sheet, then assemble the bracket.
3. Assembly the main body to the bracket.

Product Usage

The function of Action Button:
6.1 All functions of each trigger:
Function Of Action

6.2 Caution:
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Hereby, Corporation declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU

6.3 Low voltage alarm to remind changing the battery.
This product has low voltage detection reminder, when the battery voltage is in low status, the detector will give out a low battery signal to the controller.

 Attention

1. If need to clean the sensor, please use a soft cloth with a little alcohol to wipe it after you cut off the power.
2. This product is just for indoor use.
3. Replace the battery timely on low battery warning to ensure the detector works properly. Please remove the battery and safekeeping, if you don’t use this product for a long time.
4. This device can be mounted on the wall only, it cannot be installed on the ceiling.
5. The reference range template of PIR detection is tested at the indoor temperature (the range is 20℃～25℃)， the target of the test is 77kg±10kg weight and 1.71m±0.3m height, the target of the test across movement speed is 4m/s±0.15m/s.
6. In order to prevent the PIR sensor’s abnormal fault, please don’t mount and operate the sensor in the below conditions,
   Firstly, product mounting should prevent being installed in the airflow environment such as in front of the door, window, heater, air conditioner, and so on.
   Secondly, the PIR detection area should not be shielded by another screen.
   Thirdly, if the operating temperature range is out of the defined range of product specification may result in some product faults, which is not in the technique commitment of the manufacturer.
   Fourthly, this product has mot pet immunity function, so when some animals go through in front of the product may trigger PIR function reported.

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

Dispose of the device separately from household waste at an official collection point Professional recycling protects people and the environment against potential negative effects

Command Class List

Association Command Class
Motion Sensor supports 2 association groups and max 5 nodes for each group.
Association Group Info Command Class
Association Group Info

Association Group Command-List

Notification Commands

Configuration Set Command Class Command Format

5.4.1 Parameter Number Definitions (8 bit)

5.4.2 Parameter Number description

5.5 Sensor_Multilevel
