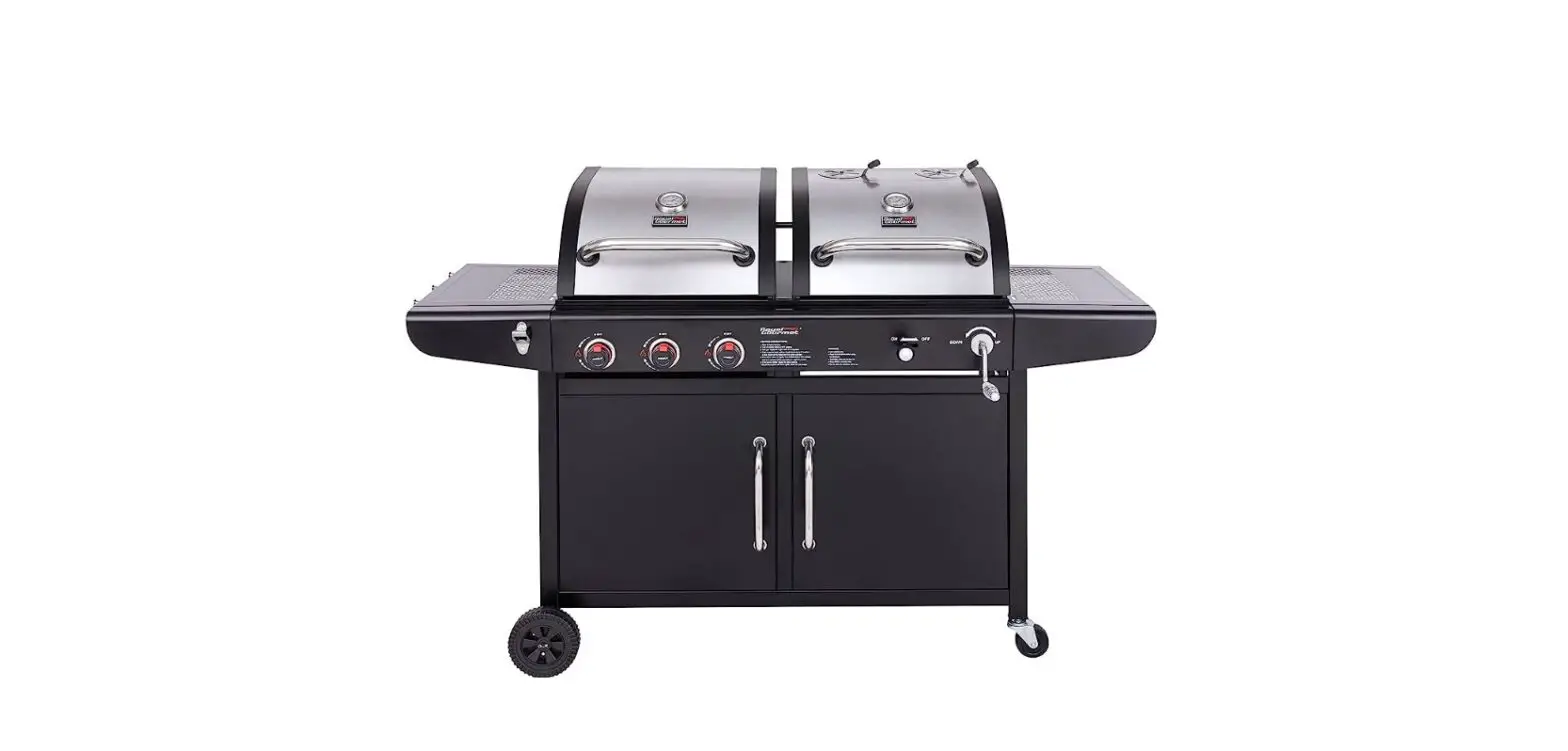

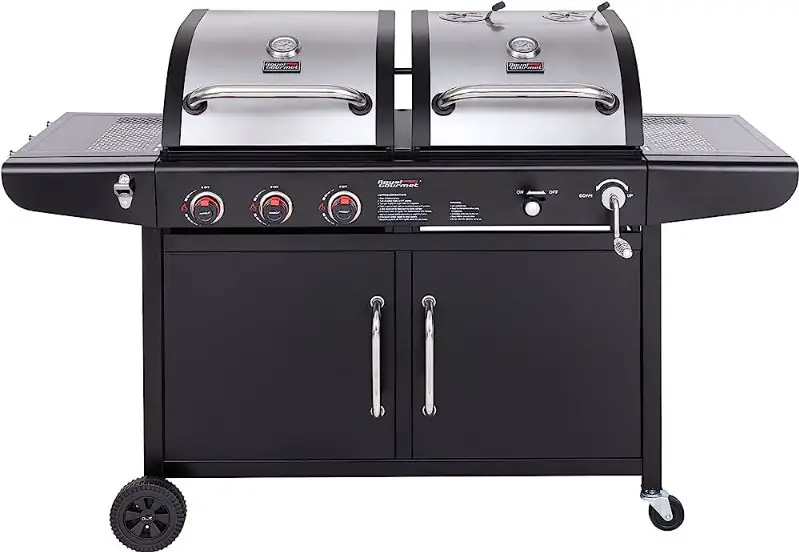

Royal Gourmet ZH3002N 3 Burner 25,500 BTU Dual Fuel Gas Installation Guide

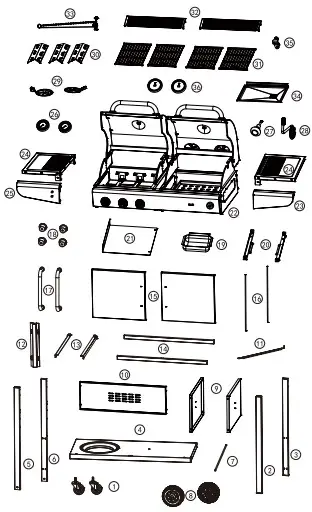

Parts Diagram
Parts List
| No. | # | QYT / CANT./ | Description | Image |
| 1 | W-20130008 | 2 | Caster |  |
| 2 | H-20130007 | 1 | Right front leg |  |
| 3 | H-20130008 | 1 | Right back leg | |

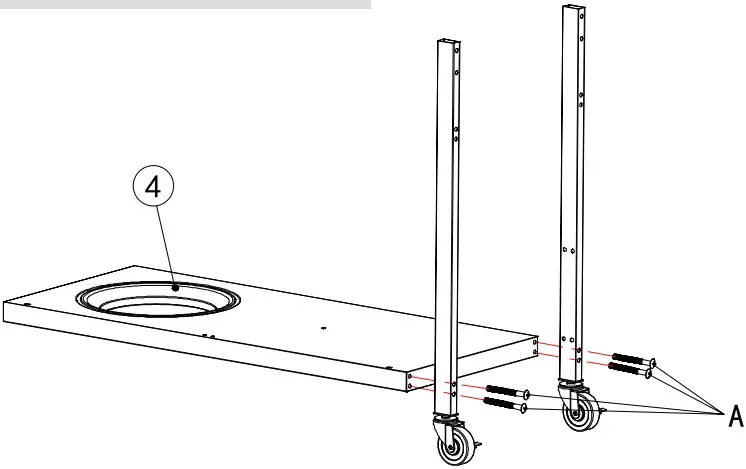

| 4 | Z-ZH3002N109 | 1 | Bottom shelf |  |
| 5 | Z-ZH3002N110 | 1 | Left front leg |  |
| 6 | Z-20130001 | 1 | Left back leg | |
| 7 | ‘W-20130023 | 1 | Wheel axle |  |
| 8 | Lz101 | 2 | Wheel |  |
| 9 | Z-ZH2303040 | 2 | Side panel |  |

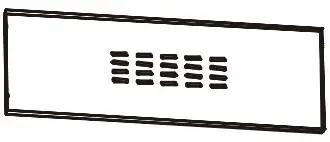

| 10 | Z-ZH2302015 | 1 | Rear panel |  |

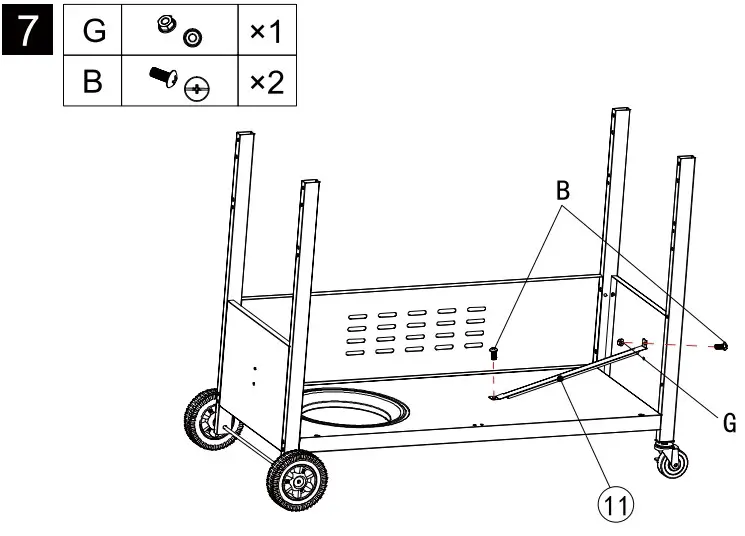

| 11 | Z-ZH300303 | 1 | LP cylinder barrier bar |  |

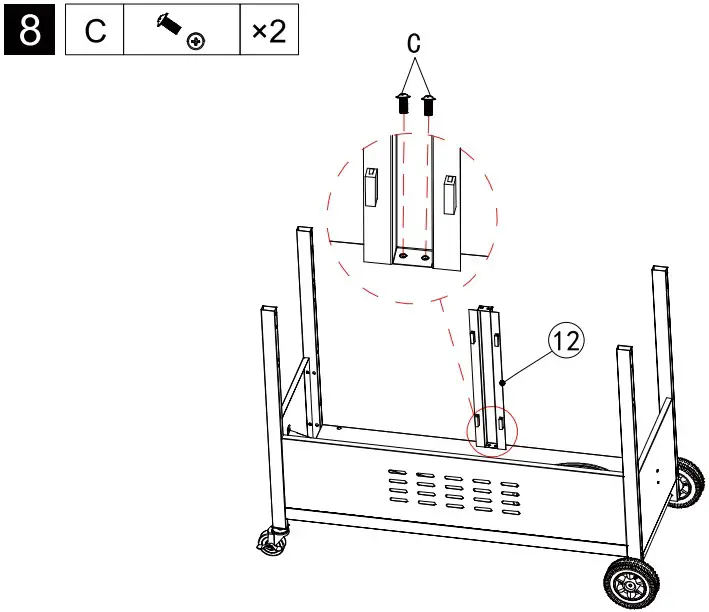

| 12 | Z-ZH2302016 | 1 | Cabinet center stile |  |

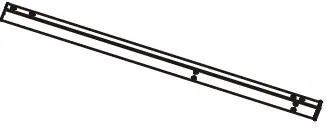

| 13 | Z-20130017 | 2 | Cart side beam |  |
| 14 | H-ZH3002N103 | 2 | Cart beam |  |

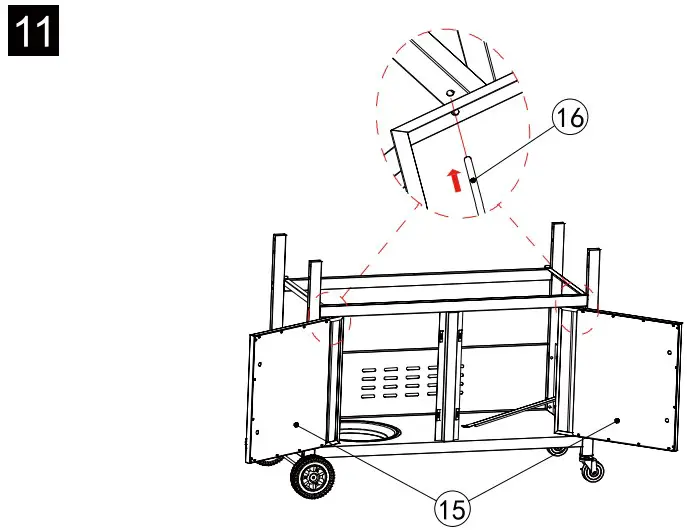

| 15 | Z-ZH2303036 Z-ZH2303037 | 2 | Cabinet door |  |
| 16 | ‘W-20130024 | 2 | Door axle |  |
| 17 | W-53650003 | 2 | Grease cup |  |
| 18 | ms003 (W-53650003) | 4 | Grease cup brace |  |
| 19 | Z-GD800109 | 1 | Thermal baffle |  |

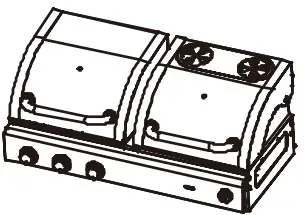

| 20 | Z-ZH3002N107 | 2 | Main body |  |
| 21 | Z-ZH3002N108 | 1 | Right decoration board |  |
| 22 | 1 | Side table |  | |
| 23 | Z-51130002 | 1 | Left decoration board |  |
| 24 | Z-ZH2303043 | 2 | Side table |  |
| 25 | Z-51130001 | 1 | Left decoration board |  |
| 26 | AWJ601 | 2 | Thermometer |  |
| 27 | W-DXL12021 | 1 | Damper knob |  |
| 28 | W-ZH2302002 W-R3005 | 1 | Crank handle |  |
| 29 | W-ZH300101 Z-ZH300104 | 2 | Damper |  |

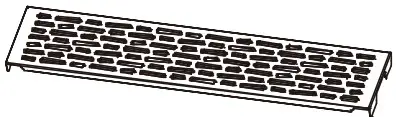

| 30 | Z-ZH2303044 | 3 | Flame tamer |  |

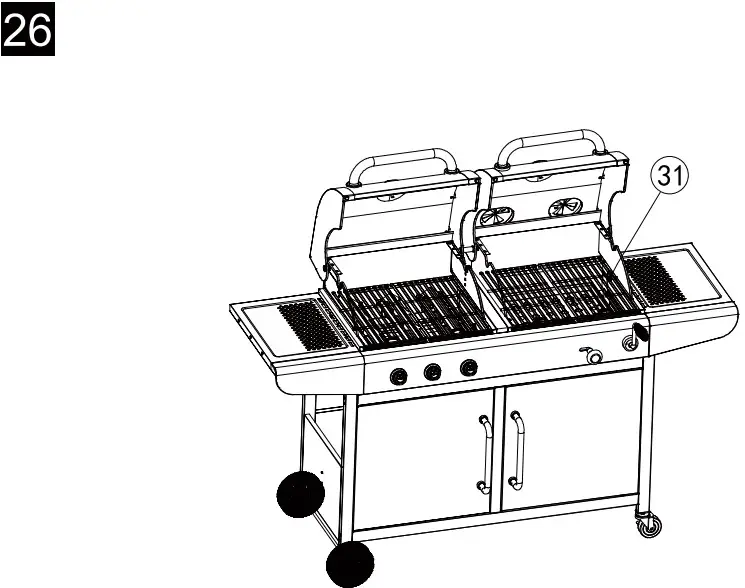

| 31 | W-52930002 | 4 | Cooking grate |  |

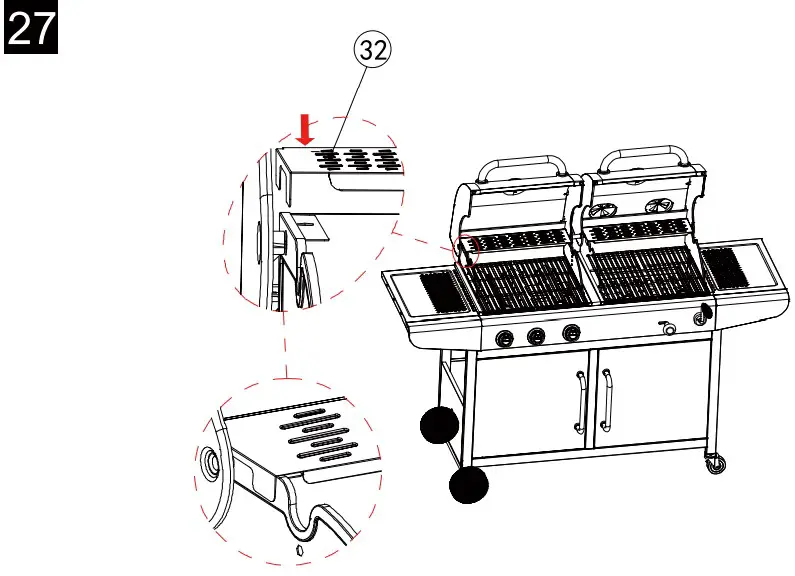

| 32 | ELT1BWW2B | 1 | ‘Warming rack |  |
| 33 | W-GD430011 | 1 | Match holder |  |

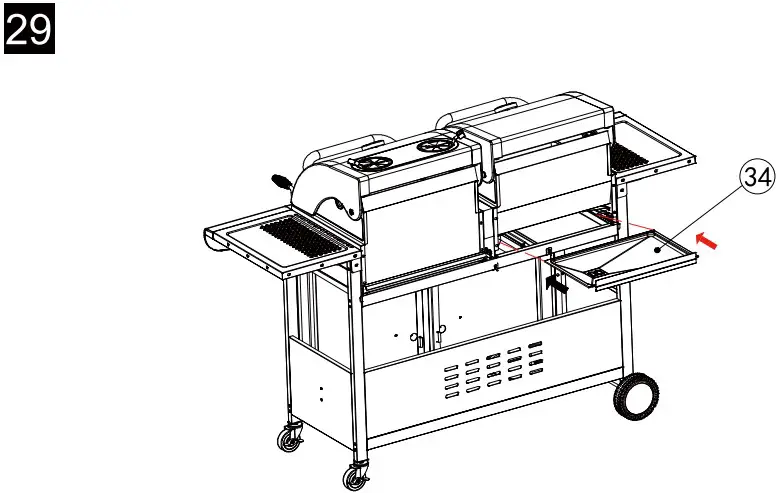

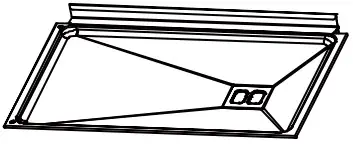

| 34 | H-ZH3002N102 | 1 | Grease tray |  |
| 35 | KQ001-WDXL12012| | 1 | Bottle opener |  |
| 36 | AWZ01 | 2 | Thermometer base |
Hardware List
| Key | Description | QTY | Image |

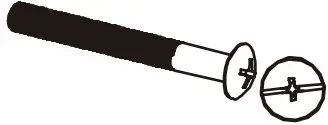

| A | M5X55 | 22 |  |
| B | M5x10 | 36 |  |
| C | M4x12 | 5 |  |
| D | Split pin | 3 |  |
| E | Washer | 2 |  |
| F | Door pin cap | 2 |  |
| G | M5 | 1 |  |
| H | M6x12 | 4 |  |
| I | M6x32 | 3 |  |

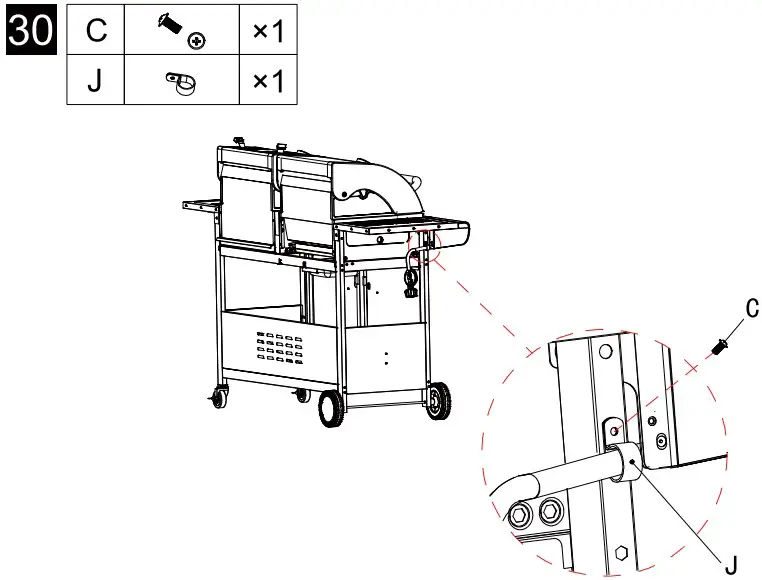

| J | Hose holder | 1 |  |
Before beginning assembly, make sure all parts are present. If any parts are missing or damaged, do not attempt to assemble the products. Contact customer service for replacement parts via telephone or email.
- Tools needed (not included): Phillips screwdriver and wrench @
- Approximate assembly time: 70 minutes = %
- Note: 1. The right and left sides of the grill are designed as if you are facing the front of the grill.

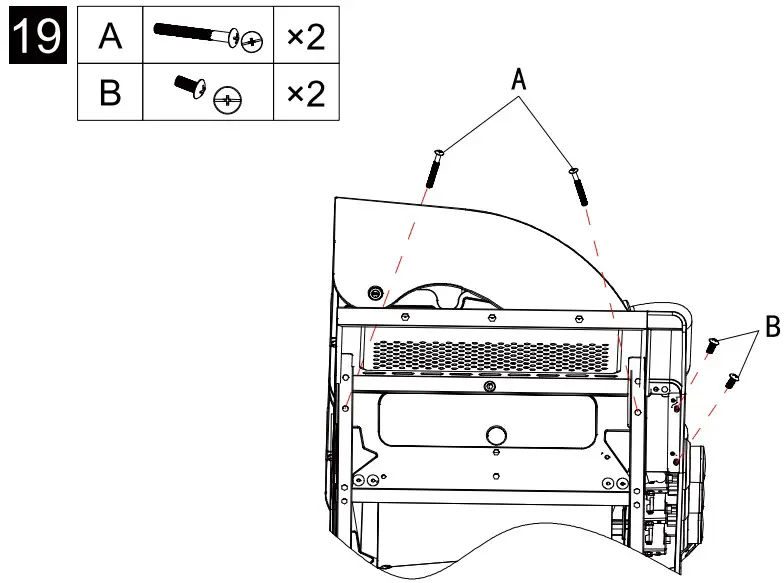

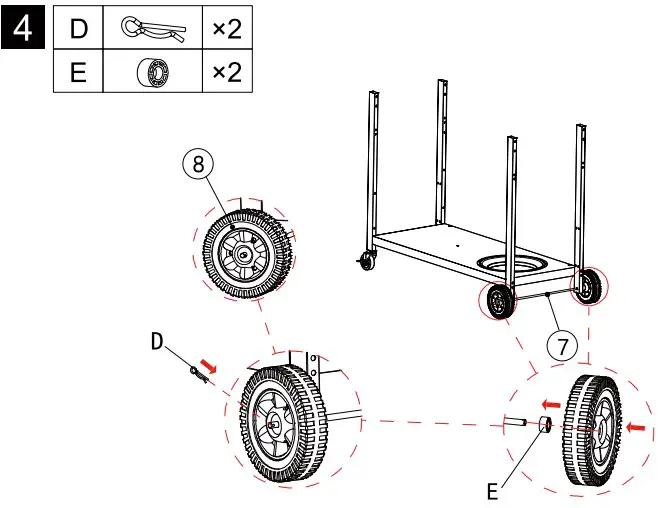

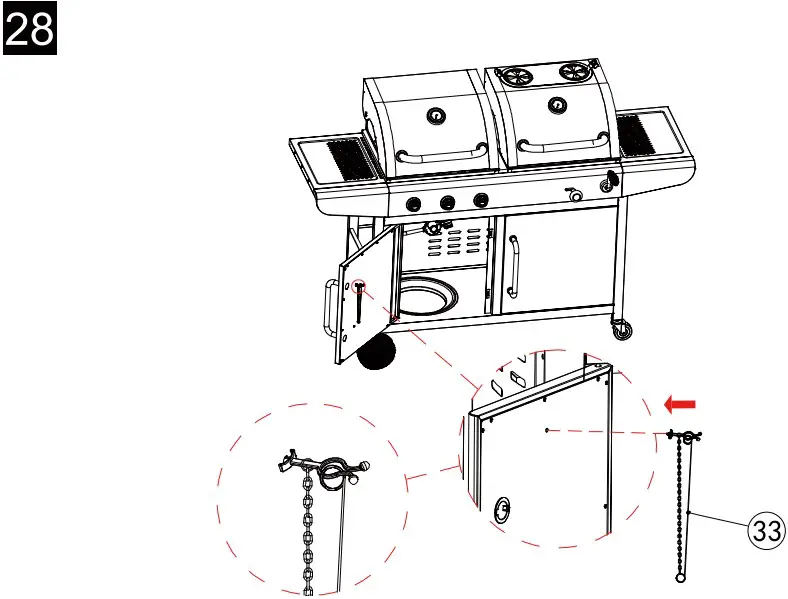

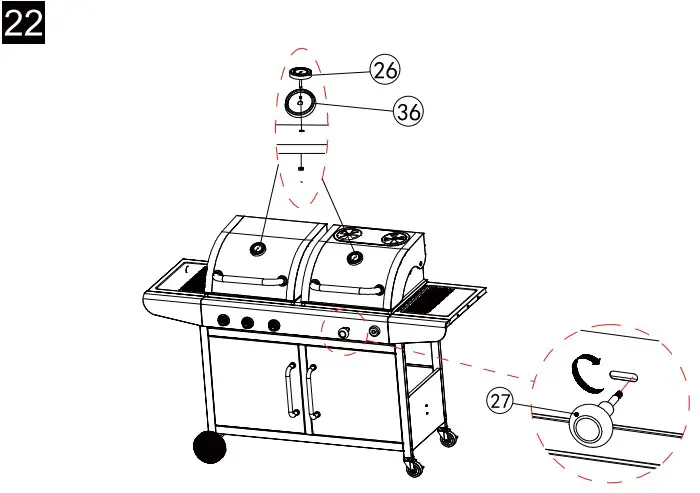

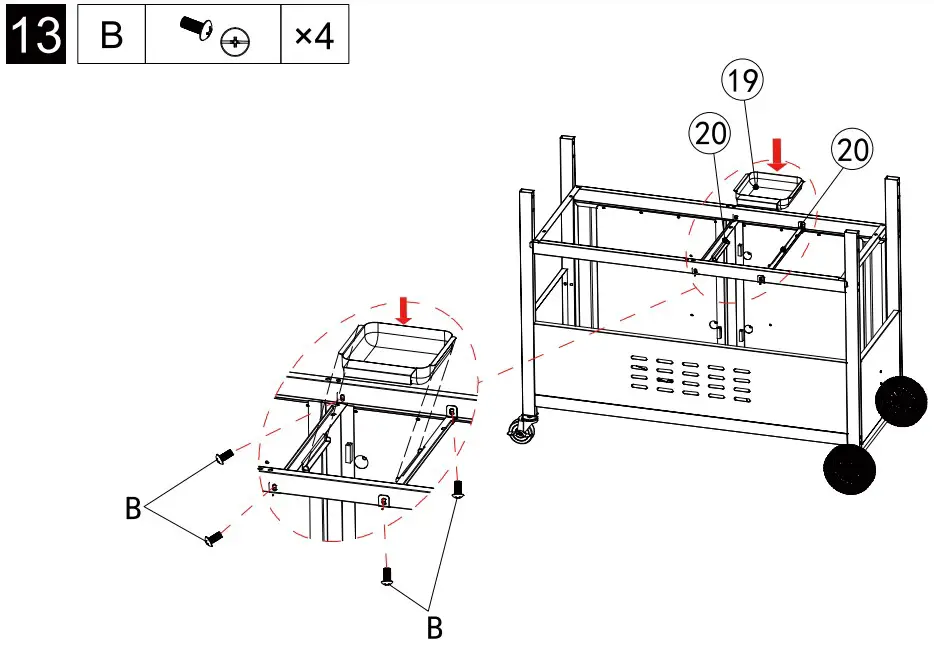

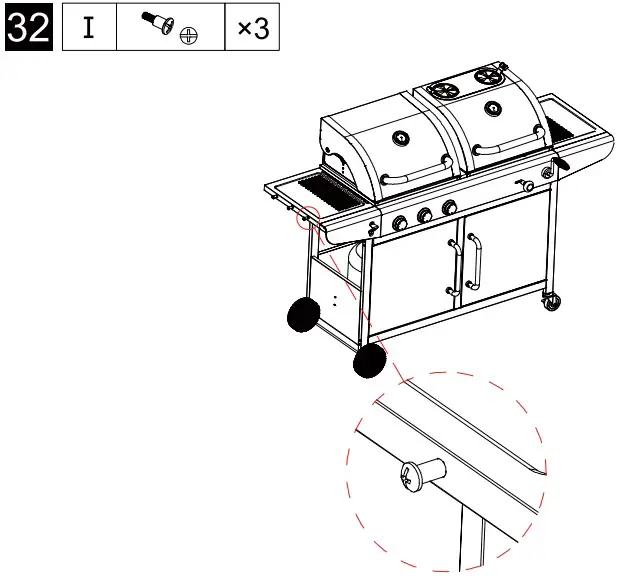

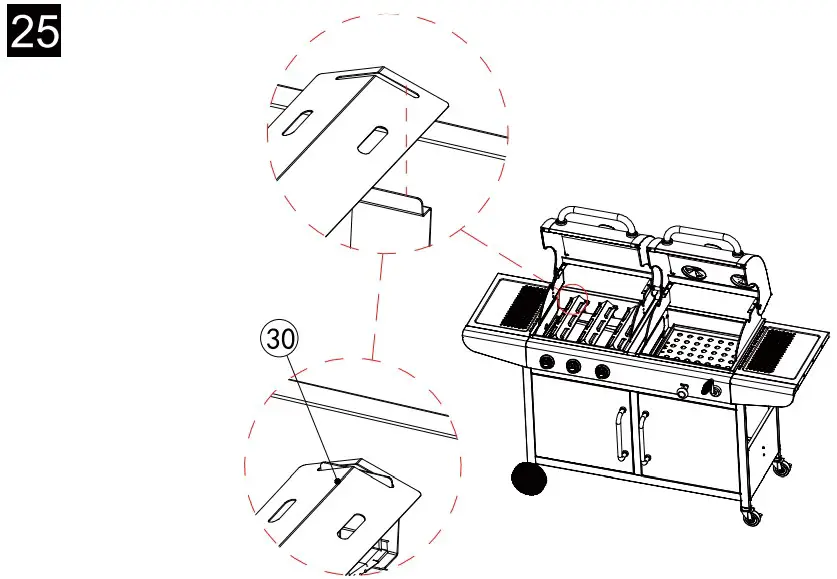

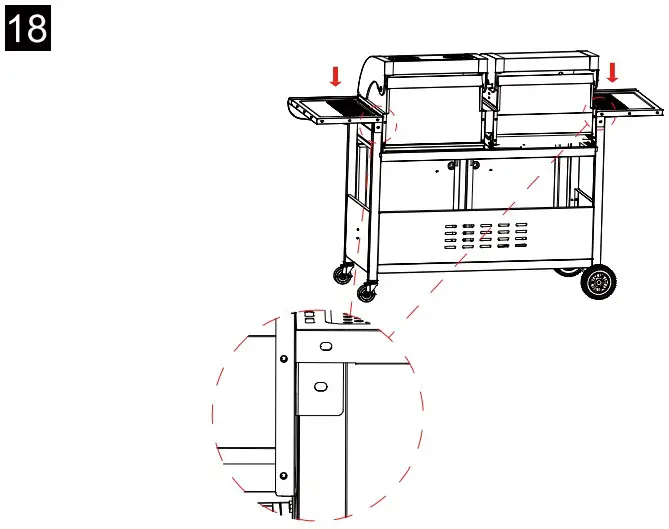

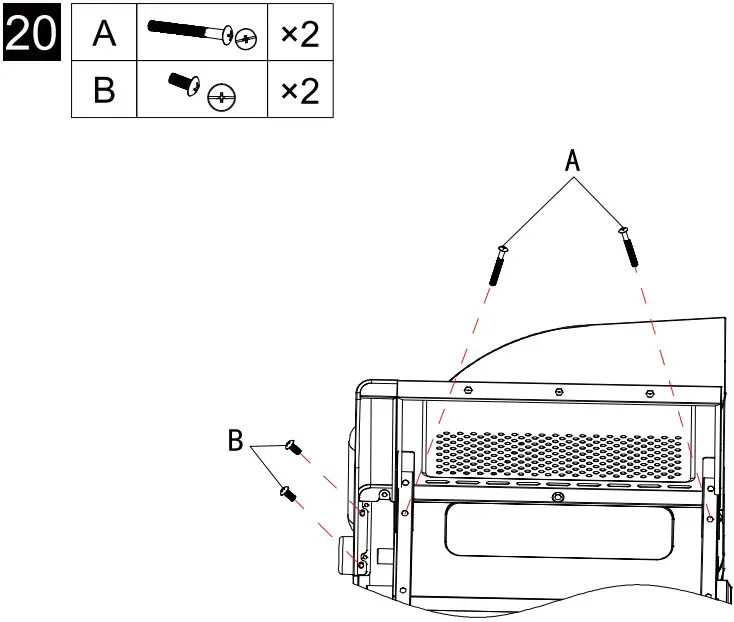

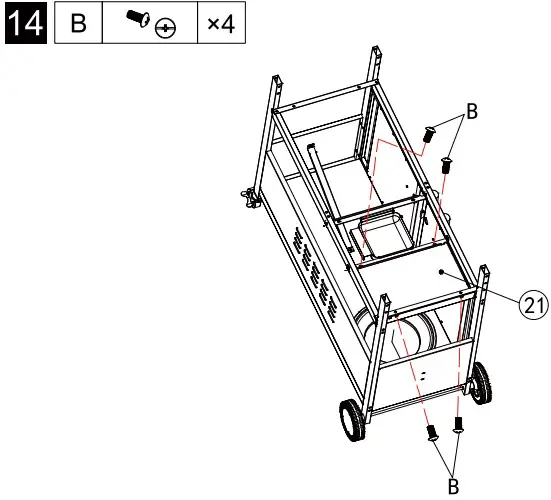

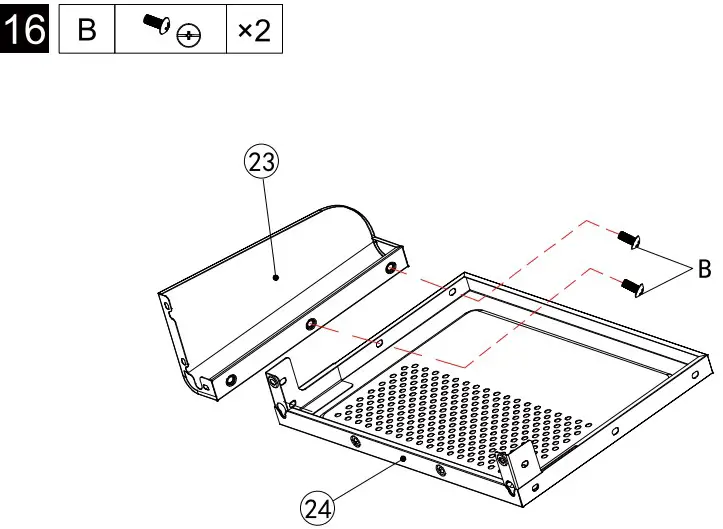

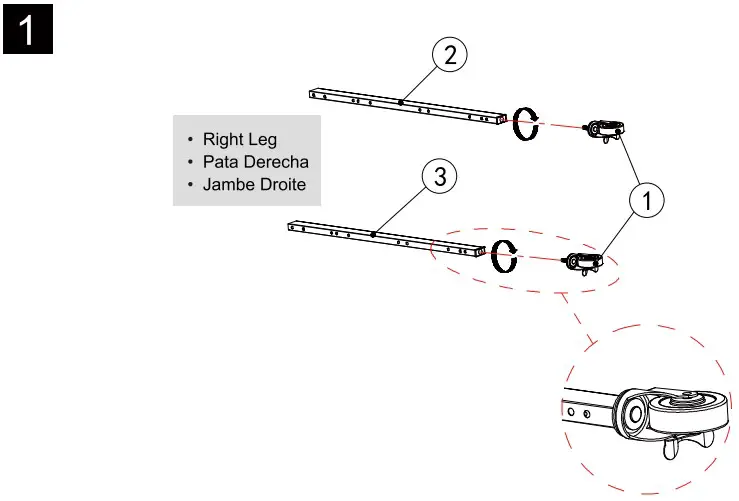

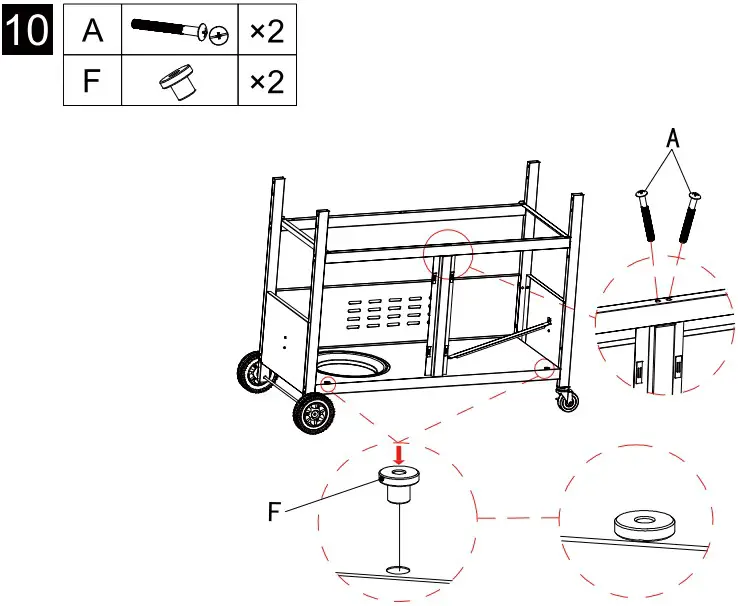

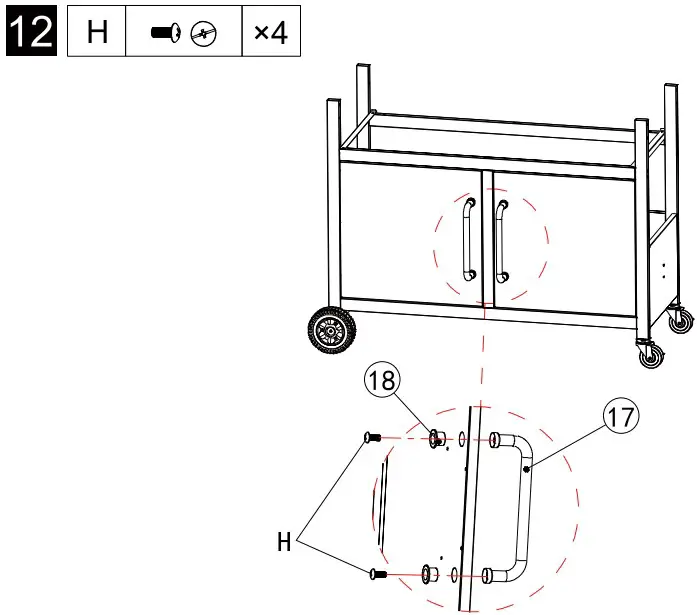

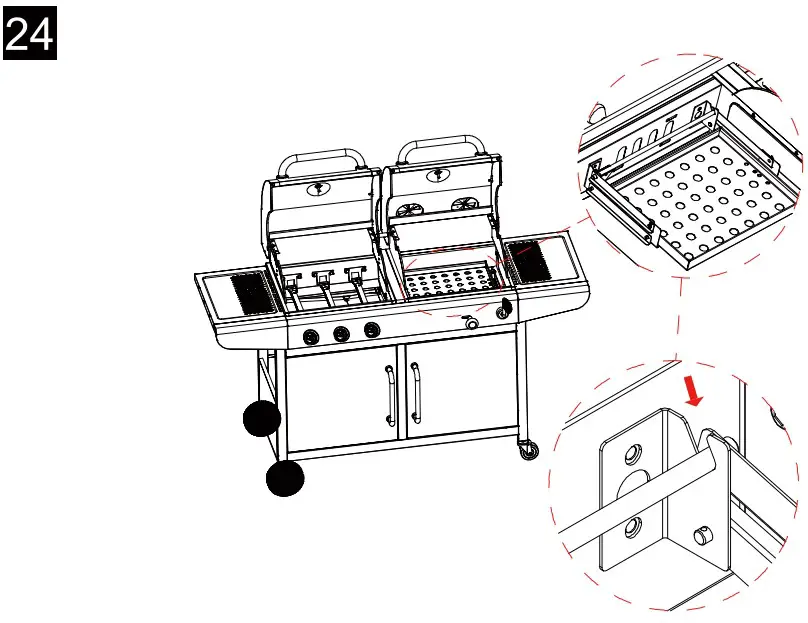

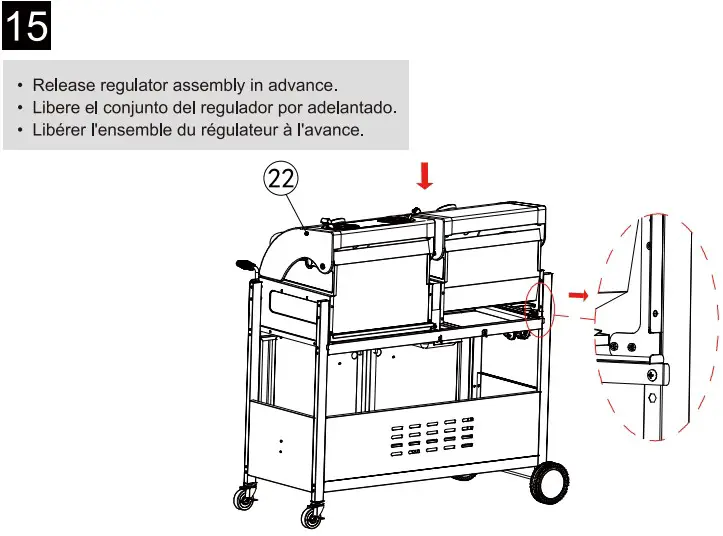

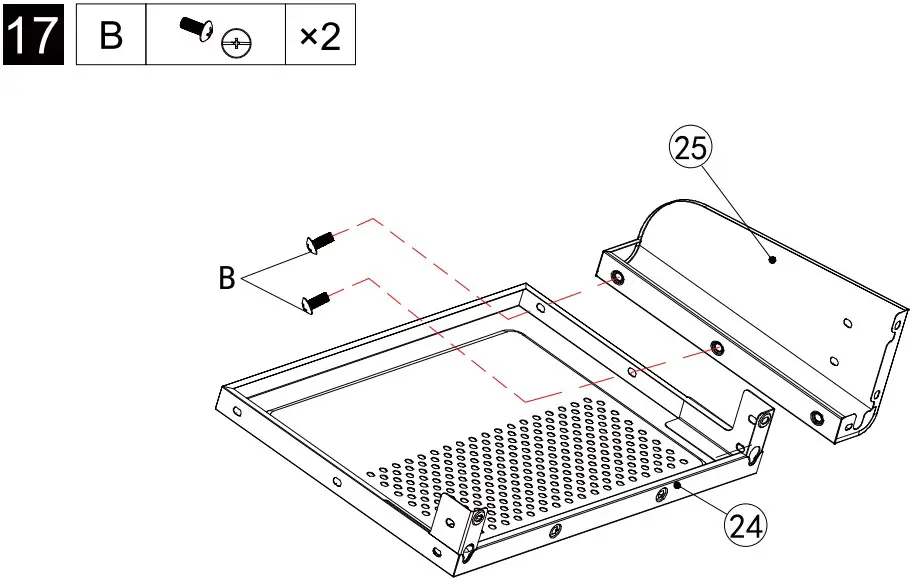

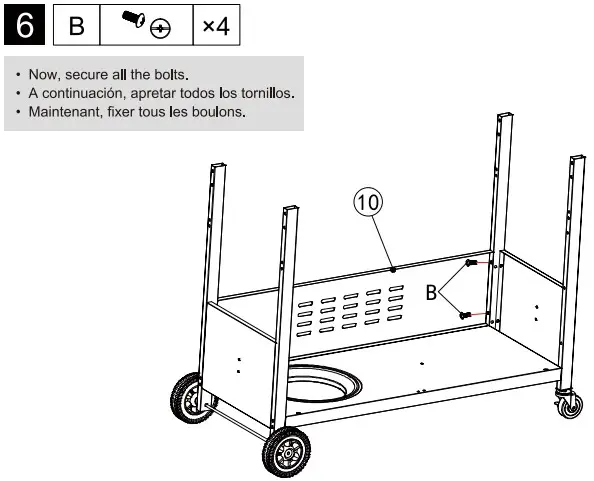

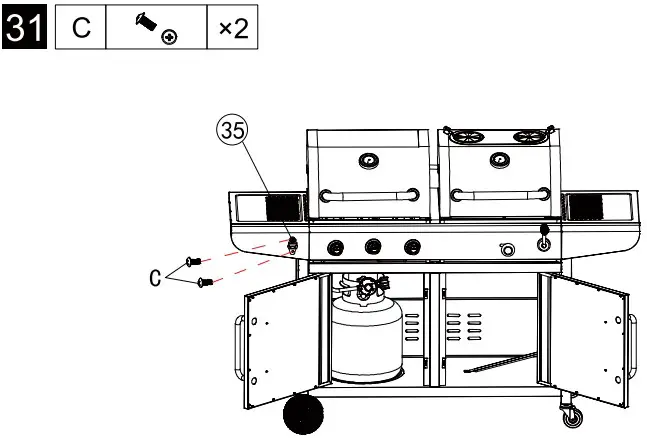

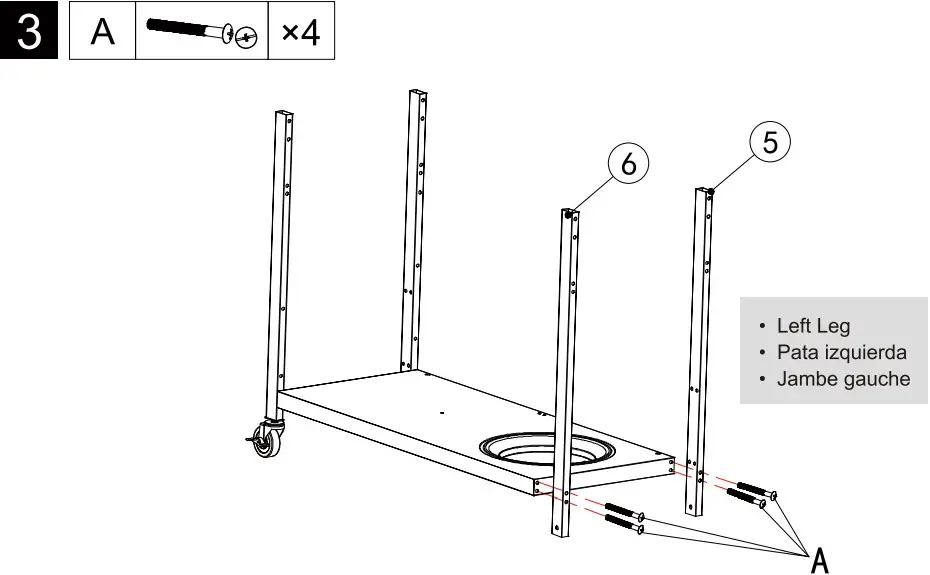

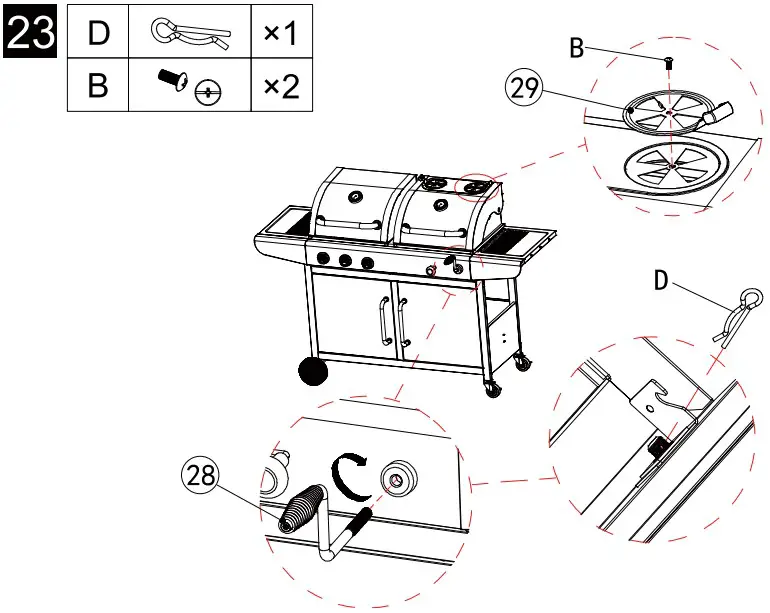

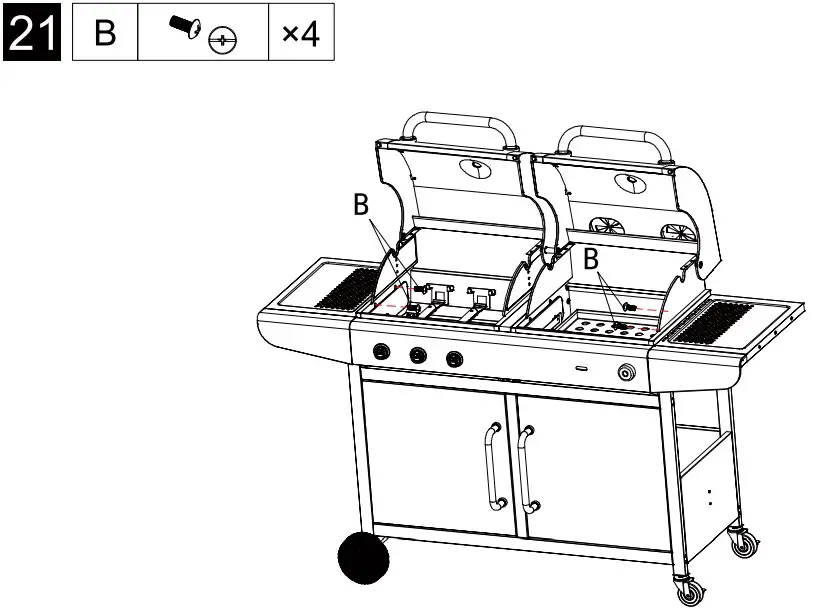

Assembly
