WebstaurantStore 600LCK4518BK Wall Mount Locker
Product Information
The K.D. Locker is a single-row locker with a black finish. It comes with side panels, middle dividers, a back panel, a bottom panel, top panel, front panel, bracket, block, coat rod, bolts, nuts, hex head bolt for the coat rod, and a wrench.
Parts List
| Item Number | Description | Quantity |
|---|---|---|
| 1 | Side panels | 2 |
| 2 | Middle Dividers | 3 |
| 3 | Back Panel | 1 |
| 4 | Bottom Panel | 1 |
| 5 | Top Panel | 1 |
| 6 | Front Panel | 1 |
| 7 | Bracket | 1 |
| 8 | Block | 1 |
| 9 | Coat Rod | 1 |
| 10 | Bolt for Bracket | 4 |
| 11 | Bolts | 3 |
| 12 | Nuts | 2 |
| 13 | Hex Head Bolt for Coat Rod | 1 |
| 14 | Wrench | 1 |
Product Usage Instructions
Basic Assembly of Single Row Lockers
Step One:
- Align side panel and back panel vertically and securely connect them with bolts beginning at the top edge.
- Align bottom panel to side panel and back panel, and securely connect them with bolts.
Step Two:
- Bolt the three middle dividers to the bottom panel.
Step Three:
- Attach top panel to the panel set and bolt to middle dividers and bottom panel.
- Bolt the block to back panel and top panel together.
- Bolt the bracket to the side panels and attach the coat rod to the bracket, then secure the coat rod with hex head bolt.
Step Four:
- Attach the frame to the panel set and secure them with bolts.
- Hanging the lockers to the wall with anchoring (provided by purchaser).

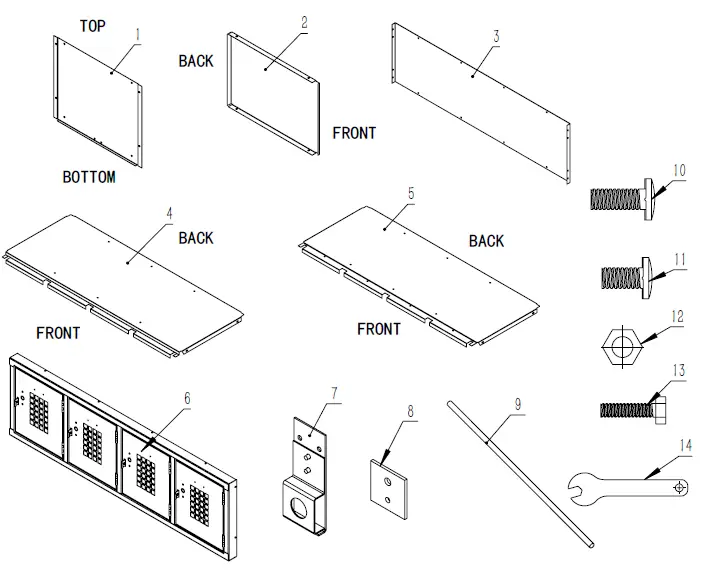

OVERVIEW
PARTS LIST
| Item Number | Description | Quantity |
| 1 | Side panels | 2 |
| 2 | Middle Dividers | 3 |
| 3 | Back Panel | 1 |
| 4 | Bottom Panel | 1 |
| 5 | Top Panel | 3 |
| 6 | Front Panel | 3 |
| 7 | Bracket | 2 |
| 8 | Block | 4 |
| 9 | Coat Rod | 1 |
| 10 | Bolt for Bracket | 4 |
| 11 | Bolts | 74 |
| 12 | Nuts | 78 |
| 13 | Hex Head Bolt for Coat Rod | 2 |
| 14 | Wrench | 1 |
BASIC ASSEMBLY OF SINGLE ROW LOCKERS
- Step One:
- A: Align side panel and back panel vertically and securely connect them with bolts beginning at the top edge
- B: Align bottom panel to side panel and back panel,and securely connect them with bolts
- Step Two:
- A: Bolt the three middle dividers to the bottom panel
- Step Three:
- A: Attach top panel to the panel set and bolt to middle dividers and bottom panel
- B: Bolt the block to back panel and top panel together
- C: Bolt the bracket to the side panels and attach the coat rod to the bracket,then secure the coat rod with hex head bolt
- Step Four:
- A: Attach the frame to the panel set and secure them with bolts
- B: Hanging the lockers to the wall with anchoring ( provided by purchaser )
MODEL: # 600LCK4518BK
