Rheem 200 Residential Pool Heater User Guide

Rheem 200 Residential Pool Heater

RESIDENTIAL

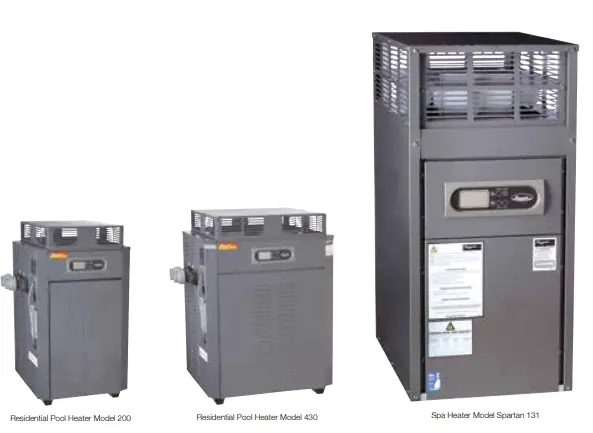

RESIDENTIAL POOL HEATER MODELS 200 TO 430
The Rheem range of Raypak® residential pool and spa heaters is capable of heating the biggest or smallest of pools and spas, extending your swimming time and enjoyment.

• Robust powder-coated all-metal construction
• Reliable & trustworthy performance
• Cupro-nickel heat exchanger for greater protection against corrosion
• Polymer headers for longer life
• Our heater allows you to operate two motorised actuator valves (pool to spa changeover) and also has a pump run-on timer, which protects the heat exchanger in the cool-down mode
• Energy-saving ‘hot surface ignition
• Integration capabilities with other pool & spa control equipment
• Manufactured in Australia by Rheem
• Remote control connection available as an option
• Suitable for either indoor or outdoor installations (Outdoor hood supplied standard with heater)
• Service code diagnostics
• Child-lock function

SPA HEATER MODEL SPARTAN 131
The Spartan 131 spa heater is a purpose-built spa heater. It is capable of heating almost any spa on demand.

• Digital thermostat display
• Integration capabilities with other pool & spa control equipment
• Energy-saving ‘hot surface ignition
• Polymer headers for longer life
• Remote control available as an option
• Service code diagnostics
• Child-lock function
• Suitable for outdoor installations only

PREMIUM

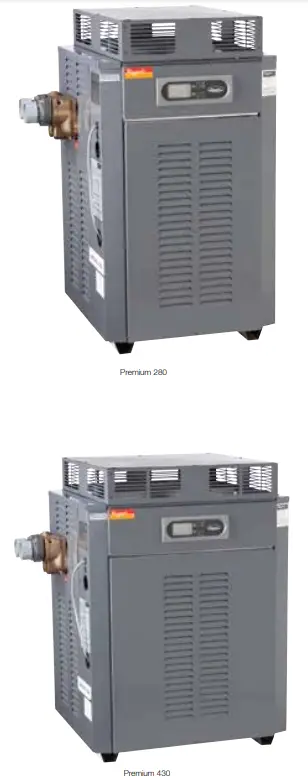

PREMIUM POOL HEATER MODELS 280 & 430
There are some pool & spa heating applications that call for a more rugged heater that will meet the toughest of operating conditions & environments. The Rheem range of Raypak® Premium pool & spa gas heaters are built for these conditions and are suitable for small to medium commercial installations.

• Robust powder-coated all-metal construction
• Reliable & trustworthy performance
• Cupro-nickel heat exchanger for greater protection against corrosion
• All-bronze headers for greater temperature tolerance & corrosion protection
• Stainless steel constructed base
• Stainless steel combustion support structure
• Powdercoated heavy gauge metal casing to withstand the harshest operating conditions
• Our heater allows you to operate two motorized actuator valves (pool to spa changeover) and also has a pump run-on timer, which protects the heat exchanger in the cool-down mode
• Energy-saving ‘hot surface ignition
• Integration capabilities with other pool & spa control equipment
• Manufactured in Australia by Rheem
• Remote control connection available as an option
• Suitable for either indoor or outdoor installations (Outdoor hood supplied standard with heater)
• Service code diagnostics
• Child-lock function

SELECTING THE RIGHT SIZE RAYPAK® HEATER FOR YOUR POOL OR SPA REQUIREMENTS LOOK FOR A MINIMUM OF 14°C RISE

SPECIFICATIONS

RAYPAK® ACCESSORIES

Remote Controller

The Raypak® pool & spa heater remote controller can be either surface or flush-mounted indoor or outdoors. By installing the remote control inside your house you do not have to go outside to operate your heater or check the water temperature. Easy to use push button controls make adjustments of temperature simple and allows for separate temperature settings for your pool & spa. The remote controller (part number #56PE5005) requires and is available with either 20m (part number # 56CAB20) or 50m (part number #56CAB50) cable lengths.

Dilution Fans

Dilution Fans (also referred to as Power Flues) are sometimes required for indoor or outdoor installations where there is no natural way of controlling venting of flue gas to a safe location or where there are high wind speeds or highly variable air pressures. The Raypak® dilution fan can provide an option when the normal flueing of the heater is not achievable or may be visually obtrusive. Fan model adaptors vary, depending on the pool heater model.

High Wind Top Kits

In some areas where high winds are frequently experienced it may be necessary to install a Raypak® High Wind Top. Installation of the High Wind Top will assist in proper draw through the heater and improve operation. High Wind Tops are available for all models except the Spartan 131.

Flow Switch Kits

A Raypak® flow switch is required when the location of the heater is either 1.0 meters higher or lower than the pool water surface. The pressure switch supplied with the pool heater may not operate correctly under these conditions. The flow switch is also an ideal secondary safety system that can be installed to protect your pool heater. Part number #56PE5005

Indoor Hood Kits

All Raypak® pool & spa heaters are built a standard for outdoor installation. If the installation however is indoors, such as in a plant room, an indoor flue kit is available as an option to convert the standard outdoor model to be suitable for indoor operation. Heaters installed indoors must never operate in the standard outdoor configuration

Warranty

Rheem New Zealand Limited
Freephone 0800 657 336
Freefax 0800 657 337
Telephone 09 829 0200
475 Rosebank Road, Avondale 1026
PO Box 19011, Avondale, Auckland 1746
www.rheem.co.nz

All specifications contained in this brochure are subject to change without notice. Please check the specifications are current at the time of ordering or building to incorporate the appliance. All information is current at the time of publication, (September 2021) but may change without notice. Raypak® is a registered trademark of Raypak Australia Ltd.
