Fisher Paykel Rs7621frjk1 76cm Integrated Column Freezer User Guide

Fisher Paykel Rs7621frjk1 76cm Integrated Column Freezer User Guide

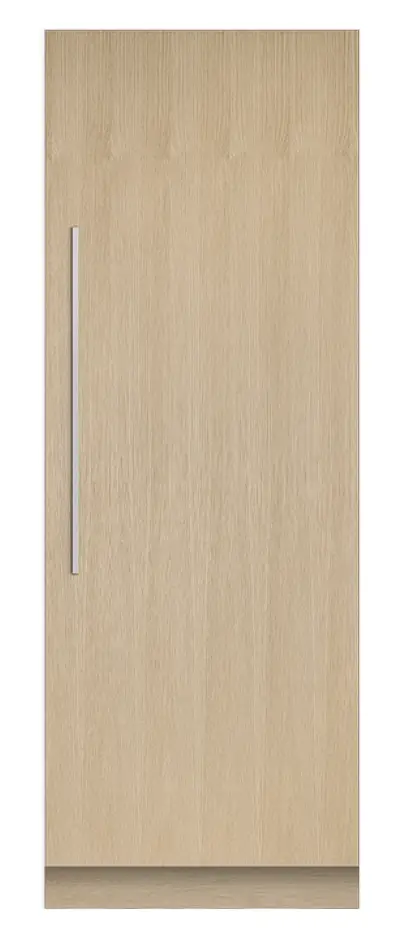

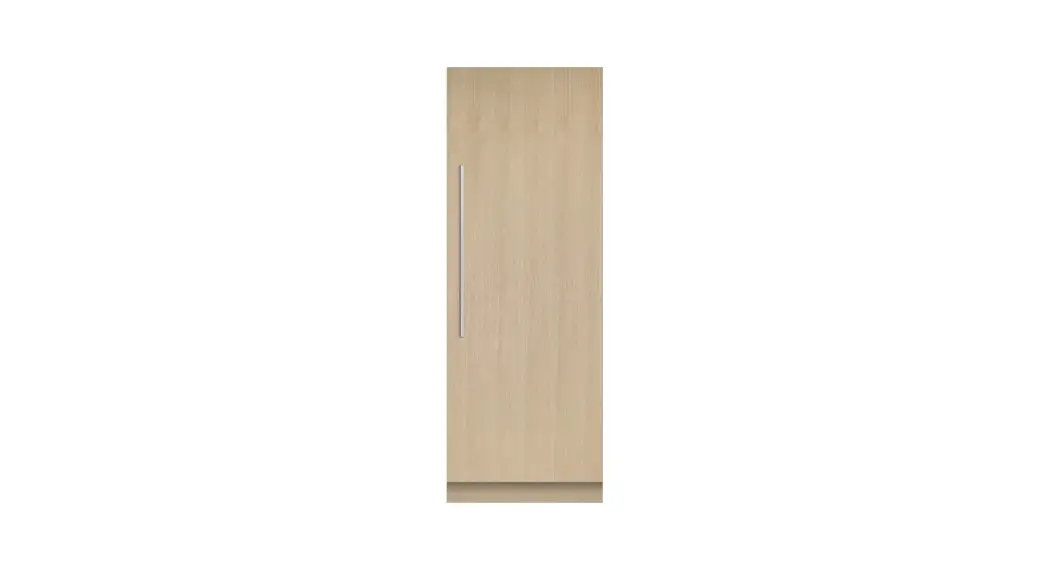

FISHER PAYKEL RS7621FRJK1 76cm Integrated Column Freezer

RS7621FRJK1 76cm Integrated Column Freezer

Install it separately or pair with another Column for true design freedom – this model is right hinge with stainless steel interior.

  • ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
  • Variable Temperature Zone lets you change a compartment to Freeze, Soft Freeze or Deep Freeze for optimal storage
  • Internal ice maker with boost for busy times
  • Customise with your own kitchen cabinetry or purchase our stainless steel door panel accessory

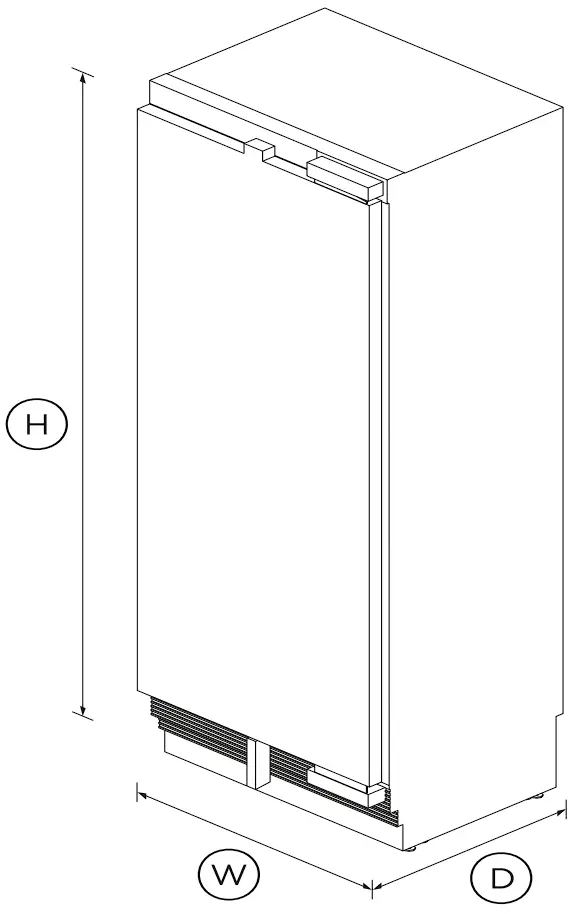

DIMENSIONS

Height                                                          2134mm
Width                                                           756mm
Depth                                                           610mm

FEATURES & BENEFITS

Variable temperature zones
There’s more than one way to freeze food, and different freezing temperatures and techniques affect food care – and your levels of convenience – in different ways. Optimal freezing is a question of what you’re storing, how fresh it is, and when you plan to consume it. Change a compartment to Soft Freeze to enjoy maximum everyday convenience, or to Freeze Mode or Deep Freeze Mode to retain natural goodness for future use.

Deep Freeze Mode
Deep freezing (-25°C) allows food to be stored for months or even years with temperatures that halt bacterial activity. Freezing food quickly is the key to protecting quality and retaining nutrients, so they are not lost when defrosting.

Mix & match
Integrated Column Refrigeration gives you the freedom to mix and match. Different sized Column Fridges and Freezers can be installed separately or paired. Finish them with our stainless steel door panels or customise to match your own kitchen cabinetry.

Clever energy
Our ActiveSmart™ Foodcare Refrigerator Freezers adapt to daily use by cooling and defrosting only when needed. This means your fridge uses the energy it needs without compromising on food care.

Appealing illumination
Bright LEDs light up each ceiling, shelves, bins and trays in both refrigerator and freezer, making it easy to find your food and creating a welcoming glow in your kitchen for those midnight snacks.

Design quality
The premium design and quality finish includes a steel interior lining as well as full-extension metal shelf runners for easy access, and robust glass shelving.

Easy install
Integrated Column Refrigerators and Freezers have been developed to make their installation easy. The joiner kit is included when pairing refrigerators and freezers. All models come with front adjustable levelling feet and they’ve been designed to easily slide into place as separate units.

SPECIFICATIONS

Accessories
1372mm Stainless steel toe kick                                                             AKRS13710
1524mm Stainless steel toe                                                                    AKRS15210
1981mm Stainless steel toe kick                                                            AKRS19810
2134mm Stainless steel toe                                                                   AKRS21310
762mm Stainless steel toe kick                                                              AKRS7610
Contemporary round handle                                                                AHS-RD21
Contemporary square handle                                                               AHD3-RD21
Joiner kit                                                                                              AJ-RS21LR
Matching Replacement Water                                                                 FWC3
Square fine aluminium handle                                                             AHD5RDSF
Square fine black handle kit                                                                AHD5RDSFB
Stainless steel door panel                                                                    RD7621L10D
Stainless steel door panel                                                                    RD7621R10D

Capacity
Total net volume                                                                                     442L
Volume freezer                                                                                       442L

Consumption
Energy consumption                                                                          369kWh/year
Energy rating                                                                                              F

Freezer Features
Automatic ice maker                                                                                  •
Bottle chill                                                                                                 •
Door alarm                                                                                                •
Fast freeze                                                                                                 •
Freezer bins                                                                                               4
Ice Boost                                                                                                   •
LED bin lighting                                                                                       •
LED ceiling lighting                                                                                  •
LED side lighting                                                                                      •
SmartTouch interface at                                                                            •

Installation Dimensions
Cabinetry height with included                                                           2134mm
Minimum inside width of                                                                    762mm
Minimum internal depth of                                                                 635mm
Minimum internal height of                                                               2134mm

Performance
ActiveSmart™ Foodcare                                                                       •
Adaptive defrost                                                                                    •
Dual evaporator                                                                                     •
Frost free                                                                                               •
Frost free freezer                                                                                   •
Inverter controlled compressor                                                             •
Noise emissions                                                                                42dBA
Noise emissions class                                                                           D
Sabbath mode                                                                                       •
Variable food modes                                                            Soft freeze; Freeze; Deep
Variable temperature zones                                                                  2

Power requirements
Rated current                                                                                    10A
Supply frequency                                                                              50Hz
Supply voltage                                                                                  230V

Product dimensions
Depth                                                                                             610mm
Height                                                                                            2134mm
Width                                                                                             756mm

Warranty
Parts and labour                                                                             5 years
Sealed system parts only                                                                5 years

SKU                                                                                                26144

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
