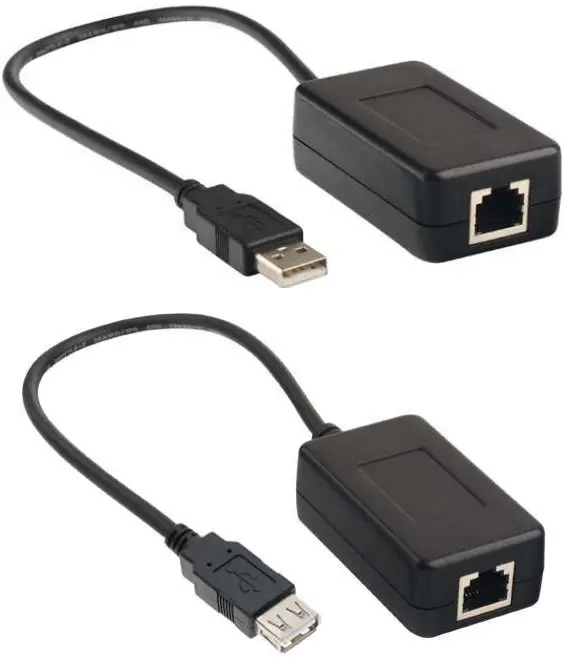

SECOMP 12991121 1 Port USB Extender 45m by Cat5e/6 User Manual
DEAR CUSTOMER
thank you for purchasing this product. For optimum performance and safety,please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
INTRODUCTION
This is a USB1.1 Extender, designed for extending signal sources of the local areato one self-powered or bus-powered USB device from the remote area up to 45 meter with a CAT5e/6e cable. It can be applied to your USB camera, printer, webcam, keyboard, mouse or other devices
FEATURES
- Compliant with USB 1.1 specification.
- Supports full-speed (12 Mb/s) or low-speed (1.5 Mb/s) USB
- No driver required
- USB self-powered and Low power consumption
SPECIFICATIONS
| Input/output | |
| Sender | Input: USB 1.1, Output: RJ45 |
| Receiver | Input: RJ45, Output: USB 1.1 |
| Sender and Receiver Voltage | 5V (USB self- powered) |
PACKAGE CONTENT
Before attempting to use this unit, please check the packaging and make sure the following items are contained: Sender, Receiver and User Manual.
OPERATION
- Connect the sender with an USB cable to the host computer.
- Connect the sender to the receiver with an ethernet cable.
- Connect the receiver with an USB cable to the USB devices.

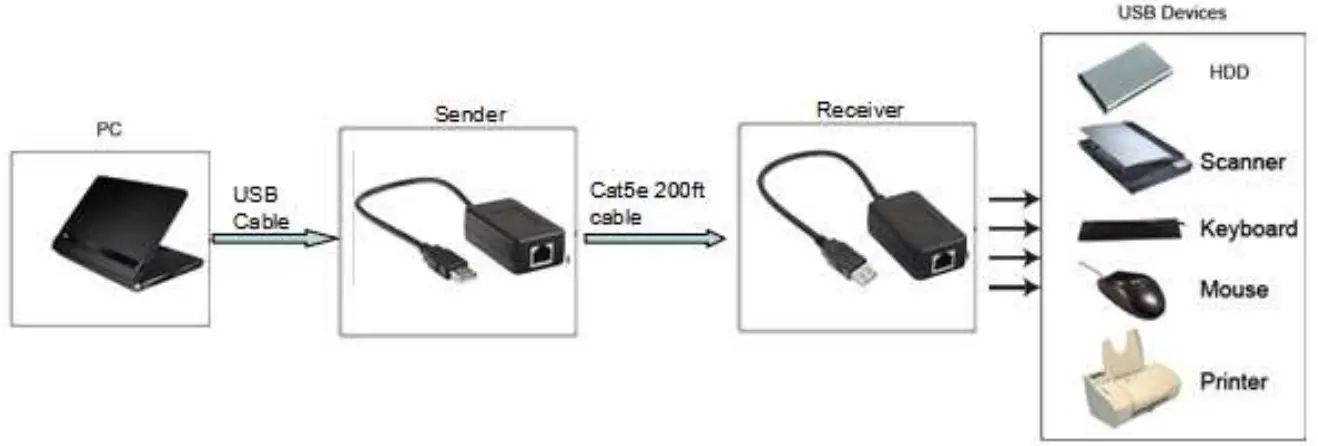

CONNECTION DIAGRAM
