Dimension Guide

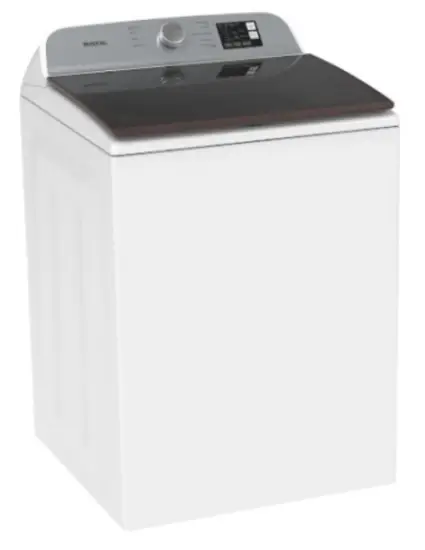

Maytag® Top Load Washer with Deep Fill option – 4.8 cu ft
White Available
MVW6200KW
W11495336A
DETAILED PLANNING DIMENSIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS and INSTALLATION INSTRUCTIONS, located in your appliance’s Owner’s Manual, before installing and operating this appliance.
Electrical Requirements | |
MVW6200KW – 4.8 cu ft DOE (US) / 5.5 cu ft IEC (CAN) | |
| Minimum Circuit | 15 A |
| Amperage Rating | 120 V AC only |
| Operating Voltage | 60 Hz |

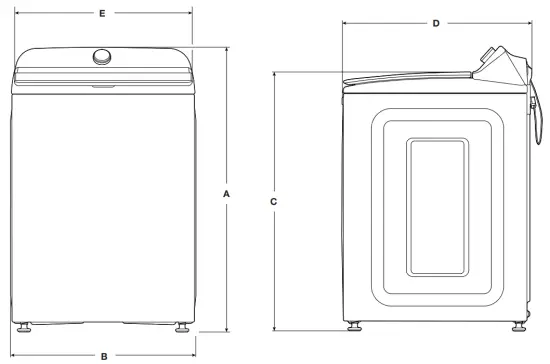

Product Dimensions | |||||
MVW6200KW – 4.8 cu ft DOE (US) / 5.5 cu ft IEC (CAN) | |||||
in (minimum) | mm (minimum) | in (maximum) | mm (maximum) | ||
| A | Height (with feet) | 42 | 1065 | 4211/16 | 1084 |
| B | Width | 271/2 | 702 | – | |
| C | Top of Lid Height (with feet) | 38 | 968 | 383/4 | 984 |
| D | Depth | 271/2 | 702 | – | |
| E | Width of Lid | 271/2 | 702 | – | – |

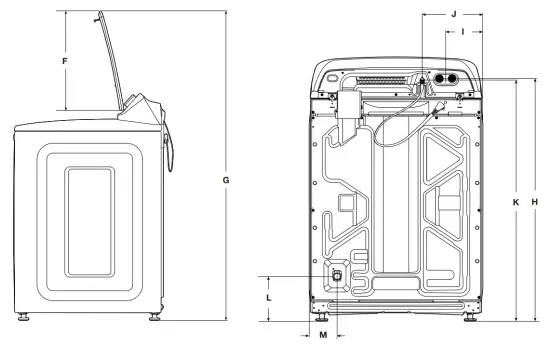

Product Dimensions | |||||
MVW6200KW – 4.8 cu ft DOE (US) / 5.5 cu ft IEC (CAN) | |||||
| in (minimum) | mm (minimum) | in (maximum) | mm (maximum) | ||
| F | Height of Lid | 191/2 | 487 | – | – |
| G | Height with Lid Open | 571/2 | 1455 | 583/4 | 1470 |
| H | Water Inlet Valves Height | 381/4 | 972 | 40 | 1016 |
| I | Water Inlet Valves from Side | 53/4 | 147 | – | – |
| J | Power Cord from Side | 91/2 | 242 | – | – |
| K | Power Cord Height | 371/2 | 953 | 381/4 | 972 |
| Power Cord Length | 62 | 1575 | – | – | |
| L | Drain Hose Outlet Height | 7 | 179 | 73/4 | 196 |
| M | Drain Hose Outlet from Side | 4% | 111 | – | – |
| Drain Hose Length | 42 | 1067 | – | – | |
| Diameter of Drain Hose | 1 | 25 | – | – | |

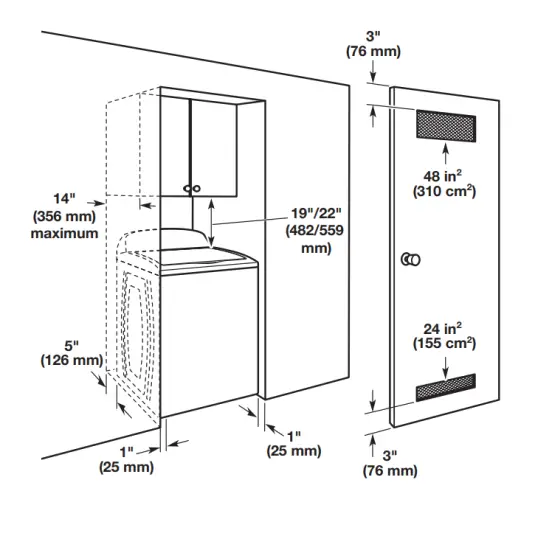

Recessed area or closet installation
NOTE: All 27″ wide washers should have 19″ clearance, while all 29″ wide washers should have 22″ clearance.
All Dimensions show recommended spacing allowed, except for closet door ventilation openings, which are minimum required.
This washer has been tested for installation with a spacing of 0″ (0 mm) clearance on the sides. Consider allowing more space for ease of installation and servicing, spacing for companion appliances, and clearances for walls, doors, and floor moldings. Add spacing of 1″ (25 mm) on all sides of the washer to reduce noise transfer. If a closet door or louvered door is installed, top and bottom air openings in the door are required.
®/TM©2020 Maytag.
All rights reserved.
Used under license in Canada.
W11495336A
