MAYTAG MVW6200KW 4.8 Cu. Ft. 10-Cycle Top-Loading Washer

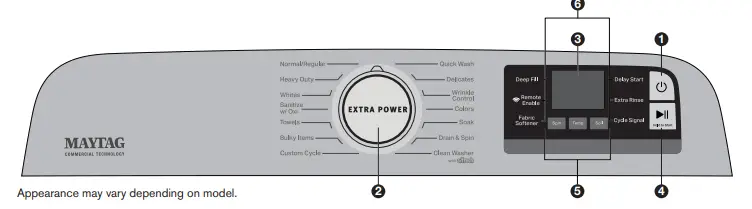

CONTROL PANEL

POWER
Touch to turn on/off or to stop/cancel a cycle.
CYCLE KNOB
Turn knob to select desired cycle.
EXTRA POWER
Press to boost stain-fighting on selected cycle.
DISPLAY LCD
The display shows the time required for the cycle to complete. Factors such as load size and water pressure may affect the time shown in the display. Tightly packed loads, unbalanced loads, or excessive suds may cause the washer to adjust cycle time as well.
ADD GARMENT
When Add Garment is lit, you may open the lid, which automatically pauses the cycle, and add items. To resume, close the lid and hold the START/PAUSE button to start the washer again.
START/PAUSE
Touch and hold the START/PAUSE button to start cycle. Touch during a cycle to pause cycle and unlock lid. NOTE: If machine is spinning it may take longer to unlock lid.
CYCLE MODIFIERS (Not all modifiers are available on all cycles)
SPIN
Touch to modify the cycle’s available spin speeds (Off, Medium, Fast).
TEMP
Touch to modify the cycle’s available temperatures (Tap Cold, Cold, Cool, Warm, Hot).
SOIL
Touch to modify the cycle’s available soil levels. Increase soil level for heavily soiled items and decrease soil level for lightly soiled items (Extra Light, Light, Normal, Heavy, Extra Heavy). CYCLE OPTIONS (Not all options are available on all cycles).
DEEP FILL
Touch to add more water to the washer from the cycle’s auto-sensed level (Auto, Medium, High, Max Fill).
REMOTE ENABLE
Touch each time you want to remotely control via the Maytag™ app. Follow the instructions in the “GET THE MAYTAG™ APP AND GET CONNECTED” section below for more details. Opening the lid cancels “Remote Enable”.
FABRIC SOFTENER
Touch to let the machine know when you have added fabric softener to the dispenser drawer.
DELAY START
Touch to delay the start of the wash cycle for up to 12 hours.
EXTRA RINSE
Touch to automatically add a second rinse available on most cycles.
CYCLE SIGNAL
Touch to turn the end-of-cycle signal on/off and adjust the tone volume when a button is touched.

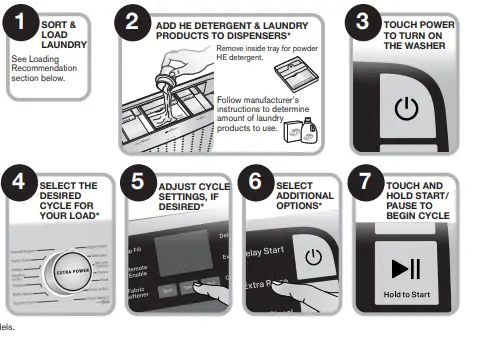

Loading Recommendation

For best performance, it is recommended to load items by dropping them in loose heaps evenly around the washplate and agitator. Do not lay items length-wise around the washplate or agitator.

More Water When You Want It

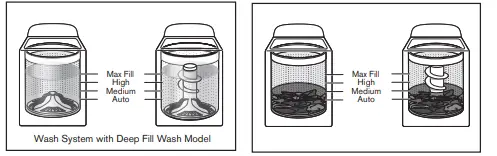

AUTO-SENSING & DEEP FILL

The washer will adjust the water level to the optimal amount for a High-Efficiency wash of the detected load size.
Touch “DEEP FILL” to add more water to the wash load.
There are four levels of deep water “Auto”, “Medium”, “High”, and “Max Fill”.
Not all levels are available on all cycles.

As the washer dampens and moves the load, the level of the items will settle in the basket. This is normal, and does not indicate that more items should be added. IMPORTANT: You will not see a washer basket full of water as with your pastagitator-style washer. It is normal for some of the load to be above the water line. WARNING: Do not wash water-resistantor water repellant-type clothing. Failure to closely follow these instructions may result in an abnormal vibrating and out-of balance condition that could result in physical injury, property damage, and/or appliance damage.

CYCLE GUIDE

Items to wash:	Cycle:	*Temperature:**	Soil Level:	Spin Speed:	Water Level:	Cycle Details:
Overly soiled garments, items that need additional cleaning effort	Heavy Duty	Hot Warm Cool Cold Tap Cold	Extra Heavy Heavy Normal Light Extra Light	Fast Medium Off	Max Fill High Medium Auto	Use this cycle for heavily soiled or sturdy items. Water Level Sensing process may take longer for some items than others because they will absorb more water than other fabric types.
Bright or darkly colored, casual and mixed loads	Colors	Hot Warm Cool Cold Tap Cold	Extra Heavy Heavy Normal Light Extra Light	Fast Medium Off	Max Fill High Medium Auto	Use this cycle to wash darks and colors, including mixed loads and active wear.
Large items such as sheets, sleeping bags, small comforters, jackets, small washable rugs	Bulky Items	Hot Warm Cool Cold Tap Cold	Extra Heavy Heavy Normal Light Extra Light	Fast Medium Off	Max Fill	Use this cycle to wash large items such as jackets and small comforters. The washer will fill with enough water to wet down the load before the wash portion of the cycle begins, and uses a higher water level than other cycles.
Heavily soiled, colorfast fabrics	Sanitize with Oxi	Hot	Extra Heavy	Fast Medium Off	Max Fill High Medium Auto	Use this cycle to eliminate 99.9% of bacteria when used in conjunction with Oxi additives. Preset cycle settings must be used to achieve proper sanitization. Be sure to add an Oxi product to the basket before starting cycle.
Swimsuits and items requiring rinsing without detergent	Drain & Spin / Rinse & Spin	N/A	N/A	Fast Medium Off	N/A	Combines a high speed spin with the option of a rinse only cycle for loads requiring an additional spin-out to reduce drying times or an additional rinse cycle to refresh a load or complete a cycle after power interruption. If you wish to run only the Drain & Spin Cycle, select the DRAIN & SPIN cycle. If you wish to run a Rinse & Spin, select the DRAIN & SPIN cycle, and then select EXTRA RINSE.
Cottons, linens, and mixed garment loads	Normal/ Regular	Hot Warm Cool Cold Tap Cold	Extra Heavy Heavy Normal Light Extra Light	Fast Off	High Medium Auto	Use this cycle for normally soiled cottons and mixed fabric loads.
No-iron fabrics, perm press, synthetics	Wrinkle Control	Hot Warm Cool Cold Tap Cold	Extra Heavy Heavy Normal Light Extra Light	Fast Medium Off	Max Fill High Medium Auto	Use this cycle to wash loads of no-iron fabrics such as sports shirts, blouses, casual business clothes, perm press, and blends.
Machine-wash silks, handwash fabrics	Delicates	Hot Warm Cool Cold Tap Cold	Extra Heavy Heavy Normal Light Extra Light	Fast Medium Off	Max Fill High Medium Auto	Use this cycle to wash lightly soiled items indicating “Machine Washable Silks” or “Gentle” cycle on the care label. Place small items in mesh garment bags before washing. This cycle uses a higher pre-set water level.
Lightly soiled, small-sized mixed garment loads	Quick Wash	Hot Warm Cool Cold Tap Cold	Extra Heavy Heavy Normal Light Extra Light	Fast Medium Off	Max Fill High Medium Auto	Use this cycle to quickly wash lightly soiled garments and small loads. The Quick Wash cycle uses shorter periods of more intense washing to clean items quickly.
No clothes in washer	Clean Washer with affresh®	N/A	N/A	N/A	N/A	Use this cycle every 30 washes to keep the inside of your washer fresh and clean. This cycle uses a higher water level. Use with affresh® Washer Cleaner tablet or liquid chlorine bleach to thoroughly clean the inside of your washer. This cycle should not be interrupted. See “Washer Care”. IMPORTANT: Do not place garments or other items in the washer during the Clean Washer with affresh® cycle. Use this cycle with an empty basket.

Items to wash:	Cycle:	*Temperature:**	Soil Level:	Spin Speed:	Water Level:	Cycle Details:
Towels, jeans, casual, and mixed loads. Sturdy fabrics	Towels	Hot Warm Cool Cold Tap Cold	Extra Heavy Heavy Normal Light Extra Light	Fast Medium Off	Max Fill High Medium Auto	Provides additional water and alternating wash action for heavily soiled mixed loads.
Heavily soiled white fabrics	Whites	Hot Warm Cool Cold Tap Cold	Extra Heavy Heavy Normal Light Extra Light	Fast Medium Off	Max Fill High Medium Auto	This cycle, when used with chlorine bleach, improves whitening of soiled white fabrics.
Heavily soiled fabrics	Soak	Hot Warm Cool Cold Tap Cold	Extra Heavy Heavy Normal Light Extra Light	Off	Max Fill High Medium Auto	Use this cycle to soak small spots of set- in stains on fabrics. The washer will use intermittent agitation and soaking. After time has expired, water will drain, but the washer will not spin. Cycle is complete.

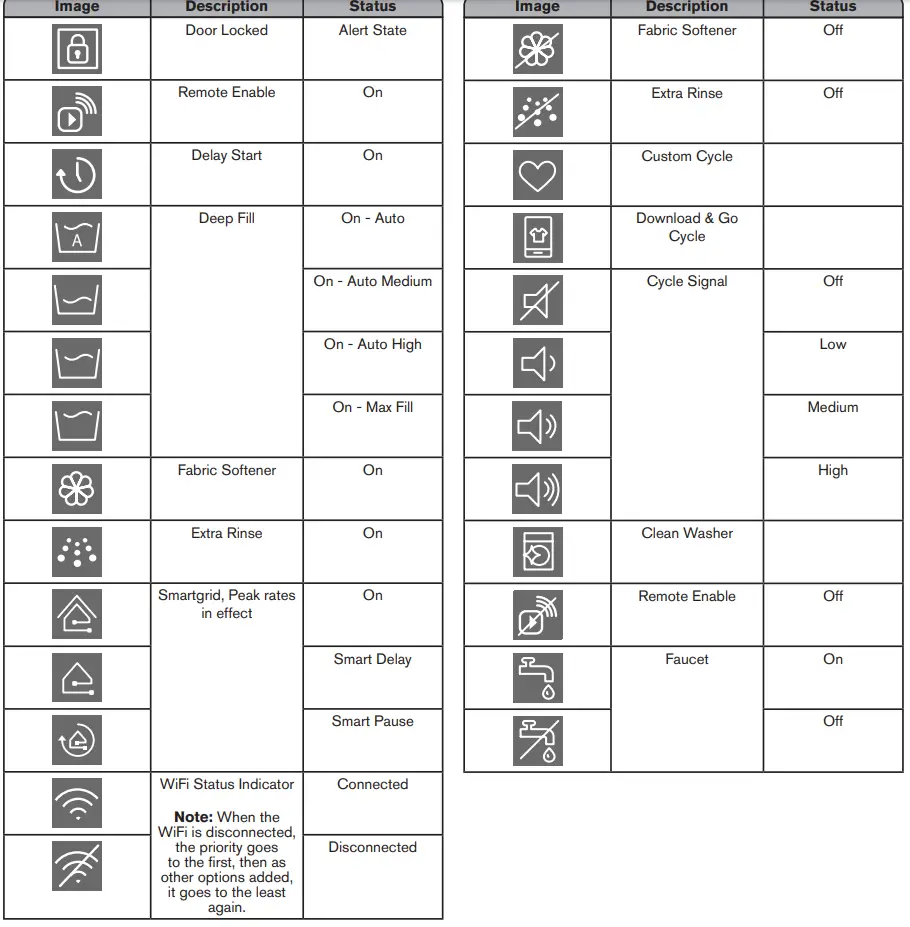

WASHER ICONS

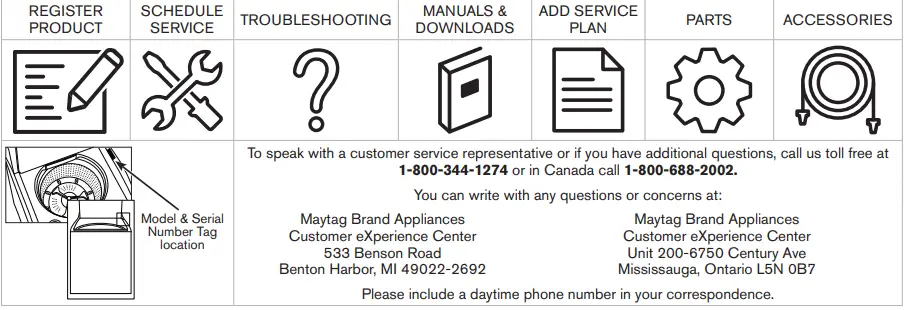

ASSISTANCE

For detailed installation instructions and maintenance information, winter storage, and transportation, please see the INSTALLATION AND CARE INSTRUCTIONS MANUAL included with your machine. For detailed product dimensions, please see the DIMENSION GUIDE that can be found at www.maytag.com/owners or in Canada at www.maytag.ca/owners For information on any of the following items please visit www.maytag.com/owners or in Canada www.maytag.ca/owners This may save you the cost of a service call.
