lefant Robot Vacuum Cleaner M201

MODEL Applicable for M201

Please read these instructions carefully before using the product and keep it in a safe place

Congratulations on the purchase of your Lefant ROBOTICS!

We hope it brings you many years of satisfaction. We trust the purchase of your new robot will help keep your home clean and provide you more quality time to do other things. Wisdom Inspired Freedom Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our Customer Service Center where a technician can address your speciﬁc problem or question.

For more information, please visit the Levant ROBOTICS oﬃcial website: www.lefantlife.com or send an email to [email protected]
The Company reserves the right to make technological and design changes to this product for continuous improvement.

Important Safety Instructions

When using the product, please keep your vigilance and follow below information:

This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Appliance in a safe way and understand the hazards involved. Children shall not play with the Appliance. Cleaning and user maintenance shall not be made by children without supervision.
Clear the area to be cleaned. Remove power cords and small objects from the ﬂoor that could entangle the Appliance. Tuckrug fringe under the rug base, and lift items such as curtains and tablecloths oﬀ the ﬂoor.
If there is a drop oﬀ in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.
Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.
Please make sure your power supply voltage matches the power voltage marked on the Charging Dock.
For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial or industrial environments.
Non-rechargeable batteries are prohibited.
Do not use without dust bin and/or ﬁlters in place.
Do not operate the Appliance in an area where there are li t candles or fragile objects.
Do not use in extremely hot or cold environments (below-5℃/23℉ or above 40℃/104℉).
Keep hair, loose clothing, ﬁngers, and all parts of body away from any openings and moving parts.
Do not operate the Appliance in a room where an infant or child is sleeping.
Do not use Appliance on wet surfaces or surfaces with standing water.
Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.
Do not use Appliance to pick up ﬂammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.
Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a ﬁre.
Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep the intake clear of dust, lint, hair, or anything that may reduce air ﬂow.
Take care not to damage the power cord. Do not pull on or carry the Appliance or Charging Dock by the power cord, use the power cord as a handle, close a door on the power cord, or pull the power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep power cord away from hot surfaces.
If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
Do not use the Charging Dock if it is damaged.
Do not use with a damaged power cord or receptacle. Do not use the Appliance or Charging Dock if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.
Turn OFF the Power Switch before cleaning or maintaining the Appliance.EN
The plug must be removed from the receptacle before cleaning or maintaining the Charging Dock.
Remove the Appliance from the Charging Dock, and turn OFF the Power Switch to the Appliance before removing the battery for disposal of the Appliance.
The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.
Please dispose of used batteries according to local laws and regulations.
Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a ﬁre.
When not using the Charging Dock for a long period of time, please unplug it.
The Appliance must be used in accordance with the directions in this Instruction Manual. LEFANT ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use.
The robot contains batteries that are only replaceable by skilled persons. To replace or remove the battery, please contact Customer Service.
If the robot will not be used for a long time, fully charge the robot and power OFF for storage and unplug the Charging Dock.

Product Composition

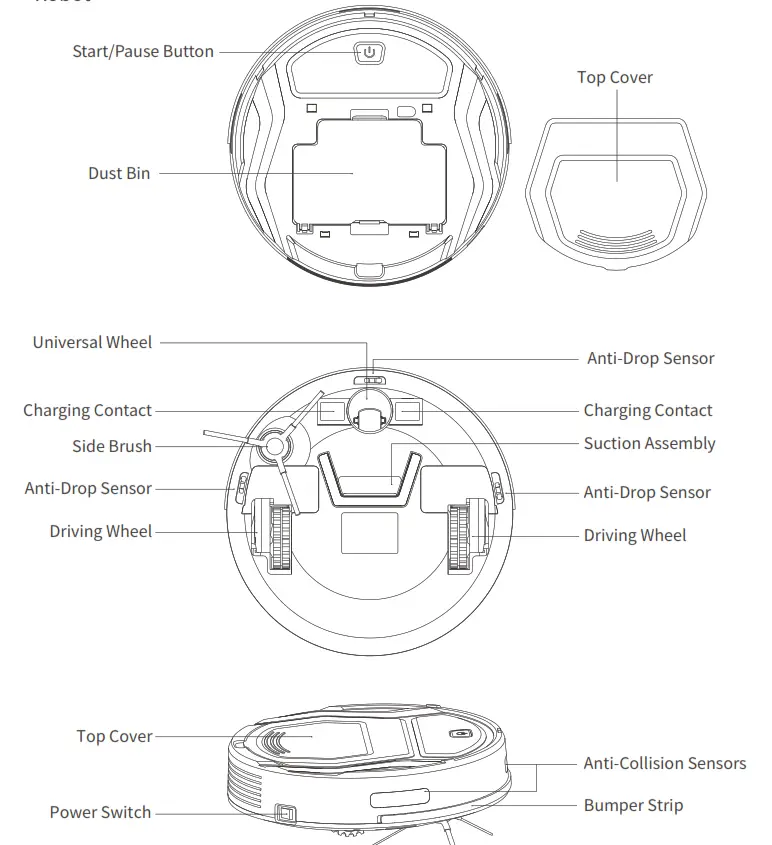

Robot

Product Composition

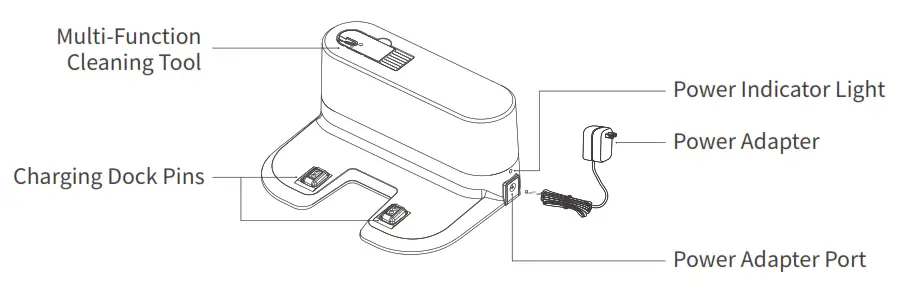

Charging Dock

Dust Bin

Operating and Programming

Notes Before Cleaning

Please refer to the following guidelines to check the cleaning area before using the robot.

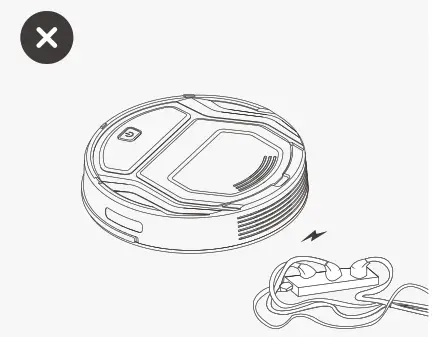

Remove power cords and small objects from the ﬂoor that could entangle the products.

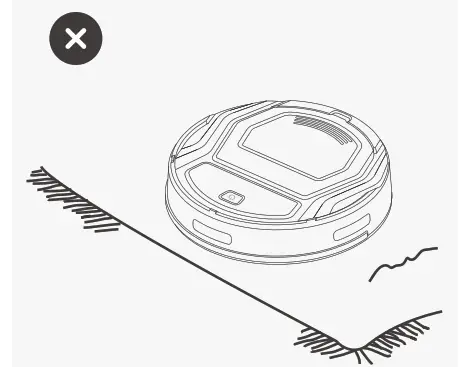

The product is not suitable for use on long-pile carpet. Before using the product near an area rug or on a short-pile area rug with tasseled edges, please fold area rug edges under themselves.

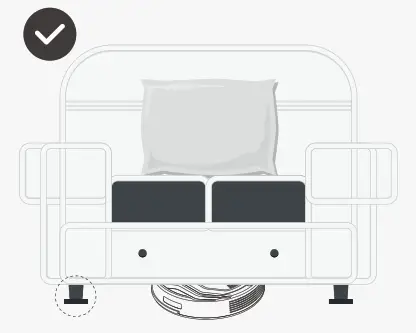

Please be aware that the robot needs at least an 8 cm (3”) clearance to clean under furniture without complications.

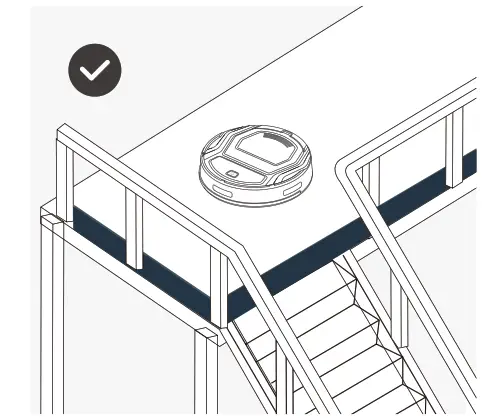

If there is a step or stairs in the cleaning area, please operate the robot to ensure its Anti-Drop Sensors can detect the drop oﬀ. It may be necessary to place a physical barrier at the edge of the drop oﬀ to keep the unit from falling over the edge.

Quick Start

Charging Dock Placement
Connect the adapter to the charging Dock

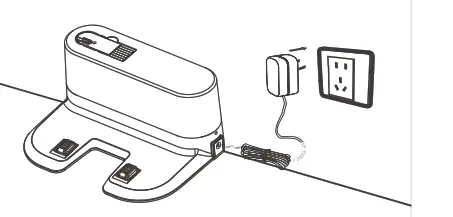

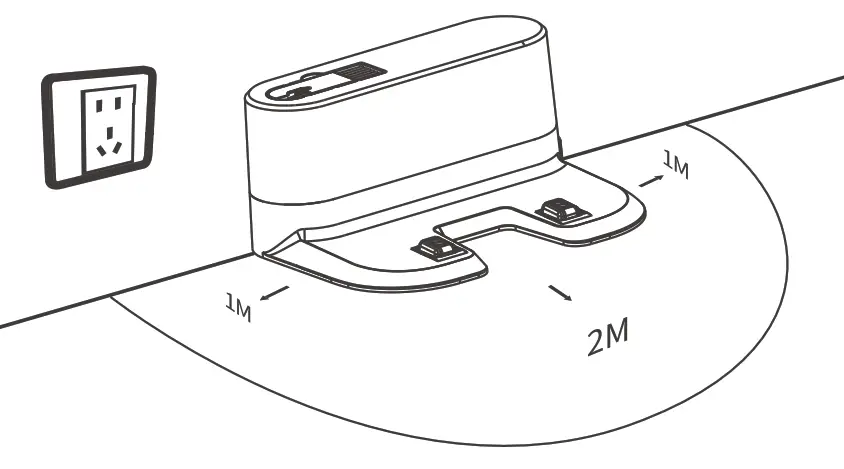

Place the Charging Dock on a level ﬂoor surface against the wall with the base perpendicular to the ground. Keep the immediate area 2m (6.6’) in front of the charger and 1 m (3.3’) on both sides of the charger clear of objects and reﬂective surfaces. Plug the Charging Dock in, the Power Indicator Light on the Charging Dock glows.

Place the Charging Dock

Connect the power supply

Install Side Brush

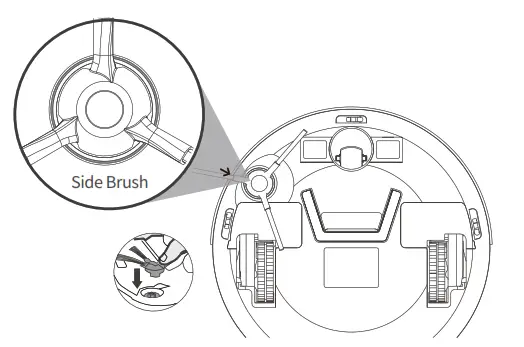

Attach Side Brush to the bottom of robot by pressing a brush into each slot until it clicks.

Start to Charge
Turn on the Robot

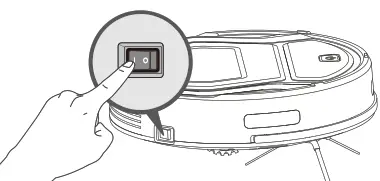

Turn the robot’s Side Power Switch to the ON position. “-” indicates power ON and“O” indicates power OFF. The robot is powered ON when the button glows a continuous BLUE.

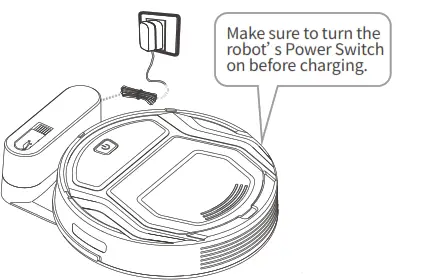

Charge Robot
Place the robot on the Charging Dock making sure the Charging Contacts on robot and the Charging Dock Pins make a connection.
button in breathing status when the robot is charging, button stops glowing after the robot is fully charged.
Usually, take 3.5 hours from low battery mode to fully charged.

Start Cleaning

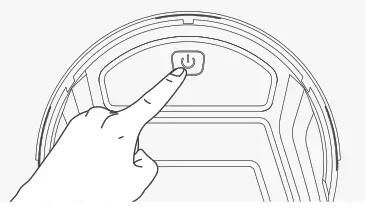

Press the button on the robot to start the automatic cleaning mode.

Pause Cleaning
Press the button to Pause the Cleaning.

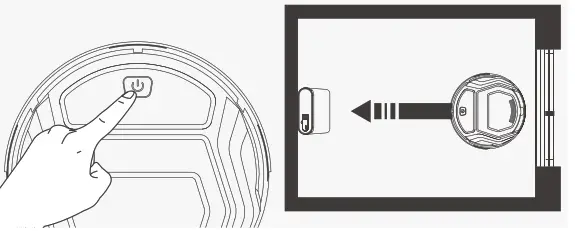

Return to the Charging dock
When battery power gets low, Robot automatically switches to Return to Charger Mode and returns to the Charging Dock to recharge itself. Alternatively, double click on the Start/Pause button on the robot to start the Return to Charger Mode.

APP download and network conﬁguration

Scan the QR code to download and install the app
This app is compatible with IOS9.0 and Android 4.0 or above.
ios system: Please search “Lefant life” in the app store. Android system: Please scan the QR code or search “Lefant Life” on google play to download.

https://smartapp.tuya.com/umouseclear

Connect to your Indoor 2.4G WIFI network

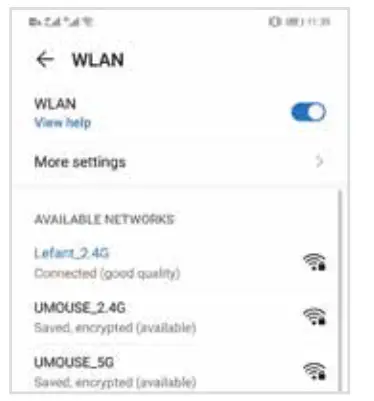

Make sure the mobile device is connected to the indoor 2.4G WIFI network, and the signal quality is good enough, register and log in to the mobile app.

EZ MODE

Network paring EZ mode (Only 2.4G Wi-Fi can be supported)

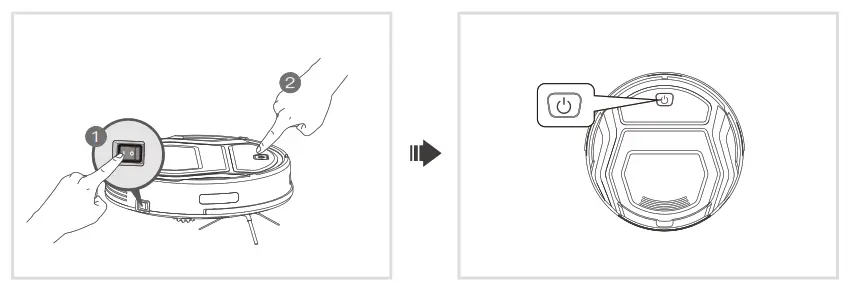

Turn on the side switch. Press and hold the key for about 3 seconds until you hear a beep and release.
The robot enters the network conﬁguration EZ mode, and the start/pause ﬂash quickly in blue.

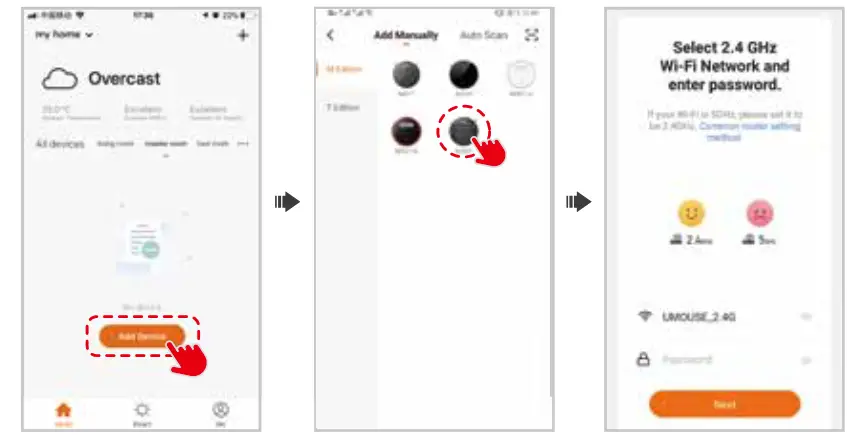

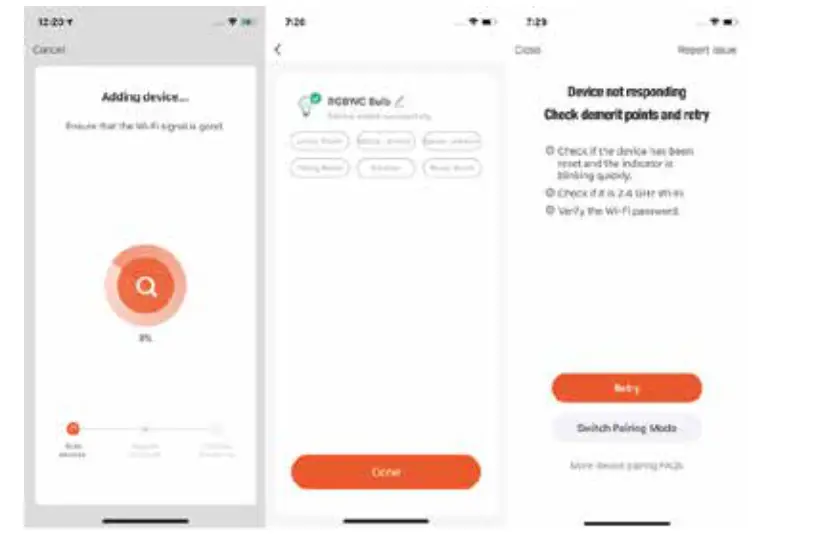

Open the app and select add device, the interface as follows:

If you experience with network pairing failure, please restart the robot and start over again. Or try the AP mode network pairing method instead.

AP MODE

Network paring AP mode (Only 2.4G Wi-Fi can be supported)

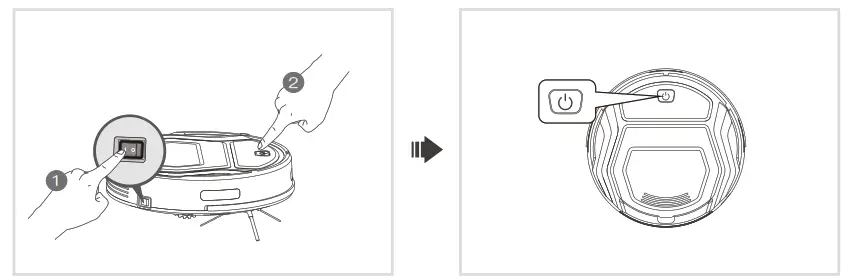

Turn on the side switch. Press and hold the key for about 6 seconds until you hear two beeps and release.
The robot enters the network conﬁguration AP mode, and the start/pause ﬂash slowly in blue.

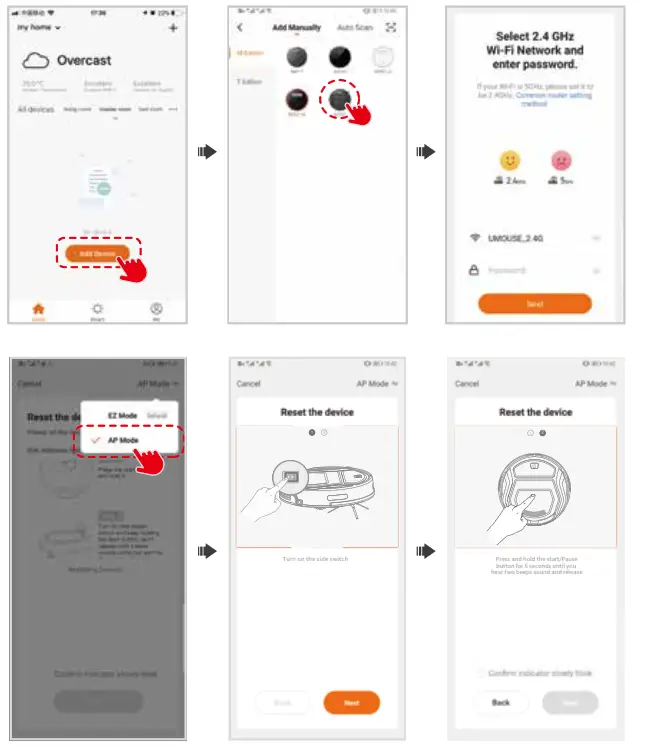

Add Manually- Wi-Fi-AP Mode

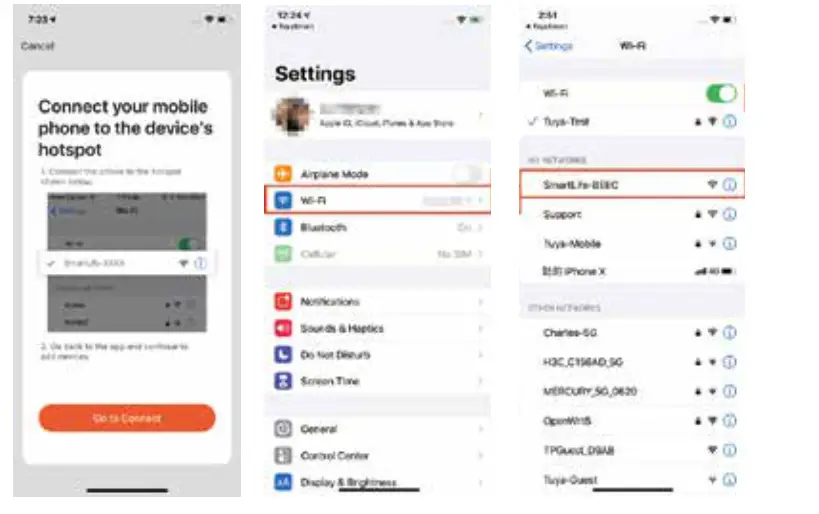

Connect your phone to a Wi-Fi that starts with the name “SmartLife”.

After successfully connecting to the Wi-Fi, return the APP and start the network conﬁguration.

Maintenance

Dust Bin and Filters

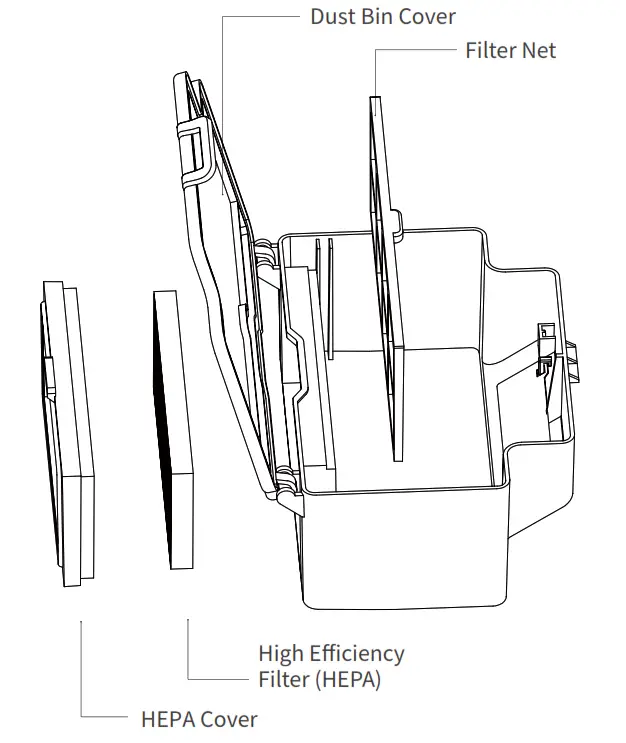

Open the Top Cover to take out the Dust Bin, open the Dust Bin Cover and empty the Dust Bin.
Remove the Dust Bin, open the Dust Bin Cover, and empty the Dust Bin.

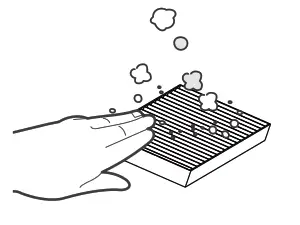

Remove the High Eﬃciency Filter. Pat the High Eﬃciency Filter clean. Do not rinse the High Eﬃciency Filter under water.

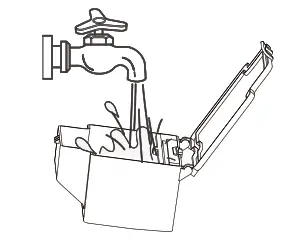

Flush the Dust Bin and the Filter Net.

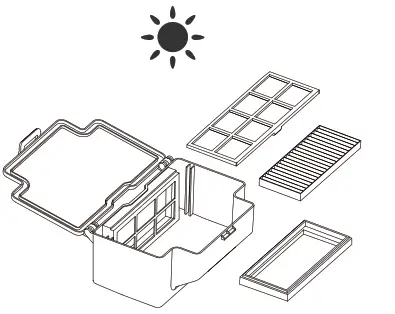

Dry the High Eﬃciency Filter, Dust Bin and Filter Net completely before reinstalling.

Suction Assembly and Side Brush

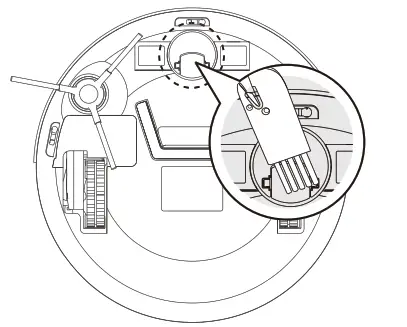

Clean the suction port If there is a lot of dust in the suction port, use a cloth clean up.

Cleaning the Side Brush

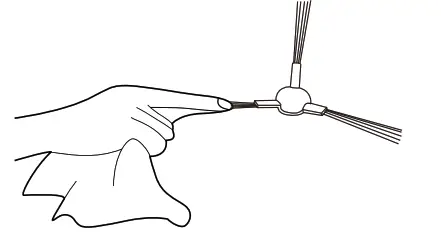

Remove the Side Brush. Wipe the Side Brush and their slot with a dry cloth.

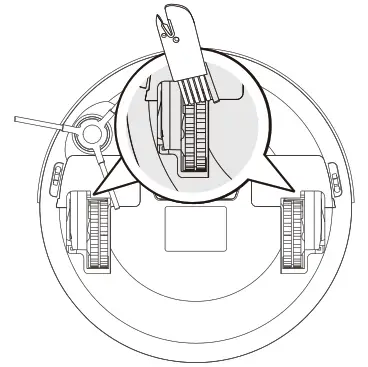

Clean the Driving Wheels to maintain their eﬀectiveness.
Use the Multi-Function Cleaning Tool to cut oﬀ and remove any hair tangled around the Universal Wheel.

Other Components

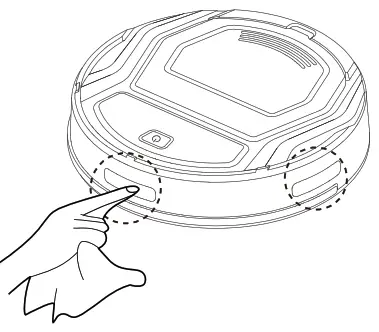

■ Clean Anti-Collision Sensors.

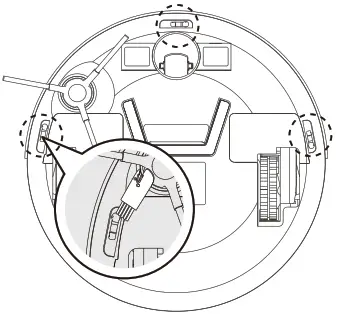

■ Wipe the Anti-drop Sensors with the brush or the felt side of the MultiFunction Cleaning Tool to maintain their eﬀectiveness.

■ Wipe the Charging Contacts and Charging Dock Pins with the brush of the Multi-Function Cleaning Tool or a dry clean cloth to maintain their eﬀectiveness.

Indicator Light and Alarm Sounds

Indicator Light

Robot Status	Indicator Light
Charging	Glows a solid PINK or BLUE
Finished Charging	The BLUE goes out
Has a Problem	Flashes RED or glows a solid RED
Low Battery	Glows a solid RED
Cleaning Mode	Glows a solid BLUE
Before starting network pairing	Glows a solid BLUE
network pairing process/WiFi connection was lost	Exit the network pairing mode after 3minutes, the BLUE goes out
Connect to Wi-Fi	Glows a solid BLUE

Alarm Tips

When the robot fails, the robot indicator ﬂashes red and a beeping sound of varying lengths is emitted. Refer to the following table to query the cause of the failure:

Glowing a solid RED
No	Cause of issue	Beeps	APP Error prompts and solutions
1	Driven wheel abnormal	1 beep 3 times	Please check whether the Driving Wheels is entangled and clean the Driving Wheels.
2	Side Brush abnormal	2 beeps 3 times	please check if the Side Brush is entangled, and clean the Side Brush
3	Motor Fan abnormal	3 beeps 3 times	Please empty the Dust Bin, clean the Filter Net and High Eﬃciency Filter.
Flashing RED
1	Anti-drop detection alarm	2 beeps 3 times	The robot is ﬂoating, please move to the ground.
2	Failure to get out of trouble	3 beeps 3 times	Place the robot on an even surface, or remove the obstacles, and restart the robot.
3	Low Battery	4 beeps 3 times	Manually place the robot on the Charging Dock to charge.
4	Charging voltage abnormal	5 beeps 3 times	Please wipe the Charging Contacts and Charging Dock Pins, otherwise replace the adapter.
5	Charging abnormal	6 beeps 3 times	Please check if the Power Switch is on.

If the trouble cannot be eliminated according to the above operation, Please try the following operations Re-open the Power Switch on the side of the robot and restart the robot. Please contact [email protected].

Troubleshooting

Please use this chart to troubleshoot common problems using robot.

No	Malfunction	Possible Causes	Solutions
01	Robot is not able to connect to the home Wi-Fi network.	Incorrect home Wi-Fi username or password entered.	Enter the correct home Wi-Fi username and password.
		Download the incorrect APP.	Please scan the QR code in the user manual or search “Lefant life” on google play or app store.
		Robot is not within range of your home Wi-Fi signal.	Make sure robot is within range of your home Wi-Fi signal.
		The robot isn’t in-network pairing mode.	Make sure the robot is in the network pairing mode.
		The robot does not support 5GHz Wi-Fi.	Make sure the robot has connected to a 2.4GHz Wi-Fi network.
		Your smartphone’s operating system needs to be updated.	Update your smartphone’s operating system. The Lefant life App runs on iOS9.0 and above, Android 4.0 and above.
02	Robot is not charging.	Robot is not switched ON.	Switch ON robot.
		Robot has not connected to the Charging Dock.	Be sure that the robot’s Charging Contacts have connected to the Charging Dock Pins.
		The Power Adapter is not connected to the Charging Dock.	Make sure the Power Adapter is ﬁrmly connected to the Charging Dock.
		The Power Adapter is not connected to the power supply.	Make sure the Power Adapter is connected to the power supply.
03	Robot gets into trouble while working and stops.	The robot is tangled with something on the ﬂoor (electrical cords, drooping curtains, carpet fringe etc.).	Robot will try various ways to get itself out of trouble. If it is unsuccessful, manually remove the obstacles and restart.
03	Robot gets into trouble while working and stops.	Side Brush is stuck or the rotation speed of the Side Brush decreases.	Remove the debris tangled around the Side Brush. If the Side Brush still rotates slowly, contact Customer Service.
04	Robot returns to the Charging Dock before it ﬁnishes cleaning	When battery power gets low, the robot automatically switches to Return to Charger Mode and returns to the Charging Dock to recharge itself.	This is normal. No solution necessary.
		Working time varies according to ﬂoor surface,room complexity and the Cleaning Mode selected.	This is normal. No solution necessary.
05	Robot will not clean automatically at scheduled time	Time Scheduling function is canceled.	Reset Time Scheduling function.
		Robot is powered OFF.	Power ON robot.
		Robot’s battery is low.	Keep robot powered ON and on the Charging Dock to make sure it has a full battery to work at any time.
		Robot’s components are tangled with debris.	Power OFF robot, clean the Dust Bin, and invert the robot. Clean Side Brush as described in section 4.
06	Robot does not clean the whole area.	The cleaning area is not tidy.	Remove small objects from the ﬂoor and tidy up the cleaning area before robot starts cleaning.

If the trouble cannot be eliminated according to the above operation, Please contact [email protected] The images are only for reference, please refer to the actual item as the standard. Lohas reserves the right to update products without prior notice.

Technical Parameters

.Technical Parameters
Working Voltage(V): 12.8	Power Rating(W): 15
Charging Stand
Rated Input Voltage(V): 19	Rated output current(A): 0.6
