AURORA R6cws 4-8W Fire Rated Downlight
Product Description

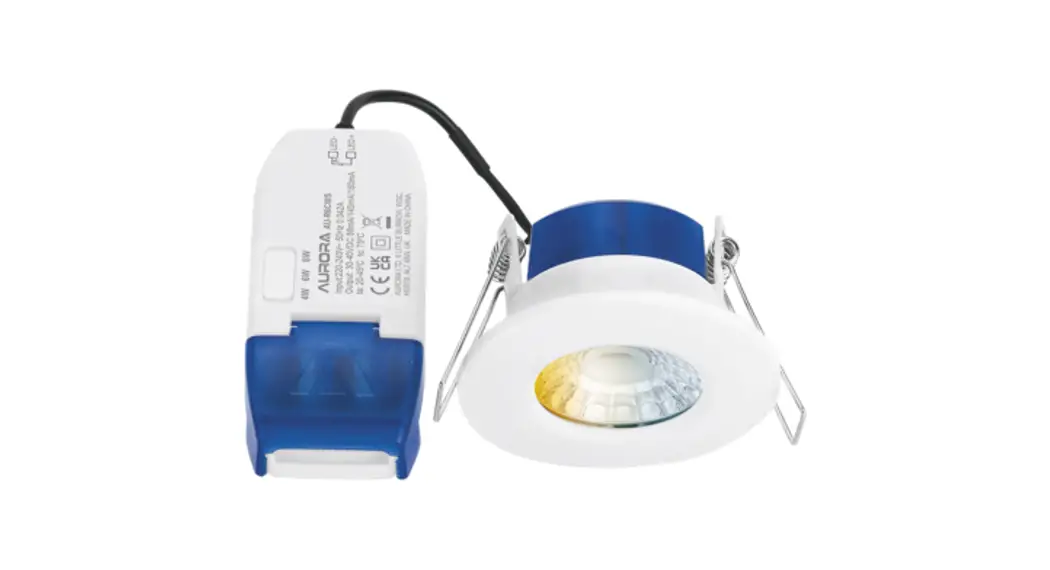

R6™CWS Fixed 4-8W Colour & Wattage Switchable Fire Rated Downlight With the installer and wholesaler in mind, Aurora introduces the R6™CWS. The R6™CWS is Aurora’s very first color and wattage switchable fire-rated downlight, supplied with an AMP connector applied to a remote detachable driver with a loop in/loop out terminal block, and at a height of 50mm, it is ideal for shallow ceiling voids. The Colour switch is located on the back of the fitting and the wattage switch can be found on the remote driver. The product comes complete with a polycarbonate white bezel (polished chrome, satin nickel, and matt black bezels sold separately).
| SKU Code | Wattage | ColorTemp | Lumens | beam angle | Skype | FinishColor |
| AU-R6CWS | 4 | 3000K | 360 | 60 | Dimmable | White |
| 4 | 4000K | 420 | 60 | Dimmable | White | |
| 4 | 5700K | 380 | 60 | Dimmable | White | |
| 6 | 3000K | 540 | 60 | Dimmable | White | |
| 6 | 4000K | 620 | 60 | Dimmable | White | |
| 6 | 5700K | 560 | 60 | Dimmable | White | |
| 8 | 3000K | 650 | 60 | Dimmable | White | |
| 8 | 4000K | 750 | 60 | Dimmable | White | |
| 8 | 5700K | 680 | 60 | Dimmable | White |

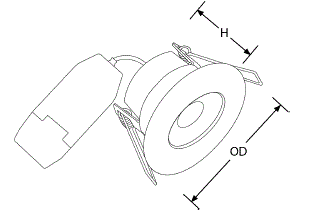

Line Drawing

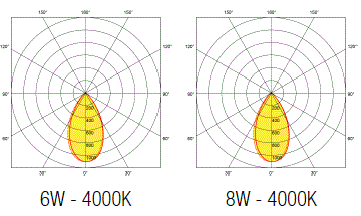

Polar Curve
Colour
Product Features
- Color temperature can be switched between 3000K, 4000K, and 5700K
- Wattage switchable between 4W, 6W, and 8W
- Low profile design for shallow ceiling voids (50mm)
- Supplied with detachable remote driver
- Supplied with white IP65 polycarbonate bezel
- Insulation coverable
- Patented fire-rated downlight without intumescent
- Select color temperature and wattage prior to installation
- Fire, acoustic, and air leakage rate
- Tested in 30, 60, and 90-minute solid timber joist, plus 30-minute i-joists and metal web joist
- 60° beam angle
- L70 40,000hrs
- Triac dimmable as standard
- IP65 Polycarbonate Polished Chrome, Satin Nickel, and Matt Black bezel options
- 5-Year Warranty
Product Specs | ||||
| Input Voltage | 220~240V | Input Frequency | 50/50HZ | |
| Power Factor | 0.85 | IP Rating | IP65 | |
| Lifetime L70 (hrs) | 40000 | Overall Diameter (mm) | 88 | |
| Height (mm) | 50 | Product Type | Fire-Rated Downlight | |
| Cutout Diameter (mm) | 65-70 | Operating Temp. (Min) °C | -20°C | |
| Operating Temp. (Max) °C | 45°C | Insulated Covered Operating Temp. (Min) °C | -20+°C | |
| Insulated Covered Operating Temp. (Max) °C | 45+°C | |||
Warranty
This product has a warranty period of 3 Years. Warranties may be available on certain products as indicated in the product description. Warranties are valid from the date of purchase. The warranty is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label, or installation in an improper working environment or installation. Should this product fail during the warranty period it will be replaced free of charge, subject to the correct installation of the original product and subsequent return of the faulty unit. Aurora does not accept responsibility for any installation costs associated with the replacement of this product and Aurora reserves the right to alter specifications without prior notice.
