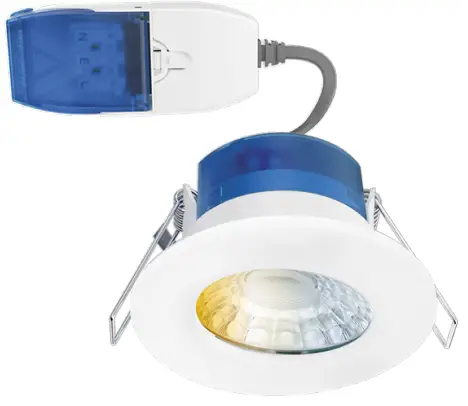

AURORA AU-R6CWSFF Fixed 4-6w Colour and Wattage Switchable Fire Rated Downlight
Product Information
The R6TMCWS Fixed 4-6W Colour & Wattage Switchable Fire Rated Downlight with FastRFix is Aurora’s first colour and wattage switchable fire rated downlight designed for installers and wholesalers. It comes with a FastRFix and has a height of 50mm, making it ideal for shallow ceiling voids. The colour switch is located on the back of the fitting, and the wattage switch can be found on the remote driver. The product comes with a polycarbonate white bezel, and polished chrome, satin nickel, and matt black bezels are sold separately.
Features
- Colour and wattage switchable
- Fire rated
- FastRFix
- Polycarbonate white bezel
Product Specifications
- Voltage: 220~240V
- Frequency: 50/50HZ
- IP Rating: IP65
- Lumens: 360-620
- Beam Angle: 60 degrees
Compliance & Approvals
- CE Marked
- RoHS Compliant
- EN 60598-1:2015
- EN 60598-2-2:2012
product Warranty
This product comes with a warranty. Contact Aurora Lighting for more information.
Product Usage Instructions
- Choose the desired colour temperature and wattage using the switches located on the back of the fitting and the remote driver respectively.
- Install the R6TMCWS Fixed 4-6W Colour & Wattage Switchable Fire Rated Downlight with FastRFix in a shallow ceiling void.
- Connect the downlight to the mains power supply.
- Turn on the power and enjoy the lighting.
Product Description
R6™CWS Fixed 4-6W Colour & Wattage Switchable Fire Rated Downlight with FastRFix With the installer and wholesaler in mind, Aurora introduces the R6™CWS. The R6™CWS is Aurora’s very first colour and wattage switchable fire rated downlight, supplied with a FastRFix and at a height of 50mm, it is ideal for shallow ceiling voids. Colour switch is located on the back of the fitting and the wattage switch can be found on the remote driver. Product comes complete with a polycarbonate white bezel (polished chrome, satin nickel and matt black bezels sold separately).
| SKU Code | Wattage | ColorTemp | Lumens | BeamAngle | SKUType | FinishColor |
| AU-R6CWSFF | 3000K | 60 | Dimmable | White | ||
| AU-R6CWSFF | 4000K | 60 | Dimmable | White | ||
| AU-R6CWSFF | 5700K | 60 | Dimmable | White | ||
| AU-R6CWSFF | 4 | 3000K | 360 | 60 | Dimmable | White |
| AU-R6CWSFF | 4 | 4000K | 420 | 60 | Dimmable | White |
| AU-R6CWSFF | 4 | 5700K | 380 | 60 | Dimmable | White |
| AU-R6CWSFF | 6 | 3000K | 540 | 60 | Dimmable | White |
| AU-R6CWSFF | 6 | 4000K | 620 | 60 | Dimmable | White |
| AU-R6CWSFF | 6 | 5700K | 560 | 60 | Dimmable | White |
Line Drawing
Colour
Product Features
- Fitted with FastRFix™ connector for ease of installation and circuit testing
- Colour temperature can be switched between 3000K, 4000K and 5700K
- Wattage switchable between 4W and 6W
- Select colour temperature and wattage prior to installation
- Low profile design for shallow ceiling voids (50mm)
- Loop in loop out push-fit wiring terminals
- Supplied with white IP65 polycarbonate bezel
- Insulation coverable
- Patented fire rated downlight without intumescent
- Fire, acoustic and air leakage rated
- Tested in 30, 60 and 90 minute solid timber joist, plus 30 minute i-joists and metal web joist
- 60° beam angle
- Triac dimmable as standard
- Emergency option
- IP65 Polycarbonate Polished Chrome, Satin Nickel and Matt Black bezel options
- L70 40,000hrs
- 5 Year Warranty
Product Specs
| Product Specs: | ||||
| Input Voltage | 220~240V | Input Frequency | 50/50HZ | |
| Power Factor | 0.85 | IP Rating | IP65 | |
| Lifetime L70 (hrs) | 40000 | Overall Diameter (mm) | 88 | |
| Weight (Kg) | 0.229 | Height (mm) | 50 | |
| Product Type | Fire-Rated Downlight | Cutout Diameter (mm) | 65-70 | |
| Operating Temp. (Min) °C | -20°C | Operating Temp. (Max) °C | 45°C | |
| Insulated Covered Operating Temp. (Min) °C | -20+°C | Insulated Covered Operating Temp. (Max) °C | 25+°C | |
Compliance & Approvals
Warranty
This product has a warranty period of 5 Years. Warranties may be available on certain products as indicated in the product description. Warranties are valid from the date of purchase.The warranty is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label or installation in an improper working environment or installation. Should this product fail during the warranty period it will be replaced free of charge, subject to the correct installation of the original product and subsequent return of the faulty unit. Aurora does not accept responsibility for any installation costs associated with the replacement of this product and Aurora reserves the right to alter specifications without prior notice.
