44669 Cat Tower
Instruction Manual
44669 Cat Tower
| Item No. | Scratching Post | Colour | Height |
| 44669 | Lucano | white-brown | 110 cm |
| Pos. No. | Description | Measurement in mm | Quantity | Item No. |
| Pos. 1 | Bottom plate | 580 × 20 × 480 | 1 | 44669-10 |
| Pos. 2 | Cave | 420 × 350 × 420 | 1 | 44669-11 |
| Pos. 3 | Nest | 220 × 570 | 1 | 44669-12 |
| Pos. 4 | Bed with ball | 420 × 240 × 420 | 1 | 44669-13 |
| Pos. 5 | Cushion | 400 × 400 | 2 | 44669-40 |
| Pos. 6 | Post | ø 90 × 230 | 4 | 44669-30 |
| Pos. 7 | Post with spacer bolt | ø 90 × 230 | 4 | 44669-31 |
| Pos. a | Flathead screw | M8 × 30 | 1 | 44669-60 |
| Pos. b | Flathead screw | M8 × 50 | 4 | |
| Pos. c | Thread rod | M8 × 80 | 4 | |
| Pos. d | Washer | M8 × 24 | 1 | |
| Pos. e | Allen Key | 1 |
Advice:

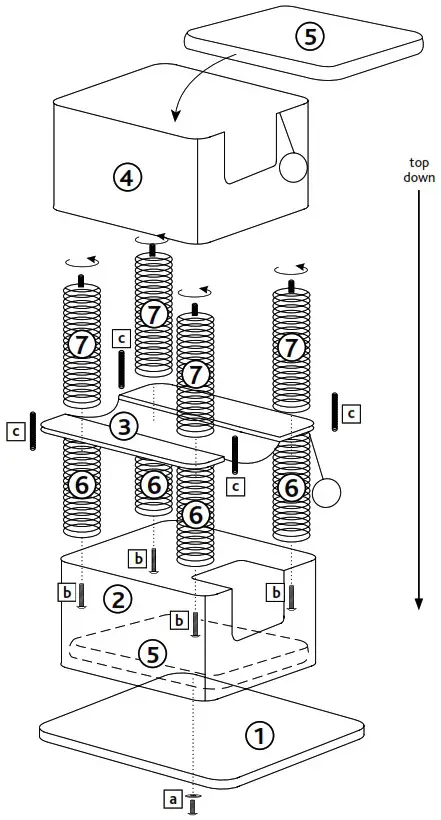

Please assemble the scratching tree top down!
This product should be assembled by an adult.
Please find instructions in French and Italian under the corresponding item number at www.trixie.de/en.
160922
