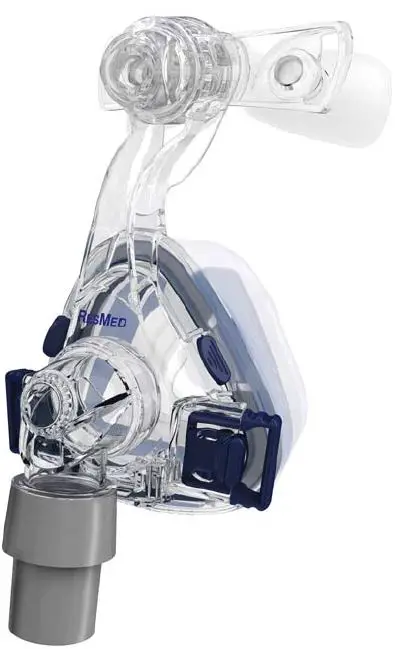

RESMED RM-61600 Mirage SoftGel Nasal Mask

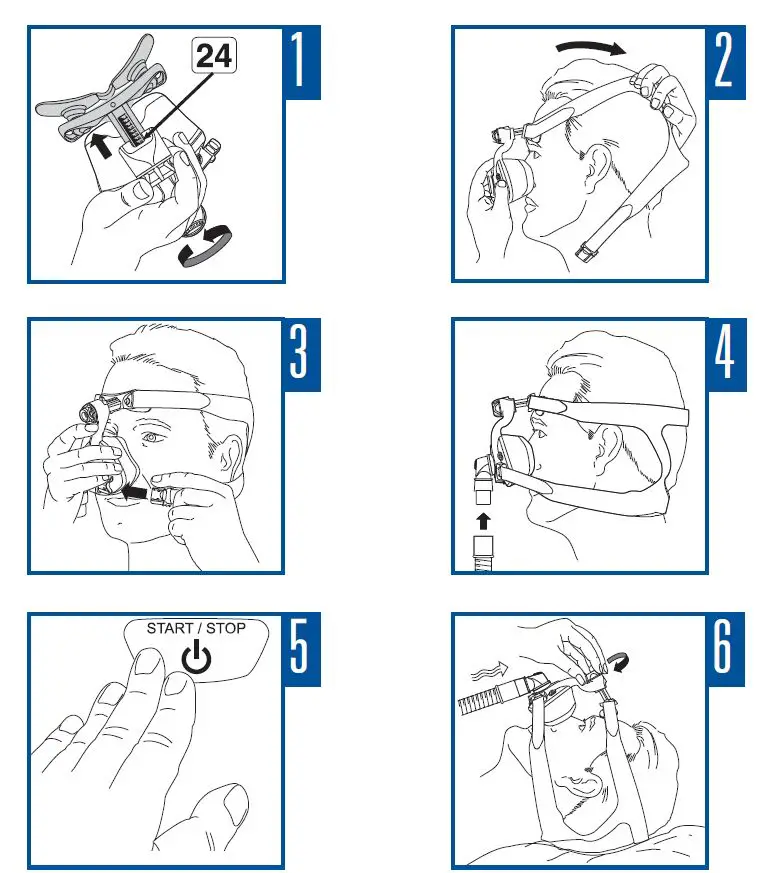

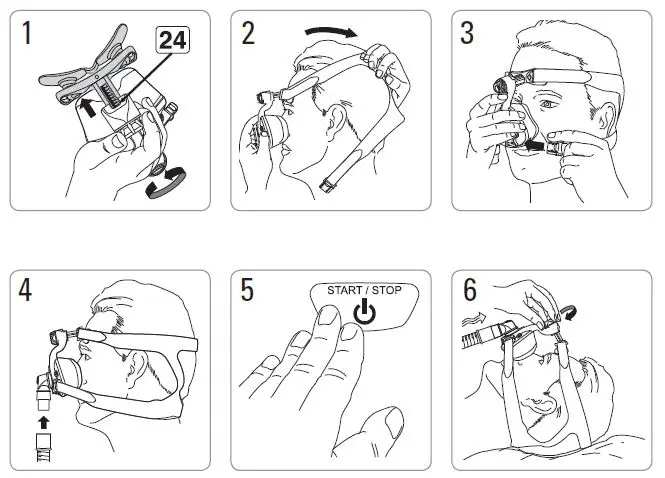

Fitting

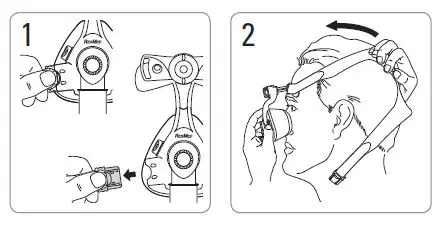

Removal
OVERVIEW

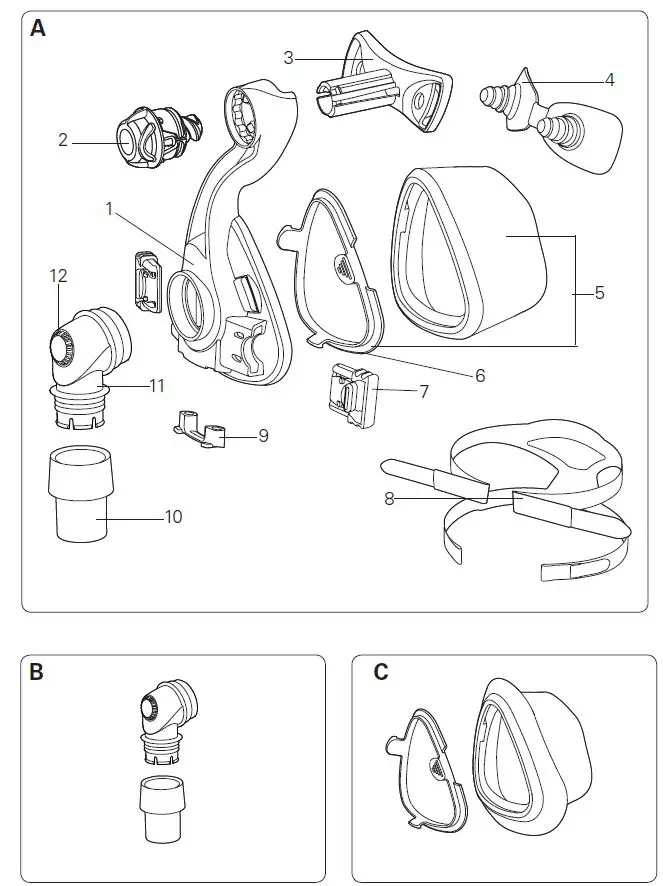

Mask components
| Item | Description | Part number |
| 1 | Mask frame | 60180 (St) 60193 (S) |
| 2 | Dial | 61289 |
| 3 | Forehead support | 16393 |
| 4 | Forehead support pad | 60123 (1) 60124 (10) |
| 5 | Soft Gel Cushion & clip | 61631 (S) 61632 (M) 61633 (L) 61634 (LW) |
| 6 | Cushion clip | 60176 (St) 60197 (S) |
| 7 | Headgear clip | 16569 (2) 16734 (10) |
| 8 | Headgear | 16118 (S) 16117 (M) 16119 (L) |
| 9 | Ports cap | 16570 (2) 16571 (10) |
| 10 | Swivel | 16565 |
| 11 | Elbow | 16387 |
| 12 | Vent | – |
| A | Complete system | 61636 (S) 61637 (M) 61638 (L) 61639 (LW) |
| B | Elbow assembly | 16399 |
| Also available | ||

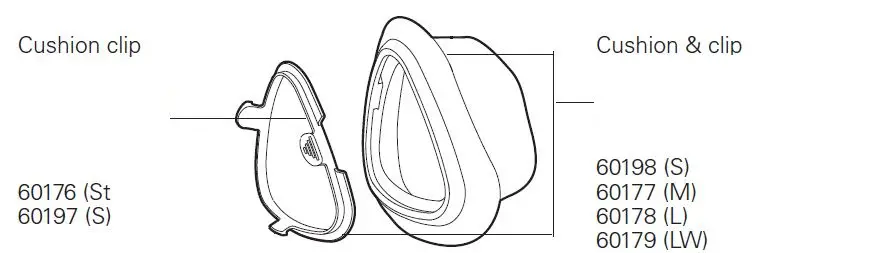

| C | Activa LT Cushion & clip | 60198 (S) 60177 (M) 60178 (L) 60179 (LW) |
- S Small / Small
- M Medium / Medium
- L Large / Large
- LW Large Wide
- St Standard

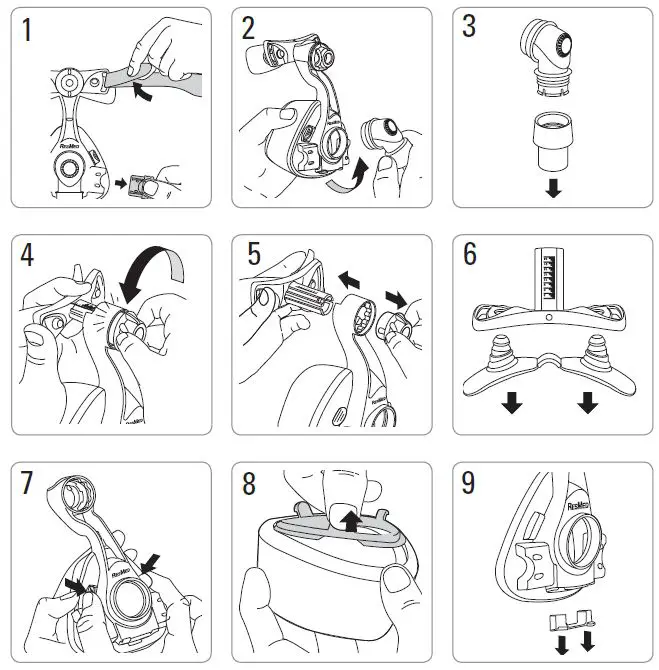

Disassembly

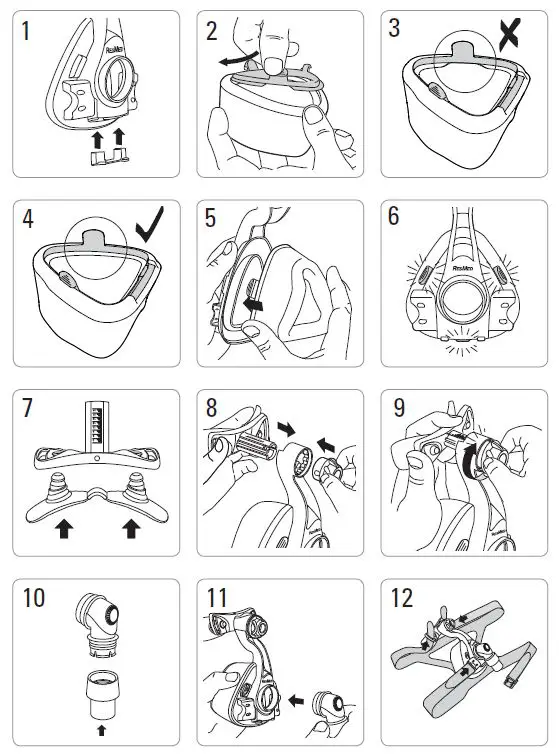

Reassembly
User information
Please read this information in conjunction with your MirageTM SoftGel User Guide when changing your Mirage SoftGel cushion to the Mirage Activa LT cushion.
Intended use
The Mirage Activa LT channels airflow noninvasively to a patient from a positive airway pressure device such as a continuous positive airway pressure (CPAP) or bilevel system.
The Mirage Activa LT is:
- to be used by adult patients (> 30 kg) for whom positive airway pressure has been prescribed
- intended for single-patient re-use in the home environment and multi-patient re-use in the hospital/institutional environment.
Troubleshooting
Problem/ Solution
- Cushion incorrectly inflated
- With the air turned off, adjust the straps so that you can insert two fingers between your cheek and the lower headgear strap.
Technical specifications
- Dead space information
- The dead space of the mask varies according to cushion size. It is 185 mL for the Medium size.
- Resistance
- Drop in pressure measured (nominal) at 50 L/min: 0.1 cm H2O at 100 L/min: 0.7 cm H2O
- Sound
- DECLARED DUAL-NUMBER NOISE EMISSION VALUES in accordance with ISO 4871. The A-weighted sound power level of the mask is 30 dBA, with uncertainty 3 dBA. The A-weighted sound pressure level of the mask at a distance of 1 m is 22 dBA, with an uncertainty of 3 dBA.
- Gross dimensions
- Mask fully assembled – no headgear. 141 mm (H) x 91 mm (W) x 107 mm (D) 154 mm (H) x 95 mm (W) x 117 mm (D)
- Mask setting options
- Select ‘Activa’ (if available) or ‘Standard’ as the mask option when using the Mirage Activa LT with ResMed devices that have mask setting options.

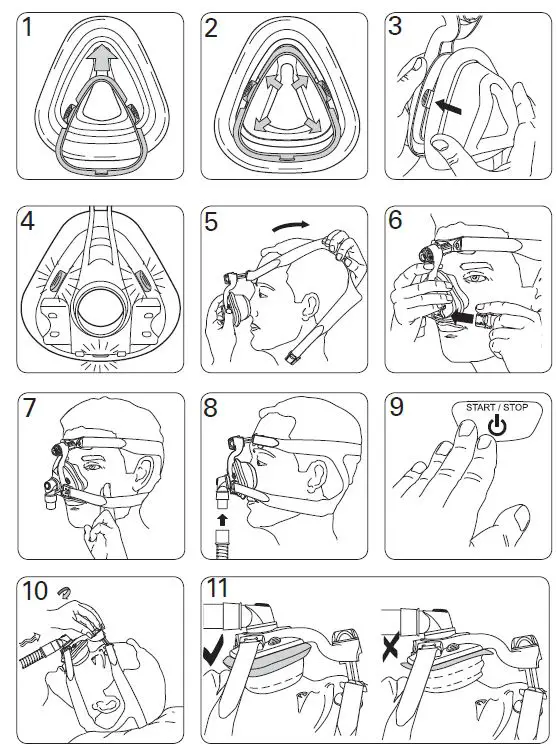

Fitting and assembly
Manufacturer:
ResMed Pty Ltd 1 Elizabeth Macarthur Drive Bella Vista NSW 2153
Australia Distributed by:
ResMed Corp 9001 Spectrum Center Boulevard San Diego CA 92123 USA ResMed (UK) Ltd 96 Milton Park Abingdon Oxfordshire OX14 4RY UK See www.resmed.com for other ResMed locations worldwide. For patent information, see www.resmed.com/i Mirage and Activa are trademarks of ResMed Pty Ltd and are registered in U.S. Patent and Trademark Office
