Mirage™ SoftGel
NASAL MASK
Fitting Guide
 |  |  |

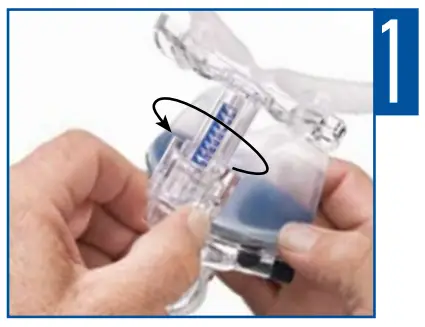

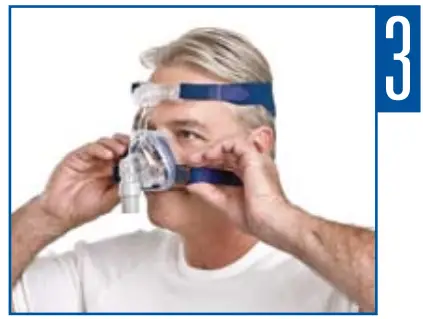

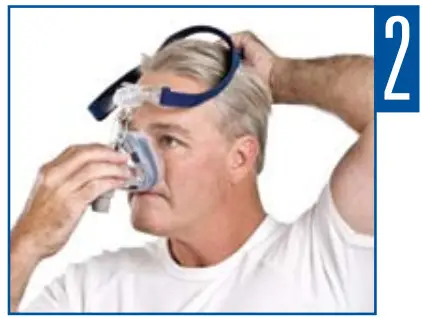

| • Turn the MicroFit dial to position 24, so that the forehead support is fully extended. | • Disconnect the lower headgear clip, hold the mask over the nose and pull the headgear over the head. | • Reconnect the lower headgear clip ensuring it clicks into place. |
 |  |  |

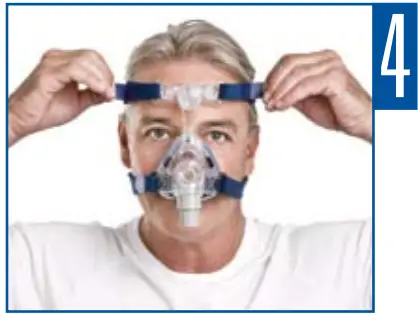

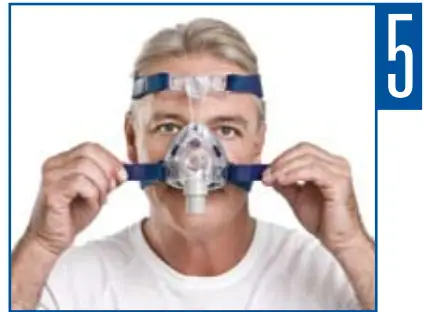

| • Adjust the upper straps evenly. Do not overtighten. | • Adjust the lower straps to a comfortable position. Do not overtighten. | • Connect one end of the air tubing to the swivel and the other end to the airflow device. • Turn on the airflow device. |
 |  |

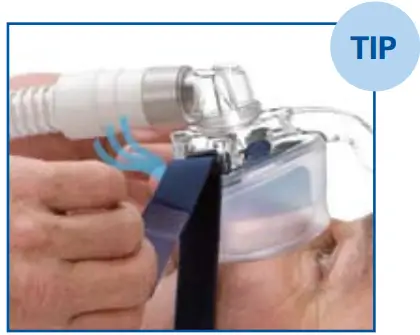

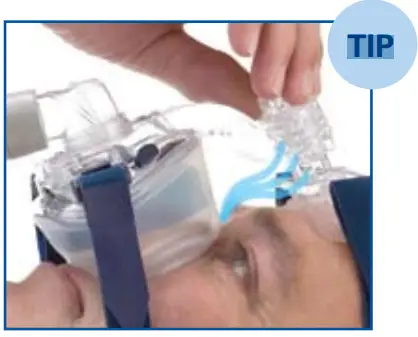

| • Adjust the dial to correct any leak at the nose. | • Adjust bottom straps to correct any leak at the top lip. |
Manufacturer: ResMed Pty Ltd 1 Elizabeth Macarthur Drive Bella Vista NSW 2153 Australia. Distributed by: ResMed Corp 9001 Spectrum Center Boulevard San Diego CA 92123 USA;
ResMed (UK) Ltd 96 Milton Park Abingdon Oxfordshire OX14 4RY UK See www.resmed.com for other ResMed locations worldwide. Mirage is a trademark of ResMed Pty Ltd and is registered in U.S. Patent and Trademark Office. © 2010 ResMed. Specifications may change without notice. 1013901/1 10 02
