Lorelli Lora Convertible Baby Stroller
Instruction Manual

Scan the QR code to get more product information and manual instruction in more languages. Download QR Scanner App onto your device.

IMPORTANT-READ CAREFULLY AND KEEP FOR FUTURE REFERENCE!

SAFETY REQUIREMENT

This vehicle is suitable for children with a weight up to 15kg
The height of the carried child in the stroller should not exceed 96 cm
Use parking device if you do not hold the stroller with hand!
Do not leave the stroller on hills or inclined surfaces even if you have activated the parking system!
Parking device shall be engaged placing and removing the children!
The shopping basket can take a maximum load of 2kg
Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehiclet Maximum load of the accessory bag 1 kg Do not hand any additional bags!
Regularly check for loose parts! Make routine inspection, regularly maintain, clean and/or wash the vehicle
The vehicle shall be used only for 1 child!
Accessories which are not approved by the manufacturer shall not be used
Only spare parts delivered or recommended by the manufacturing distributor can be used!
Always use the restraint system! Always use the crotch belt in combination with the waist bell! To prevent injury from a fall or a slip off always use the shoulder strapat
Make sure that the safety belts are placed property!
The stroller should always be used under the supervision of an adult
Do not allow children to suspend him/herself or play in the stroller
Do not allow children to stand in the stroller
Do not allow your child to stand on the seat and foot rest
Do not use the stroller on uneven surfaces near fire or other dangerous places!
Do not use the stroller on stairs and escalators!
Fold the stroller before go upstairs and downstairs. Mounting the stroller on stairs, pavements and others with the child in it and by pushing the handle causes deformation of the stroller and is out warranty repair!
Adjusting of the back rest must be made only by a person read carefully the instruction rules for adjusting
Any additional baggage left in the stroller may cause it to become unstable
The person who assembles the stroller must be familiarized with its functions!
WARNING! Use only the mattress/pod sold with this stroller. Do not add any additional mattress unless the recommended one by the manufacturer!
WARNING! For children under 6 months, please place the mattress/pad above the bells Picture 38.39. WARNING! Start using the safely belts immediately after your child is capable of sitting without external assistance!
The front bar can not be used as a carry handle
This stroller is suitable for children up to 3 years old
The car seat COMET/VEGAI-SIZE (additional accessory, not included in the set) is compatible with stroller LORA by means of additional adaptors (additional accessory, not included in the set).
When using the car seat: This vehicle does not replace a cot or a bed. Should your child need 10 sleep, then it should be placed in a suitable pram body.cot or bed/

WARNING

WARNING! Never leave the child unattended!
WARNING! Ensure that all the locking devices are engaged before use!
WARNING! To avoid injury ensure that the child is kept away when unfolding and folding this product!
WARNING! Do not let the child play with this product!
WARNING! This pushchair is designed to be used from baby’s birth. You shall use the most reclined position for newborn babies. The newborn child is not able to sit and hold his/her head up unassisted.
Therefore do not fix the backrest in sitting position for children under 6 months!
WARNING! Always use the restraint system!
WARNING! Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use
WARNING! This product is not suitable for running or skating!
WARNING! Keep away from fire! Images on the title page and in the instruction manual are only illustrative and may differ from the real product.
EN 1888-1:2018+ A1:2022

MAINTENANCE AND CARE

To clean the metal parts, clean with a wet cloth and wipe dry.
To clean the plastic parts, use a towel, water and a soft detergent.
To clean the textile parts, use a solution for cleaning of upholsteries.
When not in use, never place other objects in or on the stroller!
Always dry and air the stroller if it gets wet.
Run regular clean-ups over the wheel axes and the plastic elements.
Always the wheel axes and the plastic elements after using the stroller on sandy or dusty surfaces!
DO NOT LUBRICATE the wheel axes or other movable parts of the stroller! Just clean them!
Run regular checks for loose or damaged parts and if there are such parts, immediately replace them with new ones!

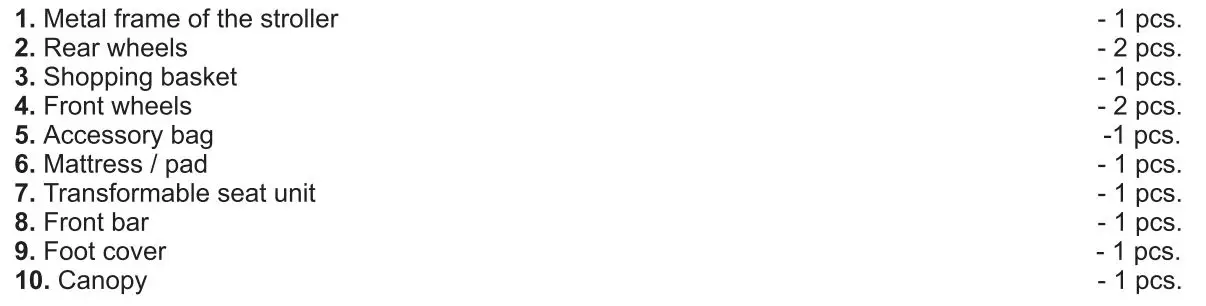

PARTS

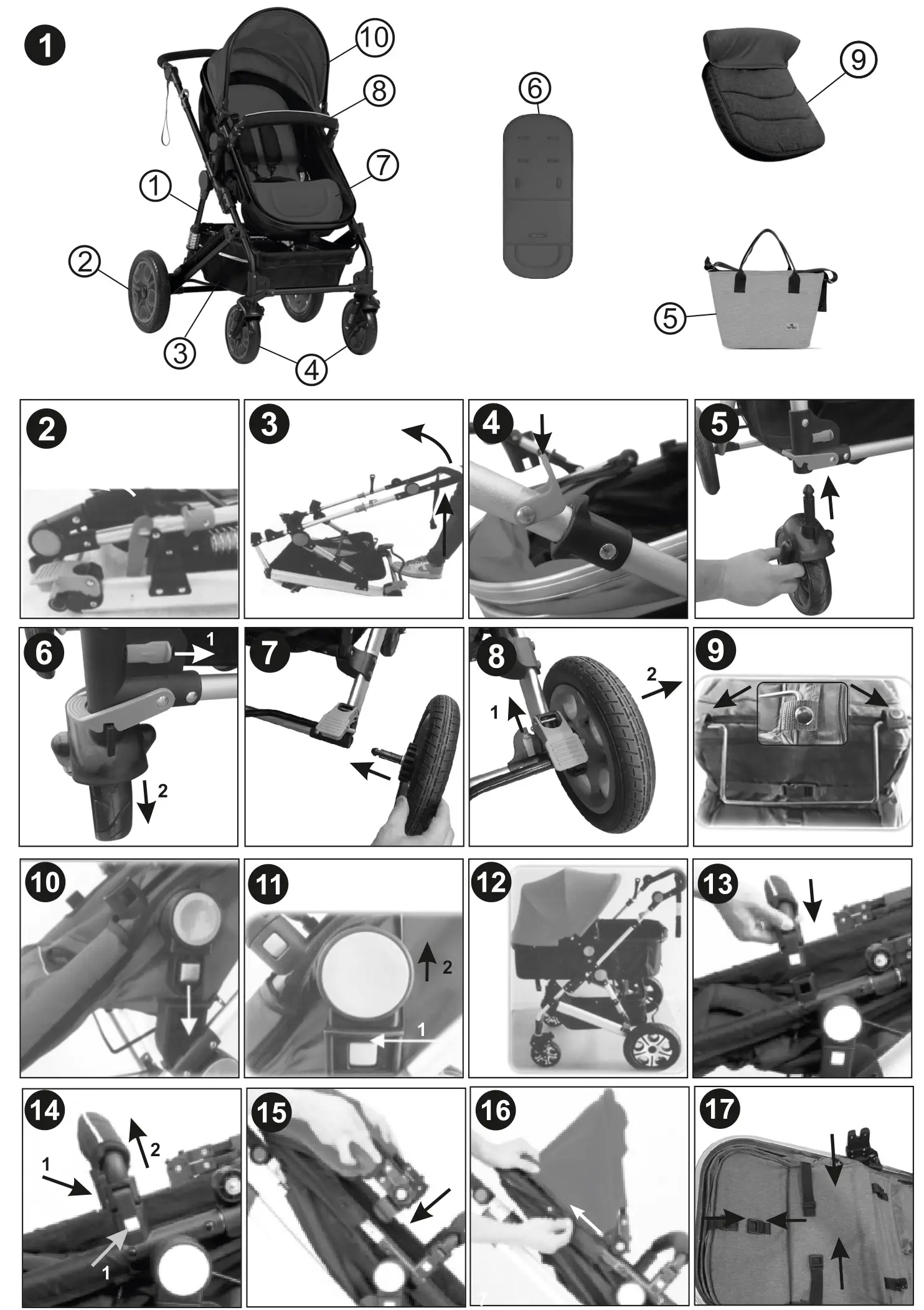

Picture 1

UNFOLDING

Folded stroller Release the blocking mechanism.
Lift the handle of the stroller up and then push forward. As a result, it will extend and lock automatically. Photo 3) Push down the blocking mechanism of the handle. Picture 4

ASSEMBLING

Mount the front wheels by pressing them upward until they lock into place. (Photo 5) Check if they are securely locked. To unmount them, press the console button and pull the wheel down. (Photo 6)
Mount the rear wheels as shown in Photo 7. To unmount them, press the rear axle button and pull the wheel all the way. (Photo 8.
Attach the metal part under the seat for upholstery with the tick-tack buttons on the both sides of the seat bottom. Picture 9
Mount the stroller basket paying attention to the pincers being placed and fixed in the designated openings in the frame. (Photo 10) A click will indicate that the basket has been secured. To unmount, press simultaneously the buttons on both sides of the basket and pull upward. (Photo 11) The basket may be mounted in the direction of the movement or in the opposite direction of the movement of the stroller. (Photo 12)
Mount the front bar for the child. (Photo 13) To remove the front bar, press the buttons placed on both its sides and pull all the way. (Photo 14)
Install the both end tips of the canopy into the slots at both sides of the basket (Picture 15) and zip the canopy ( Picture 16)

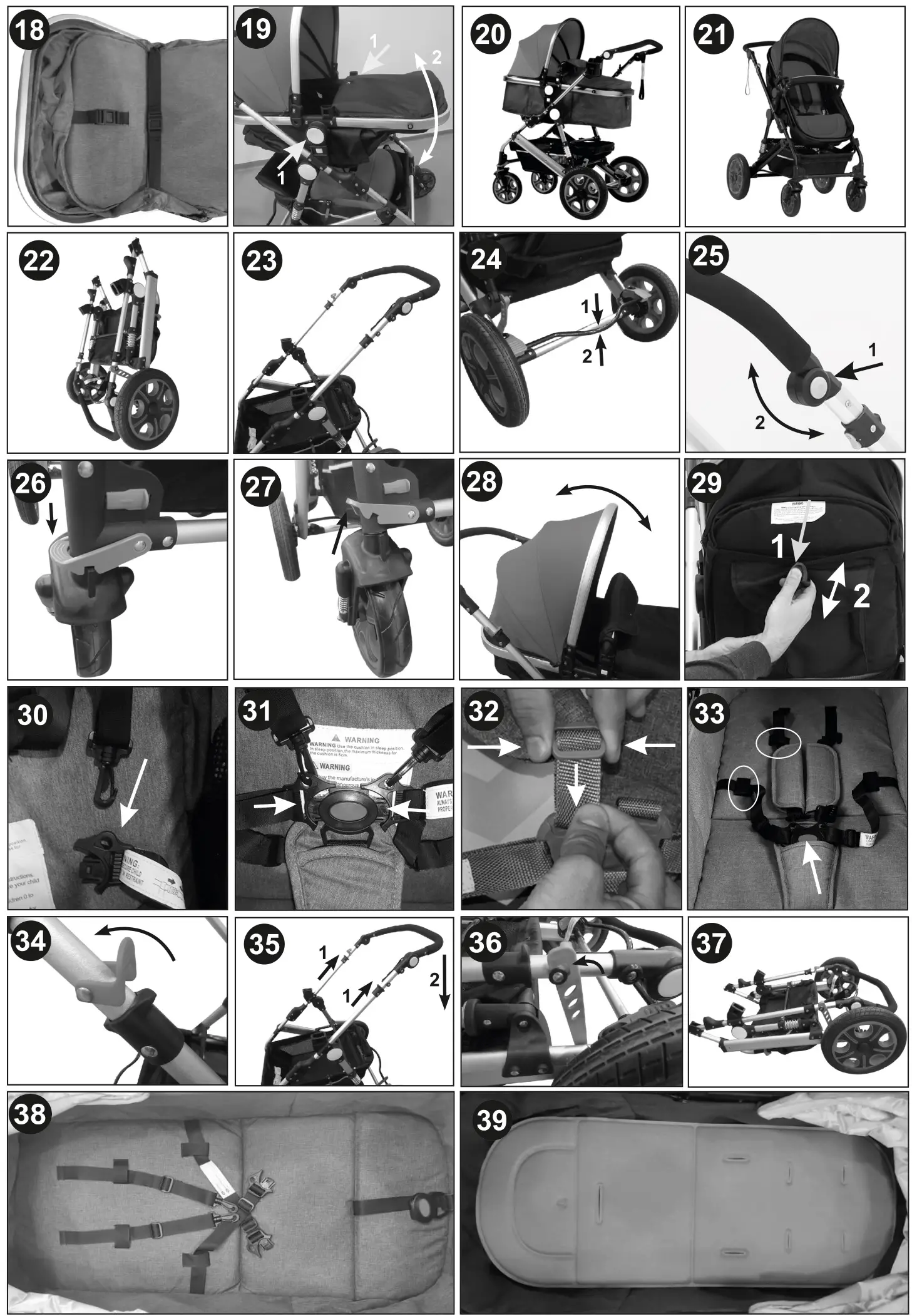

The basket is transformed into a seat by putting together the belts located at the lower end of the seat and legs. (Photos 17:18) Turn the basket into a sitting position by pressing simultaneously the side buttons. (Photo 19)

EXPLOITATION

To place the stroller in a stationary position, use the rear wheel brakes, by pressing the brake pedal located on the rear axle. (Photo 24.1) To release the brake, lift the brake pedal with your leg. (Photo 24.2)
WARNING: The parking device does not guarantee an optimal hold in steep slopes. Therefore never leave the stroller on a sloping ground with a child sitting or lying in the stroller!
WARNING! The brake of Your stroller is a type of parking device. To apply the brake please note, that the stroller shall not be moved. Gently press the brake pedal, at the same time gently push the stroller back and forth to synchronize the operation of the braking device and to achieve an effective engagement of the braking mechanism.
You can regulate the handle by pressing simultaneously the two buttons on both sides the mechanism and turn upward or downward. (Photo 25)
While moving the stroller along rough and uneven surfaces you can use the option of movement in a straight line by pressing the blocking cog on the front wheels. Picture 26 To release the front wheels, lift the locking cog. (Photo 27)
For a change (lowering) the sunshade position, take its upper part and pull down to the desired position. (Photo 28)
ATTENTION! Disregarding this instruction leads to a damage in the fixators and is not subject to a warranty recovery!
Adjusting the backrest – To raise the backrest, squeeze the buckle button behind the backrest and pull out the belt. To release the backrest, squeeze the buckle button and release the backrest down. Picture 29
While using the summer seat BY ALL MEANS fasten the safety belts on the child!
Put the shoulder and waist belts together and place them in the central buckling clasp. (Photos 30:31) Regulate the length of the safety belts by pulling the clasps all the way. (Photo 32) To unlock the belts, press the button on the central clasp. (Photo 33) For child’s under 6 months pass the belts through the straps Picture 33

FOLDING

Activate the stroller brakes.
Fold the sunshade to the maximum.
Remove the basket Picture 11
Folding the stroller for transportation is done by lifting the lock mechanism (Photo 34), pulling the mechanisms located on both sides of the handle and pressing down. (Photo 35), After folding, place the fixating mechanism against self-unfolding. (Photo 36)
The correctly folded stroller should look like the image in photo 37.
