final D8000 Pro Planar Magnetic Headphone

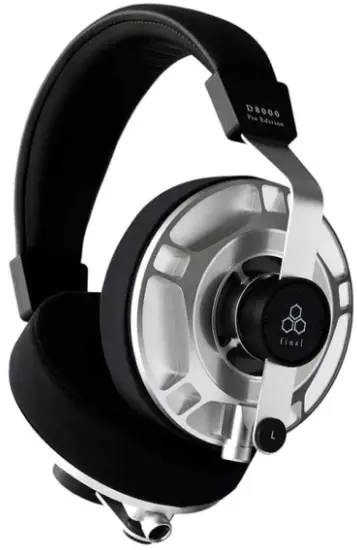

D8000 Pro Planar Magnetic Headphone

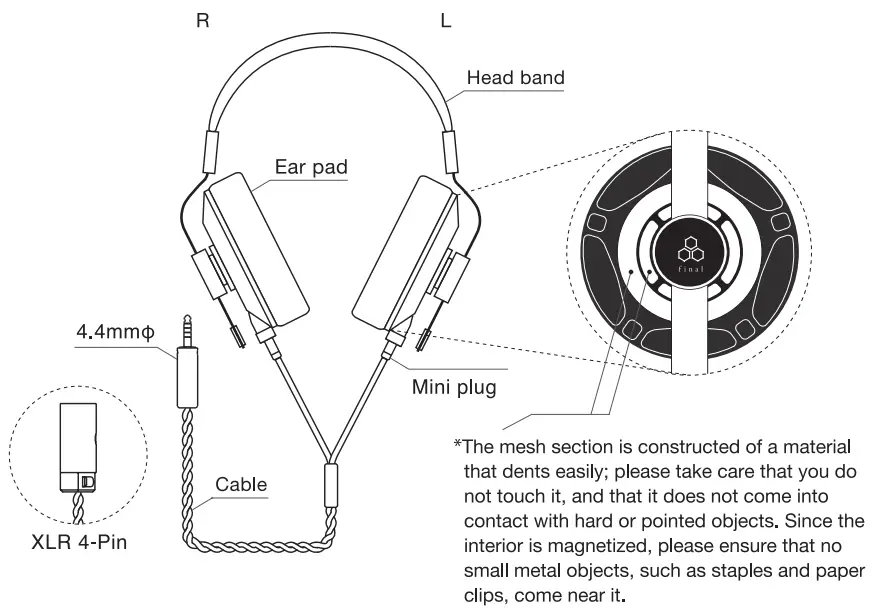

Part Names

Part Names

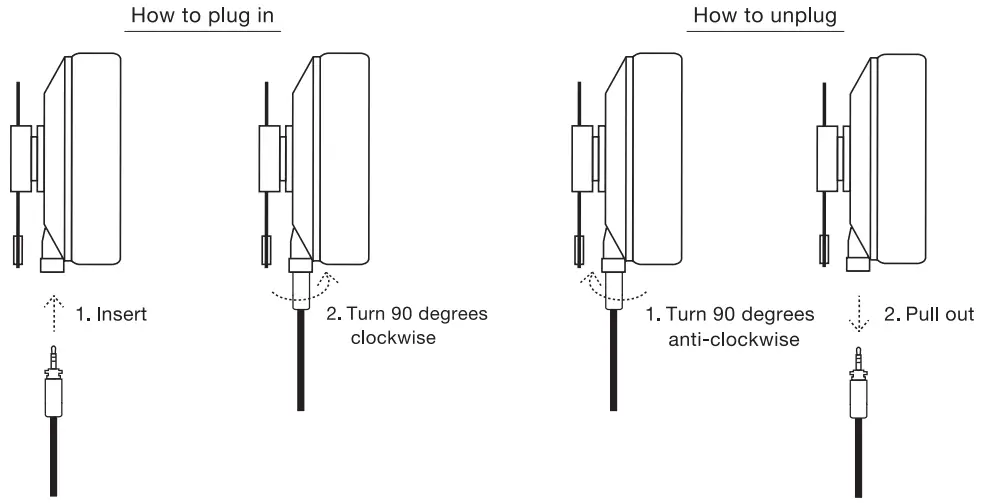

How to connect/ disconnect the plug

How to connect/ disconnect the plug

About earpads

The earpads of this product place the utmost priority on sound quality, and as such, it is difficult to put them on the housing. Other than when repairs are necessary, please refrain from removing and putting on the earpads, as they may be damaged in the process.

Maintenance

The cable may harden if it comes into contact with certain chemical agents and in particular with the natural oils in human skin. After using the product, please wipe the cable with a soft damp cloth. Please refrain from using wet wipes that contain alcohol; using these may result in hardening of the product. Please also refrain from using alcohol-free wet wipes; these may contain a variety of other additives which may adversely affect the product.

List of items in package

Main unit, Production number plate, Protective case, Security keyx 2 Detachable cable (1.5 m/4.4 mmq, plug, 3 m/XLR 4-Pin plug),

Specifications

Product code

FI-D8PPALLCRSensitivity98dB/mW
Impedance60 QCable length

1.5 m/3 m

Driver

AFDS Planer MagneticWeight

523g

Notes on use

Symbol WARNING

Failure to observe these warnings or improper usage of the device can cause accidents with serious injury or death.

Symbol PROHIBITED

Do not use the headphones while driving a bicycle, car or motorcycle.
Doing so could cause a traffic accident and/or serious injury.

Symbol PROHIBITED

Do not use the product while walking in dangerous environments such as near a railroad crossing or intersection where you cannot hear sounds from the outside.

Symbol CAUTION

Ignoring the content of this indication could cause injury or damage
to household articles in the vicinity.

Symbol PROHIBITED

When using the headphones, be careful not to play the sound too loud. Doing so for a long period of time could affect your hearing.  At 80 dB(A) exposure time shall be limited to 40 hours/week, whereas at 89 dB(A) exposure time shall be limited to 5 hours/week.

Symbol PROHIBITED

If you experience skin irritation, stop using the product immediately
and seek medical attention or consult with our sales agent.

Symbol PROHIBITED

If the sound volume is too loud, sound can be heard by other
people. Use care not to disturb other people.

Symbol PROHIBITED

Using headphones while wearing earrings or other ear accessories may result in injury. It is also possible that damage may be done to the headphones themselves, or that their performance may be compromised.
  • Do not apply strong impacts to the headphones or put excess force on the cable. If the product fails or wires are broken due to abnormal use, the product warranty is invalidated.
  • Lifting the housing away from the head when wearing the headphones and then letting go of it or pushing on the housing from both sides when the headphones are being worn results in a sudden change in pressure inside the housing and may lead to damage being incurred .
  • Leaving the headphones in full sunlight, in places that reach high temperatures or in humid or dusty environments may cause them to malfunction.
  • If the product fails, do not attempt to disassemble it
  • The headphones jack is for stereo reproduction only. If the headphones is connected to a monaural output jack, sound may not come out of one side.

Warranty and after service

  1. During the warranty period, we will repair the product free of charge if the product failed even though it was used in accordance with the instructions in the User’s Manual and the Warning and Caution sections.
  2. In the following cases, repairs to the product will be subject to a fee even during the warranty period:
    (1) Original purchase receipt or other documentation showing the date of purchase are failed to be presented.
    (2) The product is identified to be modified, disassembled, or repaired by a third party or customer other than our company or our authorized organizations.
    {3) The earphones were subjected to a strong impact or were allowed to get wet. Product failure resulting from an excessive use of force on the product.
    (4) Failure due to fire, earthquake, wind, flood, lightning, or other acts of God, human error, theft, or virus and malware infection.
    (5) Repair of scratches on the surface of the housing or repair of the housing itself.
  3. We shall not be liable for any incidental or consequential damages for breach of any express or implied warranty or condition on this product. Nor shall recovery of any kind against us be greater than the original purchase price of the product from us or an our authorized dealer.

Contacting us

Please contact us regarding inquiries using the Contact Form on our website:
https://final-inc.com/pages/lang-contact
