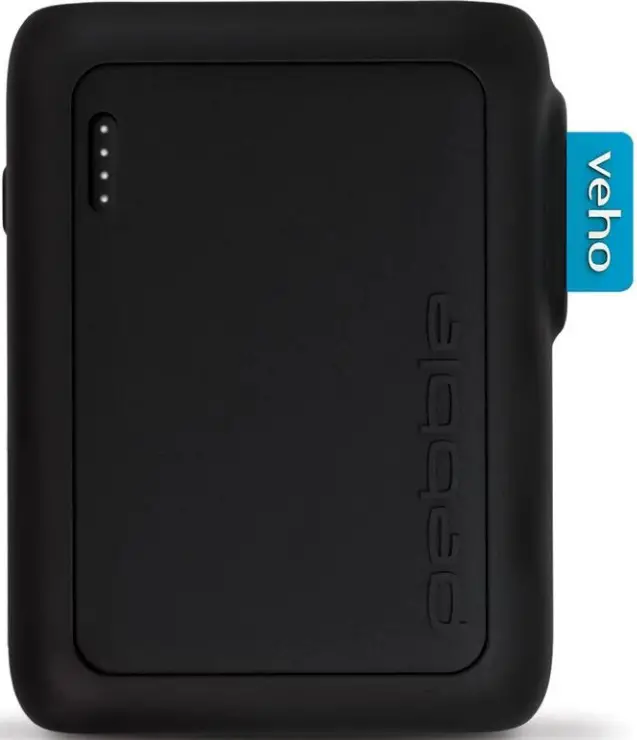

veho VPP-350-PZ12 Rugged Portable Power Bank Instruction Manual
Hello
This manual is available in pdf format print from:

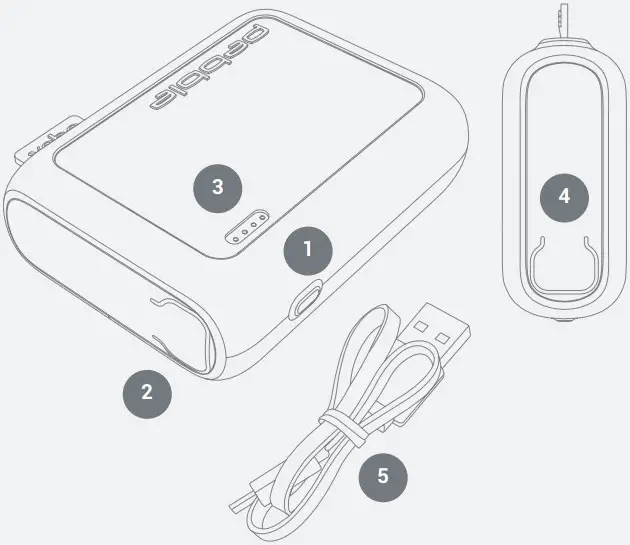

Connecting Instructions
- LED indicator button
- USB-A output port
- LED indicators
- PD USB-C input/output port
- USB-C charging cable

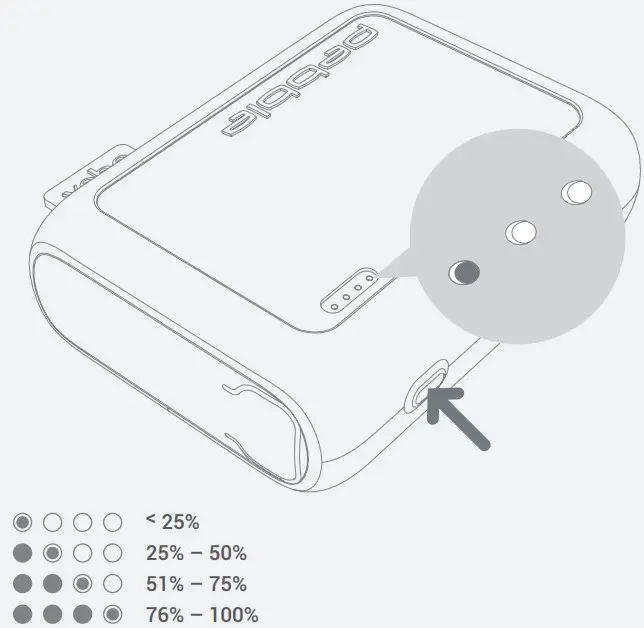

Guide to the LED indicator lights The LEDs indicate the remaining battery charge available. Press the power button to check battery status. Whilst fast charging, the first LED will turn green.
K Charging the power bank Using the supplied USB-C charging cable connect the USB-C tip into the power bank and the other end to a compatible power supply

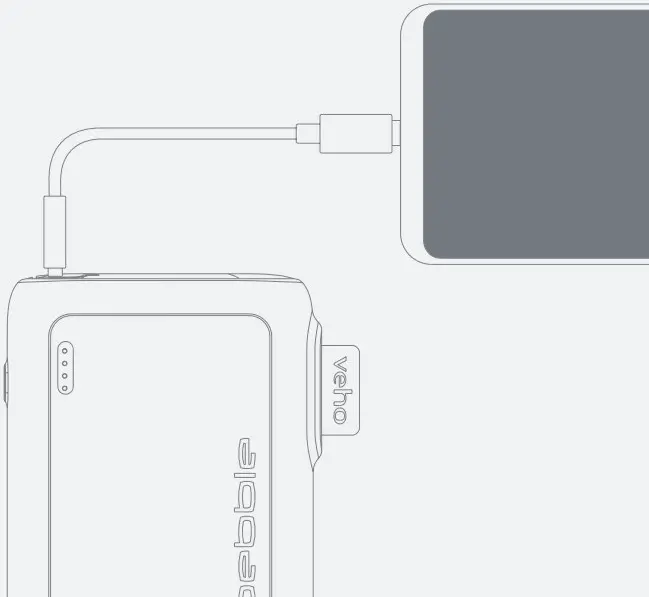

Charging a device Connect your device to the output port on the Pebble PZ, once connected charging will automatically begin until your device is fully charged.
Specifications
Battery capacity: 10,000mAh @ 3.7V
USB-C Input: DC 5V 3A, 9V 2A, 12V 1.5A
USB-C Output: DC 5V 3A, 9V 2.22A, 12V 1.5A
USB Output: DC 5V 3A, 9V 2A, 12V 1.5A
Charging time: Up to 4 hours
Maintenance & safety
IMPORTANT! Please ensure that the voltage of power supply is compatible with the ‘Power In’ of the power bank. Failure to do so could damage the product and invalidate the warranty. Only use the supplied charging cable or your device’s charging cable to charge your device
This symbol, affixed to the product or its packaging, indicates that the product must not be processed as household waste. This product should be correctly disposed of according to your local guidelines for electrical and battery operated products. Correct disposal of the battery will avoid potential harm to the environment and human health. For further information regarding the recycling of this product, please contact your local waste recycling centre.
Support
For product support please contact us via our chat box on our website at:
EC DECLARATION OF CONFORMITY
Hereby, Veho UK LTD declares that the radio equipment type (VPP-350-PZ12) is in compliance with EC directives. The full text of the EU Declaration of Conformity is available at https://veho-world.com/compliance/
Veho
