AVAILABLE MODELS
Zevo 600 (5M32905)

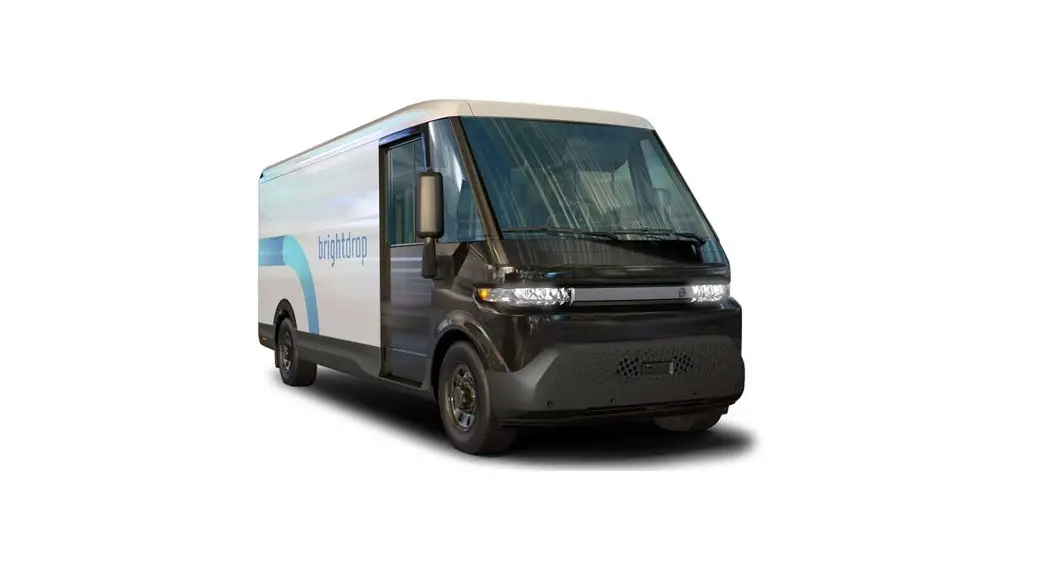

2023 Bright Drop Zevo 600
Intended solely for business use by Bright Drop dealers.
Certain models, options or equipment may be available only to customers who qualify as fleet or commercial customers.
None of the information in this Online Order / Reference Guide has been reviewed or approved for use in any advertising of any kind.
Bright Drop has taken reasonable steps to make the information in this Online Order / Reference Guide accurate as of the time of posting. However, Bright Drop reserves the right to make changes to this information at any time without notice.
2023 BrightDrop Zevo 600
STANDARD EQUIPMENT
Canada
| S = Standard Equipment A = Available –(dashes) = Not Available D = ADI Available ■ = Included in Equipment Group □ = Included in Equipment Group but upgradeable Codes listed in the shaded column titled Ref. Only RPO Code are for internal use only and should not be ordered. | |||
| Free | Ref. | Description | Zevo 600 |
| Flow | Only | 5M32905 | |
| RPO | RPO | EJY | |
| Code | Code | ||
| C68 | Air conditioning, automatic climate control | S | |
| AR4 | Airbags, dual-stage frontal, roof-rail side-impact and side-impact seat-mounted for driver | S | |
| IOK | Audio system, Infotainment system with 13.4″ diagonal HD colour touchscreen, includes multi-touch display, AM/FM stereo, Bluetooth streaming audio for music and most phones; featuring wireless Android Auto and Apple CarPlay capability for compatible phones, advanced voice recognition, personalized profiles for infotainment and vehicle settings | S | |
| UQF | Audio system feature, 2-speaker system | S | |
| UBJ | USB ports, 2, one type-A and one type-C, located within the instrument panel | S | |
| T8Z | Buckle to Drive, prevents vehicle from being shifted out of Park until driver seat belt is fastened; times out after 20 seconds and encourages seat belt use, can be turned on and off with Fleet Driver feature | S | |
| Cargo tie downs, 8, fixed, rated at 1,000 lbs (453.59 kg) each | S | ||
| U80 | Compass, digital | S | |
| K34 | Cruise control, electronic with set and resume speed, steering wheel-mounted 1 – Upgraded to (KSG) Adaptive Cruise Control when (AS2) Active Safety Package 2 is ordered. | S¹ | |
| Cup holders, 2 on driver side, 1 on curbside | S | ||
| Delivery Mode, a feature that automates repetitive tasks for the driver to speed package delivery. Includes turning on cabin lighting, unlocking bulkhead door and sounding the horn when vehicle is shifted out of park. | S | ||
| Door locks, power | S | ||
| UDV | Driver Information Centre, 12.3″ diagonal colour screen | S | |
| Fleet Driver, a configurable feature in the BrightDrop software platform that lets you activate customizable vehicle settings to help encourage safe driving behaviour. It can limit certain available vehicle features and will prevent certain safety systems from being turned off. | S | ||
| Floor covering, front cabin area, all-weather durable | S | ||
| UE4 | Following Distance Indicator | S | |
| UEU | Forward Collision Alert | S | |
| UHX | Lane Keep Assist | S | |
| LED lighting, 2, motion-sensing, cargo area | S | ||
| UIT | LED Reflective Windshield Collision Alert | S | |
| UE1 | OnStar connected services capable 1 – Terms and limitations apply. See gobrightdrop.com or dealer for details. | S¹ | |
| Free Flow RPO Code | Ref. Only RPO Code | Description | Zevo 600 5M32905 |
| EJY | |||
| VV4 | Wi-Fi Hotspot capable 1 – Terms and limitations apply. See gobrightdrop.com or dealer for details. | S¹ | |
| UFA | Outside temperature display, located in the infotainment display | S | |
| AYW | Bulkhead door, manual open/close | S | |
| Pedestrian safety signal, automated external sound generator at low speeds alerts pedestrians of vehicle presence in the front and rear of the vehicle | S | ||
| Push Button Start | S | ||
| KH8 | Power outlet, auxiliary, 12-volt | S | |
| UVB | HD Rear Vision Camera 1 – Upgraded to (UV2) HD Surround Vision when (AS2) Active Safety Package 2 is ordered. | S¹ | |
| CTT | Rear Guidance | S | |
| PZ8 | Step Bumper View | S | |
| ATH | Remote Keyless Entry | S | |
| Remote panic alarm | S | ||
| BTV | Remote vehicle starter system | S | |
| A50 | Seat, front bucket, driver with 2-way headrest | S | |
| A2U | Seat adjuster, driver 6-way manual with manual lumbar support | S | |
| A70 | Seat belt, driver, 3-point | S | |
| AEO | Seat belt pretensioner, driver | S | |
| 719 | Seat belt colour, Black | S | |
| ASV | Sensor, humidity and windshield temperature | S | |
| Steering column, manual tilt and telescoping | S | ||
| NK5 | Steering wheel, urethane | S | |
| Storage bins, upper instrument panel on driver side, upper instrument panel on curbside, lower floor area on curbside | S | ||
| Storage, overhead console | S | ||
| UTJ | Theft deterrent system, unauthorized entry | S | |
| UTV | Theft deterrent sensor, cargo area interior movement | S | |
| UTU | Theft deterrent sensor, vehicle inclination | S | |
| UJN | Tire Pressure Monitor System, auto learn, includes Tire Fill Alert (does not apply to spare tire) | S | |
| VHM | Vehicle health management, provides advanced warning of vehicle issues | S |
| Free Flow RPO Code | Ref. Only RPO Code | Description | Zevo 600 5M32905 |
| EJY | |||
| WLD | Window, remote express-down, driver-only | S | |
| D5W | Cargo door, roll-up, rear | S | |
| Charge port lighting with charge indicator | S | ||
| AKP | Glass, solar absorbing | S | |
| T83 | Headlamp control, automatic on and off | S | |
| Headlamps, LED with daytime running lamps and turn signals | S | ||
| TQ5 | IntelliBeam, auto high beam | S | |
| U05 | Horn, dual-note | S | |
| Lamp, front, Smoked Amber roof marker, LED | S | ||
| Lamp, rear, Red, roof marker, LED | S | ||
| DFB | Mirrors, outside, heated, power-adjustable, manual-folding | S | |
| UD5 | Front and Rear Park Assist | S | |
| Rear hold bars, integrated | S | ||
| Rear step bumper | S | ||
| Taillamps, LED | S | ||
| ZHQ | Tire, spare LT245/75R17E all-season, blackwall | S | |
| QHQ | Tires, LT245/75R17E all-season, blackwall | S | |
| NZ4 | Wheel, 17″ (43.2 cm) steel spare, Black-painted | S | |
| PYN | Wheels, 17″ (43.2 cm) steel, Black-painted | S | |
| Washer system, washer level sensor | S | ||
| CE1 | Wipers, front intermittent, Rainsense | S | |
| Auto Vehicle Hold | S | ||
| ETJ | Battery, Ultium, 20 module pack | S | |
| K4F | Battery, 12-volt with rundown protection, 800 cold-cranking amps with 80 amp-hour rating | S | |
| J77 | Brake, electronic parking | S | |
| JSV | Brakes, 17″ front and rear sliding caliper disc | S | |
| UHY | Automatic Emergency Braking 1 – Upgraded to (UGN) Enhanced Automatic Emergency Braking when (AS2) Active Safety Package 2 is ordered. | S¹ | |
| UKJ | Front Pedestrian Braking | S |
| Free Flow RPO Code | Ref. Only RPO Code | Description | Zevo 600 5M32905 |
| EJY | |||
| Regenerative braking | S | ||
| K28 | Charging module, 11.5 kW high-voltage | S | |
| XFD | Chassis drive line, All-Wheel Drive (AWD), electric front | S | |
| DC fast charging, 400 volt, up to 120 kW | S | ||
| P8N | Drive unit, rear, secondary, one motor, integrated inverter, no park | S | |
| S80 | Drive unit, front, primary, one motor, integrated inverter, open differential, park system | S | |
| EPH | Electronic Precision Shift, electronic transmission range selector with Low selection for throttle off regenerative braking and one-pedal driving capability | S | |
| NF6 | Emission system zero emission vehicle (ZEV) | S | |
| Final drive ratio, 13.26:1 (X80F) front axle and 11.63:1 (X77R) rear axle | S | ||
| C4M | GVWR, 9900 lbs. (4491 kg) | S | |
| One Pedal Driving | S | ||
| StabiliTrak, stability control system with Traction Control and Hill Start Assist | S | ||
| XRJ | Ultium Drive System, Torque Vectoring eAWD (Electronic AWD), 2 motors (1 front and 1 rear electric drive unit) 300 hp (225 kW) and 390 lb-ft (530 Nm) of torque | S |
| S = Standard Equipment A = Available –(dashes) = Not Available D = ADI Available ■ = Included in Equipment Group □ = Included in Equipment Group but upgradeable Codes listed in the shaded column titled Ref. Only RPO Code are for internal use only and should not be ordered. | |||
| Free Flow RPO Code | Ref. Only RPO Code | Description | Zevo 600 5M32905 |
| EJY | |||
| AS1 | Active Safety Package 1, includes (HS1) Safety Alert Seat, (UKI) Blind Zone Steering Assist and (UFB) Rear Cross Traffic Braking 1 – Required on all models. | A¹ | |
| AS2 | Active Safety Package 2, includes (KSG) Adaptive Cruise Control, (UV2) HD Surround Vision, (UGN) Enhanced Automatic Emergency Braking and (UVZ) Reverse Automatic Braking 1 – Required on all models. Requires (AS1) Active Safety Package 1. | A¹ | |
| PCH | Heat Package, includes (KAG) heated driver seat cushion and seatback, (NP5) leather-wrapped steering wheel and (KI3) heated steering wheel | A | |
| C68 | Air conditioning, automatic climate control | S | |
| AR4 | Airbags, dual-stage frontal, roof-rail side-impact and side-impact seat-mounted for driver | S | |
| AR8 | Airbags, roof-rail side-impact and side-impact seat-mounted for front passenger jump seat 1 – Included and only available with (ASP) front passenger jump seat. | A¹ | |
| IOK | Audio system, Infotainment system with 13.4″ diagonal HD colour touchscreen, includes multi-touch display, AM/FM stereo, Bluetooth streaming audio for music and most phones; featuring wireless Android Auto and Apple CarPlay capability for compatible phones, advanced voice recognition, personalized profiles for infotainment and vehicle settings | S | |
| UQF | Audio system feature, 2-speaker system | S | |
| UBJ | USB ports, 2, one type-A and one type-C, located within the instrument panel | S | |
| UKI | Blind Zone Steering Assist 1 – Included and only available with (AS1) Active Safety Package 1. | A¹ | |
| T8Z | Buckle to Drive, prevents vehicle from being shifted out of Park until driver seat belt is fastened; times out after 20 seconds and encourages seat belt use, can be turned on and off with Fleet Driver feature | S | |
| Cargo tie downs, 8, fixed, rated at 1,000 lbs (453.59 kg) each | S | ||
| U80 | Compass, digital | S | |
| K34 | Cruise control, electronic with set and resume speed, steering wheel-mounted 1 – Upgraded to (KSG) Adaptive Cruise Control when (AS2) Active Safety Package 2 is ordered. | S¹ | |
| KSG | Adaptive Cruise Control 1 – Included and only available with (AS2) Active Safety Package 2. | A¹ | |
| Cup holders, 2 on driver side, 1 on curbside | S | ||
| Delivery Mode, a feature that automates repetitive tasks for the driver to speed package delivery. Includes turning on cabin lighting, unlocking bulkhead door and sounding the horn when vehicle is shifted out of park. | S | ||
| Door locks, power | S | ||
| UDV | Driver Information Centre, 12.3″ diagonal colour screen | S | |
| Free Flow RPO Code | Ref. Only RPO Code | Description | Zevo 600 5M32905 |
| EJY | |||
| VS6 | Fire extinguisher, 1.5 kg with mount 1 – Included with (PCM) Commercial Equipment Package/Black Exterior or (FEX) Commercial Equipment Package/White Exterior. | A¹ | |
| VS1 | First aid kit 1 – Included with (PCM) Commercial Equipment Package/Black Exterior or (FEX) Commercial Equipment Package/White Exterior. | A¹ | |
| Fleet Driver, a configurable feature in the BrightDrop software platform that lets you activate customizable vehicle settings to help encourage safe driving behaviour. It can limit certain available vehicle features and will prevent certain safety systems from being turned off. | S | ||
| Floor covering, front cabin area, all-weather durable | S | ||
| BG3 | Floor covering, cargo area, composite, anti-slip, high-durability | A | |
| UE4 | Following Distance Indicator | S | |
| UEU | Forward Collision Alert | S | |
| 5H1 | Key system, 2 additional key fobs 1 – Included with (PCM) Commercial Equipment Package/Black Exterior or (FEX) Commercial Equipment Package/White Exterior. | A¹ | |
| UHX | Lane Keep Assist | S | |
| LED lighting, 2, motion-sensing, cargo area | S | ||
| UIT | LED Reflective Windshield Collision Alert | S | |
| UE1 | OnStar connected services capable 1 – Terms and limitations apply. See gobrightdrop.com or dealer for details. | S¹ | |
| VV4 | Wi-Fi Hotspot capable 1 – Terms and limitations apply. See gobrightdrop.com or dealer for details. | S¹ | |
| UFA | Outside temperature display, located in the infotainment display | S | |
| AYW | Bulkhead door, manual open/close | S | |
| BHA | Bulkhead door, automatic open/manual close | A | |
| Pedestrian safety signal, automated external sound generator at low speeds alerts pedestrians of vehicle presence in the front and rear of the vehicle | S | ||
| Push Button Start | S | ||
| KH8 | Power outlet, auxiliary, 12-volt | S | |
| KI4 | Power outlets, two, 110-volt, located in upper instrument panel bin and on cargo area bulkhead wall | A | |
| UVB | HD Rear Vision Camera 1 – Upgraded to (UV2) HD Surround Vision when (AS2) Active Safety Package 2 is ordered. | S¹ | |
| UV2 | HD Surround Vision 1 – Included and only available with (AS2) Active Safety Package 2. | A¹ | |
| CTT | Rear Guidance | S | |
| PZ8 | Step Bumper View | S |
| Free Flow RPO Code | Ref. Only RPO Code | Description | Zevo 600 5M32905 |
| EJY | |||
| ATH | Remote Keyless Entry | S | |
| Remote panic alarm | S | ||
| BTV | Remote vehicle starter system | S | |
| HS1 | Safety Alert Seat 1 – Included and only available with (AS1) Active Safety Package 1. | A¹ | |
| A50 | Seat, front bucket, driver with 2-way headrest | S | |
| ASP | Seat, front passenger jump, includes (AIA) front passenger jump seat, 3-point seat belt and (AR8) roof-rail side-impact and side-impact seat-mounted airbags for front passenger jump seat | A | |
| KAG | Seat, heated driver cushion and seatback 1 – Included and only available with (PCH) Heat Package. | A¹ | |
| A2U | Seat adjuster, driver 6-way manual with manual lumbar support | S | |
| A70 | Seat belt, driver, 3-point | S | |
| AIA | Seat belt, front passenger jump seat, 3-point 1 – Included and only available with (ASP) front passenger jump seat. | A¹ | |
| AEO | Seat belt pretensioner, driver | S | |
| 719 | Seat belt colour, Black | S | |
| 379 | Seat belt colour, Orange 1 – Included with (PCM) Commercial Equipment Package/Black Exterior or (FEX) Commercial Equipment Package/White Exterior. | A¹ | |
| ASV | Sensor, humidity and windshield temperature | S | |
| FSE | Spare fuse kit 1 – Included with (PCM) Commercial Equipment Package/Black Exterior or (FEX) Commercial Equipment Package/White Exterior. | A¹ | |
| Steering column, manual tilt and telescoping | S | ||
| NK5 | Steering wheel, urethane | S | |
| NP5 | Steering wheel, leather-wrapped 1 – Included and only available with (PCH) Heat Package. | A¹ | |
| KI3 | Steering wheel, heated 1 – Included and only available with (PCH) Heat Package. | A¹ | |
| Storage bins, upper instrument panel on driver side, upper instrument panel on curbside, lower floor area on curbside | S | ||
| Storage, overhead console | S | ||
| UTJ | Theft deterrent system, unauthorized entry | S | |
| UTV | Theft deterrent sensor, cargo area interior movement | S | |
| UTU | Theft deterrent sensor, vehicle inclination | S | |
| UJN | Tire Pressure Monitor System, auto learn, includes Tire Fill Alert (does not apply to spare tire) | S |
| Free Flow RPO Code | Ref. Only RPO Code | Description | Zevo 600 5M32905 |
| EJY | |||
| VHM | Vehicle health management, provides advanced warning of vehicle issues | S | |
| WLD | Window, remote express-down, driver-only | S |
| S = Standard Equipment A = Available –(dashes) = Not Available D = ADI Available ■ = Included in Equipment Group □ = Included in Equipment Group but upgradeable Codes listed in the shaded column titled Ref. Only RPO Code are for internal use only and should not be ordered. | |||
| Free Flow RPO Code | Ref. Only RPO Code | Description | Zevo 600 5M32905 |
| EJY | |||
| PCM | Commercial Equipment Package/Black Exterior, includes (379) Orange seat belt colour, (5H1) 2 additional key fobs, (VS1) first aid kit, (VS6) fire extinguisher, (TD1) safety reflector triangle kit, (VH4) rear splash guards and (FSE) spare fuse kit 1 – Not available with (FEX) Commercial Equipment Package/White Exterior. | A¹ | |
| FEX | Commercial Equipment Package/White Exterior, includes (GRO) Oyster White exterior colour, (RSF) 17″ White-painted steel wheels, (RUF) 17″ White-painted steel spare wheel, (379) Orange seat belt colour, (5H1) 2 additional key fobs, (VS1) first aid kit, (VS6) fire extinguisher, (TD1) safety reflector triangle kit, (VH4) rear splash guards and (FSE) spare fuse kit 1 – Not available with (PCM) Commercial Equipment Package/Black Exterior. | A¹ | |
| PCL | Exterior Light Package, includes (DFC) outside, heated, power-adjustable, manual-folding mirrors with puddle lamps and (UF2) exterior, overhead cargo door task light | A | |
| D5W | Cargo door, roll-up, rear | S | |
| Charge port lighting with charge indicator | S | ||
| AKP | Glass, solar absorbing | S | |
| T83 | Headlamp control, automatic on and off | S | |
| Headlamps, LED with daytime running lamps and turn signals | S | ||
| TQ5 | IntelliBeam, auto high beam | S | |
| U05 | Horn, dual-note | S | |
| UF2 | Lamp, exterior, overhead cargo door task light 1 – Included and only available with (PCL) Exterior Light Package. | A¹ | |
| Lamp, front, Smoked Amber roof marker, LED | S | ||
| Lamp, rear, Red, roof marker, LED | S | ||
| VK3 | License plate front mounting package (will be forced on orders with a ship-to province that requires a front license plate) 1 – Included for vehicles shipped to BC, MB and ON. Available for vehicles shipped to AB, NB, NL (NF), NS, NT, NU, PE, QC (PQ), SK and YT. | A¹ | |
| Q8E | Mechanical jack with tools | A | |
| DFB | Mirrors, outside, heated, power-adjustable, manual-folding | S | |
| DFC | Mirrors, outside, heated, power-adjustable, manual-folding with puddle lamps 1 – Included and only available with (PCL) Exterior Light Package. | A¹ | |
| UD5 | Front and Rear Park Assist | S | |
| Rear hold bars, integrated | S | ||
| Rear step bumper | S | ||
| Free Flow RPO Code | Ref. Only RPO Code | Description | Zevo 600 5M32905 |
| EJY | |||
| CC4 | Roof, cargo area, translucent | A | |
| TD1 | Safety reflector triangle kit, set of 3 1 – Included with (PCM) Commercial Equipment Package/Black Exterior or (FEX) Commercial Equipment Package/White Exterior. | A¹ | |
| VH4 | Splash guards, rear 1 – Included with (PCM) Commercial Equipment Package/Black Exterior or (FEX) Commercial Equipment Package/White Exterior. | A¹ | |
| Taillamps, LED | S | ||
| ZHQ | Tire, spare LT245/75R17E all-season, blackwall | S | |
| QHQ | Tires, LT245/75R17E all-season, blackwall | S | |
| NZ4 | Wheel, 17″ (43.2 cm) steel spare, Black-painted | S | |
| RUF | Wheel, 17″ (43.2 cm) steel spare, White-painted 1 – Included and only available with (FEX) Commercial Equipment Package/White Exterior. | A¹ | |
| PYN | Wheels, 17″ (43.2 cm) steel, Black-painted | S | |
| RSF | Wheels, 17″ (43.2 cm) steel, White-painted 1 – Included and only available with (FEX) Commercial Equipment Package/White Exterior. | A¹ | |
| Washer system, washer level sensor | S | ||
| CE1 | Wipers, front intermittent, Rainsense | S |
| S = Standard Equipment A = Available –(dashes) = Not Available D = ADI Available
= Included in Equipment Group = Included in Equipment Group but upgradeable
Codes listed in the shaded column titled Ref. Only RPO Code are for internal use only and should not be ordered. | |||
| Free Flow RPO Code | Ref. Only RPO Code | Description | Zevo 600 5M32905 |
| EJY | |||
| Auto Vehicle Hold | S | ||
| ETJ | Battery, Ultium, 20 module pack | S | |
| K4F | Battery, 12-volt with rundown protection, 800 cold-cranking amps with 80 amp-hour rating | S | |
| J77 | Brake, electronic parking | S | |
| JSV | Brakes, 17″ front and rear sliding caliper disc | S | |
| UHY | Automatic Emergency Braking 1 – Upgraded to (UGN) Enhanced Automatic Emergency Braking when (AS2) Active Safety Package 2 is ordered. | S¹ | |
| UGN | Enhanced Automatic Emergency Braking 1 – Included and only available with (AS2) Active Safety Package 2. | A¹ | |
| UKJ | Front Pedestrian Braking | S | |
| UFB | Rear Cross Traffic Braking 1 – Included and only available with (AS1) Active Safety Package 1. | A¹ | |
| UVZ | Reverse Automatic Braking 1 – Included and only available with (AS2) Active Safety Package 2. | A¹ | |
| Regenerative braking | S | ||
| K28 | Charging module, 11.5 kW high-voltage | S | |
| XFD | Chassis drive line, All-Wheel Drive (AWD), electric front | S | |
| DC fast charging, 400 volt, up to 120 kW | S | ||
| P8N | Drive unit, rear, secondary, one motor, integrated inverter, no park | S | |
| S80 | Drive unit, front, primary, one motor, integrated inverter, open differential, park system | S | |
| EPH | Electronic Precision Shift, electronic transmission range selector with Low selection for throttle off regenerative braking and one-pedal driving capability | S | |
| NF6 | Emission system zero emission vehicle (ZEV) | S | |
| Final drive ratio, 13.26:1 (X80F) front axle and 11.63:1 (X77R) rear axle | S | ||
| KYR | Governor, vehicle speed sensor, 65 MPH (104.6 kph) 1 – Not available with (KYW) 75 MPH governor. | A¹ | |
| KYW | Governor, vehicle speed sensor, 75 MPH (120.7 kph) 1 – Not available with (KYR) 65 MPH governor. | A¹ | |
| C4M | GVWR, 9900 lbs. (4491 kg) | S | |
| Free Flow RPO Code | Ref. Only RPO Code | Description | Zevo 600 5M32905 |
| EJY | |||
| C7E | GVWR, 11,000 lbs. (4990 kg) 1 – Requires (TD1) safety reflector triangle kit and (VS6) fire extinguisher. | A¹ | |
| One Pedal Driving | S | ||
| StabiliTrak, stability control system with Traction Control and Hill Start Assist | S | ||
| XRJ | Ultium Drive System, Torque Vectoring eAWD (Electronic AWD), 2 motors (1 front and 1 rear electric drive unit) 300 hp (225 kW) and 390 lb-ft (530 Nm) of torque | S |
| S = Standard Equipment A = Available –(dashes) = Not Available D = ADI Available = Included in Equipment Group = Included in Equipment Group but upgradeable | ||||
|
Model |
Seat Type |
Seat Code |
Seat Trim | Interior |
| Jet Black | ||||
| Zevo 600 | Front bucket, driver | A50 | Cloth | HBA |
|
Exterior Solid Paint |
Colour Code |
Touch Up Paint Number | Interior |
| Jet Black | |||
| Black | GBA | WA-8555 | A |
| Oyster White¹ | GRO | WA-673G | A |
| 1 – Included and only available with (FEX) Commercial Equipment Package/White Exterior. | |||
| S = Standard Equipment A = Available –(dashes) = Not Available D = ADI Available
= Included in Equipment Group = Included in Equipment Group but upgradeable
Codes listed in the shaded column titled Ref. Only RPO Code are for internal use only and should not be ordered. | |||
| Free | Ref. | Description | Zevo 600 |
| Flow | Only | 5M32905 | |
| RPO | RPO | ||
| Code | Code | EJY | |
| SQA | Ship Thru, Produced at CAMI Assembly, and shipped to Adrian Steel of Canada, Bolton ON (Dealer Invoice = $350.00) | A | |
| All dimensions in inches (mm) unless otherwise stated. | |||
| Specifications | 5M32905 Zevo 600 | ||
|
| A | Wheelbase | 183 (4661) |
| B | Overall length | 290 (7366) | |
| C | Vehicle width (with mirrors) | 106.13 (2696) | |
| Vehicle width (without mirrors) | 86.52 (2198) | ||
| D | Overall height | 107.93 (2741) | |
| Overall height with shark fin antenna | 108.87 (2765) | ||
| Overall height with mast antenna | 117.42 (2982) | ||
| Ground clearance | 7.38 (187) | ||
| Overhang, front | 33.99 (863) | ||
| Overhang, rear | 72.57 (1843) | ||
| Internal cargo area length | 168.8 (4288) | ||
| Internal cargo area width, wall to wall | 83.68 (2125) | ||
| Internal cargo area width, between wheel housing | 53.53 (1360) | ||
| Internal cargo area height | 82 (2083) | ||
| Head room, cargo area (door open) | 71.59 (1818) | ||
| Bulkhead access with door open (width) | 28.48 (723) | ||
| Bulkhead access with door open (height) | 75.8 (1925) | ||
| Rear cargo access with door open (width) | 58.05 (1474) | ||
| Rear cargo access with door open (height) | 71.59 (1818) | ||
| Curbside door opening width | 36.5 (927) | ||
| All dimensions in inches (mm) unless otherwise stated. | |||
| Specifications | 5M32905 Zevo 600 | ||
| Curbside step, height to ground | 15.49 (393) | ||
| Curbside step, depth | 12.4 (315) | ||
| Cargo floor , height to ground | 26.43 (671) | ||
| Rear step bumper, height to ground | 17.82 (453) | ||
| Charge port, height to ground | 35.05 (890) | ||
| Charge port. distance to end of step bumper | 48.87 (1241) | ||
| Published dimensions indicated are without optional equipment or accessories. Additional accessories or equipment ordered at the customer’s request can result in a minor change in these dimensions. | |||
| 5M32905 Zevo 600 | |
| Specifications | |
| Turning diameter, curb-to-curb, ft. (m) | 51.5 (15.7) |
| Approach angle, front (degrees) | 22.9 |
| Departure angle, rear (degrees) | 12.4 |
| Capacities | |
| Curb weight (C4M), lbs. (kg) | 8483 (3848) |
| Curb weight (C7E), lbs. (kg) | 8498 (3855) |
| Cargo volume, cu. ft. (litres) | 619.0 (17528.2) |
| Payload (C4M), lbs. (kg) | 1350 (612) |
| Payload, Minimum, with all optional equipment (C4M), lbs. (kg) | 1190 (540) |
| Payload (C7E), lbs. (kg) | 2440 (1107) |
| Payload, Minimum, with all optional equipment (C7E), lbs. (kg) | 2290 (1039) |
| Gross Vehicle Weight Rating (GVWR) (C4M), lbs. (kg) | 9900 (4491) |
| Gross Vehicle Weight Rating (GVWR) (C7E), lbs. (kg) | 11000 (4990) |
| Front Gross Axle Weight Rating (GAWR) (C4M), lbs. (kg) | 5291 (2400) |
| Front Gross Axle Weight Rating (GAWR) (C7E), lbs. (kg) | 5291 (2400) |
| Rear Gross Axle Weight Rating (GAWR) (C4M), lbs. (kg) | 5732 (2600) |
| Rear Gross Axle Weight Rating (GAWR) (C7E), lbs. (kg) | 6173 (2800) |
 | PYN Wheels, 17″ (43.2 cm) steel, Black-painted |
 | RSF Wheels, 17″ (43.2 cm) steel, White-painted |
| Option Code | Description |
| 379 | Seat belt colour, Orange |
| 5H1 | Key system |
| 719 | Seat belt colour, Black |
| A2U | Seat adjuster, driver 6-way manual |
| A50 | Seat, front bucket |
| A70 | Seat belt, driver |
| AEO | Seat belt pretensioner |
| AIA | Seat belt, front passenger jump seat |
| AKP | Glass, solar absorbing |
| AR4 | Airbags, dual-stage frontal, roof-rail side-impact and side-impact seat-mounted for driver |
| AR8 | Airbags, roof-rail side-impact and side-impact seat-mounted for front passenger jump seat |
| AS1 | Active Safety Package 1 |
| AS2 | Active Safety Package 2 |
| ASP | Seat, front passenger jump |
| ASV | Sensor, humidity |
| ATH | Remote Keyless Entry |
| AYW | Bulkhead door, manual open/close |
| BG3 | Floor covering, cargo area, composite |
| BHA | Bulkhead door, automatic open/manual close |
| BTV | Remote vehicle starter system |
| C4M | GVWR, 9900 lbs. (4491 kg) |
| C68 | Air conditioning, automatic climate control |
| C7E | GVWR, 11,000 lbs. (4990 kg) |
| CC4 | Roof, cargo area |
| CE1 | Wipers, front intermittent, Rainsense |
| CTT | Rear Guidance |
| D5W | Cargo door, roll-up, rear |
| DFB | Mirrors, outside, heated, power-adjustable |
| DFC | Mirrors, outside, heated, power-adjustable |
| EPH | Electronic Precision Shift |
| ETJ | Battery, Ultium |
| FEX | Commercial Equipment Package/White Exterior |
| FSE | Spare fuse kit |
| HS1 | Safety Alert Seat |
| IOK | Audio system, Infotainment system |
| J77 | Brake, electronic parking |
| JSV | Brakes, 17″ front and rear sliding caliper disc |
| K28 | Charging module, 11.5 kW high-voltage |
| K34 | Cruise control |
| K4F | Battery, 12-volt with rundown protection |
| KAG | Seat, heated driver cushion and seatback |
| KH8 | Power outlet, auxiliary |
| KI3 | Steering wheel, heated |
| KI4 | Power outlets, two, 110-volt |
| KSG | Adaptive Cruise Control |
| KYR | Governor, vehicle speed sensor |
| KYW | Governor, vehicle speed sensor |
| NF6 | Emission system zero emission vehicle (ZEV) |
| Option Code | Description |
| NK5 | Steering wheel |
| NP5 | Steering wheel, leather-wrapped |
| NZ4 | Wheel, 17″ (43.2 cm) steel spare |
| P8N | Drive unit, rear |
| PCH | Heat Package |
| PCL | Exterior Light Package |
| PCM | Commercial Equipment Package/Black Exterior |
| PYN | Wheels, 17″ (43.2 cm) steel |
| PZ8 | Step Bumper View |
| Q8E | Mechanical jack with tools |
| QHQ | Tires, LT245/75R17E all-season, blackwall |
| RSF | Wheels, 17″ (43.2 cm) steel |
| RUF | Wheel, 17″ (43.2 cm) steel spare |
| S80 | Drive unit, front |
| T83 | Headlamp control, automatic on and off |
| T8Z | Buckle to Drive |
| TD1 | Safety reflector triangle kit |
| TQ5 | IntelliBeam |
| U05 | Horn, dual-note |
| U80 | Compass, digital |
| UBJ | USB ports, 2 |
| UD5 | Front and Rear Park Assist |
| UDV | Driver Information Centre |
| UE1 | OnStar |
| UE4 | Following Distance Indicator |
| UEU | Forward Collision Alert |
| UF2 | Lamp, exterior |
| UFA | Outside temperature display |
| UFB | Rear Cross Traffic Braking |
| UGN | Enhanced Automatic Emergency Braking |
| UHX | Lane Keep Assist |
| UHY | Automatic Emergency Braking |
| UIT | LED Reflective Windshield Collision Alert |
| UJN | Tire Pressure Monitor System |
| UKI | Blind Zone Steering Assist |
| UKJ | Front Pedestrian Braking |
| UQF | Audio system feature, 2-speaker system |
| UTJ | Theft deterrent system |
| UTU | Theft deterrent sensor, vehicle inclination |
| UTV | Theft deterrent sensor, cargo area interior movement |
| UV2 | HD Surround Vision |
| UVB | HD Rear Vision Camera |
| UVZ | Reverse Automatic Braking |
| VH4 | Splash guards, rear |
| VHM | Vehicle health management |
| VK3 | License plate front mounting package |
| VS1 | First aid kit |
| VS6 | Fire extinguisher, 1.5 kg |
| Option Code | Description |
| VV4 | Wi-Fi Hotspot capable |
| WLD | Window, remote express-down, driver-only |
| XFD | Chassis drive line, All-Wheel Drive (AWD), electric front |
| XRJ | Ultium Drive System |
| ZHQ | Tire, spare LT245/75R17E all-season, blackwall |
Updates for Zevo 600
Week of 1/23/2023
Effective 1/23/2023, the following changes will be made to the Vehicle Order Guide:
- Interior section-(AS1) Active Safety Package 1, updated availability to Reference only “A” with a footnote that reads “Required on all models.”
- Interior section-(AS2) Active Safety Package 2, updated availability to Reference only “A” with a footnote that reads “Required on all models. Requires (AS1) Active Safety Package 1.”
- Interior section-(UKI) Blind Zone Steering Assist, updated availability to Reference only “A” with footnote still applying.
- Interior section-(KSG) Adaptive Cruise Control, updated availability to Reference only “A” with footnote still applying.
- Interior section-(UV2) HD Surround Vision, updated availability to Reference only “A” with footnote still applying.
- Interior section-(HS1) Safety Alert Seat, updated availability to Reference only “A” with footnote still applying.
- Mechanical section-(UGN) Enhanced Automatic Emergency Braking, updated availability to Reference only “A” with footnote still applying.
- Mechanical section-(UFB) Rear Cross Traffic Braking, updated availability to Reference only “A” with footnote still applying.
- Mechanical section-(UVZ) Reverse Automatic Braking, updated availability to Reference only “A” with footnote still applying.
Week of 12/26/2022
Effective 12/26/2022, the following changes will be made to the Vehicle Order Guide:
- Ship Thru section-Added section with (SQA) Ship Thru, Produced at CAMI Assembly, and shipped to Adrian Steel of Canada, Bolton ON (Dealer Invoice = $350.00). It is “A” on EJY.
Week of 11/14/2022
Effective 11/14/2022, the following changes will be made to the Vehicle Order Guide:
- Interior section-(AS1) Active Safety Package 1, updated availability to “black box”.
- Interior section-(AS2) Active Safety Package 2, updated availability to “black box” and deleted footnote 1.
- Interior section-(UKI) Blind Zone Steering Assist, updated availability to “black box”. Footnote remains.
- Interior section-(KSG) Adaptive Cruise Control, updated availability to “black box”. Footnote remains.
- Interior section-Deleted (P1S) OnStar, Additional 21 months of OnStar Assurance.
- Interior section-Deleted (P1T) OnStar, Additional 33 months of OnStar Assurance.
- Interior section-(UV2) HD Surround Vision, updated availability to “black box”. Footnote remains.
- Interior section-(HS1) Safety Alert Seat, updated availability to “black box”. Footnote remains.
- Mechanical section-(UGN) Enhanced Automatic Emergency Braking, updated availability to “black box”. Footnote remains.
- Mechanical section-(UFB) Rear Cross Traffic Braking, updated availability to “black box”. Footnote remains.
- Mechanical section-(UVZ) Reverse Automatic Braking, updated availability to “black box”. Footnote remains.
Week of 7/25/2022
Effective 7/25/2022, the following changes will be made to the Vehicle Order Guide:
- Specs section-Curb weight (C4M), updated TBD to “8483 (3848)”.
- Specs section-Curb weight (C7E), updated TBD to “8498 (3855)”.
- Specs section-Payload (C4M), updated numbers to “1350 (612)”.
- Specs section-Payload, Minimum, with all optional equipment (C4M), updated TBD to “1190 (540)”.
- Specs section-Payload (C7E), updated numbers to “2440 (1107)”.
- Specs section-Payload, Minimum, with all optional equipment (C7E), updated TBD to “2290 (1039)”.
- Specs section-Front Gross Axle Weight Rating (GAWR), added “(C4M)” to the description and updated TBD to “5291 (2400)”.
- Specs section-Added “Front Gross Axle Weight Rating (GAWR) (C7E), lbs. (kg) 5291 (2400)”.
- Specs section-Rear Gross Axle Weight Rating (GAWR), added “(C4M)” to the description and updated TBD to “5732 (2400)”.
- Specs section-Added “Rear Gross Axle Weight Rating (GAWR) (C7E), lbs. (kg) 6173 (2800)”.
Published January 20, 2023 Page 23
gobrightdrop.com
