Neuron Advanced Monitoring Device for High-Voltage Power Lines
Installation Guide
Installation guide
Heimdall Power
Neurons
Live line installation
The Heimdall Power neurons can be installed – and removed – from energized power lines.
Installation methods
SUPPORT / RETURN: +47 51 77 78 00
[email protected]
Prior to installation
The following 4 steps must be conducted to ensure connectivity to Heimdall Cloud

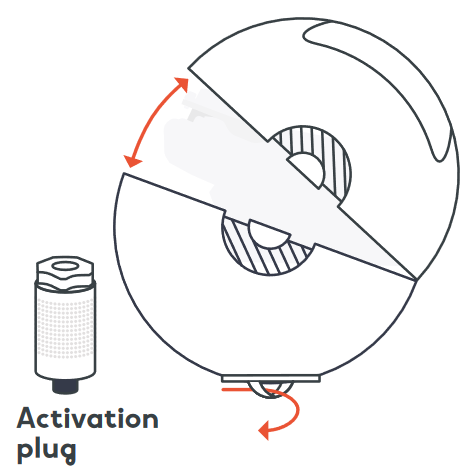

Step 1
Open the Neuron

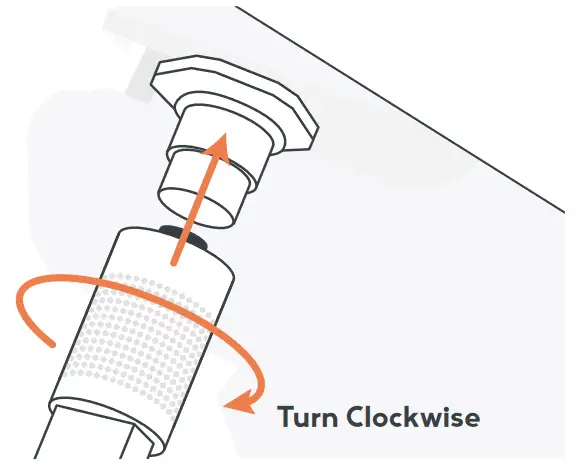

Step 2
Install the Activation Plug

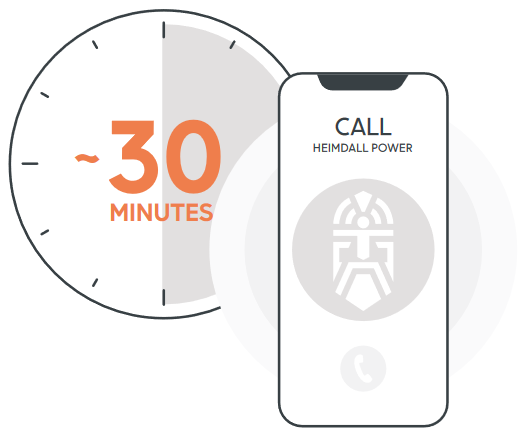

Step 3
Call Heimdall Power
Step 4
Ready to be installed
Installation on the power line
The activation plug must be activated prior to the installation!
Step 5
How to position the Neuron
The neuron must be mounted on bare conductor (no coating, spirals etc.)
Step 6
Ensure horizontal orientation
Step 7

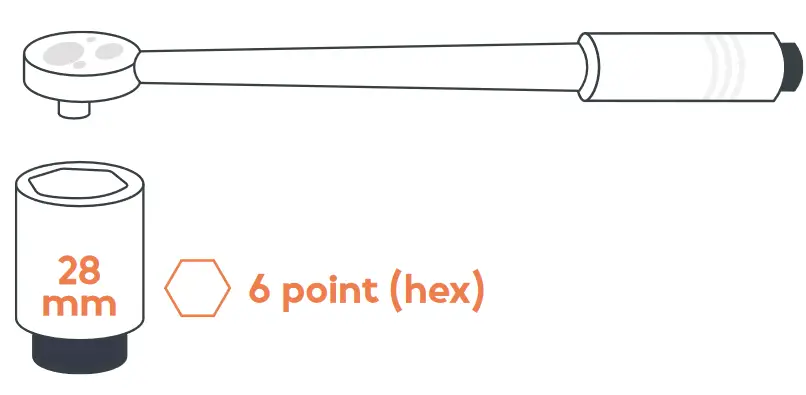

Apply a torque of~15 Nm
Measure distance from ground to suspension point
Step 8
Measure distance from the ground to the suspension point according to figure.
Measurements must be vertical.
Information for each Neuron must be provided to Heimdall Power (see back page).
Data registration
The following information for each Neuron must be provided to Heimdall Power:
PICTURE OF THE INSTALLED NEURON (OPTIONAL)
