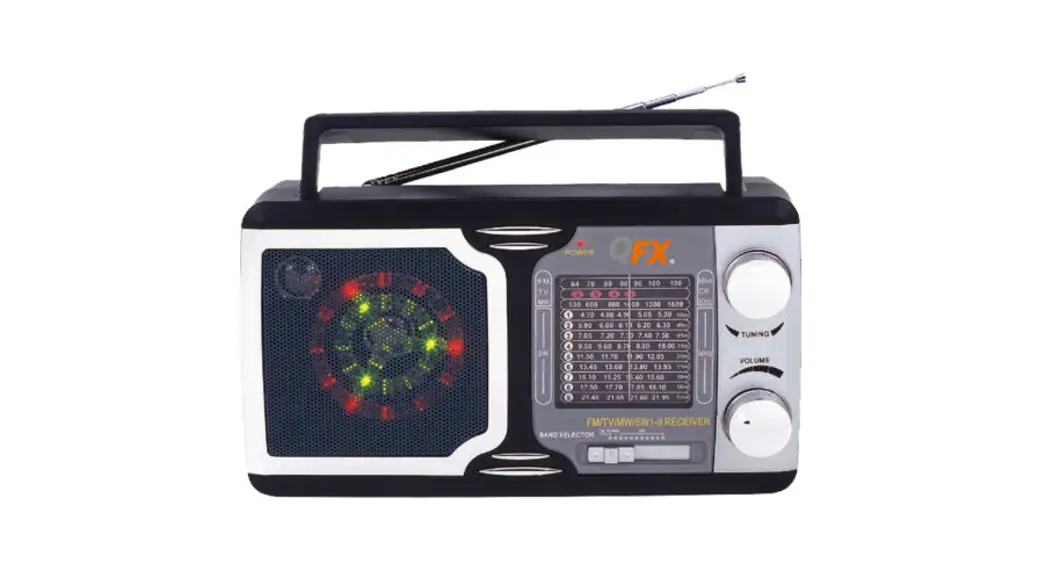

R-14
Instruction manual
FM/MW/SW1-9 12Band radio
Specification:
Frequency range:
| F M: 64-108MHz M W: 530-1600KHz SW1:4.70-5.20MHz SW2:5.90-6.30MHz SW3:7.C5-7.50MHz SW4:9.50-10.00MHz | SW5:11.50-12 05MHz SW6:13.45-13.95MHz SW7:15.10-15.60MHz SW8:17.50-18.10MHz SW9:21.45-21.95MHz Max power output:;.≥600mW Loudspeaker: 077mm4 Ω 3W |
Battery:3X1.5V SIZE(UM-1) 3X1.5V SIZE(UM-3) DC 4.5V AC.120V
Dimension:120(H)X212(W)X70(D)mm
Weight: 594.8 grams(Not including the batteries)
Earphone jack:.5mm
Rotate the Power/ VOL. Knob counterclockwise to turn on the radio, You may hear a D Sound. continue to rotate. The volume will increase, to turn off the radio, and rotate the knob clockwise.
Rotate the knob up and down, then select the desired radio station
Battery operation

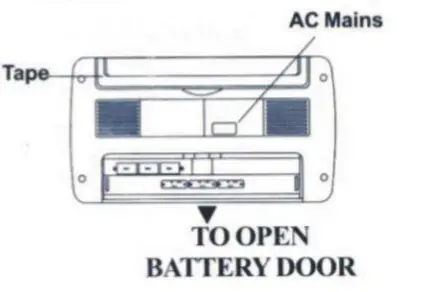

Insert three pen-core shape batteries into the compartment with three arrows indicated on the hack of the unit
Note: *When the batteries aren’t going to be used for a long time, remove the batteries from the radio to avoid leaking and damage.
