62133
XTREME SERIES RALLY BAR
20″ SINGLE ROW LIGHT BAR
SPOT/FLOOD COMBO BEAM
WHAT’S INCLUDED:
- 1 x LED Light Bar
- Side and Bottom Mounting Brackets
- Mounting Hardware
FEATURES & SPECIFICATIONS:
- Light Output: 7,500 Lumens
- LEDs: OSRAM
- Power: 120W @ 13.6V DC
- Current: 8.8A @ 13.6V DC
- Voltage: 9 – 36V DC
- Dimension (H,W,D): 1.7″x 22.0″ x 1.8″
- Beam Pattern: Spot/Flood Combo

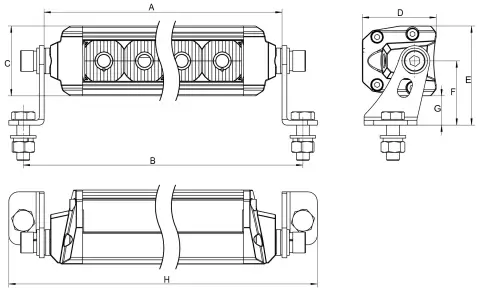

A – 21.89″ B – 22.91″ C – 1.71″ D – 1.82″
E – 2.43″ F – 1.57″ G – 0.72″ H – 23.62″

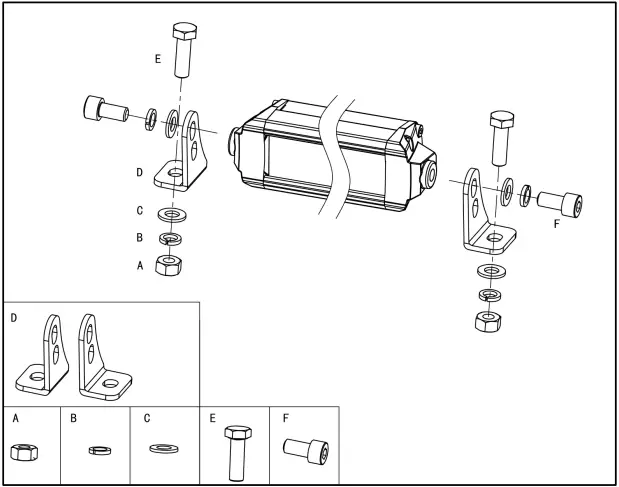

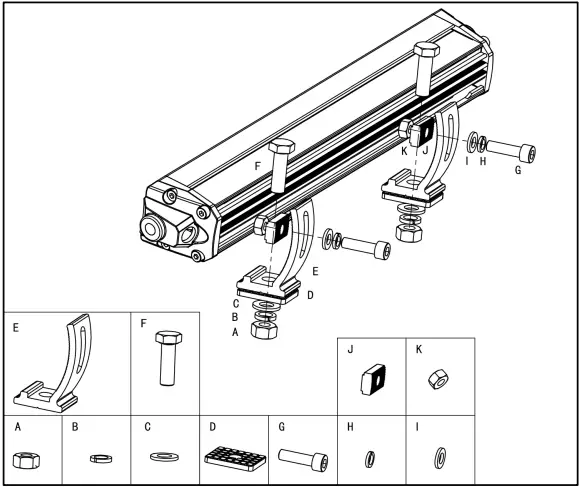

MOUNTING INSTALL INSTRUCTION
INSTALL INSTRUCTION

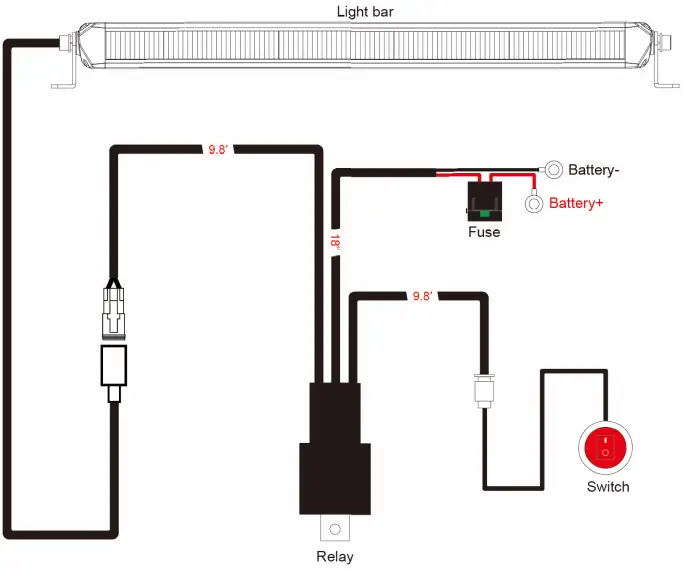

Wiring Harness 84001 Sold Separately
- Determine suitable mounting locations to install the LED light bar, wiring harness and switch. Once all mounting locations are confirmed, connect the wires as shown above. Proper insulation at connections is required.
- Connect positive and negative wire properly. Press the switch button to test if the light bar is functioning properly.
- Adjust the light to the desired angle and then secure by tightening all mounting screws.
SKU# 62133 INSTALL MANUAL
