LU38121 NOVA DUO AU CONFIGURATIONS
Installation Guide
LU38121 NOVA DUO AU CONFIGURATIONS
| 2 | BOM UPDATED | 19/5/2021 | JB | RG |
| 1 | RELEASED FOR EVALUATION | 7/5/2021 | JB | RG |
| REV | DESCRIPTION | DATE | DRWN | APPV |
| REVISIONS | ||||
| CUSTOMER SIGNATURE: | TOLERANCES UNLESS OTHERWISE STATED: X ±0.5 X.X ±0.2 X.XX ±0.1 X.XXX ±0.05 ANG±0.5° |
| MATERIAL: PC FR | |
| FINISH: FINE EDM / POLISHED / FABRIC | |
| COLOUR: REFER TABLE | |
| THIS DRAWING & ASSOCIATED CAD FILES ARE ISSUED IN THE STRICTEST CONFIDENCE AND ARE ONLY TO BE USED IN THE COMMERCIAL INTERESTS OF CMS ELECTRACOM PTY LTD | DRAWN IN mm TO AS1100 DO NOT SCALE |
| COPYRIGHT © 2020 | ||
| TITLE: NOVA DUO AU CONFIGURATIONS | ||
| DRAWING: LU38121 | REV: 2 | A 3 |
| SCALE 1:2 | SHEET 1 OF 6 | |
| COLOUR VARIATIONS | |||||||
| PART NUMBER | DESCRIPTION | ||||||
| W | WHITE BODY & CLAMP | ||||||
| B | BLACK BODY & CLAMP | ||||||
| 1 | WHITE DECAL GLOSS | ||||||
| 2 | WHITE DECAL MATT | ||||||
| 3 | BLACK DECAL GLOSS | ||||||
| 4 | BLACK DECAL MATT | ||||||
| FABRIC FINISH REFER TO AS LU38547 | |||||||
| A | FABRIC COLOUR 1 | ||||||
| B | FABRIC COLOUR 2 | ||||||
| C | FABRIC COLOUR 3 | ||||||
| D | FABRIC COLOUR 4 | ||||||
NOTE
CABLE TYPE: 3 CORE x 2.5mm2

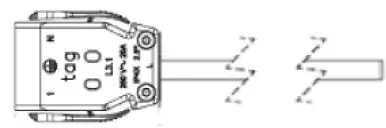

DESCRIPTION: TAG CONNECTOR LEAD
COLOUR: WHITE OR BLACK (REFER TO PURCHASE ORDER) LENGTH (mm):
| xx | LENGTH (mm) |
| 05 | 500 |
| 10 | 1000 |
| 15 | 1500 |
| 20 | 2000 |
| 25 | 2500 |
| 30 | 3000 |
| 35 | 3500 |
| 40 | 4000 |
| 45 | 4500 |
| 50 | 5000 |
NOTE
CABLE TYPE: 3 CORE x 1 .0mm²

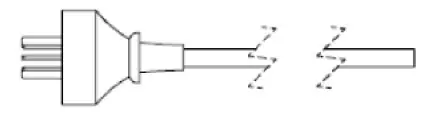

DESCRIPTION: AUSTRALIAN PLUG LEAD
COLOUR: WHITE OR BLACK (REFER TO PURCHASE ORDER) LENGTH (mm):
| xx | LENGTH (mm) |
| 05 | 500 |
| 10 | 1000 |
| 15 | 1500 |
| 20 | 2000 |
| 25 | 2500 |
| 30 | 3000 |
| 35 | 3500 |
| 40 | 4000 |
| 45 | 4500 |
| 50 | 5000 |
PART NUMBER: (REFER CONFIGURATION)xxXX

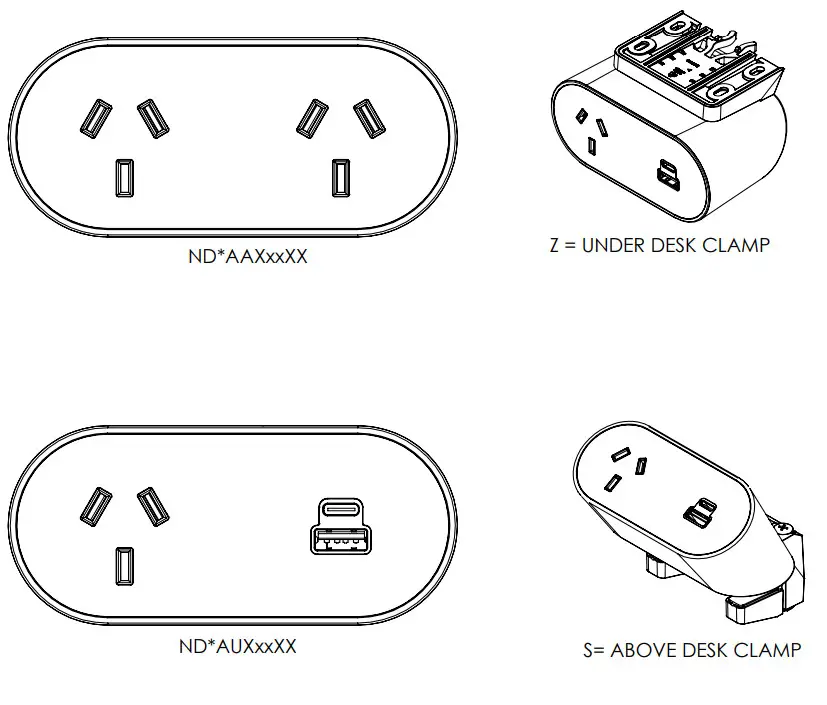

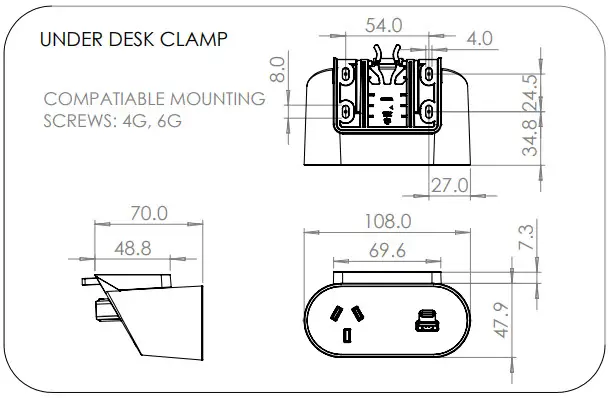

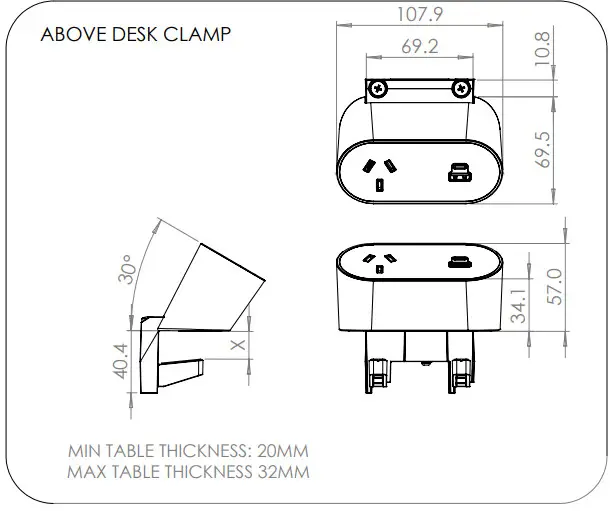

NOTE – * – CLAMP TYPE – (S = ABOVE DESK OR Z = UNDER DESK)
X – LEAD TYPE (TAG = T OR 3PIN PLUG = I)
xx – LENGTH – 05 / 10/ 15 / 20 / 25 / 30 / 35 / 40 / 45 / 50

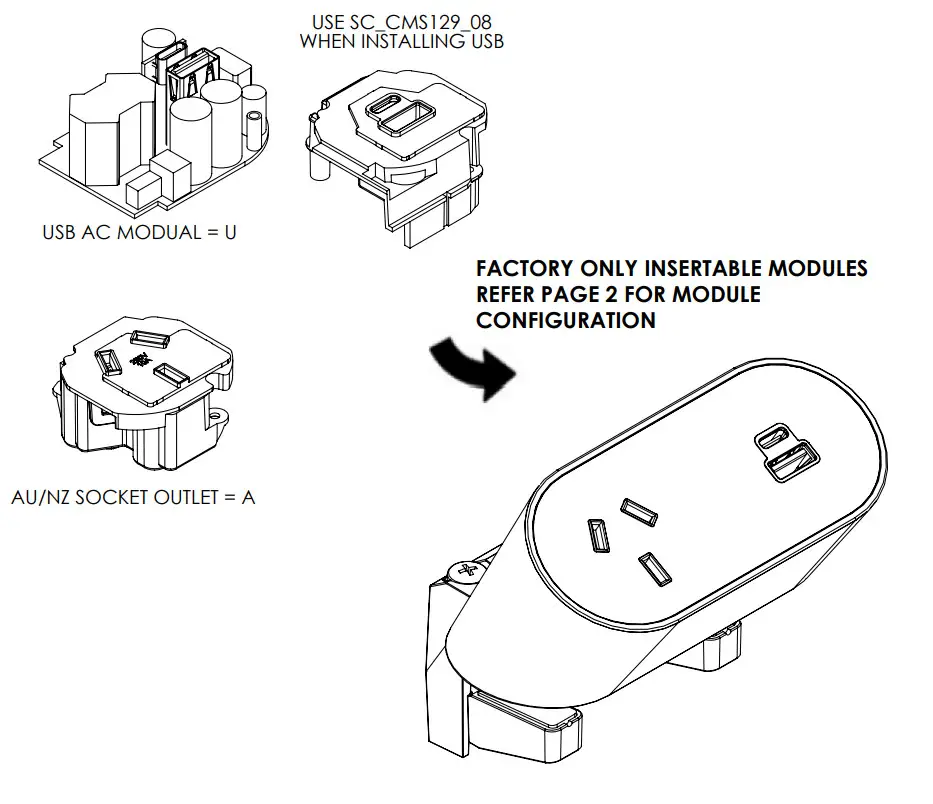

XX – COLOUR – W / B + 1 / 2 / 3 / 4 + (OPTIONAL) A/B/C/D
| CUSTOMER SIGNATURE: | TOLERANCES UNLESS OTHERWISE STATED: X ±0.5 X.X ±0.2 X.XX ±0.1 X.XXX ±0.05 ANG±0.5° |
| MATERIAL: PC FR | |
| FINISH: FINE EDM / POLISHED / FABRIC | |
| COLOUR: REFER TABLE | |
| THIS DRAWING & ASSOCIATED CAD FILES ARE ISSUED IN THE STRICTEST CONFIDENCE AND ARE ONLY TO BE USED IN THE COMMERCIAL INTERESTS OF CMS ELECTRACOM PTY LTD | DRAWN IN mm TO AS1100 DO NOT SCALE |
| COPYRIGHT © 2020 | ||
| TITLE: NOVA DUO AU CONFIGURATIONS | ||
| DRAWING: LU38121 | REV: 2 | A 3 |
| SCALE 1:2 | SHEET 1 OF 6 | |
