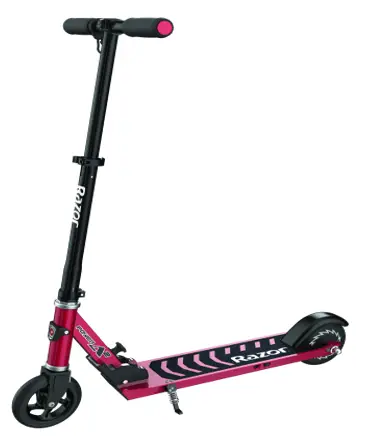

Power A2 Electric Scooter
Instruction Manual
POWER A2
COLLAR CLAMP REPLACEMENT PROCEDURES
PART # W13110002178
Power A2 Electric Scooter
Required Tools: (Not included) A. 5 mm Allen wrench
WARNING CAUTION: To avoid potential shock or other injury, turn power switch OFF and disconnect charger before conducting any assembly or maintenance procedures. Failure to follow these steps in the correct order may cause irreparable damage.
Step 1

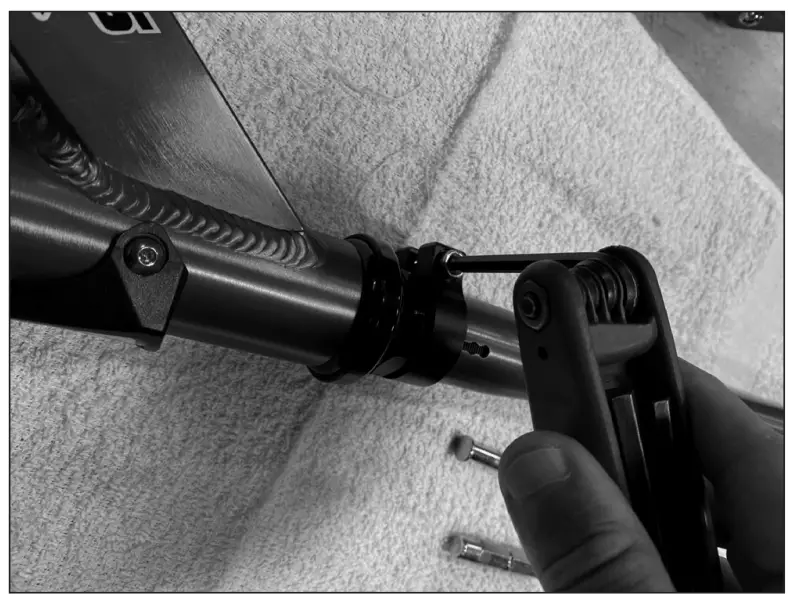

Using a 5 mm Allen wrench, loosen the bolt from the collar clamp. Slide the stem off from the fork.
Step 2

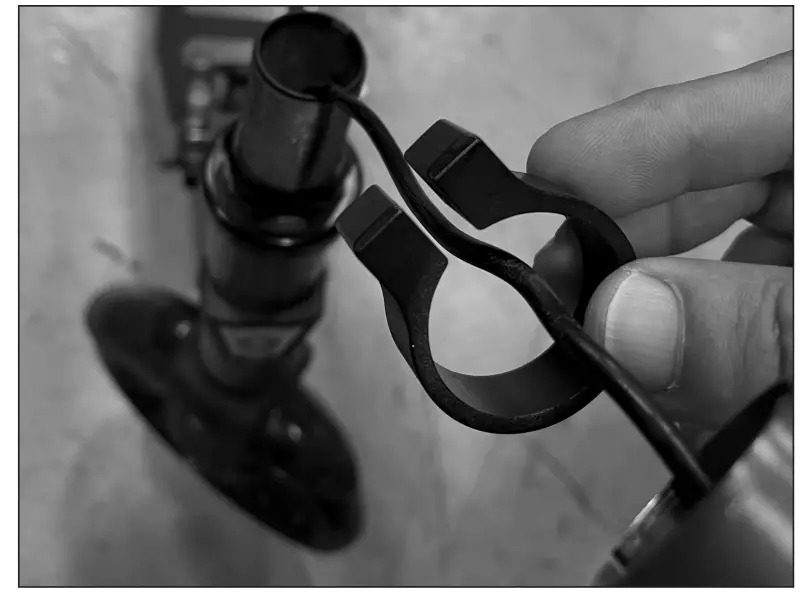

Slide collar clamp off from the stem and remove the bolt from the collar clamp completely. This will allow you to pass the collar clamp through the throttle cable.
Step 3
Reverse the steps.
ATTENTION: Charge battery 8 hours before using.
Need Help?
Visit our website at www.razor.com or call toll-free at 866-467-2967
Monday – Friday 8:00am – 5:00pm Pacific Time. 2
