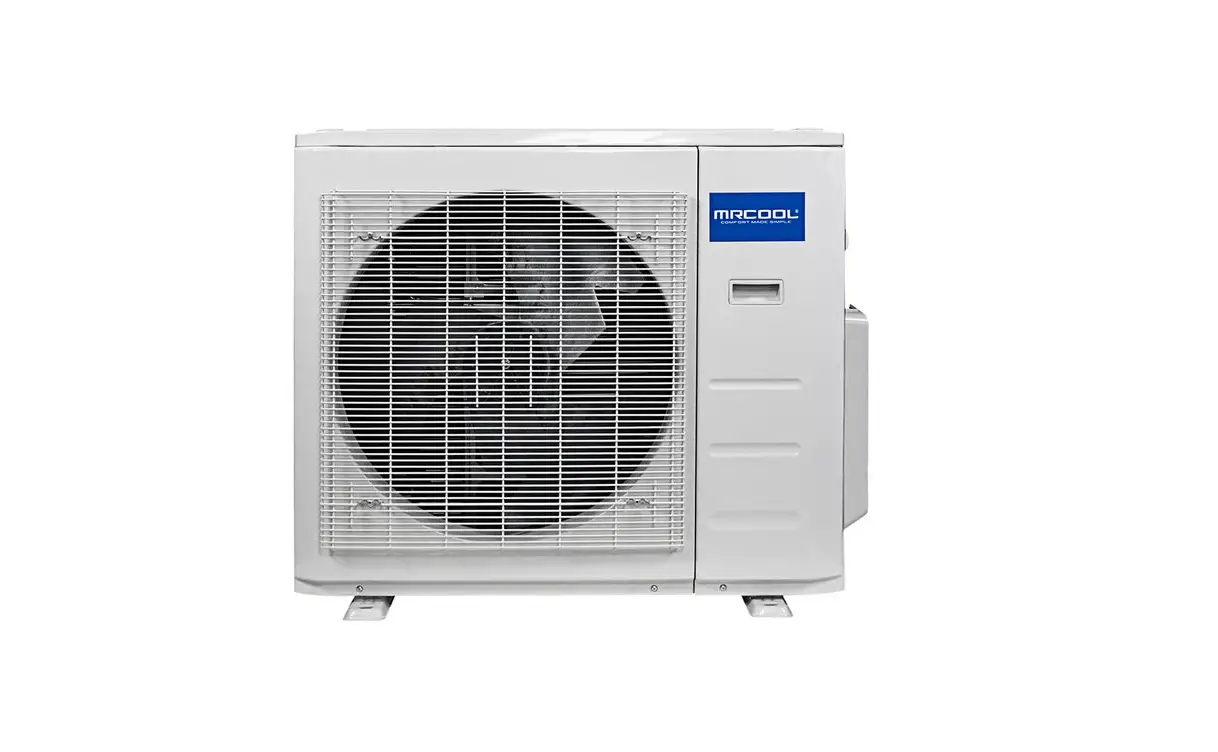

MRCOOL Olympus
The Olympus Series is NOT designed for amateur installation. Installation SHOULD be performed by an authorized technician.
Please read this manual carefully before installation and keep it for future reference.
Installation Manual
Olympus Series
Single (Hyper Heat & E Star) & Multi-Zone Models
The Olympus Series is NOT designed for amateur installation. Installation SHOULD be performed by an authorized technician.
Please read this manual carefully before installation and keep it for future reference.
Contents
! Safety Precautions ……………………………. 3 1 Accessories ……………………………………….. 5 2 Overview ………………………………………….. 7
3 Indoor Unit Installation ………..11
1. Installation location……………………………11 2. Attach mounting plate to wall……………12 3. Drill wall hole for connective piping…..13 4. Prepare refrigerant piping ………………..14 5. Connect drain hose……………………………15 6. Connect signal cable………………………….16 7. Wrap piping and cables……………………..18 9. Mount indoor unit……………………………..19
4 Outdoor Unit Installation …… 20
1. Installation location …………………………20 2. Install drain joint ……………………………. 21 3. Anchor outdoor unit ……………………… 22 4. Connect signal and power cables …. 24
Page 1
mrcool.com
Contents
5 Refrigerant Piping Connection …………………. 27
A. Note on Pipe Length ……………………………………………………. 27 B. Connection Instructions Refrigerant Piping ……………… 27
1. Cut pipe …………………………………………………………………… 27 2. Remove burrs …………………………………………………………. 28 3. Flare pipe ends ……………………………………………………….. 28 4. Connect pipes ………………………………………………………….. 29
6 Air Evacuation …………………………… 31
1. Evacuation Instructions ……………………………. 31
MC
MC
2. Note on Adding Refrigerant ……………………… 32
7 Electrical and Gas Leak Checks ….. 33
1. Electrical Safety Checks ……………………………. 33 2. Gas Leak Checks ………………………………………. 33 3. Self Correction Function …………………………… 34
8 Test Run ……………………………………. 35 9 EU Disposal Guidelines ……………… 37
mrcool.com
Page 2
Safety Precautions
Safety Precautions
!
Read Before Installation Incorrect installation may cause serious damage or injury.
The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION.
WARNING
This symbol indicates ignoring instructions may cause death or serious injury.
CAUTION
This symbol indicates that ignoring instructions may cause moderate injury to your person, damage to your unit, or other property.
This symbol indicates that you should never perform the indicated action.
WARNING
DO NOT modify the length of the power supply cord or use an extension cord to power the unit.
DO NOT share the electrical circuit with other appliances. Improper or insufficient power supply can cause fire or electrical shock.
When connecting refrigerant piping, DO NOT let substances or gases other than the refrigerant enter the unit. The presence of other gases or substances will lower the unit’s capacity, and may cause abnormally high pressure in the operation cycle. This may cause explosion and injury.
DO NOT allow children to play with the air conditioner. Children should be supervised around the unit at all times.
1. Installation must be performed by an authorized technician. Improper installation may cause
water leakage, electrical shock, or fire.
2. Installation must be performed according to installation instructions. Improper installation may
cause water leakage, electrical shock, or fire.
3. In North America, installation must be performed in accordance with the requirement of NEC and
CEC (by authorized personnel only.) Contact an authorized service technician for repair or maintenance of the unit.
4. Only use the included accessories and specified parts for installation. Using non-standard parts
can cause water leakage, elctrical shock, or fire and may cause the unit to fail.
5. Install the unit in a firm location that can support the unit’s weight. If the installation location
cannot support the weight, or the installation is performed improperly, the unit may fall and cause serious injury and/or damage.
6. For all electrical work, follow all appropriate wiring standards, regulations, and the Installation Manual.
Page 3
mrcool.com
Safety Precautions
7. You must use an independent circuit to supply power. Do not connect other appliances to the same
circuit. Insuficient electrical capacity or defects in electrical work can cause electrical shock or fire.
8. For all electrical work, fuse the specified cables. Connect cables tightly, and clamp them securely to
prevent external forces from damaging the terminal. Improper electrical connections may overheat, causing fire and/or electrical shock.
9. All wiring must be properly arranged to ensure that the control board cover can close properly. If the
control board cover is not closed properly, it can lead to corrosion and cause the connection points on the terminal to overheat , causing fire and/or electrical shock.
10. In certain functional environments, such as kitchens, server rooms, etc., the use of specially designed
air-conditioning units is highly recommended. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
11. This appliance can be used by children aged 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.
For units that have an auxiliary electric heater, DO NOT install the unit within 3 feet (1 meter) of combustible materials . DO NOT install the unit in a location that may be exposed to combustible gases. If combustible gas accumulates around the unit, it may cause fire.
DO NOT operate your air conditioner in a wet room such as a bathroom or laundry room. Too much exposure to water may cause electrical components to short circuit.
1. The product must be properly grounded during installation, or electrical shock may occur.
2. Install drainage piping according to the instructions in this manual. Improper drainage may cause water damage to your home and property.
Note about Flourinated Gasses:
1. This air-conditioning unit contains flourinated gases. 2. For specific information on the type of gas and the amount, please refer to the relevant label on the
unit itself.
3. Installation, service, maintenance and repair of this unit must be performed by a certified technician. 4. Product uninstallation and recycling must be performed by a certified technician. 5. If the system has a leak-detection system installed, it should be checked for leaks at least every 12
months.
6. Keep a record of all leak checks for the lifetime of the unit.
mrcool.com
Page 4
Accessories
Safety Precautions
1
The air conditioning system includes the following accessories. Use all of the installation parts and accessories to install the air conditioner. Improper installation may result in water leakage, electrical shock, fire, or equipment failure.
PART
LOOKS LIKE…
QUANTITY
Mounting plate
1
Clip anchor
Mounting plate fixing screw ST3.9 X 25
5 or 8 5 or 8
Remote control
1
Fixing screw for remote controller holder ST2.9 x 10
Remote control holder
2 Optional Parts
1
Dry battery AAA.LR03 Air freshening filter Seal Drain joint Neoprene
2 1 (optional) 1
1 1 (Sealant for Wall Sleeve)
Page 5
mrcool.com
PART Owner’s Manual
Installation Manual
Remote Control Manual
Accessories
LOOKS LIKE…
Please read this manual carefully before installation and keep it for future reference.
Owner’s Manual
Olympus Series
For more details visit www.MrCool.com Please read this manual carefully before installation and keep it for future reference.
Installation Manual
Olympus Series
Please read this manual carefully before installation and keep it for future reference.
Please read this manual carefully before installation and keep it for future reference.
Remote Control User Manual
For more details visit www.MrCool.com
Smart Controller Kit
Connecting pipe assembly
Liquid side Gas side
6.35 (1/4in) 9.52 (3/8in) 9.52 (3/8in) 12.7 (1/2in) 16 (5/8in)
QUANTITY
1
1 (this)
1
1 (w/ Manual in Controller Box)
Parts must be purchased separately. Consult your dealer about the pipe size.
mrcool.com
Page 6
Overview
2
Front Panel
(with display)
Air inlet (rear)
Indoor Unit
(Interior / Air Handler)
Vertical Airflow Louver
Horizontal Airflow Grill (inside)
Air outlet (bottom)
Fresh Air Filter
(on front of main filter in Specified Units)
Air inlet (side)
Air inlet (rear)
Smart Controller Module USB Port
Wall Mounting Plate
Drainage Pipe Refrigerant Piping Signal Cable Remote Control
Air outlet
Outdoor Unit
(Exterior / Condenser)
Remote Holder
Outdoor Unit Power Cable
Signal Cable Connection from Indoor Unit
Refrigerant Pipe Connection and Stop Valve (under cover)
Fig. 2.1
NOTE ON ILLUSTRATIONS Illustrations in this manual are for explanatory purposes. The actual shape of your unit may vary.
Page 7
mrcool.com
Overview – Multi-Zone
Wall-Mounted Handlers
Ceiling Ducted Handlers
5-Zone 4-Zone 3-Zone 2-Zone
5-Zone 4-Zone 3-Zone 2-Zone
Fig. 2.2
Indoor unit 1. Panel frame 2. Rear air intake grille 3. Front panel 4. Air Purifying filter & Air filter (behind) 5. Horizontal louver 6. LCD display window 7. Vertical louver 8. Manual control button (behind) 9. Remote control holder
Outdoor unit 10. Drain hose, refrigerant pipe 11. Connective cable 12. Stop valve 13. Fan hood
Fig. 2.3
Indoor unit 1. Air outlet 2. Air inlet 3. Air filter 4. Electric control cabinet 5. Wire controller
Outdoor unit 6. Drain hose, refrigerant pipe 7. Connective cable 8. Stop valve 9. Fan hood
mrcool.com
Page 8
Overview – Multi-Zone
Cassette Handlers
5-Zone 4-Zone 3-Zone 2-Zone
Indoor unit 1. Drain pump (from indoor unit) 2. Drain hose 3. Air outlet 4. Air inlet 5. Air-in grill 6. Display panel 7. Remote control
Outdoor unit 8. Refrigerant connecting pipe 9. Connective cable 10. Stop valve 11. Fan hood
Fig. 2.4
Page 9
mrcool.com
Overview – Specifications
Table 2.1
Indoor units that can be used in combination Number of connected units 1-5 units
Compressor stop/start frequency
Stop time
3 min or more
voltage fluctuation
within ±10% of rated voltage
Power source voltage
voltage drop during start within ±15% of rated voltage
interval unbalance
within ±3% of rated voltage
Table 2.2
Unit: ft/m
2 ZONE 3 ZONE 4 ZONE 5 ZONE
Max. length for all rooms
98.4ft/30m 147.6ft/45m 196.8ft/60m 246ft/75m
Max. length for one indoor unit
65.6ft/20m 82ft/25m 98.4ft/30m 98.4ft/30m
Max. height different between indoor and outdoor unit
OU higher than IU 32.8ft/10m 32.8ft/10m 32.8ft/10m 32.8ft/10m OU lower than IU 49ft/15m 49ft/15m 49ft/15m 49ft/15m
Max. height different between indoor units
32.8ft/10m 32.8ft/10m 32.8ft/10m 32.8ft/10m
When installing multiple indoor units to a single outdoor unit, ensure that the length of the refrigerant pipe and the drop height between the indoor and outdoor units meets the following requirements:
Outdoor unit
Indoor unit
Max.Height difference
Indoor unit
49ft(15m) 49ft(15m)
Fig. 2.5
Indoor unit
32.8ft(10m)
mrcool.com
Page 10
Installation Summary – Indoor Unit
Indoor Unit Installation
3
Installation Instructions Indoor Unit
PRIOR TO INSTALLATION:
Before installing the indoor unit, refer to the label on the product box to make sure that the model number of the indoor unit matches the model number of the outdoor unit.
Step 1: Select installation location Before installing the indoor unit, you must choose an appropriate location. The following standards will help you choose an appropriate location.
Proper installation locations meet the following standards:
Good air circulation
Convenient drainage
Noise from the unit will not disturb other people
Firm and solid–the location will not vibrate
Strong enough to support the weight of the unit
A location at least one meter from all other electrical devices (e.g., TV, radio, computer)
DO NOT install unit in the following locations:
Near any source of heat, steam, or combustible gas
Near flammable items such as curtains or clothing
Near any obstacle that might block air circulation
Near a doorway
In a location subject to direct sunlight
NOTE ABOUT WALL HOLE:
If there is no fixed refrigerant piping: While choosing a location, be aware that you should leave ample room for a wall hole (see Drill wall hole for connective piping step) for the signal cable and refrigerant piping that connect the indoor and outdoor units. The default position for all piping is the right side of the indoor unit (while facing the unit). However, the unit can accommodate piping to left or right.
Page 11
mrcool.com
Indoor Unit Installation
Refer to the following diagram to ensure proper distance from walls and ceiling:
Minimum Ceiling
Clearance is 15cm (5.9in)
>12cm (4.75in)
>12cm (4.75in)
For Ceilings GREATER Than 9 Foot, Suggested Floor Clearance is
230cm(90.55in)
For Ceilings LESS Than 9 Foot, Suggested Floor Clearance is
200cm(78.55in)
Fig. 3.1
Step 2: Attach mounting plate to wall
The mounting plate is the device on which you will mount the indoor unit . 1. Remove the screw that attaches the mounting
plate to the back of the indoor unit.
2. Place the mounting plate against the wall in a location that meets the standards in the Select Installation Location step. (See Mounting Plate Dimensions for detailed information on mounting plate sizes.)
3. Drill holes for mounting screws in places that: · have studs and can support the weight of the unit · correspond to screw holes in the mounting plate
4. Secure the mounting plate to the wall with the screws provided.
5. Make sure that mounting plate is flat against the wall
NOTE FOR CONCRETE OR BRICK WALLS:
If the wall is made of brick, concrete, or similar material, drill 0.2in-diameter (5mm-diameter) holes in the wall and insert the sleeve anchors provided. Secure the mounting plate to the wall by tightening the screws directly into the clip anchors.
Step 3: Drill wall hole for connective piping
You must drill a hole in the wall for refrigerant piping, the drainage pipe, and the signal cable that will connect the indoor and outdoor units.
1. Determine the location of the wall hole based on the position of the mounting plate. Refer to Mounting Plate Dimensions on the next page to help you determine the optimal position. Refer to Fig. 3.3 wall hole diameter and install at a slight angle to facilitate drainage.
2. Using a core drill [3.5in (76.2mm) for 24K units, 2.5in (65mm) for all others], drill a hole in the wall. Make sure that the hole is drilled at a slight downward angle, so that the outdoor end of the hole is lower than the indoor end by about 0.2 to 0.275in (5mm-7mm). This will ensure proper water drainage. (See Fig. 3.2)
3. Place the protective wall cuff in the hole. This protects the edges of the hole and will help seal it when you finish the installation process.
CAUTION
When drilling the wall hole, be sure to avoid wires, plumbing, and other sensitive components.
mrcool.com
Page 12
Indoor Unit Installation
Wall
Indoor
Outdoor
0.2 – 0.3in (5 – 7 mm)
Left rear side refrigerant pipe hole
2.6in/65mm
Fig.3.2
MOUNTING PLATE DIMENSIONS
Different models have different mounting plates. In order to ensure that you have ample room to mount the indoor unit, the diagrams to the right show different types of mounting plates along with the following dimensions:
· Width of mounting plate
· Height of mounting plate
· Width of indoor unit relative to plate
· Height of indoor unit relative to plate
· Recommended position of wall hole (both to the left and right of mounting plate)
· Relative distances between screw holes
Correct orientation of Mounting Plate
Left rear side refrigerant pipe hole
2.6in/65mm
Left rear side refrigerant pipe hole
2.6in/65mm
Left rear side refrigerant pipe hole
3.5in/89mm
4.3in/11mm
Series 9K Models
Right rear side refrigerant pipe hole
2.6in/65mm
4.3in/11mm
Series 12K Models
Right rear side refrigerant pipe hole
2.6in/65mm
1.8in/45mm
Series 18K Models
Right rear side refrigerant pipe hole
2.6in/65mm
46.7in/1186mm Series 24K Models
Right rear side refrigerant pipe hole
3.5in/89mm
Fig. 3.3
Page 13
mrcool.com
Indoor Unit Installation
Step 4: Prepare refrigerant piping
The refrigerant piping is inside an insulating sleeve attached to the back of the unit. You must prepare the piping before passing it through the hole in the wall. Refer to the Refrigerant Piping Connection section of this manual for detailed instructions on pipe flaring and flare torque requirements, technique, etc.
1. Based on the position of the wall hole relative to the mounting plate, choose the side from which the piping will exit the unit.
2. If the wall hole is behind the unit, keep the knock-out panel in place. If the wall hole is to the side of the indoor unit, remove the plastic knock-out panel from that side of the unit. (See Fig. 3.4 ). This will create a slot through which your piping can exit the unit. Use needle nose pliers if the plastic panel is too difficult to remove by hand.
Fig. 3.4
Knock-out Panel
3. Use scissors to cut down the length of the insulating sleeve to reveal about 6in (15cm) of the refrigerant piping. This serves two purposes:
· To facilitate the Refrigerant Piping Connection process
· To facilitate Gas Leak Checks and enable you to check for dents
4. If existing connective piping is already embedded in the wall, proceed directly to the Connect Drain Hose step. If there is no embedded piping, connect the indoor unit’s refrigerant piping to the connective piping that will join the indoor and outdoor units. Refer to the Refrigerant Piping Connection section of this manual for detailed instructions.
5. Based on the position of the wall hole relative to the mounting plate, determine the necessary angle of your piping.
6. Grip the refrigerant piping at the base of the bend.
7. Slowly, with even pressure, bend the piping towards the hole. DO NOT dent or damage the piping during the process.
NOTE ON PIPING ANGLE
Refrigerant piping can exit the indoor unit from four different angles:
· Left-hand side · Left rear · Right-hand side · Right rear Refer to Fig. 3.5 for details.
Fig. 3.5
Be extremely careful not to dent or damage the piping while bending them away from the unit. Any dents in the piping will affect the unit’s performance.
mrcool.com
Page 14
Indoor Unit Installation
Step 5: Connect drain hose
By default, the drain hose is attached to the left-hand side of unit (when you’re facing the back of the unit). However, it can also be attached to the right-hand side.
1. To ensure proper drainage, the drain hose must exit the unit on the same side as the refrigerant piping.
Make sure there are NO kinks or dents in the
hose to ensure proper drainage.
2. Wrap the connection point firmly with Teflon tape to ensure a good seal and to prevent leaks.
Fig. 3.6a
3. For the portion of the drain hose that will remain indoors, wrap it with foam pipe insulation to prevent condensation.
4. Remove the air filter and pour a small amount of water into the drain pan to make sure that water flows from the unit smoothly.
NOT CORRECT Kinks in the drain hose will create water traps.
NOTE ON DRAIN HOSE PLACEMENT
Fig. 3.6b
Make sure to arrange the drain hose according to Fig. 3.6a.
DO NOT kink the drain hose. DO NOTcreate a water trap. DO NOT put the end of drain hose in water or a container that will collect water.
ENSURE UNUSED DRAIN HOLE IS PLUGGED To prevent unwanted leaks be sure that the factory installed rubber plug is in the unused drain hole.
NOT CORRECT Dents in the drain hose will create water traps.
Fig. 3.6c
NOT CORRECT DO NOT place the end
of the drain hose in water or in containers
that collect water. This will prevent proper drainage.
Fig. 3.6d
Page 15
mrcool.com
Indoor Unit Installation
BEFORE PERFORMING ELECTRICAL WORK, READ THESE REGULATIONS
1. All wiring must comply with local and national electrical codes, and must be installed by a licensed electrician.
2. All electrical connections must be made according to the Electrical Connection Diagram located on the panels of the indoor and outdoor units.
3. If there is a serious safety issue with the power supply, stop work immediately. Explain your reasoning to the client, and refuse to install the unit until the safety issue is properly resolved.
4. Power voltage should be within 90-100% of rated voltage. Insufficient power supply can cause malfunction, electrical shock, or fire.
5. Circuit, including any switches, should have a capacity 1.5 times the maximum unit current (amps).
6. The qualified technician must use an approved circuit breaker or switch that disconnects all poles and has has a contact separation of at least 1/8in (3mm).
7. Do not connect another appliance to the same circuit.
8. Make sure to properly ground the air conditioner.
9. Every wire must be firmly connected. Loose wiring can cause the terminal to overheat, resulting in malfunction and possible fire.
10. Do not let wires touch or rest against refrigerant tubing, the compressor, or any moving parts within the unit.
11. If the unit has an auxiliary electric heater, it must be installed at least 40in (1 meter) away from combustible materials.
BEFORE PERFORMING ANY ELECTRICAL WORK, TURN OFF ALL POWER TO THE SYSTEM.
208-230V~ Models
Indoor Unit
Single Zone Outdoor Unit
see Outdoor Unit Installation for Multi-Zone
L1 L2 S
G
L1 L2 S L1 L2
Fig. 3.7a
Power Supply
mrcool.com
Fig. 3.7b
Page 16
Indoor Unit Installation
Step 6: Connect signal cable
The signal cable enables communication between the indoor and outdoor units and provides power to the indoor unit. A 16 gauge AWG signal cable (H07RN-F) is provided for the unit. The tables below are for reference.
NOTE: the rated amp (A) draw will be at the condenser (outdoor unit) and a table is provided in that section, showing the required power cable gauge specific to each.
Minimum Cross-Sectional Area of Power and Signal Cables
North America
Appliance Amps (A)
AWG
10
18
13
16
18
14
25
12
30
10
Other Regions
Rated Current of Appliance (A)
Nominal Cross-Sectional Area (mm²)
> 3 and 6
0.75
> 6 and 10
1
> 10 and 16
1.5
> 16 and 25
2.5
> 25 and 32
4
> 32 and 40
6
CHOOSE THE APPROPRIATE CABLE SIZE
The size of the power supply cable, signal cable, fuse, and switch needed is determined by the maximum unit current. The maximum unit current is indicated on the nameplate located on the side panel of the unit. Refer to this nameplate to choose the right cable, fuse, or switch.
TAKE NOTE OF FUSE SPECIFICATIONS The air conditioner’s circuit board (PCB) is designed with a fuse to provide overcurrent protection. The specifications of the fuse are printed on the circuit board, such as: T3.15A/250VAC, T5A/250VAC, etc. 1. Prepare the cable for connection: a. Using wire strippers, strip the rubber
jacket from both ends of signal cable to reveal about 1.57in (40mm) of the wires inside.
b. Strip the insulation from the ends of the wires.
c. Using wire crimper, crimp u-type lugs on the ends of the wires.
PAY ATTENTION TO LIVE WIRE While crimping wires, make sure you clearly distinguish the Live (“L”) Wire from other wires. 2. Open front panel of the indoor unit.
3. Using a screwdriver, open the wire box cover on
the right side of the unit. This will reveal the terminal block.
Terminal block Wire cover
Screw Cable clamp
Fig. 3.7c See Fig. 3.7A on previous page for wiring diagram. Wiring diagram also found inside lid of interior unit
All wiring must be performed in accordance with the wiring diagrams Fig. 3.7a & Fig. 3.7b shown on the previous page.
4. Unscrew the cable clamp below the terminal
block and place it to the side.
5. Facing the back of the unit, remove the plastic
panel on the bottom left-hand side.
Page 17
mrcool.com
Indoor Unit Installation
6. Feed the signal wire through this slot, from the back of the unit to the front.
7. Facing the front of the unit, match the wire colors with the labels on the terminal block, connect the u-lug and firmly screw each wire to its corresponding terminal.
DO NOT MIX UP LIVE AND NULL WIRES This is dangerous, and can cause the air conditioning unit to malfunction.
8. After checking to make sure every connection is secure, use the cable clamp to fasten the signal cable to the unit. Screw the cable clamp down tightly.
9. Replace the wire cover on the front of the unit, and the plastic panel on the back.
THE WIRING CONNECTION PROCESS MAY DIFFER SLIGHTLY BETWEEN UNITS.
Step 7: Wrap piping and cables
Before passing the piping, drain hose, and the signal cable through the wall hole, you must bundle them together to protect them, insulate them, and save space.
1. Bundle the drain hose, refrigerant pipes, and signal cable according to Fig. 3.8.
Indoor Unit
Space behind unit
Refrigerant piping Insulation tape
Signal wire
Drain hose
Fig. 3.8
DRAIN HOSE MUST BE ON BOTTOM
Make sure that the drain hose is at the bottom of the bundle. Putting the drain hose at the top of the bundle can cause the drain pan to overflow, which may lead to fire or water damage.
DO NOT INTERTWINE SIGNAL CABLE WITH OTHER WIRES
While bundling these items together, do not intertwine or cross the signal cable with any other wiring.
2. Using adhesive vinyl tape, attach the drain hose to the underside of the refrigerant pipes.
3. Using insulation tape, wrap the signal wire, refrigerant pipes, and drain hose tightly together. Double-check that all items are bundled in accordance with Fig. 3.8
DO NOT WRAP ENDS OF PIPING
When wrapping the bundle, keep the ends of the piping unwrapped. You need to access them to test for leaks at the end of the installation process (refer to Electrical Checks and Leak Checks section of this manual).
Step 8: Mount indoor unit If you installed new connective piping to the outdoor unit, do the following:
1. If you have already passed the refrigerant piping through the hole in the wall, proceed to Step 4.
2. Otherwise, double-check that the ends of the refrigerant pipes are sealed to prevent dirt or foreign material from entering the pipes.
3. Slowly pass the wrapped bundle of refrigerant pipes, drain hose, and signal wire through the hole in the wall.
4. Hook the top of the indoor unit on the upper hook of the mounting plate.
5. Check that unit is hooked firmly on mounting plate by applying slight pressure to the left and right-hand sides of the unit. The unit should not jiggle or shift.
6. Using even pressure, push down on the bottom half of the unit. Keep pushing down until the unit snaps onto the hooks along the bottom of the mounting plate.
7. Again, check that the unit is firmly mounted by applying slight pressure to the left and the right-hand sides of the unit.
mrcool.com
Page 18
Indoor Unit Installation
If refrigerant piping is already embedded in the wall, do the following:
1. Hook the top of the indoor unit on the upper hook of the mounting plate. 2. Use a bracket or wedge to prop up the unit, giving you enough room to connect the refrigerant piping, signal cable, and drain hose. Refer to Fig. 3.9 for an example.
30°
Wedge
Connect drain hose and refrigerant piping (refer to Refrigerant Piping Connection section of this manual for instructions).
Keep pipe connection point exposed to perform the leak test (refer to Electrical Checks and Leak Checks section of this manual).
After the leak test, wrap the connection point with insulation tape.
Remove the bracket or wedge that is propping up the unit.
Using even pressure, push down on the bottom half of the unit. Keep pushing down until the unit snaps onto the hooks along the bottom of the mounting plate.
Fig. 3.9
UNIT IS ADJUSTABLE
Keep in mind that the hooks on the mounting plate are smaller than the holes on the back of the unit. If you find that you don’t have ample room to connect embedded pipes to the indoor unit, the unit can be adjusted left or right by about 1.25-1.95in (30-50mm), depending on the model. (See Fig. 3.10)
1.2-1.95in (30-50mm)
1.2-1.95in (30-50mm)
Page 19
Move to left or right
Fig. 3.10
mrcool.com
Indoor Unit Installation
Outdoor Unit Installation
4
Installation Instructions Outdoor Unit
Step 1: Select installation location
Before installing the outdoor unit, you must choose an appropriate location. The following standards will help you choose an appropriate location.
i7n9firno(n2t00cm)
24in (60cm) above
Ground Installed: 12 in (30 cm) Bracket Installed: 6 in (15 cm) clearance between back and wall
Proper installation locations meet the following standards:
Meets all spatial requirements shown in Installation Space Requirements (Fig. 4.1)
Good air circulation and ventilation
Firm and solid location that can support the unit and will cause vibration.
Noise from the unit will not disturb others
12in (30cm) on left
24in (60cm) on right
Fig. 4.1
DO NOT install unit in the following locations:
Near an obstacle that will block air inlets and outlets
Protected from prolonged periods of direct sunlight or rain
Near a public street, crowded areas, or where noise from the unit will disturb others
A minimum pipe run of 9.8ft (3m) is required to minimise vibration & excessive noise.
Near animals or plants that will be harmed by hot air discharge
SPECIAL CONSIDERATIONS FOR EXTREME WEATHER
If the unit is exposed to heavy wind: Install unit so that air outlet fan is at a 90° angle to the direction of the wind. If needed, build a barrier in front of the unit to protect it from extremely heavy winds. Ensure the wind barrier does not block necessary air flow.See Fig. 4.2 and Fig. 4.3.
Near any source of combustible gas or in a location that is exposed to large amounts of dust
In a location exposed to excessive amounts of salty air
Within 3.3 ft (1m) of televisions and radios or other appliances subject to interference.
Strong wind
If the unit is frequently exposed to heavy rain or snow: Build a shelter above the unit it to protect it
from the rain or snow. Be careful not to
obstruct air flow around the unit.
Strong wind
Fig. 4.2
mrcool.com
Page 20
Outdoor Unit Installation
Wind Baffle
IN COLD CLIMATES
In cold climates, make sure that the drain hose is as vertical as possible to ensure swift water drainage. If water drains too slowly, it can freeze in the house and flood the unit.
Strong wind Fig. 4.3
Step 2: Install drain joint
Heat pump units require a drain joint. Before bolting the outdoor unit in place, you must install the drain joint at the bottom of the unit. Note that there are two different types of drain joints depending on the type of outdoor unit.
Base pan hole of outdoor unit Seal Seal
Drain joint
If the drain joint comes with a rubber seal (see Fig. 4.4 – A), do the following:
1. Fit the rubber seal on the end of the drain joint that will connect to the outdoor unit.
2. Insert the drain joint into the hole in the base pan of the unit.
3. Rotate the drain joint 90° until it clicks in place facing the front of the unit.
(A)
(B)
Fig. 4.4
Step 3: Anchor outdoor unit
The outdoor unit can be anchored to the ground or to a wall-mounted bracket. Fix the outdoor unit with anchor bolts (M10)
4. Connect a drain hose extension (not included) to the drain joint to redirect water from the unit during heating mode.
>23.6in / 60cm
If the drain joint doesn’t come with a rubberseal (see Fig. 4.4 – B), do the following:
1. Insert the drain joint into the hole in the base pan of the unit. The drain joint will click in place.
Fix with bolts
2. Connect a drain hose extension (not included) to the drain joint to redirect water from the unit during heating mode.
Fig. 4.5
Page 21
mrcool.com
Outdoor Unit Installation
Step 3: Anchor outdoor unit – single-zone (Hyper Heat & E Star)
A
Air Inlet
Air Inlet
H
D
B
Air Outlet
Fig. 4.6
W
UNIT MOUNTING DIMENSIONS
The following is a list of different outdoor unit sizes and the distance between their mounting feet. Prepare the installation base of the unit according to the dimensions below.
Outdoor Unit Dimensions (inches)
Width (W) x Height (H) x Depth (D)
O-HH-09-HP-C-230
31.50 x 21.81 x 13.11 (inches)
O-HH-12-HP-C-230
31.50 x 21.81 x 13.11 (inches)
O-HH-18-HP-C-230
33.27 x 27.64 x 14.29 (inches)
O-HH-24-HP-C-230
37.24 x 16.54 x 31.89 (inches)
O-ES-09-HP-C-230
30.31 x 21.85 x 11.81 (inches)
O-ES-12-HP-C-230
31.50 x 21.81 x 13.11 (inches)
O-ES-18-HP-C-230
33.27 x 27.64 x 14.29 (inches)
O-ES-24-HP-C-230
40.55 x 31.89 x 16.54 (inches)
Mounting Dimensions (inches)
Width (A)
Depth (B)
20.24″ (514)
13.39″ (340)
20.24″ (514)
13.39″ (340)
21.26″ (540)
13.8″ (350)
26.5″ (673)
15.87″ (403)
19.2″ (487)
11.73″ (298).
20.24″ (514)
13.39″ (340)
21.26″ (540)
13.8″ (350)
26.63″ (676)
16″ (404)
If you will install the unit on the ground or on a concrete mounting platform, do the following:
1. Mark the positions for four expansion bolts based on dimensions in the Unit Mounting Dimensions chart.
2. Pre-drill holes for expansion bolts.
3. Clean concrete dust away from holes.
4. Place a nut on the end of each expansion bolt.
5. Hammer expansion bolts into the pre-drilled holes.
6. Remove the nuts from expansion bolts, and place outdoor unit on bolts. 7. Put washer on each expansion bolt, then replace the nuts. 8. Using a wrench, tighten each nut until snug.
When drilling into concrete, eye protection should be worn at all times.
mrcool.com
Page 22
Outdoor Unit Installation
Step 3: Anchor outdoor unit – Multi-Zone
W
H
H
W Fig. 4.7
A
D
B
Fig. 4.8
Outdoor Unit Dimensions (inches)
Width (W) x Height (H) x Depth (D)
MULTI2-18HP230V1 33.27 x 27.6 x 14.3 (inches) MULTI3-27HP230V1 37.2 x 31.9 x 16.4 (inches) MULTI4-36HP230V1 37.2 x 31.9 x 16.4 (inches) MULTI5-48HP230V1 37.5 x 52.5 x 16.4 (inches)
Fig. 4.9
Mounting Dimensions (inches)
Width (A)
Depth (B)
21.26 in. 26.5 in. 26.5 in. 25.2 in.
13.8 in. 15.87 in. 15.87 in. 15.9 in.
If you will install the unit on a wall-mounted 1. Mark the position of bracket holes based on
bracket, do the following:
dimensions in the Unit Mounting Dimensions chart.
2. Pre-drill the holes for the expansion bolts.
Before installing a condenser on a wall, make sure that the wall is made of solid brick, concrete, or of similarly strong material. The wall must be able to support at least four times the weight of the unit.
3. Clean dust and debris away from holes.
4. Place a washer and nut on the end of each expansion bolt.
5. Thread expansion bolts through holes in mounting brackets, put mounting brackets in position, and hammer expansion bolts into the wall.
Page 23
mrcool.com
Outdoor Unit Installation
wall-mounted installation continued 6. Check that the mounting brackets are level. 7. Carefully lift unit and place its mounting feet on
brackets.
8. Bolt the unit firmly to the brackets.
To reduce vibration of wall-mounted unit
If allowed, you can install the wall-mounted unit with rubber gaskets to reduce vibration and noise.
When Selecting a 24K Indoor Unit
The 24K indoor unit can only be connected with A system, if there are two 24K indoor units, they can be connected with A and B system. (See Fig. 5.8)
Table 5.2: Connective pipe size of A and B system
Indoor Unit capacity (Btu/h)
9K/12K 12K/18K
24K
Liquid
Gas
1/4in (6.4mm) 1/4in (6.4mm) 3/8in (9.5mm)
3/8in (9.5mm) 1/2in (12.7mm) 5/8in (15.9mm)
E System D System C System B System A System
Fig. 4.10
Step 4: Connect signal and power cables
BEFORE PERFORMING ELECTRICAL WORK, READ THESE REGULATIONS
1. All wiring must comply with local and national electrical codes, and must be installed by a licensed electrician.
2. All electrical connections must be made according to the Electrical Connection Diagram located on the panels of the indoor and outdoor units.
3. If there is a serious safety issue with the power supply, stop work immediately. Explain your reasoning to the client, and refuse to install the unit until the safety issue is properly resolved.
4. Power voltage should be within 90-100% of rated voltage. Insufficient power supply can cause malfunction, electrical shock, or fire.
5. Circuit, including any switches, should have a capacity 1.5 times the maximum unit current (amps).
6. The qualified technician must use an approved circuit breaker or switch that disconnects all poles and has has a contact separation of at least 1/8in (3mm).
7. Do not connect another appliance to the same circuit.
8. Make sure to properly ground the air conditioner.
9. Every wire must be firmly connected. Loose wiring can cause the terminal to overheat, resulting in malfunction and possible fire.
10. Do not let wires touch or rest against refrigerant tubing, the compressor, or any moving parts within the unit.
11. If the unit has an auxiliary electric heater, it must be installed at least 40in (1 meter) away from combustible materials.
mrcool.com
Page 24
Outdoor Unit Installation
BEFORE PERFORMING ANY ELECTRICAL OR WIRING WORK, TURN OFF THE MAINPOWER TO THE SYSTEM.
1. Prepare the cable for connection:
USE THE RIGHT CABLE · Outdoor power cable is not provided · See table below for gauge requirements · Indoor power / signal cable from outdoor unit is provided (see Indoor Unit Installation)
Minimum Cross-Sectional Area of Power and Signal Cables
North America
Model Series
9K & 12K 18K 24K
Appliance Amps (A)
15
20 25
AWG
14 12 10
Other Regions
Rated Current of Appliance (A)
> 3 and 6
Nominal Cross-Sectional
Area (mm²)
0.75
> 6 and 10
1
> 10 and 16
1.5
> 16 and 25
2.5
> 25 and 32
4
> 32 and 40
6
a. Using wire strippers, strip the rubber jacketfrom both ends of cable to reveal about 1.57in (40mm) of the wires inside.
b. Strip the insulation from the ends of the wires.
c. Using a wire crimper, crimp u-lugs on the ends of the wires.
PAY ATTENTION TO LIVE WIRE While crimping wires, make sure you clearly distinguish the Live (“L”) Wire from other wires.
ALL WIRING MUST PERFORMED STRICTLY IN ACCORDANCE WITH THE WIRING DIAGRAM LOCATED INSIDE THE OUTDOOR UNIT’S WIRE COVER.
2. Unscrew the electrical wiring cover and remove it.
3. Unscrew the cable clamp below the terminal block and place it to the side.
4. Match the wire colors / labels with the labels on the terminal block, and firmly screw the u-lug of each wire to its corresponding terminal.
5. After checking to make sure every connection is secure, loop the wires around to prevent rain water from flowing into the terminal.
6. Using the cable clamp, fasten the cable to the unit. Screw the cable clamp down tightly.
7. Insulate unused wires with PVC electrical tape. Arrange them so that they do not touch any electrical or metal parts.
8. Replace the wire cover on the side of the unit, and screw it in place.
G
Fig. 4.11
Conduit Panel
Communication Cable
Power Supply Cord
Outdoor Unit Wiring Diagram is located on the inside of the wire cover on the outdoor unit.
Page 25
mrcool.com
Outdoor Unit Installation
Wiring Diagram
CAUTION
Connect the power and communication cables to the terminals as identified with their respective matched numbers on the terminal block of indoor and outdoor units. For example, see the following US models: Terminal L1(A) of outdoor must connect with terminal L1 on the indoor unit.
2-Zone models:
3-Zone models:
4-Zone models:
5-Zone models:
mrcool.com
Page 26
Outdoor Unit Installation
RReeffrriiggeerarannt PtiPpiinpginCgonCnoencntieocntion
65
NOTE ON PIPE LENGTH The length of refrigerant piping will affect the performance and energy efficiency of the unit. Nominal efficiency is tested on units with a pipe length of 16.5ft (5 meters). Refer to the table below for specifications on the maximum length and drop height of piping.
Maximum Length and Drop Height of Refrigerant Piping per Unit Model
Model
R410A Inverter Split Air Conditioner
Capacity (BTU/h)
< 15,000 15,000 and < 24,000 24,000 and < 36,000 36,000 and 60,000
Max. Length (ft/m)
82ft (25) 98.5ft (30) 164ft (50) 213ft (65)
Max. Drop Height (ft/m)
33ft (10) 66ft (20) 82ft (25) 98.5ft (30)
Connection Instructions Refrigerant Piping
Step 1: Cut pipes
When preparing refrigerant pipes, take extra care to cut and flare them properly. This will ensure efficient operation and minimize the need for future maintenance.
1. Measure the distance between the indoor and outdoor units.
2. Using a pipe cutter, cut the pipe a little longer than the measured distance.
3. Make sure that the pipe is cut at a perfect 90° angle. Refer to Fig. 5.1 for bad cut examples.
90°
Oblique Rough Warped
Fig. 5.1
Page 27
mrcool.com
Refrigerant Piping Connection
DO NOT DEFORM PIPE WHILE CUTTING
Be extra careful not to damage, dent, or deform the pipe while cutting. This will drastically reduce the heating efficiency of the unit.
Step 2: Remove burrs
Burrs can affect the air-tight seal of refrigerant piping connection. They must be completely removed.
1. Hold the pipe at a downward angle to prevent burrs from falling into the pipe.
2. Using a reamer or deburring tool, remove all burrs from the cut section of the pipe.
Pipe
Reamer
Flare nut
Copper pipe
Fig. 5.3
4. Remove PVC tape from ends of pipe when ready to perform flaring work. 5. Clamp flare form on the end of the pipe. The end of the pipe must extend beyond the edge of the flare form in accordance with the dimensions shown in the table below.
Point down
Fig. 5.2
Step 3: Flare pipe ends Proper flaring is essential to achieve an airtight seal. 1. After removing burrs from cut pipe, seal the ends with PVC tape to prevent foreign materials from entering the pipe. 2. Sheath the pipe with insulating material. 3. Place flare nuts on both ends of pipe. Make sure they are facing in the right direction, because you can’t put them on or change their direction after flaring. See Fig. 5.3.
Fig. 5.4
PIPING EXTENSION BEYOND FLARE FORM
Outer Diameter of Pipe (in/mm)
Ø 0.25″ (Ø 6.35) Ø 0.375″ (Ø 9.52) Ø 0.5″ (Ø 12.7) Ø 0.63″ (Ø 16)
A (in/mm)
Min.
Max.
0.0275″ (0.7) 0.05″ (1.3)
0.04″ (1.0)
0.063″ (1.6)
0.04″ (1.0)
0.07″ (1.8)
0.078″ (2.0) 0.086″ (2.2)
Flare form
A
Pipe
Fig. 6.5
mrcool.com
Page 28
Refrigerant Piping Connection
6. Place flaring tool onto the form.
7. Turn the handle of the flaring tool clockwise until
the pipe is fully flared.
8. Remove the flaring tool and flare form, then
inspect the end of the pipe for cracks and even flaring.
Table 5.1: Flare Diameter
Pipe Diameter
Flare Diameter (F)
Min
Max
Ø 1/4″ (Ø 6.35mm) Ø 0.3″ (Ø 8.3mm) Ø 0.3″ (Ø 8.3mm)
Ø 3/8″ (Ø 9.52mm) Ø 0.48″ (Ø 12.4mm) Ø 0.48″ (Ø 12.4mm)
Ø 1/2″ (Ø 12.7mm) Ø 0.6″ (Ø 15.4mm) Ø 0.6″ (Ø 15.8mm)
Ø 5/8″ (Ø 16mm) Ø 0.7″ (Ø 18.6mm) Ø 0.74″ (Ø 19mm)
Ø 3/4″ (Ø 19.1mm) Ø 0.9″ (Ø 22.9mm) Ø 0.91″ (Ø 23.3mm)
Ø 7/8″ (Ø 22mm)
Ø 1.06″ (Ø 27mm) Ø 1.07″ (Ø 27.3mm)
90°± 4 F 45 °±2
Fig. 5.6
Step 4: Connect pipes
When connecting refrigerant pipes, be careful not to use excessive torque or to deform the piping in any way. You should first connect the low-pressure pipe, then the high-pressure pipe.
MINIMUM BEND RADIUS When bending connective refrigerant piping, the minimum bending radius is a 10cm. See Fig 6.6.
Radius 4in (10cm)
Fig. 5.7
R 0.4 ~ 0.8
Outer Diameter of Pipe (in/mm)
Ø 0.25″ (Ø 6.35mm)
Table 5.2: Torque Requirements
Tightening Torque (N·m / lb·ft)
Add. Tightening Torque (N·m / lb·ft)
14.91 N·m (11 lb·ft)
16 N·m (11.8lb·ft)
Ø 0.375″ (Ø 9.52mm)
24.95 N·m (18.4 lb·ft)
26 N·m (19.18lb·ft)
Ø 0.5″ (Ø 12.7mm)
34.98 N·m (25.8 lb·ft)
36 N·m (26.55lb·ft)
Ø 0.63″ (Ø 16mm)
45 N·m (33.19 lb·ft)
47.01N·m (34.67lb·ft)
DO NOT USE EXCESSIVE TORQUE
Excessive force can break the nut or damage the refrigerant piping. You must not exceed torque requirements shown in the table above.
Page 29
mrcool.com
Refrigerant Piping Connection
Instructions for Connecting Piping to Indoor Unit 1. Align the center of the two pipes that you will connect. See Fig. 5.7.
Valve cover
Indoor unit tubing
Flare nut Pipe
Fig. 5.7
2. Tighten the flare nut as tightly as possible by hand.
3. Using an adjustable wrench, grip the nut on the unit tubing.
4. While firmly gripping the nut on the unit tubing, use a torque wrench to tighten the flare nut according to the torque values in Table 5.2. Loosen the flaring nut slightly, then tighten again.
Fig. 5.9
USE ADJUSTABLE WRENCH TO GRIP MAIN BODY OF VALVE Torque from tightening the flare nut can snap off other parts of valve.
Fig. 5.8
Instructions for Connecting Piping to Outdoor Unit
1. Unscrew the cover from the packed valve on the side of the outdoor unit. (See Fig. 5.9)
2. Remove protective caps from ends of valves.
3. Align flared pipe end with each valve, and tighten the flare nut as tightly as possible by hand.
Fig. 5.10
4. Using an adjustable wrench, grip the body of the valve. Do not grip the nut that seals the service valve. (See Fig. 5.10)
5. While firmly gripping the body of the valve,use a torque wrench to tighten the flare nut according to the correct torque values. 6. Loosen the flaring nut slightly, then tighten again. 7. Repeat Steps 3 to 6 for the remaining pipe.
mrcool.com
Page 30
Air Evacuation
6
Preparations and Precautions
Air and foreign matter in the refrigerant circuit can cause abnormal rises in pressure, which can damage the air conditioner, reduce its efficiency, and cause injury. Use a vacuum pump and manifold gauge to evacuate the refrigerant circuit, removing any non-condensable gas and moisture from the system. Evacuation should be performed upon initial installation and when unit is relocated.
BEFORE PERFORMING EVACUATION
Check to make sure that both high-pressure and low-pressure pipes between the indoor and outdoor units are connected properly in accordance with the Refrigerant Piping Connection section of this manual.
Check to make sure all wiring is connected properly.
Evacuation Instructions
Before using the manifold gauge and vacuum pump, read their operation manuals to familiarize yourself with how to use them properly.
Manifold Gauge Compound gauge Pressure gauge
-76cmHg
MC
Low
pressure
valve
Charge hose
MC
High pressure valve
Charge hose
Vacuum pump
Low pressure valve
Fig. 6.1
1. Connect the charge hose of the manifold gauge
to service port on the outdoor unit’s low pressure valve.
2. Connect another charge hose from the manifold
gauge to the vacuum pump.
3. Open the Low Pressure side of the manifold gauge.
Keep the High Pressure side closed.
4. Turn on the vacuum pump to evacuate the system.
5. Run the vacuum for at least 15 minutes, or until the
Compound Meter reads -76cmHG (-105 Pa).
6. Close the Low Pressure side of the manifold gauge,
and turn off the vacuum pump.
7. Wait for 5 minutes, then check that there has been no
change in system pressure.
8. If there is a change in system pressure, refer to Gas
Leak Check section for information on how to check for leaks. If there is no change in system pressure, unscrew the cap from the packed valve (high pressure valve).
9. Insert hexagon wrench into the packed valve (high
pressure valve) and open the valve by turning the wrench in a 1/4 counter clockwise turn. Listen for gas to exit the system, then close the valve after 5 seconds.
10. Watch the Pressure Gauge for one minute to make
sure that there is no change in pressure. The Pressure Gauge should read slightly higher than atmospheric pressure.
11. Remove the charge hose from the service port.
12. Using hexagon wrench, fully open both the high
pressure (MAIN) and low pressure (MAIN) valves.
13. Tighten valve caps on all three valves (service port,
high pressure, low pressure) by hand. You may tighten it further using a torque wrench if needed.
OPEN VALVE STEMS GENTLY
When opening valve stems, turn the hexagonal wrench until it hits against the stopper. Do not try to force the valve to open further.
Page 31
mrcool.com
Air Evacuation
Low Pressure Main Valve
“Suction” Low Pressure
High Pressure Main Valve
“Liquid” High Pressure
Flare nut Valve stem
Cap
Fig. 6.2
Valve body
Fig. 6.3
Note on Adding Refrigerant
Some systems require additional charging depending on pipe lengths. The standard pipe length varies according to local regulations. For example, in North America, the standard pipe length is 25ft (7.5m). In other areas, the standard pipe length is 16ft (5m). The additional refrigerant to be charged can be calculated using the following formula… Where 2 Zone Models N=2; 3 Zone Models N=3; 4 Zone Models N=4; 5 Zone Models N=5:
Connective Pipe Length (m)
Standard pipe length x N
More than (Standard pipe length x N) ft (m)
ADDITIONAL REFRIGERANT PER PIPE LENGTH
Additional Refrigerant
Liquid Side: Ø 1/8in. (ø 6.35mm)
Liquid Side: Ø 3/8in (ø 9.52mm)
N/A
N/A
This – Inverter R410A: (Pipe length standard length x N) x 15g/m (Pipe length standard length x N)) x 0.16oz/ft
Fixed-frequency R410A: (Pipe length standard length x N) x 20g/m (Pipe length standard length x N) x 0.21oz/ft
This – Inverter R410A: (Pipe length standard length) x 30g/m (Pipe length standard length) x 0.32oz/ft
Fixed-frequency R410A: (Pipe length standard length x N) x 40g/m (Pipe length standard length x N) x 0.42oz/ft
CAUTION
DO NOT mix refrigerant types.
mrcool.com
Page 32
Refrigerant Piping Connection
SyEslteecmtrLiceaakl aCnhdecGksas Leak Checks
87
Electrical Safety Checks
After installation, confirm that all electrical wiring is installed in accordance with local and national regulations, and according to the Installation Manual.
BEFORE TEST RUN Check Grounding Work
Measure grounding resistance by visual detection and with grounding resistance tester. Grounding resistance must be less than 4.
Note: This may not be required for some locations in the US.
DURING TEST RUN
Check for Electrical Leakage
During the Test Run, use an electroprobe and multimeter to perform a comprehensive electrical leakage test.
If electrical leakage is detected, turn off the unit immediately and call a licensed electrician to find and resolve the cause of the leakage.
Note: This may not be required for some locations in the US.
WARNING RISK OF ELECTRIC SHOCK
ALL WIRING MUST COMPLY WITH LOCAL LAND NATIONAL ELECTRICAL CODES, AND MUST BE INSTALLED BY A LICENSED ELECTRICIAN.
Gas Leak Checks
There are two different methods to check for gaseous leaks.
Soap and Water Method
Using a soft brush, apply soapy water or liquid detergent to all pipe connection points on the indoor unit and outdoor unit. The presence of bubbles indicates a leak.
Leak Detector Method
If using leak detector, refer to the device’s operation manual for proper usage instructions.
AFTER PERFORMING GAS LEAK CHECKS After confirming that the all pipe connection points DO NOT leak, replace the valve cover on the outside unit.
Page 33
mrcool.com
System Leak Checks
Self Correction Function (Multi-Zone Models Only)
Multi-Zone units have a self check function for wiring to piping association errors. Press the “check switch” on the outdoor unit PCB board for 5 seconds until LED displays “CE”. Approximately 5-10 minutes after the switch is pressed, the “CE” will disappear when the wiring and piping are reassociated and the error is corrected.
This only works in situations where either all of unit A Handler wiring has been connected to the unit
B terminals of the condenser or all of unit B Handler wiring has been connected to the unit A
terminals of the condenser, and this asumes that the indoor unit wiring is connected correctly. There
can be no cases of partial association / mismatch, such as a cross terminal / partial wiring mismatch
or one side of the refrigerant system being crossed between handlers.
CORRECT CONNECTION
Check switch
A
HANDLER UNIT A
B A
A
B
B
HANDLER UNIT B
A
B
INCORRECT – CONNECTION CAN BE CORRECTED
A
HANDLER UNIT A
B A
A
B
B
HANDLER UNIT B
A
B
NO OTHER CORRECTABLE COMBINATIONS (gas / liquid lines can not be mixed between units)
A
HANDLER UNIT A
B A
A
B
B
HANDLER UNIT B
A
B
Fig. 7.1 LED display
Gas Line
Liquid Line
Wiring
Fig. 7.2
How To Activate This Function
1. Check that outside temperature is above 41°F / 5°C. This fuction does not work when outside temperature is not above 41°F / 5°C.
2. Check that the stop valves of the liquid pipe and gas pipe are open.
3. Turn on the breaker and wait at least 2 minutes.
4. Press the check switch on the outdoor PCB board unit the LED displays “CE”.
5. In circumstances where the wiring for one unit is mismatched with the piping of the other, the system will correct itself, reassociating the wiring to the piping.
6. After 5 to 10 minutes, if the system is corrected, the “CE” will disapear from the display. If not, the system will have to be shut down and manual re-checked.
mrcool.com
Page 34
Test Run
Refrigerant Piping Connection
8
Before Test Run
Only perform test run after you have completed the following steps:
· Electrical Safety Checks Confirm that the electrical system is safe and operating properly
· Gas Leak Checks Check all flare nut connections and confirm that the system is not leaking
· Confirm that gas and liquid (high and low pressure) valves are fully open
Test Run Instructions
You should perform the Test Run for at least 30 minutes. 1. Connect power to the unit. 2. Press the ON/OFF button on the remote controller to turn it on. 3. Press the MODE button to scroll through the following functions, one at a time:
· COOL Select lowest possible temperature · HEAT Select highest possible temperature 4. Let each function run for 5 minutes, and perform the following checks:
List of Checks to Perform No electrical leakage
PASS/FAIL
Unit is properly grounded
All electrical terminals properly covered
Indoor and outdoor units are solidly installed
All pipe connection points Outdoor (2): Indoor (2): do not leak
Water drains properly from drain hose
All piping is properly insulated
Unit performs COOL function properly
Unit performs HEAT function properly
Indoor unit louvers rotate properly
Indoor unit responds to remote control
Page 35
mrcool.com
Testing
DOUBLE-CHECK PIPE CONNECTIONS
During operation, the pressure of the refrigerant circuit will increase. This may reveal leaks that were not present during your initial leak check. Take time during the Test Run to double-check that all refrigerant pipe connection points do not have leaks. Refer to Gas Leak Check section for instructions.
5. After the Test Run is successfully complete, and you confirm all check points in List of Checks to Perform have PASSED, do the following:
a. Using remote control, return unit to normal operating temperature.
b. Using insulation tape, wrap the indoor refrigerant pipe connections that you left uncovered during the indoor unit installation process.
IF AMBIENT TEMPERATURE IS BELOW 63°F (17°C)
You can’t use the remote controller to turn on the COOL function when the ambient temperature is below 63°F. In this instance, you can use the MANUAL CONTROL button to test the COOL function.
1.Lift the front panel of the indoor unit, and raise it until it clicks in place.
2.The MANUAL CONTROL button is located on the right-hand side of the unit. Press it 2 times to select the COOL function. See Fig.8.1
3.Perform Test Run as normal.
Manual control button
Fig. 8.1
mrcool.com
Page 36
Refrigerant Piping Connection
EU Disposal Guidelines
9
This appliance contains refrigerant and other potentially hazardous materials. When disposing of this appliance, the law requires special collection and treatment. DO NOT dispose of this product as household waste or unsorted municipal waste. When disposing of this appliance, you have the following options:
· Dispose of the appliance at a designated municipal electronic waste collection facility. · When buying a new appliance, the retailer will receive the old appliance free of charge. · The manufacturer will receive the old appliance free of charge. · Sell the appliance to certified scrap metal dealers.
Special notice
Disposing of this appliance in the forest or other natural surroundings endangers your health and is bad for the environment. Hazardous substances may leak into the ground water and enter the food chain.
Page 37
mrcool.com
Olympus Series
Single (Hyper Heat & E Star) & Multi-Zone Models
ELECTRICIAN and/or HVAC TECHNICIAN: LICENSE #: INSTALLATION DATE: INSTALLATION LOCATION: SERIAL NUMBER:
The design and specifications of this product and/or manual are subject to change without prior notice. Consult with the sales agency or manufacturer for details.
MRCOOL – Comfort Made Simple
MRCOOL – Comfort Made Simple
