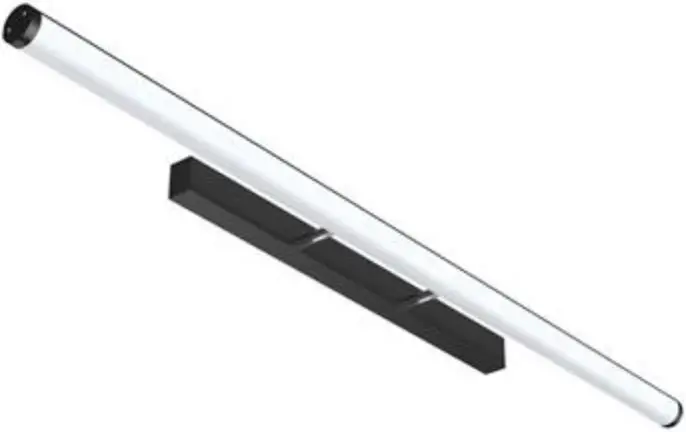

DOMUS MIRROR-20 20W 240V LED Tricolour Wall Light Instruction Manual
Variant Item No. Description
| 12021 | MIRROR-20-BLK | 20W Vanity light, black finish. Trio colour technology. |
| 12023 | MIRROR-20-CHR | 20W Vanity light, chrome finish. Trio colour technology. |
| 12025 | MIRROR-20-SCHR | 20W Vanity light, satin chrome finish. Trio colour technology. |
| 12027 | MIRROR-20-WHT | 20W Vanity light, white finish. Trio colour technology. |
Thank you for purchasing your new LED MIRROR-20, Please take the time to read and understand the instruction sheet below. Failure to do so may void warranty.
Specifications
| Voltage: | 240V AC | Lumen (±5%): | Warm White 3000K – 2100lm Neutral White 4000K – 2200lm White 5700K – 2300lm | Dimmable: | No |
| Power: | 20W | Beam Angle: | 120° | Operating Temp: | -20°C~45°C |
| IP Rating: | IP40 | CCT: | 3000K – 4000K – 5700K (Switchable) | ||
| CRI: | ≥80 | Lifespan: | 50,000hrs |

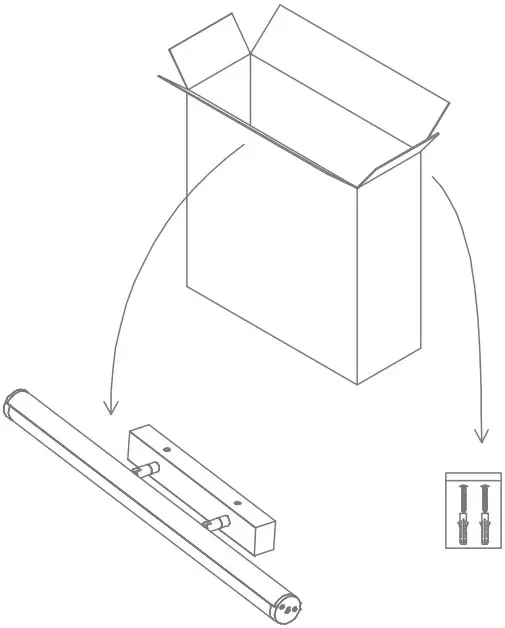

- Remove from box

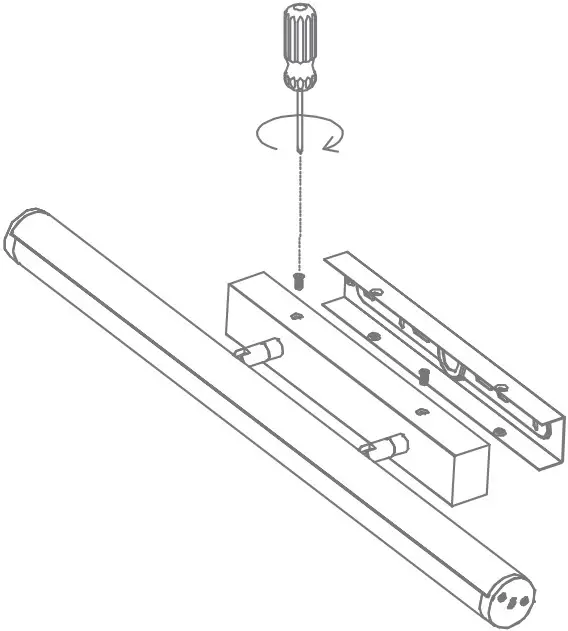

- Press the hasp to take out the bracket

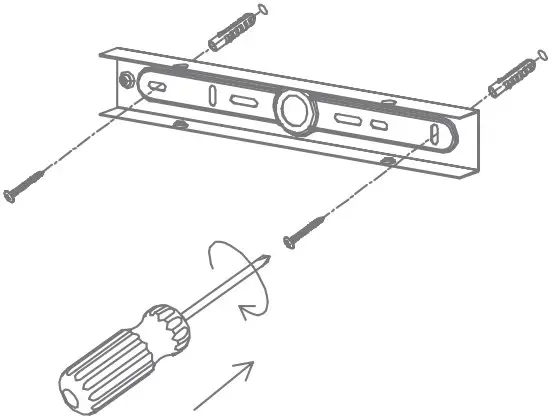

- Knock-in the plastic anchor into the wall. Fix bracket with screw into the wall.

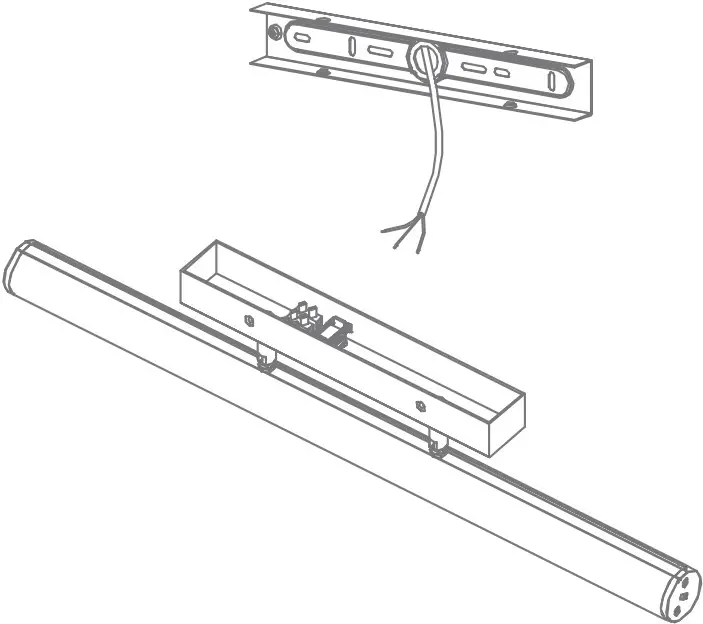

- Remove the link pressing clip, connect the wires correspondingly.

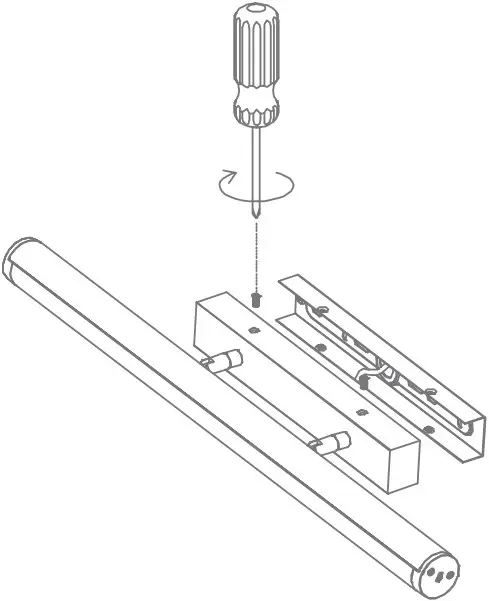

- Fix the lamp to the bracket

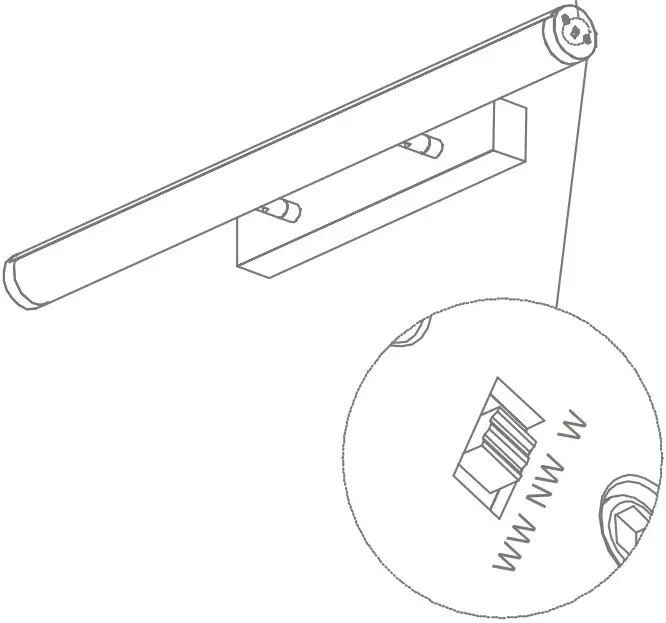

- Slide the preferred CCT before turning on the lamp.
- Switch on
Note:
- The lamp must be installed by professional electrician
- Ensure the power supply is switched off before fitting this product
- Do not touch the lamp when in use
- Keep away from hot steam and corrosive gas.
