100W FAST CHARGING
POWER BANK 30000MAH
Instruction Manual
P/N: I-CHARGE-30A-100W
8059018366006

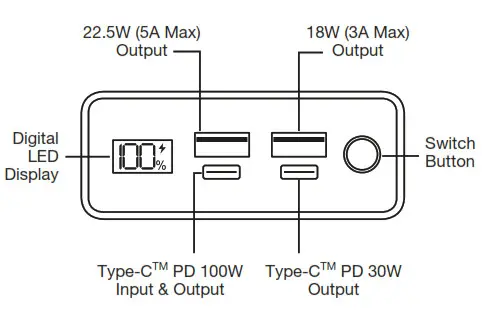

Technical feature
Dear customer
Thank you for purchasing this Techy product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
SAFETY PRECAUTIONS
- Your product is not a toy and is not meant for children, because it contains small parts which can be swallowed and can injure when used inappropriately!
- Please remove the packing materials, because children may cut themselves and there is a risk of swallowing and inhalation.
- Avoid places with high temperatures, humidity, water.
- Do not modify and alter the product and any accessories! Do not use any damaged parts.
- Do not charge your device which is not compatible with power bank, otherwise it might cause failure or fire.
INTRODUCTION

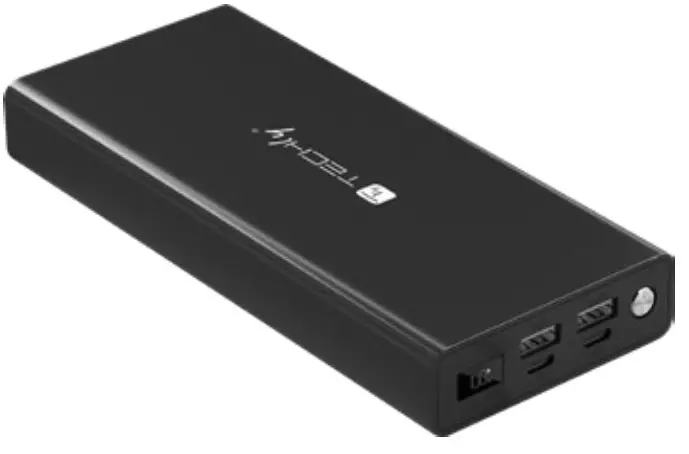

I-CHARGE-30A-100W is a powerful and fast charging Power Bank, compatible with various ports and easy to use.
SPECIFICATION
| Battery Capacity | 30000 mAh/111Wh |
| Battery type | A grade li-polymer battery |
| Case material | Aluminum alloy + PC |
| Type-C™ In& Output 1 | Type-C™ 100W |
| Type-C™ Output 2 | Type-C™ 30W |
| USB Output 1 | 22.5W (5A Max) |
| USB Output 2 | 18W (3A Max) |
| 1-Port input | Type-C™1 (DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A) |
| 4-Port output | USB1 (DC 5V/4.5A, 9V/2A), USB2 (DC 5V/3A, 9V/2A), Type-C™ 1 (DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A), Type-C™ 2 (5V/3A, 9V/3.3A) |
| Output combination | C1+C2=65+30W, C1+A1=65+18W, C1+A2=65+18W |
| Dimension | 179*78*25 mm |
BEFORE FIRST USE
- Please pay attention to the symbols and indicators for proper use
- It is recommended to fully charge the unit before first use
CHARGING YOUR DEVICE
- Connect your device to the power bank via USB-A or PD port accordingly
- Charging will start automatically
Note: Unplug the charging cable when charging has completed
CHECK THE BATTERY LEVEL
Press the Power Button to check the battery level
CHARGING YOUR POWER BANK
- Charge the power bank via the PD port
- The LED indicators will light up progressively
Note: Unplug the charging cable when charging has completed
In compliance with EU Directive WEEE this product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products in compliance with WEEE directive, otherwise contaminative and hazardous substances can pollute the environment.
With the CE sign, Techy® ensures that the product is conformed to the basic European standards and directives. CE declaration is available on web site at the product page.
