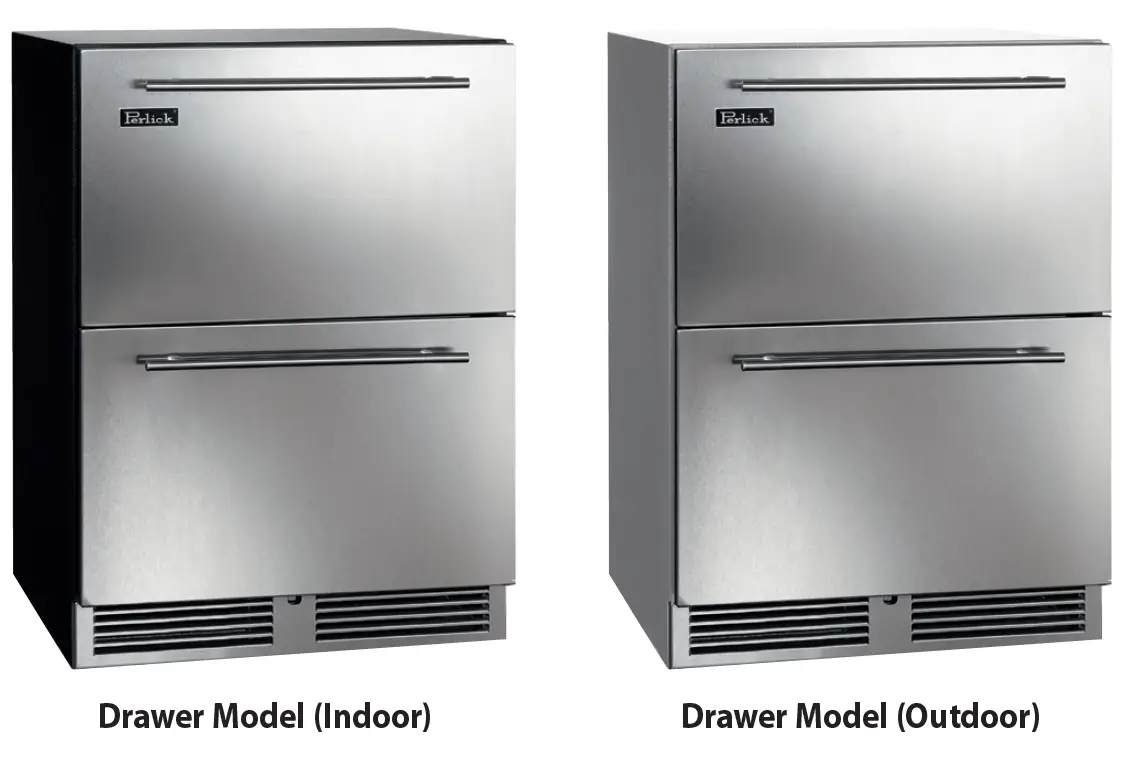

Perlick HC24RO46DL 24 Inch C-SERIES Refrigerated Drawers
| MODELS | DESCRIPTION |
| HC24RB-4-5 | Indoor C-Series Refrigerated Stainless Steel Drawers |
| HC24RB-4-6 | Indoor C-Series Refrigerated Panel Ready Drawers |
| HC24RO-4-5 | Outdoor C-Series Refrigerated Stainless Steel Drawers |
| HC24RO-4-6 | Outdoor C-Series Refrigerated Panel Ready Drawers |
KEY PRODUCT FEATURES AND BENEFITS
- 800 BTU/hr capacity delivers commercial grade cooling performance
- Variable speed compressor minimizes sound; up to 30% quieter than competitors
- Smooth glide self closing drawers offer high storage capacity
- Commercial-grade all stainless steel interior provides superior durability and easy cleaning
Quick Features:
- Industry’s best full 6 year warranty for owner ease of mind
- Available with stainless steel or panel ready door to match your design style
- Outdoor models include a full stainless steel exterior; indoor models feature a black vinyl exterior for built in applications
- Audible door alarm warns user if drawer is held open
- White LED task lighting
- R600a Natural Refrigerant offers maximum energy efficiency with zero ozone depletion potential
PRODUCT SPECIFICATION
| MODEL NUMBERS | HC24RB | HC24RO | |
| MODEL DESCRIPTION | 24” Indoor Refrigerated Drawers | 24” Outdoor Refrigerated Drawers | |
| ATTRIBUTES | |||
| Perlick Anti-Condensation System | NO | NO | |
| Energy Star Certified | YES | YES | |
| OVERALL DIMENSIONS | Width – in. (mm) | 23-7/8” (606 mm.) | 23-7/8” (606 mm.) |
| Depth – in. (mm) | 24” (610 mm.) | 24” (610 mm.) | |
| Height – in. (mm) | 34-1/4” (870 mm.) | 34-1/4” (870 mm.) | |
| STANDARD OPENING DIMENSIONS | Width – in. (mm) | 24” (610 mm.) | 24” (610 mm.) |
| Depth – in. (mm) | 24-7/8” (632 mm.) | 24-7/8” (632 mm.) | |
| Height – in. (mm) | 34-1/2” (876 mm.) | 34-1/2” (876 mm.) | |
| INTERNAL VOLUME Net. Cu. Ft. | 5.2 cu. ft. | 5.2 cu. ft. | |
| SHIPPING WEIGHT Lbs. (kg.) | 183 lbs (83.01 kg.) | 183 lbs (83.01 kg.) | |
|
ELECTRICAL SPECIFICATIONS | Electrical Supply | 115 VAC/60 Hz/1 Ph | 115 VAC/60 Hz/1 Ph |
| Running Load Amps | 1.9 amps | 1.9 amps | |
| Electrical Connection | Cord connected | Cord connected | |
| Cord Plug Type | NEMA 3 Prong 5-15P | NEMA 3 Prong 5-15P | |
| Cord Length | 6’ | 6’ | |
| Defrost Initiation | Automatic | Automatic | |
| Defrost Type | Off cycle | Off cycle | |
| Thermostat | Digital | Digital | |
| Lighting Type | LED | LED | |
|
REFRIGERATION SPECIFICATIONS | Refrigerant | R600a (62g) | R600a (62g) |
| Expansion Device | Capillary Tube | Capillary Tube | |
| Temperature Settings F°(C°) | 33° (0.5°) – 48° (8.8°) Factory Set Point 36° (2.2°) | 33° (0.5°) – 48° (8.8°) Factory Set Point 36° (2.2°) | |
| Heat Rejection (at 75°F) | 450 BTU/hr | 450 BTU/hr | |
| Pull Down Capacity | 800 BTU/hr | 800 BTU/hr | |
| Front Vented | Yes | Yes | |
| PLUMBING | None Required | None Required | |
Installation Notes: To achieve 24” install depth, place electrical connection adjacent to the installation cavity.
ACCESSORIES
| MODEL NOS. | DESCRIPTION |
| (L) | Factory Installed Lock |
| 66736 | Caster Kit for HP24/HC24/HA24 models |
| RS-24-24D | Divider Shelf for HP24/HC24/HA24 models |
Perlick accessories are available for purchase through an authorized Perlick dealer. For a full list of accessories and to find a dealer near you, visit perlick.com.
PRODUCT SPECIFICATION SHEETS
| CUSTOMER MODEL NUMBER | REGULATORY MODEL NUMBER | Hinge Side | Lock |
| HC24RB-4-5 | HC24RB4E-00-EDS0D | Drawers | No |
| HC24RB-4-6 | HC24RB4E-00-DD00D | Drawers | No |
| HC24RB-4-5DL | HC24RB4E-00-EDSLD | Drawers | Yes |
| HC24RB-4-6DL | HC24RB4E-00-DD0LD | Drawers | Yes |
| HC24RO-4-5 | HC24RO4E-00-EDS0D | Drawers | No |
| HC24RO-4-6 | HC24RO4E-00-DD00D | Drawers | No |
| HC24RO-4-5DL | HC24RO4E-00-EDSLD | Drawers | Yes |
| HC24RO-4-6DL | HC24RO4E-00-DD0LD | Drawers | Yes |

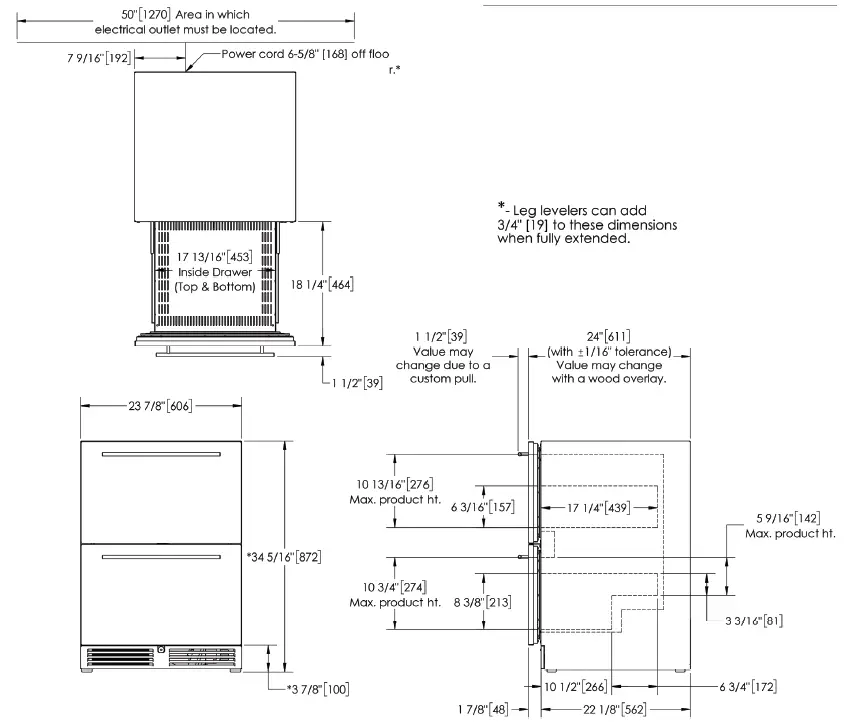

DIMENSION
PERLICK CORPORATION 8300 W. Good Hope Rd., Milwaukee, WI 53223 • (800) 558-5592 • perlick.com
