QUICK
REFERENCE GUIDE
Tableau Forensic T35u/T35u-RW SATA/IDE Bridge
GETTING STARTED
Confirm that the bridge is off before the beginning.

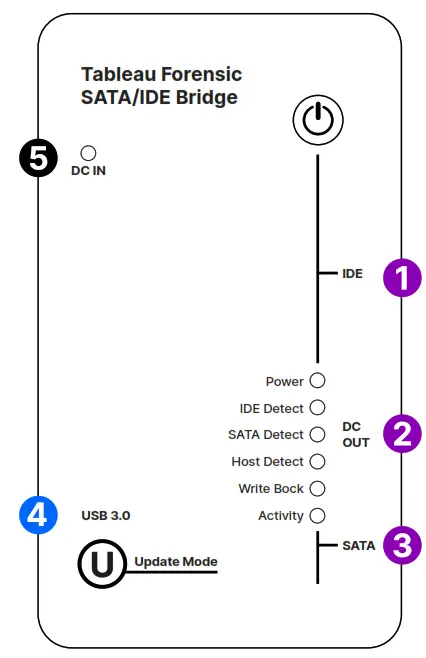

- Connect either an IDE source drive1 or a SATA source drive2,3 to the right side of the T35u/T35u-RW
- Connect the bridge to the host computer using the host USB port4
- Connect the power supply to the bridge’s DC In5
- Press the power button and begin operation
Before you remove the connected SATA/IDE drive or power down the T35u/T35u-RW, safely eject or unmount the drive on your host computer.
CONNECTION RECOMMENDATIONS
| For SATA Drive | Use a Tableau SATA Drive Power cable (TC5-8-R2) & SATA Data cable (TC3-8) |
| For IDE Drive | Use a Tableau IDE Drive cable (TC2-8-R2) & IDE Data cable (TC6-8) |
| For the Host Connection | Use a Tableau USB 3.0 cable (TC-USB3) |
| For Power (DC-In) | Use a Tableau power supply (TP5 or TP2) |
DIP SWITCH SETTINGS
| SWITCH 1 | ON = Read/Write OFF = Read-Only |
| SWITCH 2 | ON = Hide Write Protect OFF = Report Write Protect |
| SWITCH 3 | ON = Hide Write Errors OFF = Report Write Errors |
| SWITCH 4 | No Function |
* Default setting is OFF for all switches | |
DEDICATED READ/WRITE OPERATION
T35u-RW is identical to T35u, except that T35u-RW is pre-configured for reading/writing operations. The yellow case highlights the fact that it is a read/write device to help eliminate the potential for misuse during forensic investigations.
FIRMWARE UPDATES
Update Mode Button – To place T35u/T35u-RW into firmware update mode, hold the update button down when powering on the device.
Free firmware updates are provided for Tableau Forensic products on a regular basis through the Tableau Firmware Update (TFU) utility. Reference the Tableau Download Center webpage for more information: security.opentext.com/tableau/download-center
SUPPORT
For Tableau Forensic product support: opentext.com/support/contact/guidance
