Bosch Pkm6..dp1 Electric Hob User Manual

Register your new device on MyBosch now and get free benefits:  bosch-home.com/welcome
PKM6..DP1.

Safety

Observe the following safety instructions.
1.1General information ¡

• Read this instruction manual carefully.
• Keep the instructions, the appliance pass and the product information safe for future reference or for the next owner.
• Do not connect the appliance if it has been damaged in transit.

1.2Intended use
Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under the warranty.
Only use this appliance:

• To prepare meals and drinks.
• Under supervision. Never leave the appliance unattended when cooking for short periods.
• In private households and in enclosed spaces in a domestic environment.
• Up to an altitude of max. 2000 m above sea level
  Do not use the appliance:
• With an external timer or a separate remote control. This does not apply if the operation with appliances included in EN 50615 is switched off.

1.3 Restriction on user group
This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.
Do not let children play with the appliance. Children must not perform cleaning or user maintenance unless they are at least 15 years old and are being supervised. Keep children under the age of 8 years away from the appliance and power cable.
1.4 Safe use
WARNING
Risk of fire! Leaving fat or oil cooking on an unattended hob can be dangerous and may lead to fires.

• Never leave hot oil or fat unattended.
• Never attempt to extinguish a fire using water; instead, switch off the appliance and then cover with a lid or a fire blanket.
  The cooking surface becomes very hot.
• Never place flammable objects on the cooking surface or in its immediate vicinity.
• Never place objects on the cooking surface.
  The appliance will become hot.
• Do not keep combustible objects or aerosol cans in drawers directly underneath the hob.
• Hob covers can cause accidents, for example, due to overheating, catching fire or material shattering.
• Do not use hob covers. Food may catch fire.
• The cooking process must be monitored. A short process must be monitored continuously.

WARNING Risk of burns!
The appliance and its parts that can be touched become hot during use, particularly the hob surround, if fitted.

• Caution should be exercised here in order to avoid touching heating elements.
• Young children under 8 years of age must be kept away from the appliance. Hob protective grilles may cause accidents.
• Never use hob protective grilles. The appliance becomes hot during operation.
• Allow the appliance to cool down before cleaning.

WARNING Risk of electric shock!
Incorrect repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
• Only use genuine spare parts when repairing the appliance.
• If the power cord of this appliance is dammed aged, it must be replaced by trained specialist staff.
• If the appliance or the power cord is damaged, this is dangerous.
• Never operate a damaged appliance. If the surface is cracked, you must switch off the appliance in order to prevent a possible electrical shock.
• To do this, switch off the appliance via the fuse in the fuse box rather than at the main switch.
• Call customer services. Page 14
• Ingress of moisture can cause an electric shock.
• Do not use steam- or high-pressure cleaners to clean the appliance. The insulation on cables of electrical appliances may melt if it touches hot parts of the appliance.
• Never bring electrical appliance cables into contact with hot parts of the appliance.

WARNING Risk of injury!

Saucepans may suddenly jump due to liquid between the saucepan base and the hotplate. Always keep hotplates and saucepan bases dry.
WARNING Risk of suffocation!
Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
• Do not let children play with packaging material.
• Children may breathe in or swallow small parts, causing them to suffocate.
• Keep small parts away from children.
• Do not let children play with small parts.

Preventing material damage

ATTENTION!
Rough pot and pan bases will scratch the ceramic.

• Check your cookware. Boiling pans dry may damage cookware or the appliance.
• Never place empty pans on a heated hotplate or allow to boil dry. Incorrectly positioned cookware can cause the appliance to overheat.
• Never place hot pots or pans on the controls or the hob surround.
• Damage can occur if hard or pointed objects fall onto the hob.
• Do not let hard or pointed objects fall onto the hob. Non-heat-resistant materials will melt on heated hotplates.
• Do not use oven protective foil.
• Do not use aluminium foil or plastic containers.

2.1Overview of the most common damage
Here you can find the most common types of damage and tips on how to avoid them.

Environmental protection and saving energy

3.1Disposing of packaging
The packaging materials are environmentally compatible and can be recycled. Sort the individual components by type and dispose of them separately.
3.2Saving energy
If you follow these instructions, your appliance will use less energy. Select the cooking zone to match the size of your pan. Centre the cookware on the hob. Use cookware whose base diameter is the same diameter as the hotplate.
Tip: Cookware manufacturers often give the upper diameter of the saucepan.
It is often larger than the base diameter.

• Unsuitable cookware or incompletely covered cooking zones consume a lot of energy.
  Cover saucepans with suitable lids.
• Cooking without a lid consumes considerably more energy.
  Lift lids as infrequently as possible.
• When you lift the lid, a lot of energy escapes.
  Use a glass lid.
• You can see into the pan through a glass lid without having to lift it.
  Use pots and pans with flat bases.
• Uneven bases increase energy consumption.
  Use cookware that is suitable for the quantity of food.
• Large items of cookware containing little food need more energy to heat up.
  Cook with only a little water.
• The more water that is contained in the cookware, the more energy is required to heat it up.
  Turn down to a lower power level early on.
• If you use an ongoing power level that is too high, you will waste energy.
  Take advantage of the hob’s residual heat. With longer cooking times switch off the hotplate 5-10 minutes before the end of cooking.
• Unused residual heat increases energy consumption.
  Product Information according (EU) 66/2014 can be found on the attached appliance pass and online on the product page for your appliance.

Familiarising yourself with your appliance

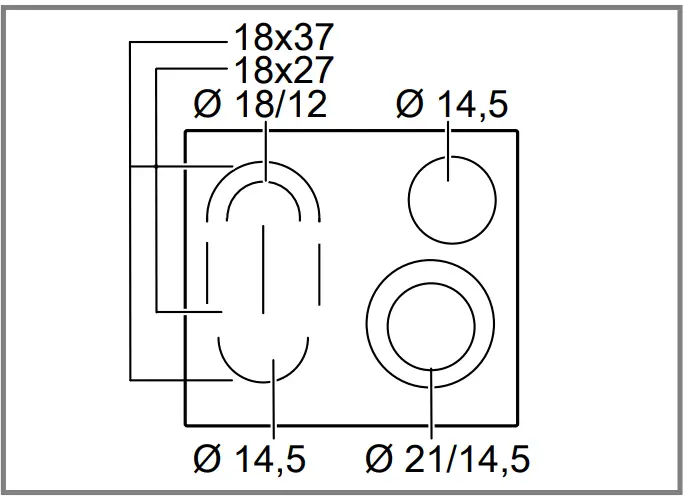

The instruction manual is the same for various different hobs. You can find the hob dimensions in the overview of models. Page 2

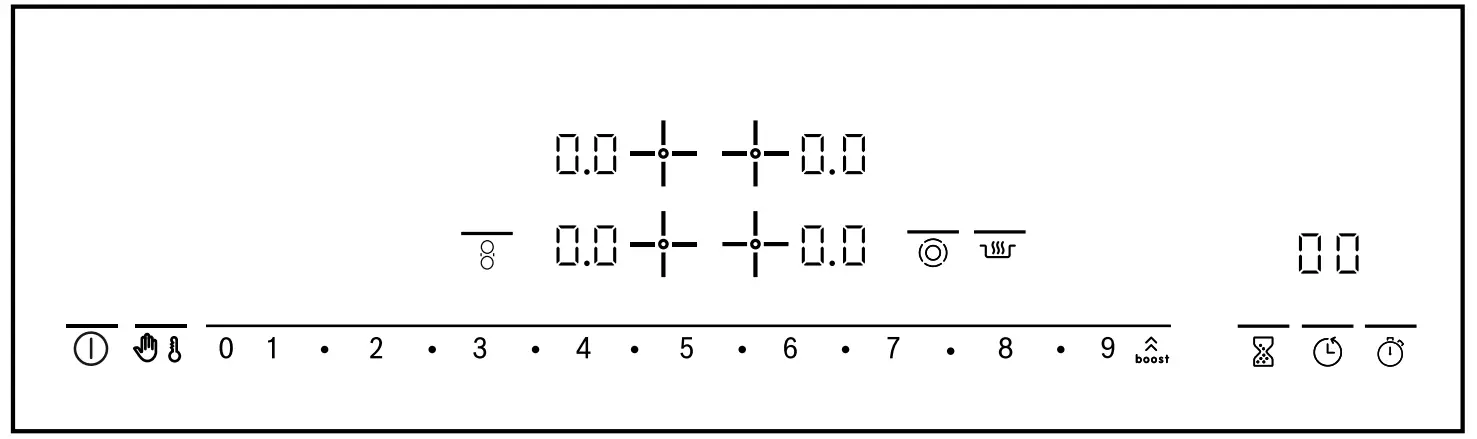

4.1Control panel
You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

4.2 Indicators/symbols
The displays show selected values and functions.

4.3 Touch fields
Touch fields are touch-sensitive surfaces. To select a function, touch the relevant field.
Touch field with a light bar above the symbols

Touch field	Name
	Main switch
bost∧∧	Powerboost
	Childproof lock
	Wipe protection
	Keep-warm function
8	Combi-cooking zone
1.2.3.9	Control panel
	Automatic zone control
	Kitchen timer
	Timer
	Stopwatch function

Touch field without light bar above the symbols

Notes

• Depending on the operating condition of the hob, the touch fields that can currently be selected light up brightly or dimmed.
• If you touch one of these fields, the relevant function is activated.
• Touch fields that cannot currently be selected do not light up.
• The settings of the hotplates currently selected light up brightly.
• Always keep the control panel dry. Moisture impairs the function.
• Do not pull pans close to the displays and touch fields. The electronics may overheat.

4.4 Hotplates

You can find an overview of the different activations of the hotplates here.
If you operate the activations, the relevant displays light up.
If you switch on a hotplate, it will switch to the setting last selected.

Hotplate	Name	Activating and deactivating
	Single-circuit cooking zone	Select a hotplate.
	Dual-circuit hotplate	Dual-circuit hotplate

Notes

• Dark areas in the glow pattern of the hotplate are part of the technical design. They do not affect the functionality of the hotplate.
• The hotplate regulates the temperature by switching the heat on and off. The heat may also switch on and off when at the highest setting.
• With multi-circuit hotplates, the heating of the hotplate and the activated areas may switch on or off at different times.
  Reasons:
  ­ Easily damaged components are protected against overheating. ­
  The appliance is protected against electrical overload. ­
  This achieves a better cooking result.

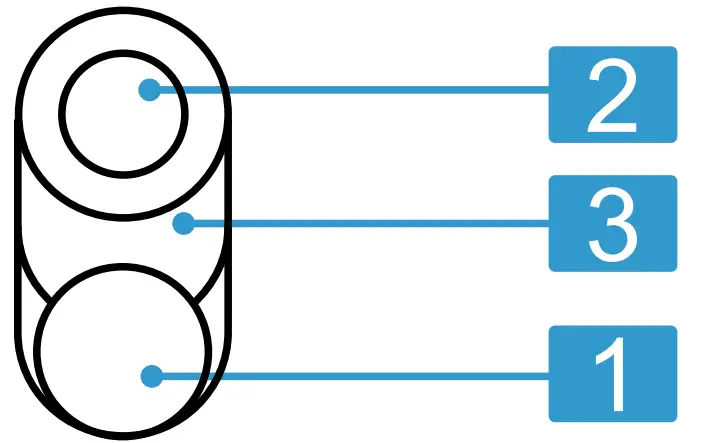

Combi-cooking zone
The combi-cooking zone allows you to combine the single-circuit and the dual-circuit hotplate with the bridge heating element. The two hotplates can also be operated independently of each other.

1. ingle-circuit hotplate
2. Dual-circuit hotplate
3. Bridge heating element

The small extended cooking zone (2 and 3) and the single-circuit hotplate (1) can also be operated independently with different heat settings. This produces different temperature areas, for example for the large roaster, the teppanyaki or the grill plate. With the small extended cooking zone, you can fry one food while simultaneously using the single-circuit hotplate to keep another warm. Tip: Suitable cookware is available from customer service or our online shop.
4.5 Residual heat indicator
The hob has a two-stage residual heat indicator for each hotplate. Do not touch the hotplate while the residual heat indicator is lit up.

Basic operation

5.1Switching the hob on or off
The main switch is used to switch the hob on and off. If you switch the appliance back on again within 4 seconds after switching off, the hob will start up with the previously stored settings.
5.2Switching on the hob

• Touch.
• The light bar above lights up brightly.
• The displays for the controls and the heat setting displays light up.
• The hob is ready for use.

5.3 Switching off the hob
The hob will switch off automatically when all hotplates have been switched off for a while (10-60 seconds).

• Touch.
• The light bar above goes out.
• The displays go out.
• All hotplates are switched off.
• The residual heat indicator remains on until the hotplates have cooled down sufficiently.

5.4 Setting the hotplates
To set a hotplate, it has to be selected.

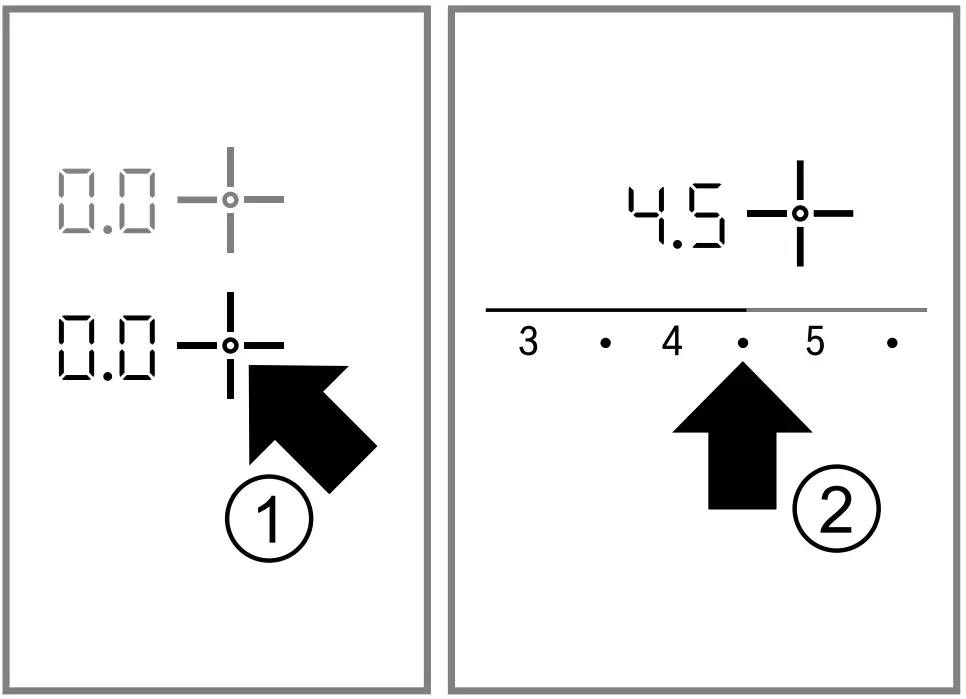

5.5 Selecting heat settings
Requirement: The hob is switched on.

1. Select the hotplate with.
   8.8 lights up brightly in the heat setting indicator.
2. Select a heat setting on the control panel.

The hotplate is switched on.

5.6Changing heat settings

1. Select the hotplate with.
2. Select a heat setting on the control panel.

5.7Switching off the hotplate
If you have switched off a hotplate, the residual heat indicator appears after approx. 10 seconds.

1. Select the hotplate with.
2. Select 0 on the control panel.

5.8 Recommended cooking settings
You can find an overview of different foods with appropriate power levels here.
The cooking time varies depending on the type, weight, thickness and quality of the food. The ongoing power level depends on the cookware used.
Cooking tips

• To bring food to a boil, use heat setting 9.
• Stir thick liquids occasionally.
• Food that needs to be seared quickly or that initially loses a lot of liquid during frying should be fried in small portions.
• Tips for saving energy when cooking. Page 5

Melting

Heating or keeping warm

Defrosting and heating

Poaching or simmering

Boiling, steaming or stewing

Braising

Frying with little oil
Fry food without a lid.

Deep-frying
Deep-fry food in 1–2 l oil in batches, 150–200 g per batch. Cook food without a lid.

PowerBoost function

PowerBoost lets you heat up large volumes of water even faster than on heat setting 9. The PowerBoost function is only available on hotplates marked
6.1 Switching on PowerBoost
WARNING ‒ Risk of fire!
Oil and fat heat up quickly with the PowerBoost function. Oil and fat ignite quickly if overheated.
When cooking, never leave the hob unattended.
Requirement: With dual-circuit hotplates, the second filament circuit has to be activated for use with the PowerBoost function.

1. Select the cooking zone.
2. Touch in the settings area.
The display lights up.
6.2 Switching off PowerBoost
If you do not switch off the PowerBoost function, it will switch off automatically after a certain period of time. The hotplate switches back to heat setting 9.
1. Select the hotplate.
2. Select any ongoing cooking setting.
The display goes out.

Childproof lock

You can use the childproof lock to prevent children from switching on the hob.
7.1 Activating the childproof lock
Requirement: The hob is switched off.
1. Switch on the hob with
2. Press and hold for approx. 4 seconds.
The display lights up for 10 seconds.
The hob is locked.
7.2 Deactivating the childproof lock
Press and hold for approx. 4 seconds.
The lock is now released.
7.3 Automatic childproof lock
This function automatically activates the childproof lock when you switch off the hob.
The automatic childproof lock can be activated in the basic settings. → Page 11

Time-setting options

Your appliance has different time-setting options which can be used to set a cooking time, a kitchen timer or a stopwatch.
8.1Cooking time
Enter a cooking time for the relevant hotplate. When the cooking time has elapsed, the hotplate switches off automatically.
You can set a cooking time of up to 99 minutes.

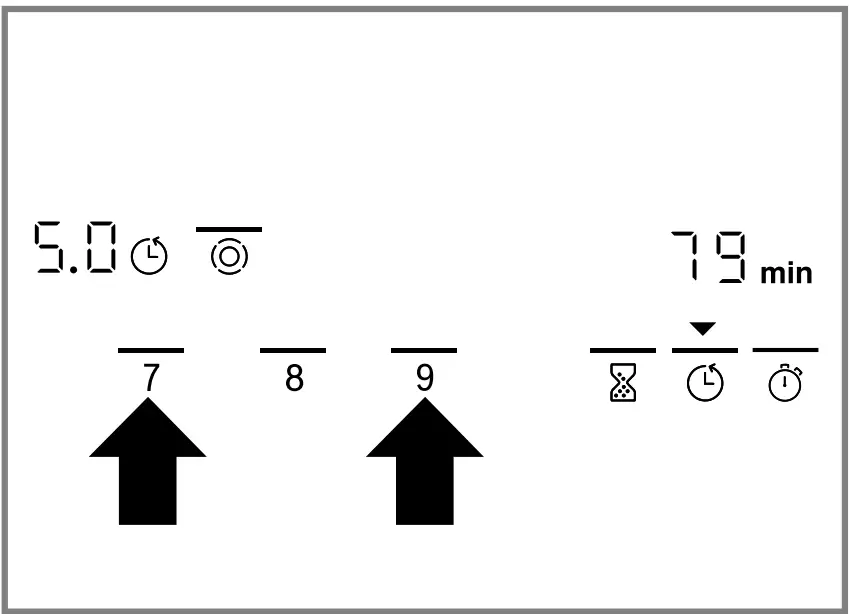

Setting the cooking time
Requirement: The hotplate is selected and set.

1. Touch

Above lights up and the indicator for the required hotplate
88 lights up brightly. lights up in the timer display. a
2. Within the next 10 seconds set the required cooking time on the control panel.

The cooking time counts down. If you have set a cooking time for more than one hotplate, the cooking time of the hotplate selected is displayed.
The hotplate switches off when the cooking time has elapsed. A signal sounds and OO flashes on the display for 10 seconds. above and the display flash.

Changing or canceling the cooking time

1. Select the hotplate.
2. Touch.
3. On the control panel change the cooking time or set it to 88.

Switching off the continuous signal

• You can switch the signal off manually.
• Touch any symbol. The displays will go out and the audible signal will stop.

Automatic timer
You can use this function to preselect a cooking time for all hotplates. Each time a hotplate is switched on, the preselected cooking time counts down. When the cooking time has elapsed, the hotplate switches off automatically.
Switch on the automatic timer in the basic settings. → Page 11
Tip: The automatic timer is valid for all hotplates. You can reduce or delete the cooking time for individual hotplates. → Page 9
8.2 Kitchen timer
You can set a time of up to 99 minutes after which a signal will then sound. The kitchen timer runs independently of all other settings.
Setting the kitchen timer

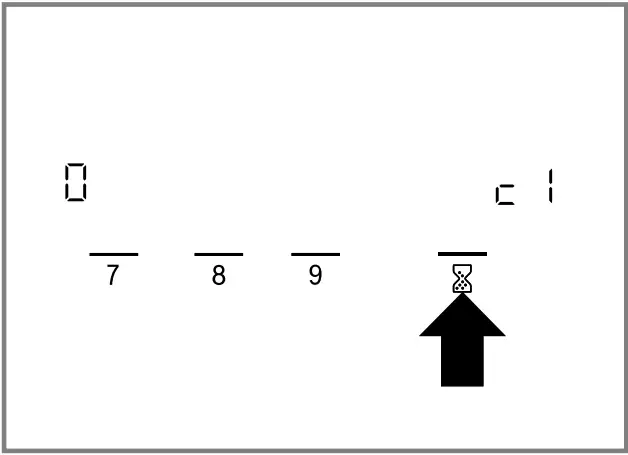

1. A touch
   • above  lights up brightly.
   • 00 lights up in the timer display.
2. Set the required time on the control panel.
   • The timer starts counting down after a few seconds.
   • A signal sounds when the time has elapsed. OO flashes in the timer display.
   • above flashes.
   • The display switches off after 10 seconds.

8.3 Stopwatch function
The stopwatch function displays the time which has passed since activating the function.
The stopwatch function only works when the hob is switched on. When the hob is switched off, the stopwatch function is switched off as well.
Switching on the stopwatch function
▶ Touch
88 appears in the timer display. a
Time measurement begins.
Seconds are displayed during the first minute, then minutes.
Note: If you select another time-setting option in addition to the stopwatch function, the setting appears on the timer display for 10 seconds. The stopwatch function is then displayed again.
Switching off the stopwatch function
Touch again.
The timer display goes out.

9  Automatic switch-off
If you do not change the settings of a hotplate for a long time, automatic switch-off will be activated. When the hotplate switches off depend on the heat setting selected (1 to 10 hours). The heat to the hotplate is switched off F8 and the re- residual heat indicator/flash alternately on the hot-plate display.
9.1 Continuing cooking after automatic switch-off

1. Touch any touch field. The display goes out.
2. Reset.

10  Keep-warm function
The keep-warm function allows you to melt chocolate or butter and to keep food or cookware warm.
10.1 Switching on the keep-warm function
1. Select the hotplate.
2. Touch
LO lights up on the heat-setting display.
10.2 Switching off the keep-warm function
1. Select the hotplate.
2. Touch
O lights up on the heat-setting display.
11  Wipe protection
Wiping over the control panel while the hob is switched on may alter settings. Your hob has a wipe protection function to prevent this.
The main switch is excluded from the wipe protection function. You can switch the hob off at any time.
11.1 Activating wipe protection

• Touch
• A signal sounds.
• The display above  lights up.
• The control panel is locked for 30 seconds.

12  Energy consumption display
This function indicates the total amount of energy consumed between switching the hob on and switching it off again.
Once switched off, the energy consumption is displayed in kilowatt-hours, e.g. 1.08 kWh, for 10 seconds.
The accuracy of the display depends on various factors such as the voltage quality of the power supply.
The display can be activated in the basic settings. → Page 11
13  Basic settings
You can configure the basic settings for your appliance to meet your needs.
13.1 Overview of the basic settings
You can find an overview of the basic settings and the default factory settings here.

13.2 Changing basic settings
Requirement: The hob is switched off.
1. Switch on the hob.
2. Within the next 10 seconds press and hold for approx. 4 seconds.

01. appears.
0 .lights up on the hotplate display.
3. Touch repeatedly until the required display appears.
4. Set the required value on the control panel.5. Press and hold  for 4 seconds.
The setting is activated.
Tip: To exit the basic settings without saving, switch off the hob using Switch the hob on again and reset.
14  Cleaning and servicing
To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.
14.1 Cleaning products
You can obtain suitable cleaning products and glass scrapers from customer service, the online shop or a retailer.
ATTENTION!
Unsuitable cleaning products may damage the surfaces of the appliance.
▶ Never use unsuitable cleaning products.
Unsuitable cleaning products

• Undiluted detergent
• Detergent intended for dishwashers
• Abrasive cleaners
• Aggressive cleaning products such as oven spray or stain remover
• Abrasive sponges
• High-pressure or steam jet cleaners

14.2 Cleaning the glass-ceramic
Clean the hob after every use to stop cooking residues from getting burnt on.
Note: Note the information on unsuitable cleaning products. → Page 12
Requirement: The hob has cooled down.

1. Remove heavy soiling using a glass scraper.
2. Clean the hob with a cleaning product for glass-ceramic.

Follow the cleaning instructions on the product packaging.
Tip: You can achieve good cleaning results using a special sponge for glass-ceramic.
14.3 Cleaning the hob surround
Clean the hob frame after use if dirty or stained.
Notes

• Note the information on unsuitable cleaning products. → Page 12
• Do not use the glass scraper.
• Clean the hob frame with hot soapy water and a soft cloth.
• Wash new sponge cloths thoroughly before use.
• Dry with a soft cloth.

Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting the aftersales service. This will avoid unnecessarily costs.

WARNING ‒ Risk of injury!
Improper repairs are dangerous.
▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ If the appliance is defective, call Customer Service.
WARNING ‒ Risk of electric shock!
Incorrect repairs are dangerous.
▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
▶ If the power cord of this appliance is damaged, it must be replaced by trained specialist staff.
WARNING ‒ Risk of burns!
The hotplate heats up but the display does not work.
▶ Switch off the fuse in the fuse box.
▶ Call the customer service.
WARNING ‒ Risk of fire!
The hob switches off automatically and can no longer be operated. It may switch on unintentionally at a later point.
▶ Switch off the fuse in the fuse box.
▶ Call the customer service.
15.1 Information on the display panel

16  Disposal
Find out here how to dispose of old appliances correctly.
16.1 Disposing of old appliance
Valuable raw materials can be reused by recycling.
Dispose of the appliance in an environmentally friendly manner.
Information about current disposal methods is available from your specialist dealer or local authority.
This appliance is labeled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment WEEK). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

17. Customer Service
If you have any queries on use, are unable to rectify faults on the appliance yourself or if your appliance needs to be repaired, contact Customer Service. Function-relevant genuine spare parts according to the corresponding Ecodesign Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area. Note: Under the terms of the manufacturer’s warranty the use of Customer Service is free of charge.
Detailed information on the warranty period and terms of the warranty in your country is available from our aftersales service, your retailer or on our website. If you contact Customer Service, you will require the product number (E-Nr.) and the production number (FD) of your appliance. The contact details for Customer Service can be found
in the enclosed Customer Service directory or on our website.
17.1 Product number (E-Nr.) and production number (FD)
You can find the product number (E-Nr.) and the production number (FD) on the appliance’s rating plate. The rating plate can be found: ¡ on the appliance certificate. ¡ on the lower section of the hob. Make a note of your appliance’s details and the Customer Service telephone number to find them again quickly. Thank you for buying a
Bosch Home Appliance!
Register your new device on MyBosch now and profit directly from:
Expert tips & tricks for your appliance
Warranty extension options
Discounts for accessories & spare parts
Digital manual and all appliance data at hand
Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones: www.bosch-home.com/welcome
Looking for help?
You’ll find it here.
Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts.
Find out everything about the many ways Bosch can support you: www.bosch-home.com/service
Contact data of all countries are listed in the attached service directory.
Robert Bosch Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München
GERMANY
www.bosch-home.com
Valid within Great Britain:
Imported to Great Britain by
BSH Home Appliances Ltd.
Grand Union House
Old Wolverton Road
Wolverton, Milton Keynes
MK12 5PT
United Kingdom

References

• Home Appliances Global Website | Bosch
• Home Appliances Global Website | Bosch
• BOSCH Service | Service worldwide
• Welcome to MyBosch
