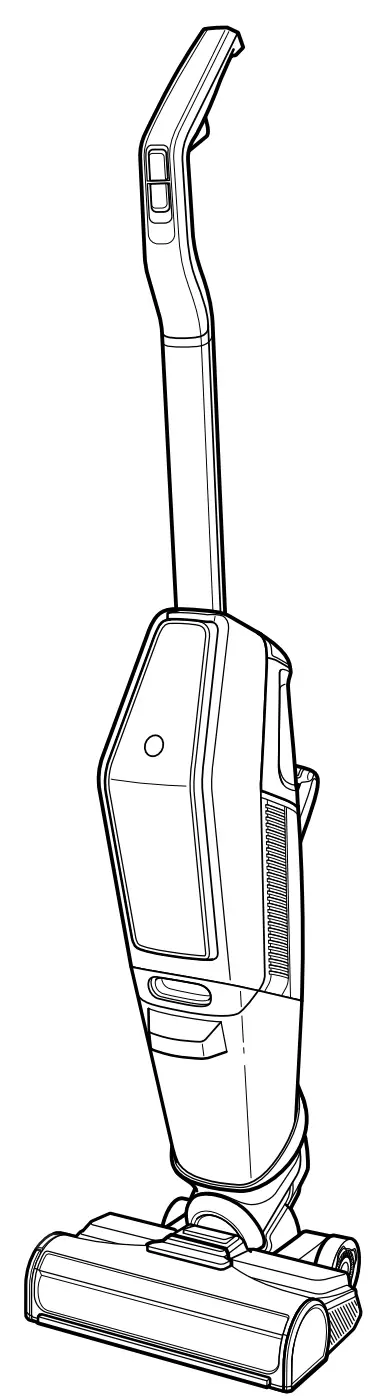

CROSSWAVE® X7 CORDLESS PET PRO
BATTERY REMOVAL INSTRUCTIONS 3011, 3276, 3277, 3279 SERIES
Disposing of the Battery
Needed for Disassembly: · Phillips-head Screwdriver · Electrical tape
Before disposing of the battery, make sure:
The machine is disconnected from the docking station.
The clean and dirty water tanks are empty or removed from the machine.
 | ||

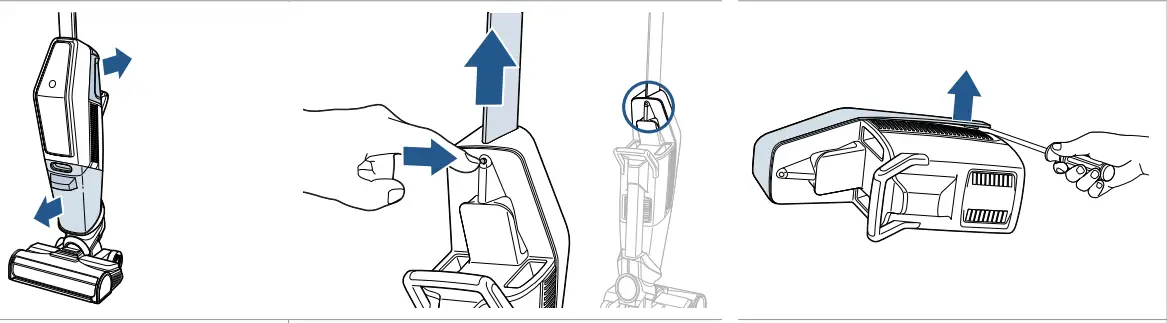

| 1. Remove the Clean Water Tank and the Dirty Water Tank. | 2. On the back of the machine, press the button under where the handle fits into the machine while pulling the handle up. | 3. Remove the product face with a screwdriver by sliding a screwdriver between the face and the body of the product. |
 | ||
| 4. Remove two screws under the front face of the machine body. Remove 11 screws that attach the front cover to the body of the product. | 5. Use a screwdriver to remove the 3 screws holding the battery in place. Remove the battery pack. | 6. The front cover and the body of the product are attached by three connectors. |
 | ||

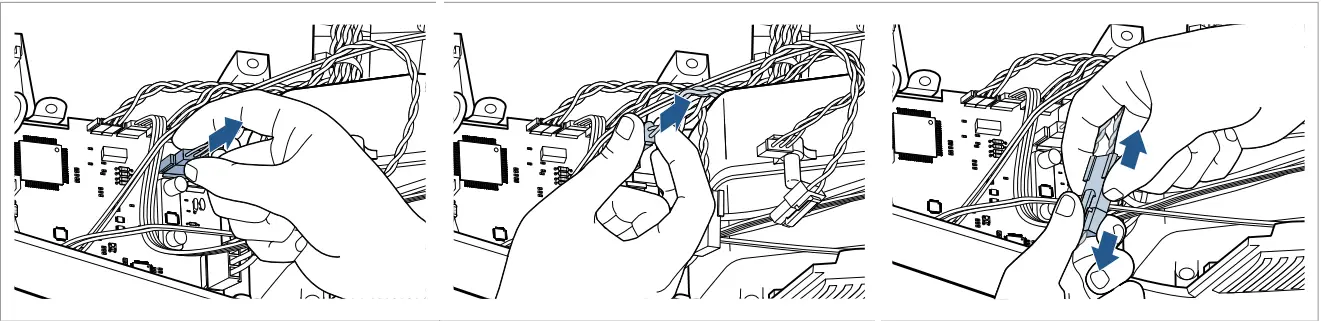

| 7. Unplug the yellow connector from the body of the product. | 8. Unplug the orange connector from the body of the product. | 9. Unplug the red and black wired connector. |
 | ||

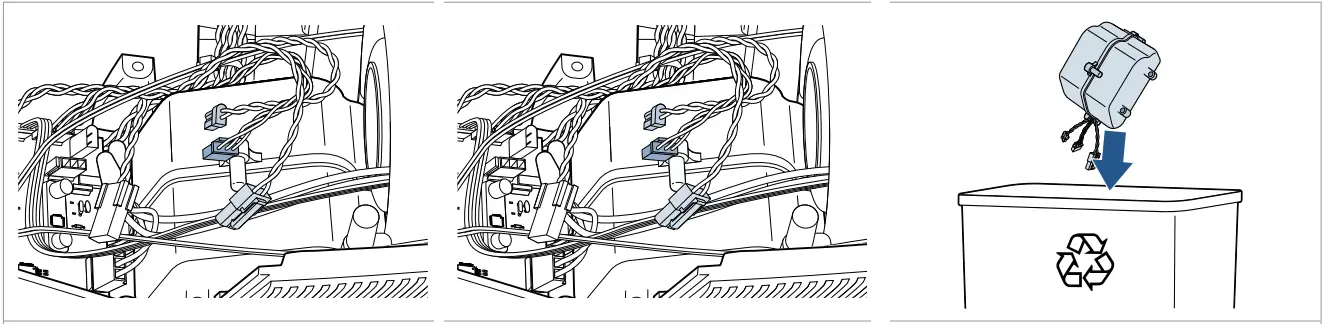

| 10. Remove the battery pack from the product. | 11. After the connectors are disconnected from the body of the product. | 12. Use electrical tape to tape the end of the connectors and recycle the battery. |
©2022 BISSELL Inc. All rights reserved. Part Number 1627863 11/21 RevB
NOTICE Disconnecting the battery will destroy the appliance and invalidate the warranty.
WARNING
This product contains Lithium-Ion rechargeable batteries. DO NOT mix Lithium-Ion batteries with general household waste. According to Federal and State regulations, removal and proper disposal of Lithium-Ion batteries is required. For specific battery disposal instructions please contact Call2Recycle at 877-723-1297 or visit www.call2recycle.org.
