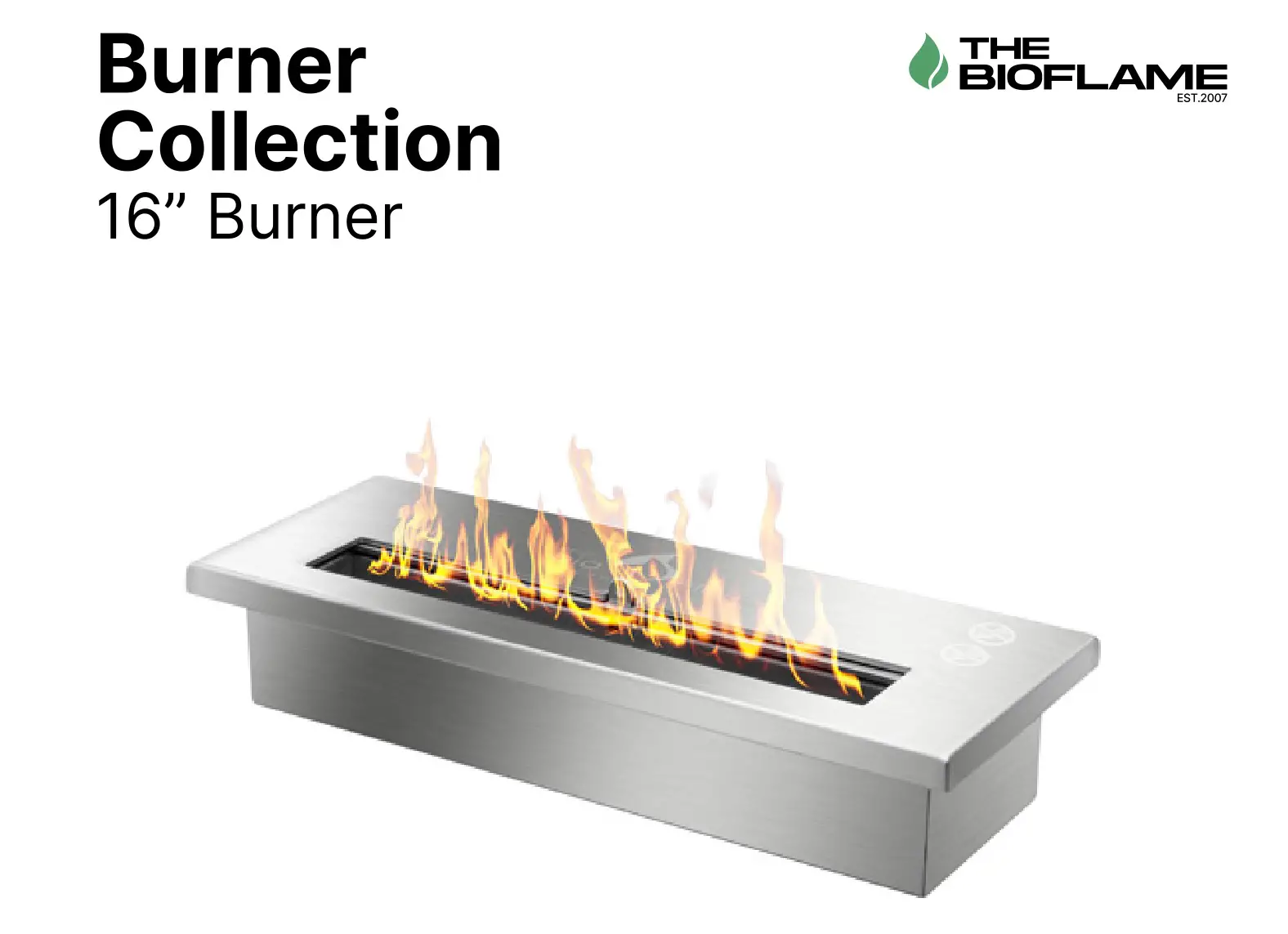

THE BIOFLAME 16 Inch Ethanol Fireplace Burner Instruction Manual

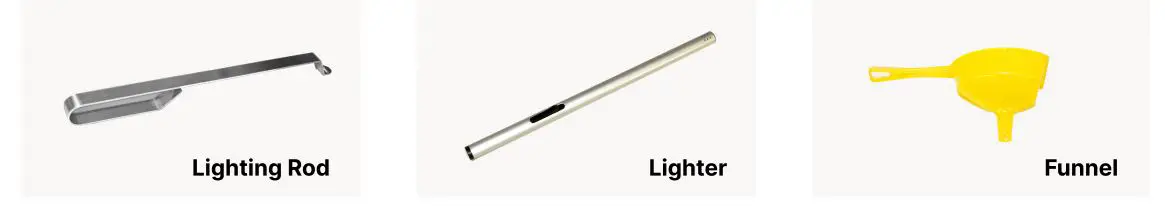

Included Accessories
Inserting within a firebox setting:
The Bio Flame 16″ BURNER can only be fitted into a non-combustible firebox that has minimum clearances of 24″W x 20″H x 14″D.
Custom made fireboxes must:
– Be made our of a non-combustible material such as stainless steel
*When recessing the tray into a non-combustible base with no firebox, the overhead clearance required is 60″MIN. to the nearest combustible*
Global Compliance
All burners are UL Listed in accordance with ANSI/
UL1370 in the USA and comply with the ACCC Safety
Mandate for Australia.
Lifetime Warranty
FOR MORE INFORMATION PLEASE REFERENCE THE CLEARANCE & INSTALLATION MANUAL

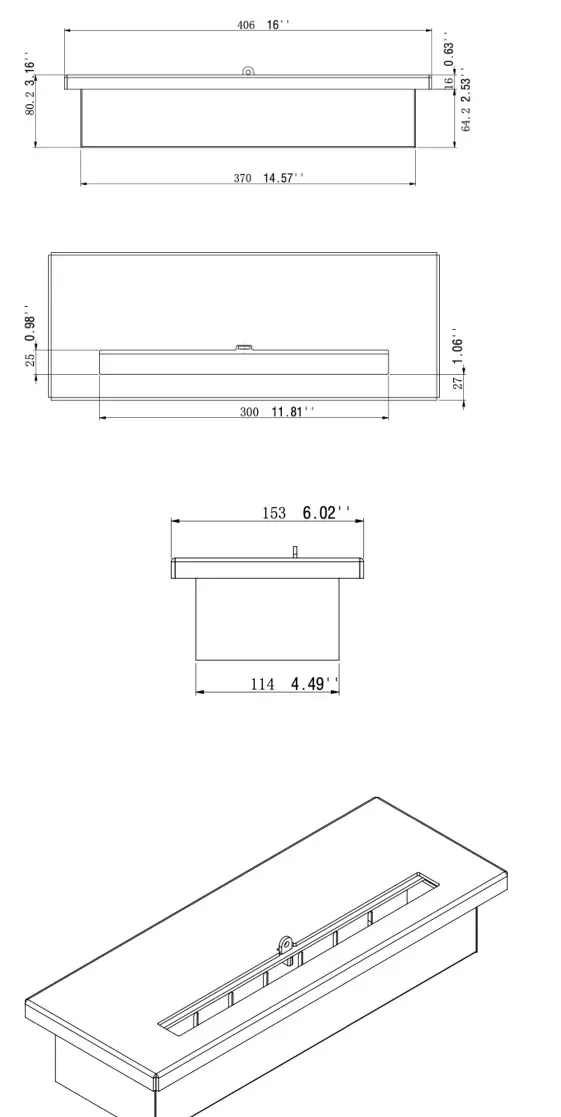

*Dimensions may vary by 2% (plus or minus) due to material attributes. Template not provided. The Bio Flame recommends using the actual fireplace or burner model when making final cut out
