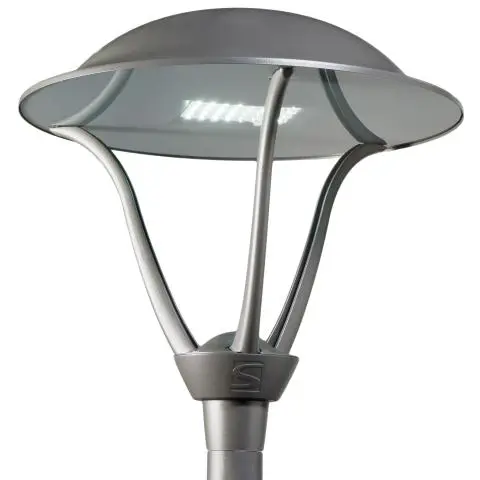

Schreder ISLA LED Street Lamp

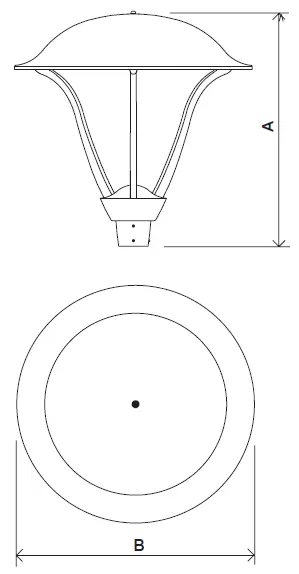

Dimensions
| A | 636mm | 25 in |
| B | 647mm | 25.5 in |
| CxS | 0.057m2 | 2.2 in2 |
| Kg/Lb | 7.75 kg | 17.1 lb |

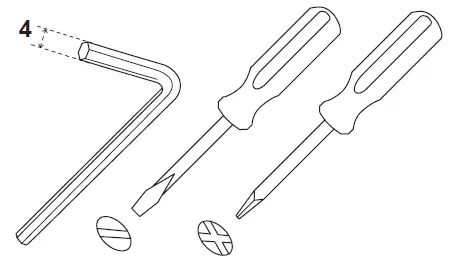

Tools

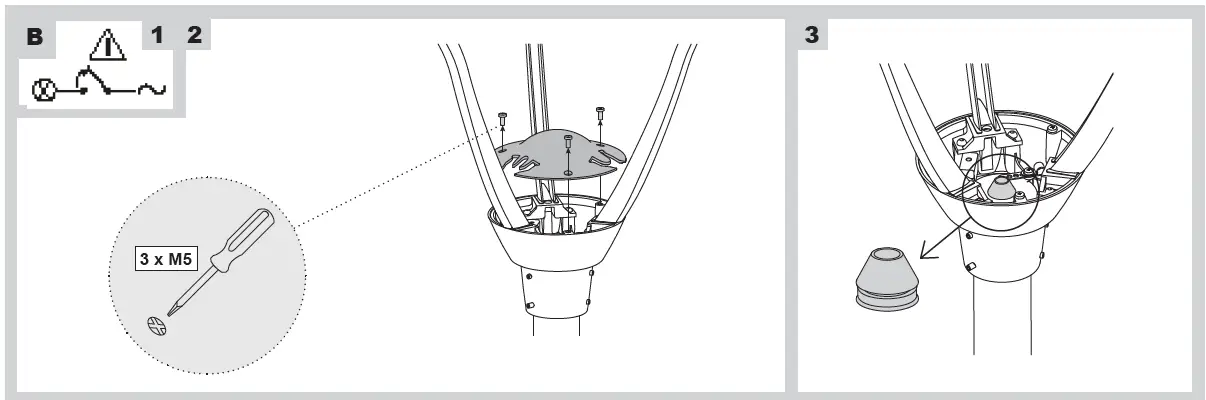

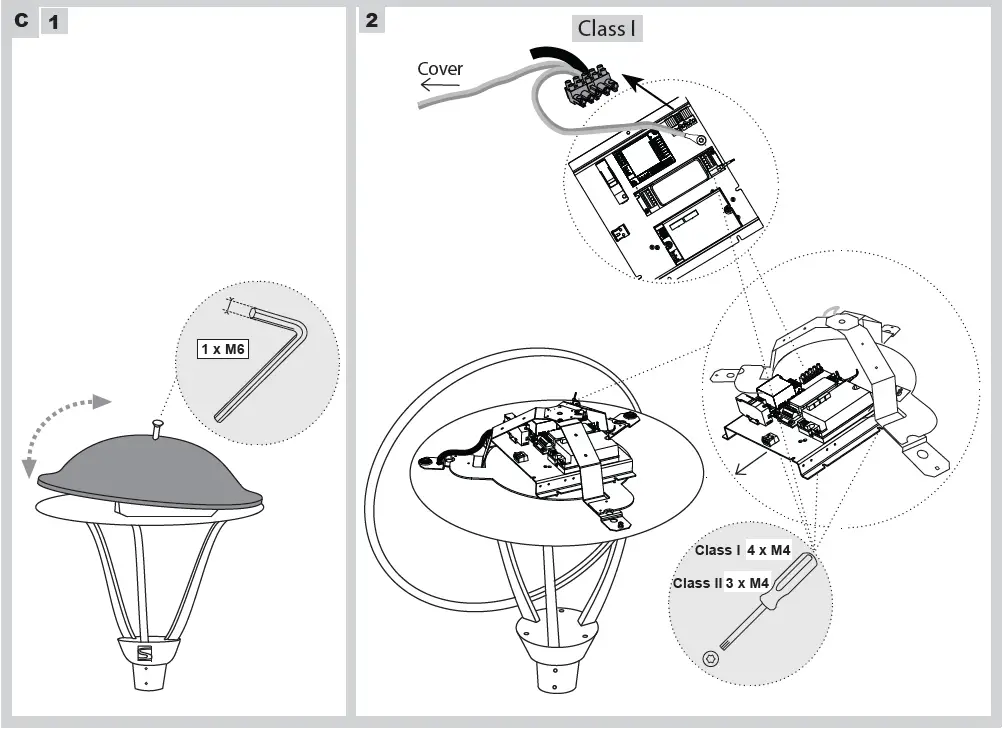

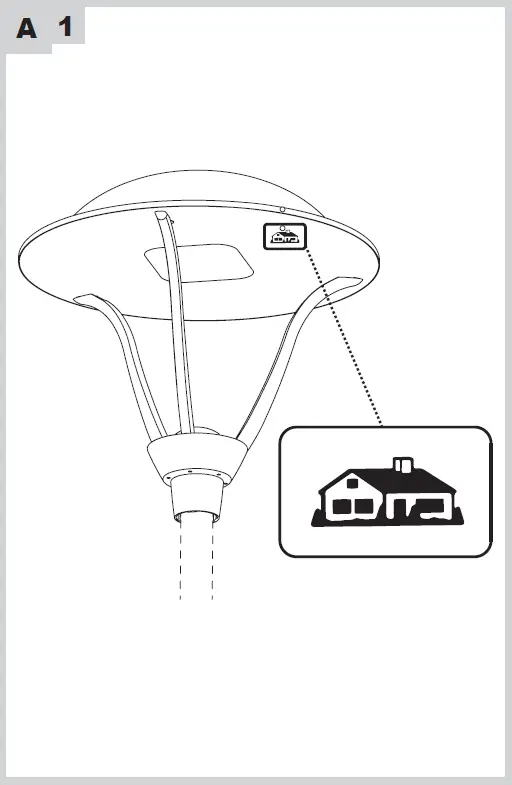

Installation
SAFETY INSTRUCTIONS
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similarly qualified person. Always switch off the power prior to installation, maintenance or repair activities.

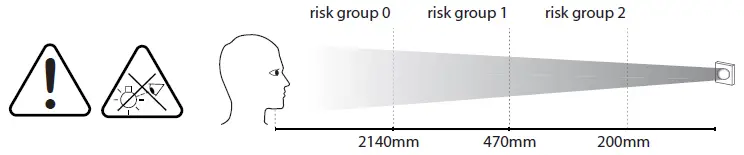

RISK GROUP 2
CAUTION!
Hazardous optical radiation may be emitted from this product. Do not stare at the luminaire when operating as it may be harmful to the eyes. The luminaire should be positioned so that prolonged staring at the luminaire at a distance of less than 0.44m is not expected.
In case of PVC insulated mains cable, the installer MUST ensure that the WHOLE cable is protected against climatic conditions, especially UV rays and rain, by making sure that the cable is contained inside the luminaire and pole
Y-connection:
In case of damage to the wire, it has to be replaced only by the manufacturer, distributor or by an expert, to avoid risks.
