HF 6m & 2m Transceiver
User Guide
PRO HF 6m & 2m Transceiver
- LAN Interface
- 80 MHz wide bandscope
- 2×312 kHz software receivers
- 4 slice receivers
- Ultra low CW delay
- Linux or Windows your choice!
- User-friendly software
- Remote control

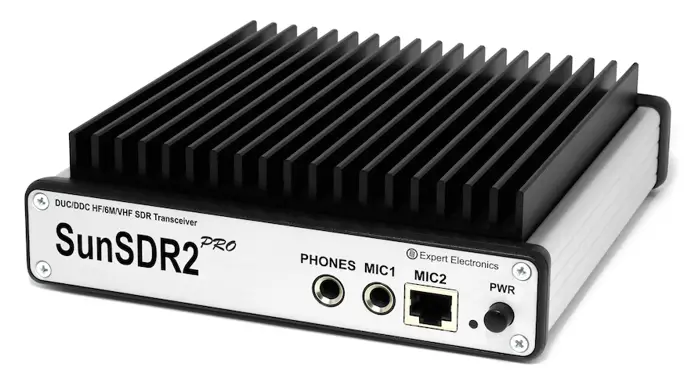

The SunSDR2 PRO transceiver is designed for advanced use in HF and VHF bands. Even the most experienced operator may be surprised by its capabilities. The modern hardware in a small physical size makes this high performance SDR Transceiver the perfect base station while at the same time very portable for field operations. The SunSDR2 PRO is perfect for contesting! ExpertSDR2 is the powerful and flexible software, which lets you to create a custom designed station setups for many different types of contest efforts.
| RF ADC clock frequency, MHz | 160 |
| RF ADC resolution, bit | 16 |
| Receiving freq. bandwidth, MHz | 0.09 .65, 95…148 |
| Blocking dynamic range (BDR), dB | 129 |
| Sensitivity, uV | 0.07 |
| Max HF output power, W | 20 |
| Max VHF output power, W | 8 |
| HF TX freq. coverage | All amateur bands |
| VHF TX freq. coverage | 2M, 6M |
| General coverage receiver VHF, MHz | 95…148 |
| RF DAC clock freq., MHz | 640 |
| RF DAC resolution, bit 14 | 14 |
| Local oscillator’s stability, ppm | ±0.5 |
| Maximum consumption current, A 5 | 5 |
| Built-in audio codes resolution, bit 24 | 24 |
| ALC input voltage range, V | 0 .-4 |
| Operating temperature, 0C | 0…+50 |
| DC Supply voltage range, V | 12…16 |
| Dimensions, LxWxH, mm | 165x165x35 |
| Weight, kg | 1.5 |

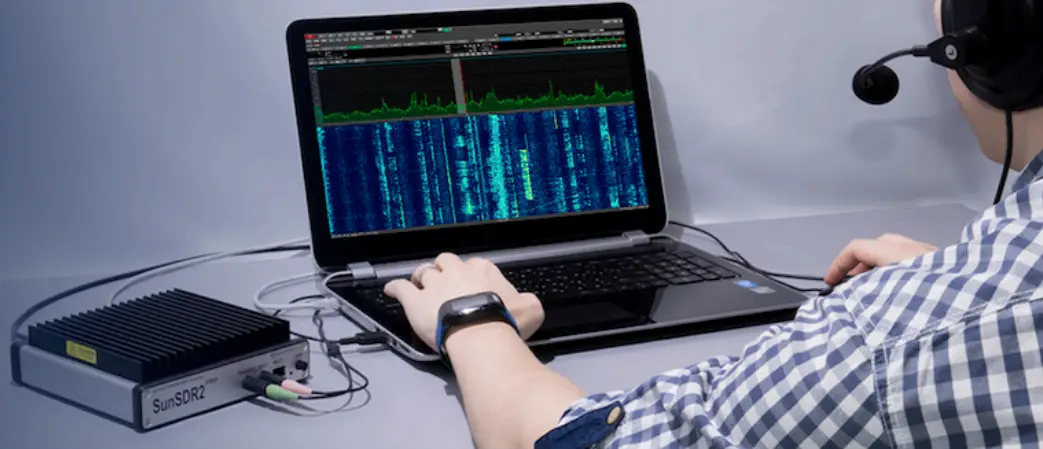

SunSDR2 PRO is controlled by the ExpertSDR2 software

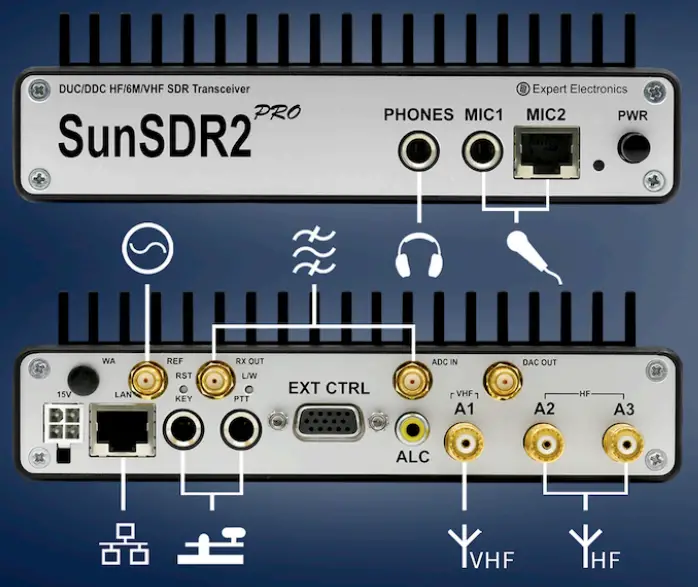

Features of the transceiver:
- Direct Sampling Receiver
- Direct Sampling Transmitter
- Internal antenna switch – 2 HF antennas
- ALC connector for external power amplifiers
- Ext control connector with 10 open collector key
- Galvanic isolation in LAN interface
- Polarity reversion protection
- Built-in power-meter HF/VHF bands
- Built-in SWR-meter HF band
- SO2R, SO2V modes
- Remote control o.eration
PC requirements:
- CPU Intel Core 13 1.6 GHz and higher
- Video card, minimum resolution 1024×600, 128 MB, OpenGL 1.5 support and higher
- Local network connector 100 Mbps or 1 Gbps
- OS Windows XP/7/8 x32 or x64, OS Linux Ubuntu x64
ExpertSDR2 supports most HAM software:
- CW Skimmer – can be used two CW Skimmers
- Loggers – MixW, Logger32, N1MM, WriteLog
- DIGI software – MixW, MMVARI, MMTTY, etc.

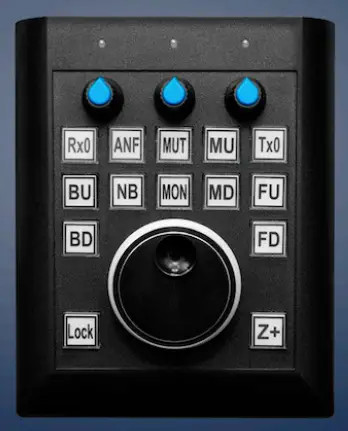

E-Coder Ergonomic way to control SunSDR2 PRO
