PRELIMINARY SPECIFICATION GUIDE
BUILT-IN COFFEE MAKER, 60CM
 |  |

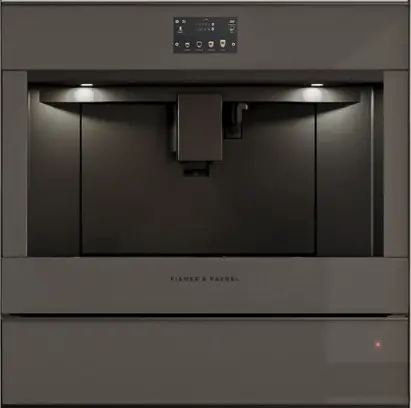

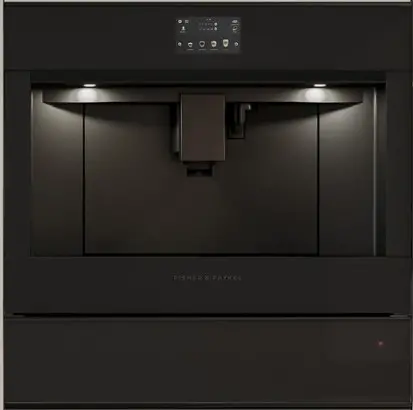

| Coffeemaker shown with with Warmer Drawer ADWB6024SMG (Grey) | Coffeemaker shown with with Warmer Drawer ADWB6024SMB (Black) |
OVERVIEW
The Built-in Coffee Maker features a stylish finish and can be installed in multiple configurations to suit kitchen design and preference. With 13 beverage options, our Coffee Maker is designed to consistently pour delicious coffee – from Flat White to Latte or Americano. Favourite coffee can be memorised and set to start at the same time each day, while the conical burr grinder delivers a consistent grind for the perfect coffee.
MODELS
Built-in Coffee Maker, 60cm,
Touchscreen, Dial
EB60MSG1 (Grey), EB60MSB1 (Black)
SERIES & STYLE
Series 9
Minimal
FEATURES
- Designed to pair perfectly with 60cm ovens and companion products
- Stylish stainless steel finish
- Install in multiple configurations to suit your kitchen design
- Intuitive touch display
- 13 functions to suit any taste and selection – from Espresso to Latte
- Personalized coffee and smart self-learning menu preferences
- Stainless steel conical burr grinder with 13 coarseness positions
- 15 bar pump pressure
- Self-cleaning function and easy to empty coffee grounds container and drip tray
- 2.5L water tank capacity
ACCESSORIES
- Thermal milk jug (0.5L)
- Water filter
- Coffee spoon
- Extractable steam outlet
- Descaling agent bottle
- Optional 76cm trim kit TK7630NMB1 (Black)
SPECIFICATIONS
| Model No. | EB60MSG1, EB60MSB1 |
| Dimensions | H 458mm W 596mm D 480mm |
| Total water tank capacity | 2.4L |
| Weight | 29kg (unpackaged) 39kg (packaged) |
Electrical
| Supply | 220-240VAC, 50Hz |
| Service | 10A circuit |
PRODUCT DIMENSIONS
| mm | |
| A Overall height | 458 |
| B Overall width | 596 |
| C Depth of chassis | 460 |
| D Depth front frame | 20 |

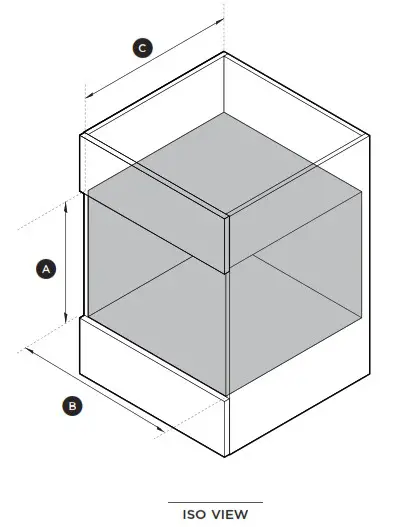

CAVITY DIMENSIONS
| mm | |
| A Minimum inside height | 450 |
| B Minimum inside width | 560 |
| C Minimum inside depth | 545 |
90002654 Date: 1 August 2022 The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
