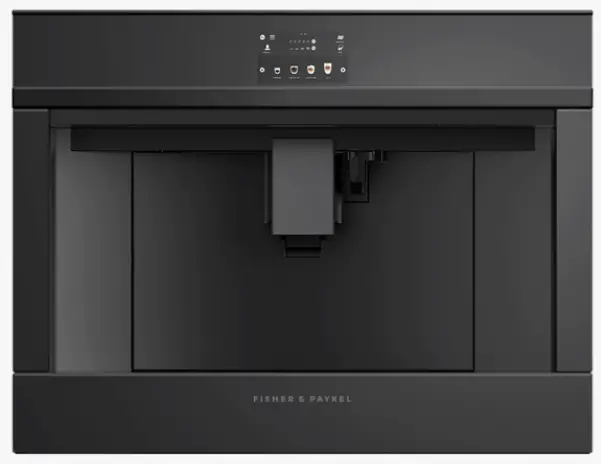

EB60DSXBB1 60cm Built-In Coffee Maker
User Guide
Our built-in coffee maker pours a delicious coffee, however, you take it. Pairs perfectly with 60cm ovens and companion products.
- Barista-standard coffee just the way you like it, with 13 options from Flat White to Latte or Americano
- Your favorite coffee can be memorized and set to start at the same time each day, so it’s ready when you are
- With a self-cleaning function for an effortless clean
- Part of our suite of companion products, designed to match aesthetically for flexible configurations.

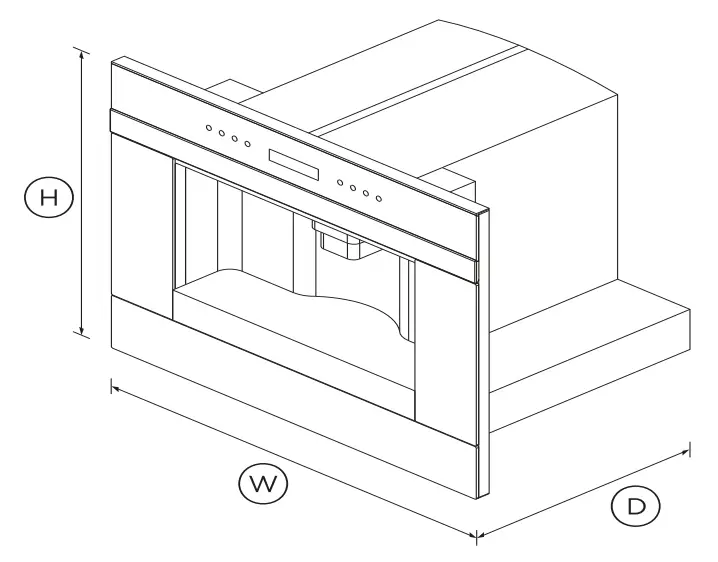

DIMENSIONS
| Height | 458mm |
| Width | 596mm |
| Depth | 480mm |
FEATURES & BENEFITS
Sized to suit
This 60cm Built-in Coffee Maker is perfect for the compact kitchen and can be placed virtually anywhere. Companion products share standard dimensions and can be installed in multiple configurations to suit your kitchen design and preference.
Coffee choice
Your Coffee Maker has 13 different choices to suit your taste and selection – from Espresso to Latte.
Barista-style coffee
The conical burr grinder delivers a consistent grind for the perfect coffee. Set it to suit your preference.
Self-cleaning
The Coffee Maker has a self-cleaning function and comes with a removable drip tray and a waste container for used coffee grounds.
Personalize your cup
Program your Coffee Maker to start up at the same time every day and make your favorite coffee.
Beauty of choice
With the choice of stylish stainless steel or elegant black trim, our Companion products help you achieve a coherent kitchen aesthetic that suits your design style.
SPECIFICATIONS
Accessories
| Coffee spoon | • |
| Descaling agent bottle | • |
| Extractable steam outlet | • |
| Matching Trim Kit | Optional 76cm trim kit Part |
| Optional lower trim kit | Part 81662 (478mm) |
| Water Filter | • |
Capacity
| Grounds container capacity | 14 cups of coffee |
| Number of cups | 1 or 2 |
| Water tank capacity | 2.5L |
Cleaning
| Easy to remove coffee grinds | • |
| Easy to remove the stainless steel | • |
| Removable drip tray with level | • |
| Self-clean function | • |
Controls
| Cleaning reminder | • |
| Coffee grounds full of reminder | • |
| High-resolution touch display | • |
| Intuitive information display | • |
| LED lights | 4 |
| Multi-language interface | • |
| Refill coffee bean reminder | • |
| Water tank empty indicator | • |
Functions
| Americano | • |
| Cappuccino | • |
| Coffee | • |
| Coffee strength levels | 5 |
| Cup size levels | 4 + manual |
| Double espresso | • |
| Espresso | • |
| Espresso macchiato | • |
| Flat white | • |
| Hot milk | • |
| Hot water | • |
| Latte | • |
| Latte macchiato | • |
| Long black | • |
| Number of functions | 13 |
| Personalized coffee | • |
| Steam | • |
| Takes pre-ground coffee | • |
Performance
| Coffee temperatures | 5 x settings |
| Grinder | Stainless steel conical burr |
| Grinding coarseness | 13 positions |
| Heating system | Thermablock with stainless |
| Heating system power (coffee | 1200W |
| Integrated cup warmer shelf | • |
| Integrated storage for | • |
| Pump power | 50 |
| Pump pressure | 15Bar |
Power requirements
| Amperage | 10A |
| Supply frequency | 50Hz |
| Supply voltage | 240V |
Product dimensions
| Depth | 480mm |
| Height | 458mm |
| Width | 596mm |
Warranty
| Parts and labor | 2 years |
| SKU | 81922 |
Other product downloads available at fisherpaykel.com
 | User Guide |
| Service & Warranty |
| Installation Guide |
| Data Sheet Coffee Maker |
