Sca 610994 Detailers Roller Seat Instruction Manual

ROLLER SEAT
DETAIL CREEPER
INSTRUCTION MANUAL

PLU 610994

WARRANTY

Our product is guaranteed to be free from quality and manufacturing defects for a period of 12 months.
If your product becomes defective during this period, SRGS PTY LTD will offer you either a replacement, credit or refund where a product is faulty; wrongly described; different from the sample shown to you or do not do what they are supposed to do.
This warranty will not cover substantially modified product; misuse or abuse of the product contrary to user instructions or packaging label; change of mind and normal wear and tear.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and failure does not amount to a major failure.
To claim the warranty, take the product to the front Service Desk of your nearest store of purchase. You will need to show receipt or other proof of purchase. Additional information may be required to process your claim.
Should you not be able to provide proof of purchase with a receipt or bank statement, identification showing name, address and signature may be required to process your claim.
Any expenses relating to the return of your product to the store will normally have to be paid by you. For online store purchases, SRGS PTY LTD will pay for the return freight for any product assessed as having a major failure.
The benefits to the customer given by this warranty are in addition to other rights and remedies of the Austra lian Consumer Law in relation to the goods or services to which this warranty relates.
This warranty is provided by SRGS PTY LTD, 6 Coulthards Avenue Strathpine QLD 4500, Australia. Phone: 1300 175 010.

WARNING
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document including all text under subheadings therein before set up or use of this product.

SAFETY INSTRUCTIONS

1. Do not roll the seat while loaded over rough surfaces, such as concrete seams. Use on flat, level, hard surface only.
2. Wear work gloves during assembly.
3. Use as intended only. Do not stand on seat or lean back on seat.
4. This product is not a toy. Do not allow children to play with or near this item.
5. Close drawer completely before sitting on or rolling Seat.
6. Keep bystanders out of the area during assembly.
7. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
8. Weight capacity and other product capabilities apply to properly and completely assembled product only.
9. Inspect before every use; do not use if parts are loose or damaged.
10. Do not exceed 120 kg weight capacity. Be aware of dynamic loading! Sudden load movement may briefly create excess load causing product failure.

SPECIFICATIONS

ASSEMBLY INSTRUCTIONS

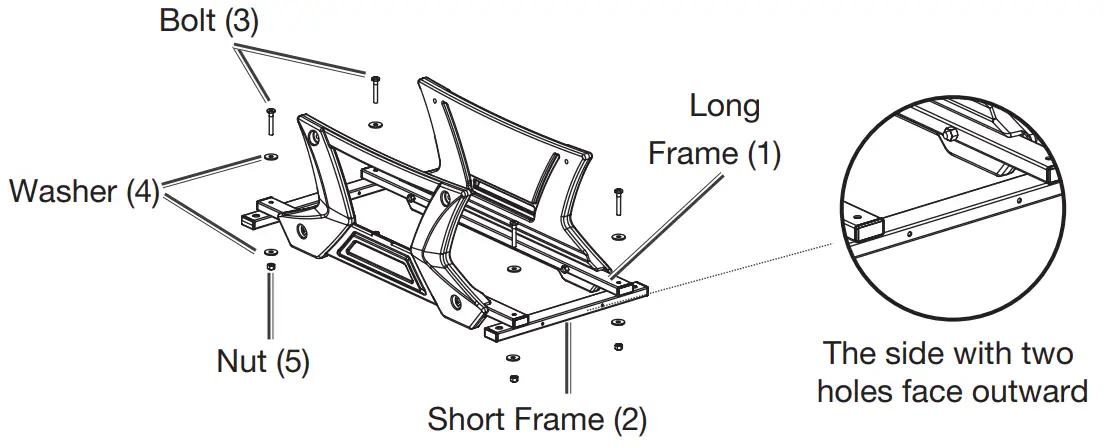

1. Use M6 x 38 Bolts, Washers, and Lock Nuts to connect Short Frame (2) to the Long Frame (1).
   Note: The narrower side panel of Short Frame (2) with two mounting holes should face outward.

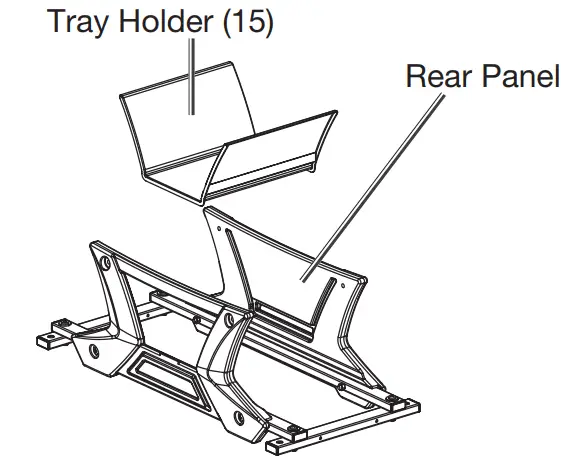

2. Place Tray Holder (15) in between Panels and insert into the designated grooves on each Panel.

3. Place Seat Base (16) onto Panels and use M6 x 25 Bolts and Washers to connect Panels to Seat Base.

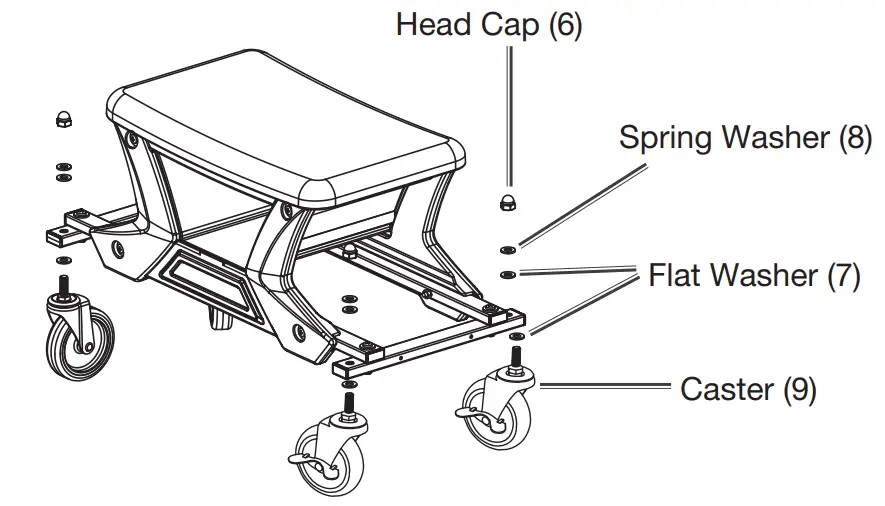

4. Use Head Caps (6), Flat Washers (7), and Spring Washers (8) to connect Casters (9) to the Frame.

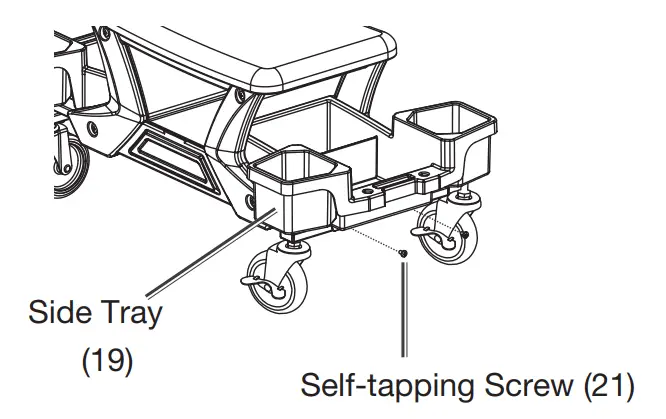

5. Slide Side Tray (19) onto the assembled Frame and secure using two Self-tapping Screws.

6. Repeat process for the other Side Tray.

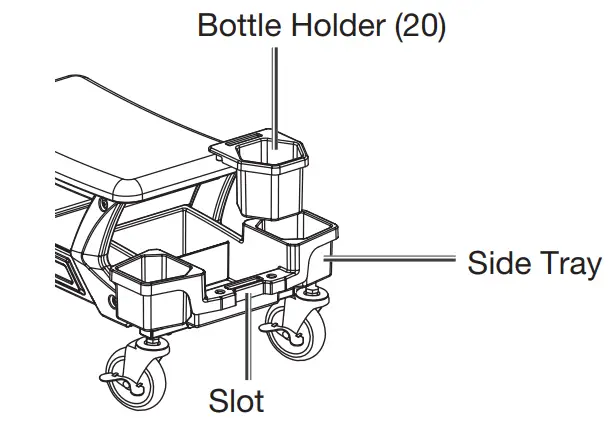

7. Attach Bottle Holder (20) by inserting into designated slot on the Side Tray.

8. Repeat process for the other Bottle Holder.
9. Attach Drawer (18) by sliding into the opening on Main Panel.

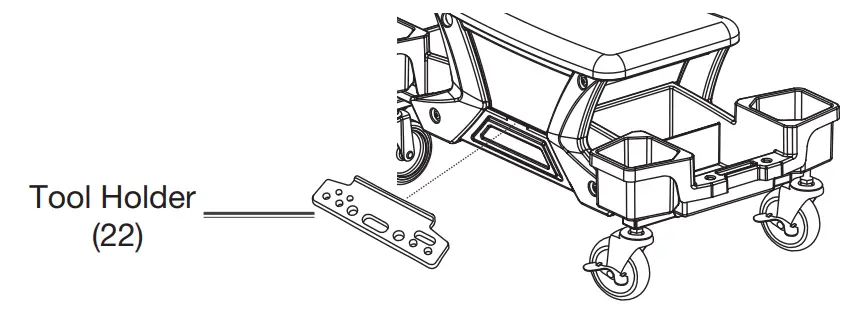

10. Attach Tool Holder (22) by securing it to the opening on Rear Panel.

11. Place Set Cushion (17) onto Seat Base.

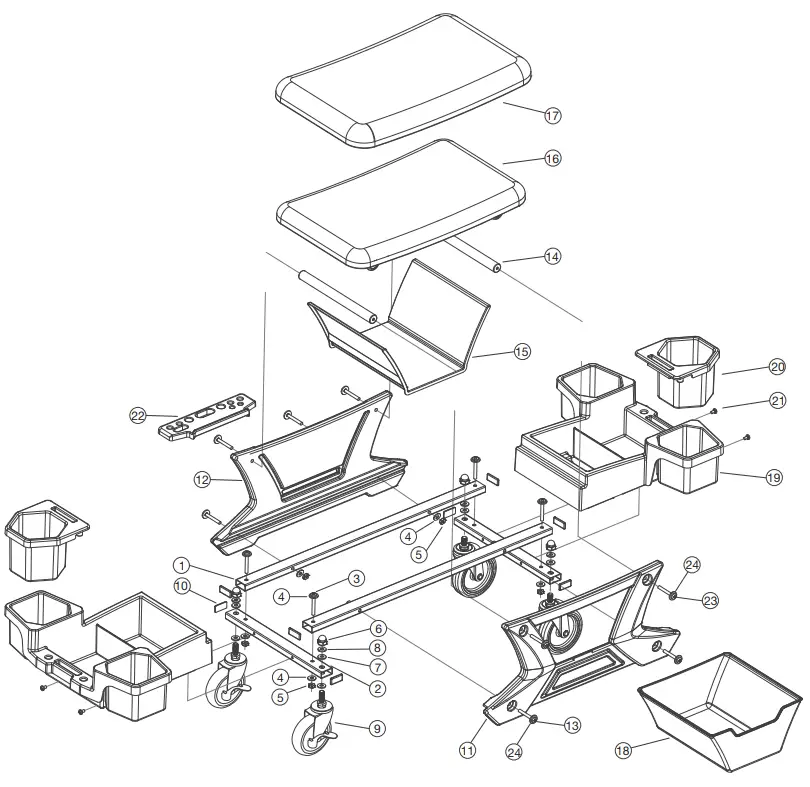

Parts List and Diagram

Manufactured & packaged for SRGS PTY LTD ABN 23 113 230 050
6 Coulthards Avenue Strathpine QLD 4500, Australia
