Paul Neuhaus 16429 Led Ceiling Light Instruction Manual

Paul Neuhaus 16429 Led Ceiling Light Instruction Manual

Paul-Neuhaus-LOGO

Paul Neuhaus 16429 LED Ceiling Light

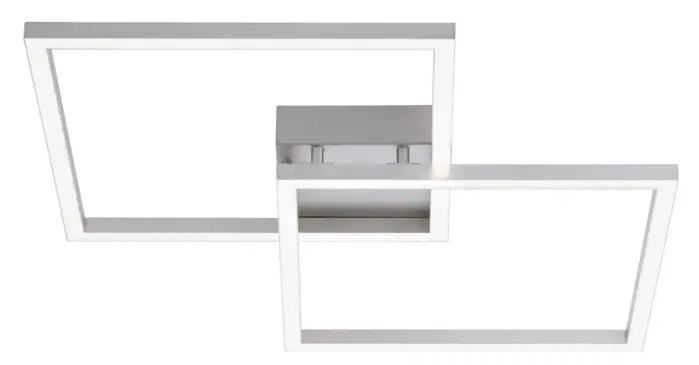

Paul-Neuhaus-16429-LED-Ceiling-Light-PRODUCT

This product contains light sources of energy efficiency class <E>.

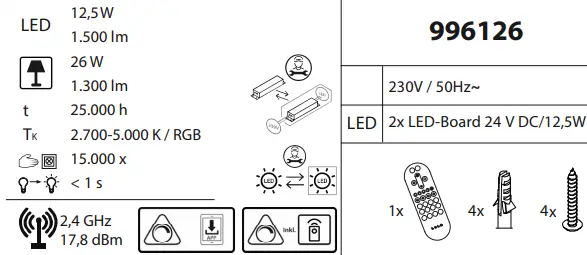

DIMENSIONS

Paul-Neuhaus-16429-LED-Ceiling-Light-FIG-1

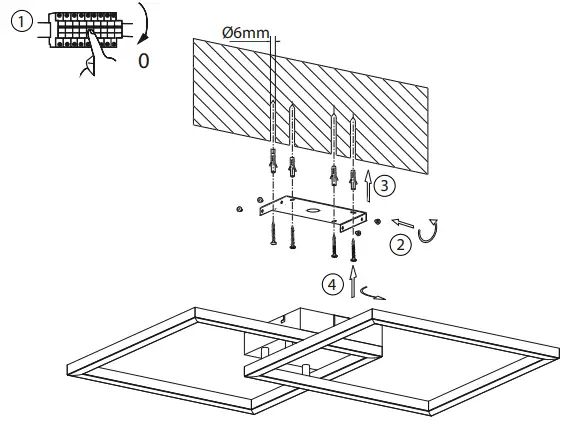

INSTRUCTIONS

Paul-Neuhaus-16429-LED-Ceiling-Light-FIG-2Paul-Neuhaus-16429-LED-Ceiling-Light-FIG-3Paul-Neuhaus-16429-LED-Ceiling-Light-FIG-6

Operation of the light via wall switch

Paul-Neuhaus-16429-LED-Ceiling-Light-FIG-4The lamp is with memory function. If the lamp is switched off and on again via wall switch (> 5 sec.), the lamp lights up in the last chosen mode. This only applies to static colors and not to color change programs.

Operation of the light via MEDION Life +App

  1. Download the free MEDION Life + app.Paul-Neuhaus-16429-LED-Ceiling-Light-FIG-5
  2. Register or log in to the MEDION Life + app. The chosen password should have 6-20 signs, include capital letters, numbers and special signs.
  3. Put the light in teach-in mode by switching the light off and on 3 times. The light starts flashing and can be added to the MEDION Life + app.Paul-Neuhaus-16429-LED-Ceiling-Light-FIG-7

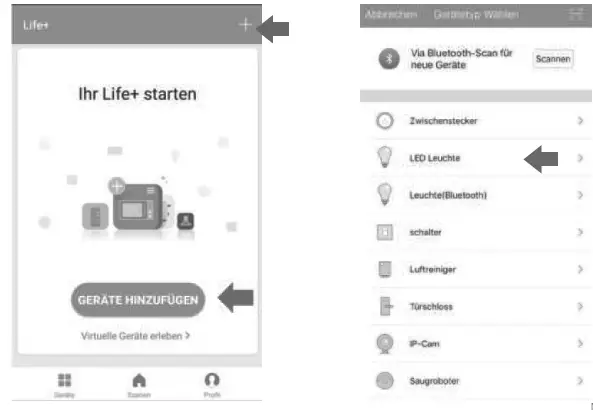

  4. When logged in, you can integrate your light in the app: click”+” in the upper right corner or on the button “Add device”. Select the desired device.Paul-Neuhaus-16429-LED-Ceiling-Light-FIG-8

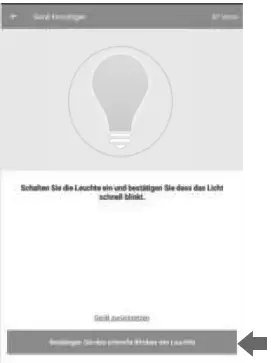

  5. A new window opens. Confirm that your light is flashing. Then follow the further instructions of the app.Paul-Neuhaus-16429-LED-Ceiling-Light-FIG-9

For more information on Smart Home and how to integrate your lights into other systems, such as Amazon Echo (ALEXA) please visit the following website: www.paul-neuhaus.de/de/technik-funktion/faq/

LeuchtenDirekt GmbH
Olakenweg 36 · D-59457 Werl
+49(0)2922 9721 9290
[email protected]
www.leuchtendirekt.de
