ZSS-SP3 Solar Panel
Instruction Manual

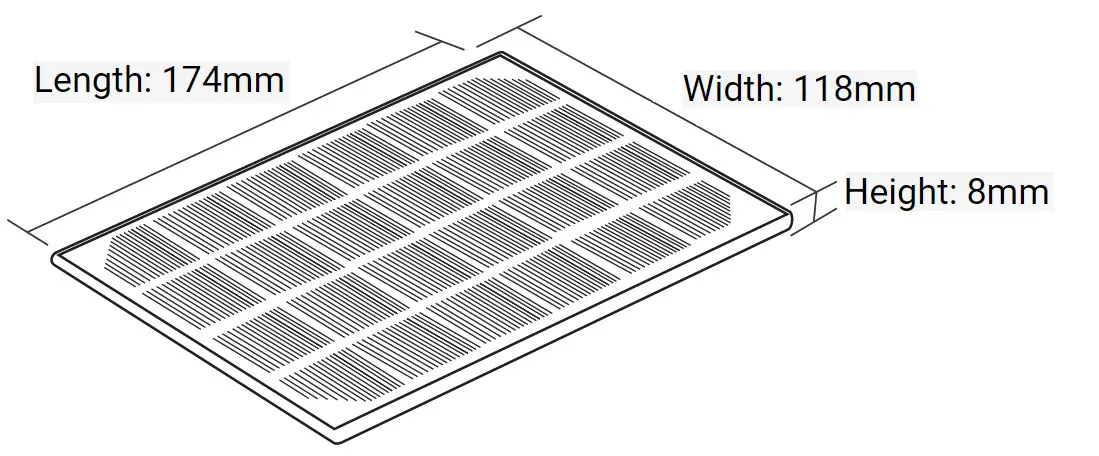

Dimensions

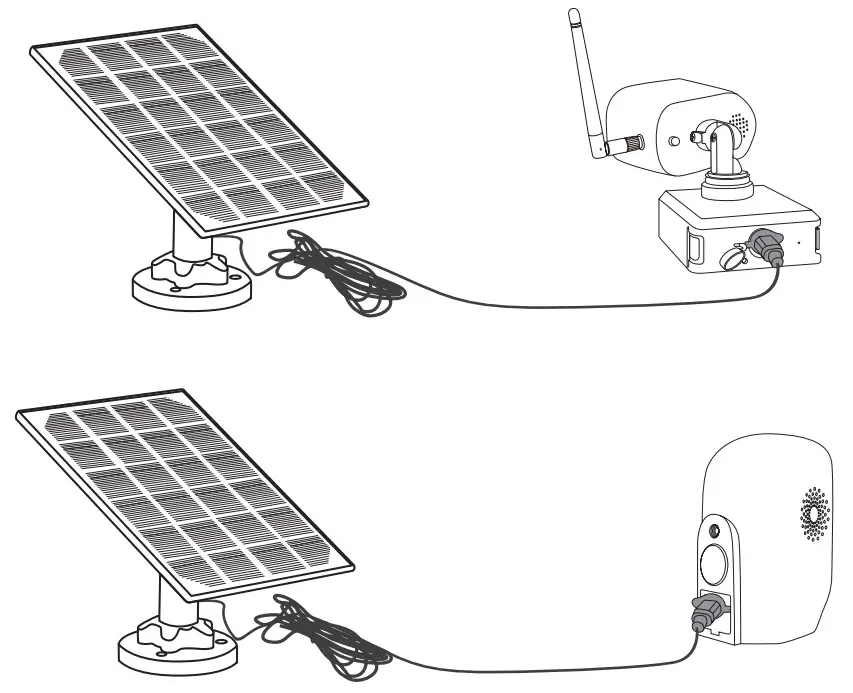

Product connection
Components included
 |  |  |  |
| Solar panel | mounting bracket | Mounting screws | Notice |
Installing the product
- Please choose a location with the most sunshine throughout the year for your solar panel.

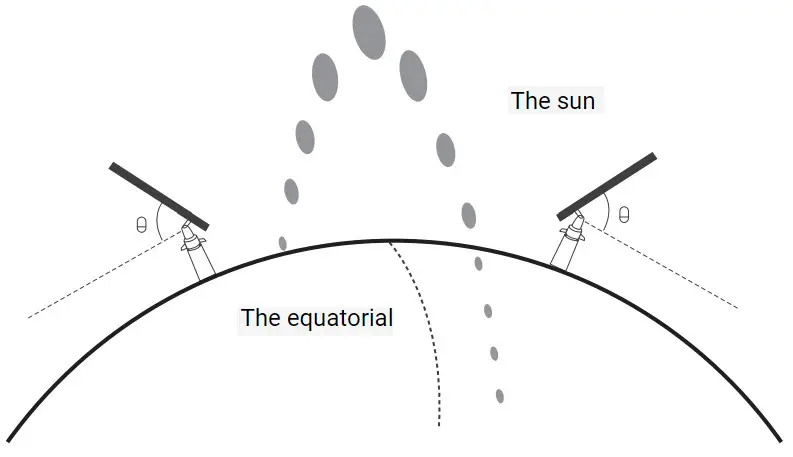

- The solar panel only needs a few hours of direct sunlight to provide enough power to your camera every day. The energy capacity that solar panels can generate is affected by factors such as environmental conditions weather, seasonal changes, geographical location, etc. Adjust correctly the angle of the solar panel according to seasonal changes if necessary.

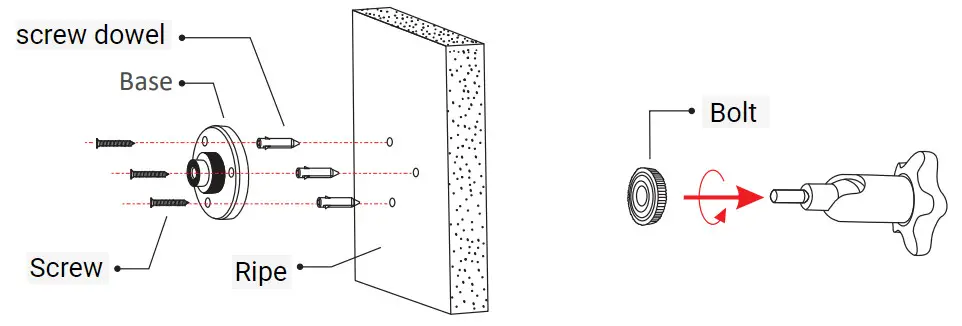

Secure the bracket in place with screws.

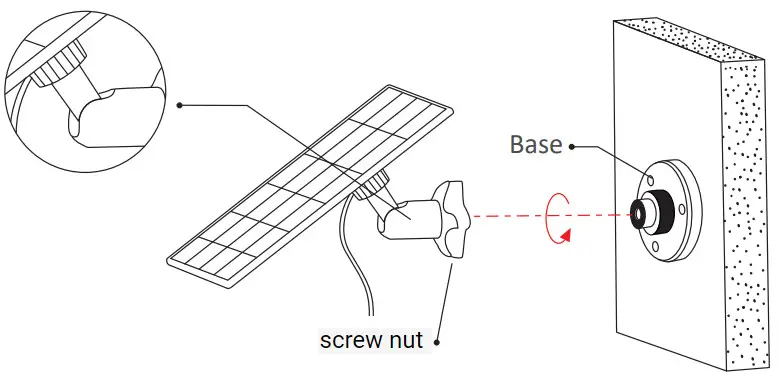

Install the solar panel on the bracket and secure it with a lock nut.

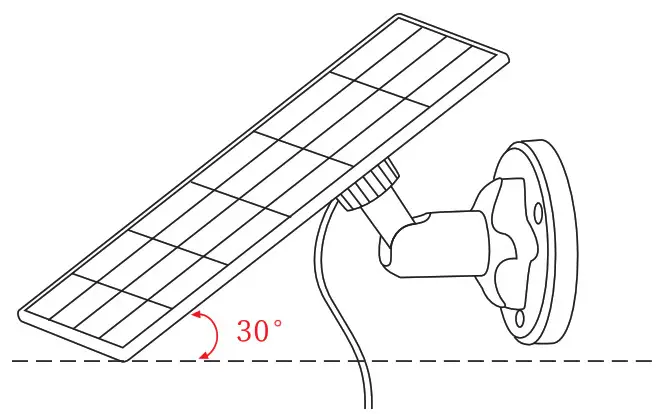

Loosen the adjustment control key on the bracket, adjust the angle of the solar panel so that it can receive direct sunlight, then tighten the adjustment control key to ensure that the angle of the solar panel does not not change.
Important notes in transport and the environment
- Storage conditions: room temperature, humidity 5_ 60%.
- Use it in an uncovered outdoor environment under the sun.
- Working environment temperature: -20°C ~ 60°C.
- Solar panel dustproof and waterproof grade: IP66.
- This product should not be in contact with strong corrosive substances.
- Avoid hard objects scratching or hitting the surface of the solar panels during use.
- The solar panel cannot withstand bending stresses during transportation and assembly.
