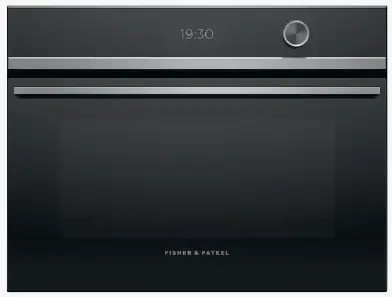

QUICK REFERENCE GUIDE > OM24NDTDX1
Convection Speed Oven, 24″,
22 Function
Series 9 | Contemporary
Stainless Steel
The speed of microwave cooking with the versatility of convection oven technology in a compact companion model, for perfect pairing.
- Generous 1.7 cu ft capacity, with four shelf positions
- A Wired Temperature Sensor precisely monitors cooking in real time
- Guided touchscreen cooking makes it simple to navigate cooking processes
- Wi-Fi enabled and works with the Samarths™ app for remote control and notifications
DIMENSIONS
| Height | 18″ |
| Width | 23 7/16″ |
| Depth | 22 1/4″ |
FEATURES & BENEFITS
COOKING FLEXIBILITY
Choose from 22 functions, including four microwave-only functions, 14 traditional oven functions, and four combination functions, giving you the best microwave and convection oven technology.
COOK WITH CONFIDENCE
The 5” screen provides an intuitive guided cooking experience that helps to deliver perfect results, whether you’ve been cooking all your life or are just starting out.
SIZED TO SUIT
A compact 24″ width means this microwave oven can be placed almost anywhere – all companion products can be installed at a convenient height to suit your kitchen design and preference.
COMPLEMENTARY DESIGN
Finished in stylish stainless steel with a polished metal trim, our Contemporary style ovens help you to create a coherent, distinctive aesthetic in your kitchen.
MULTI-FUNCTION FLEXIBILITY
Each function has been tailored and tested to ensure perfect defrosting, heating and cooking. A Wireless Temperature Sensor precisely monitors cooking in real time, giving you complete control.
SAFE AND SOUND
The Cool Touch door is safe to touch from the outside, protecting your hands and the surrounding cabinetry.
SPECIFICATIONS
| Accessories | |
| Chromed shelf runners | • |
| Glass tray | 1 |
| Step down wire shelf | 1 |
| Wire shelf | 1 |
| Wired temperature sensor | 1 |
| Capacity | |
| Shelf positions | 4 |
| Total capacity | 1.7cu ft |
| Usable capacity | 1.3cu ft |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Removable oven door | • |
| Removable shelf runners | • |
| Controls | |
| Adjustable audio and display | • |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Delay start | • |
| Electronic clock | • |
| Electronic oven control | • |
| Food probe | • |
| Guided cooking by food type | • |
| Halogen lights | • |
| Intuitive touchscreen display | • |
| Multi-language display | UK English, US English, |
| Sabbath mode | • |
| Soft close doors | • |
| True convection oven | • |
| Turned stainless steel dials | • |
| Wi-Fi connectivity | • |
| Functions | |
| Aero Bake | • |
| Aero Broil | • |
| Air fry | • |
| Bake | • |
| Broil | • |
| Defrost | • |
| Dehydrate | • |
| Maxi Broil | • |
| Number of functions | 22 |
| Pastry Bake | • |
| Pizza bake | • |
| Popcorn | • |
| Rapid proof | • |
| Roast | • |
| Slow cook | • |
| True Aero | • |
| Vent bake | • |
| Warm | • |
| Performance | |
| ACTIVE Vent™ system | • |
| Aero Tech™ technology | • |
| Automatic rapid pre-heat | • |
| Microwave by levels | • |
| Microwave power | 900W |
| Microwave power levels | 6 |
| Temperature range | 95 °F – 445 °F |
| Power requirements | |
| Amperage | 25A |
| Supply frequency | 50Hz |
| Supply voltage | 208-240V |
| Product dimensions | |
| Depth | 22 1/4″ |
| Height | 18″ |
| Width | 23 7/16″ |
| Safety | |
| ADA compliant | • |
| Balanced oven door | • |
| Control panel key lock | • |
| Cool Touch door | • |
| Non-tip shelves | • |
| Safety thermostat | • |
| Warranty | |
| Parts and labor | 2 years |
| SKU | 82674 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
Service & WarrantyData Sheet Convection Speed OvenPreliminary Specification Guide Speed Oven
